InLine® D-Sub 9 terminal block, plug, screw terminal, top-hat rail content_copy

Time savings during installation: Quick wiring via screw terminals for 14–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to mounting thread: The D-Sub-9 connector is equipped with a mounting thread (UNC #4-40) for connector locking and enables secure screw connection with matching sockets.
Versatile use in industry: Ideal for control cabinet construction, machine control, automation, and service and diagnostic environments.

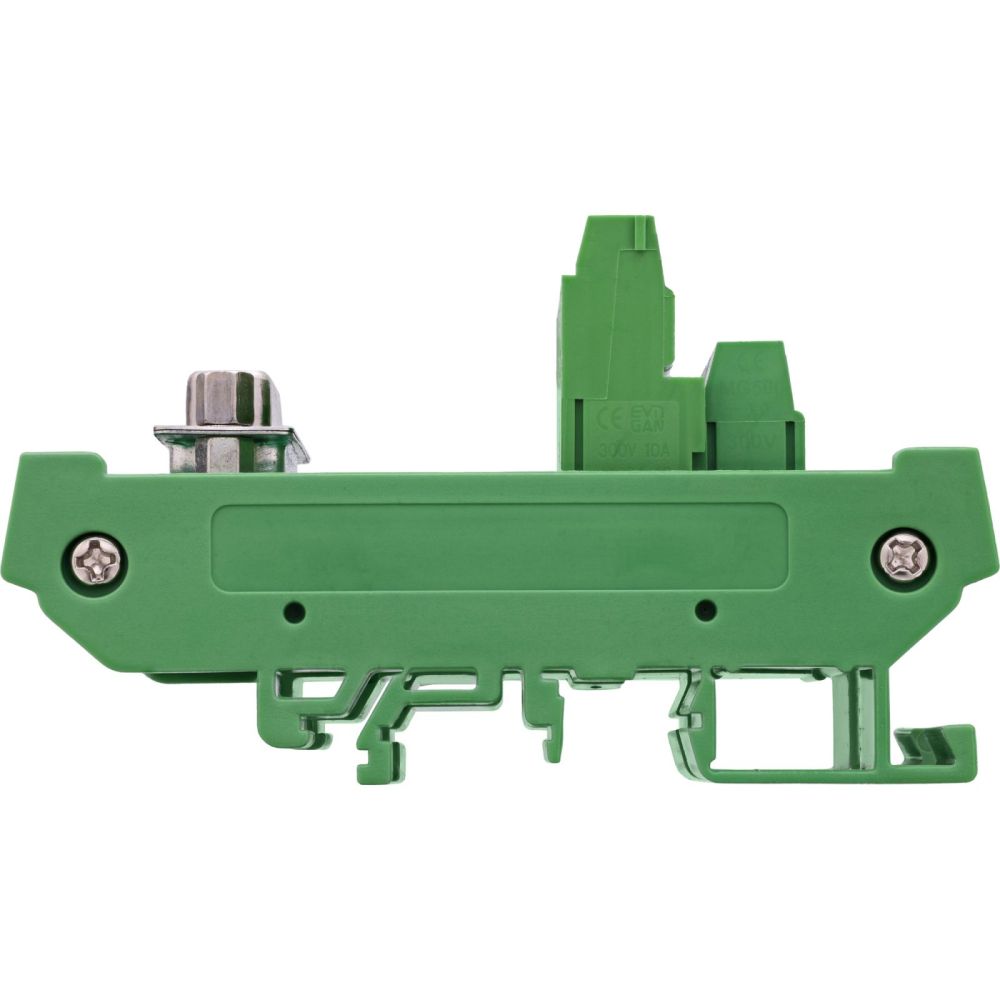

DIN rail mounting for structured installations: The integrated DIN rail clip allows direct mounting in the control cabinet – space-saving and compliant with standards.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission in professional applications.

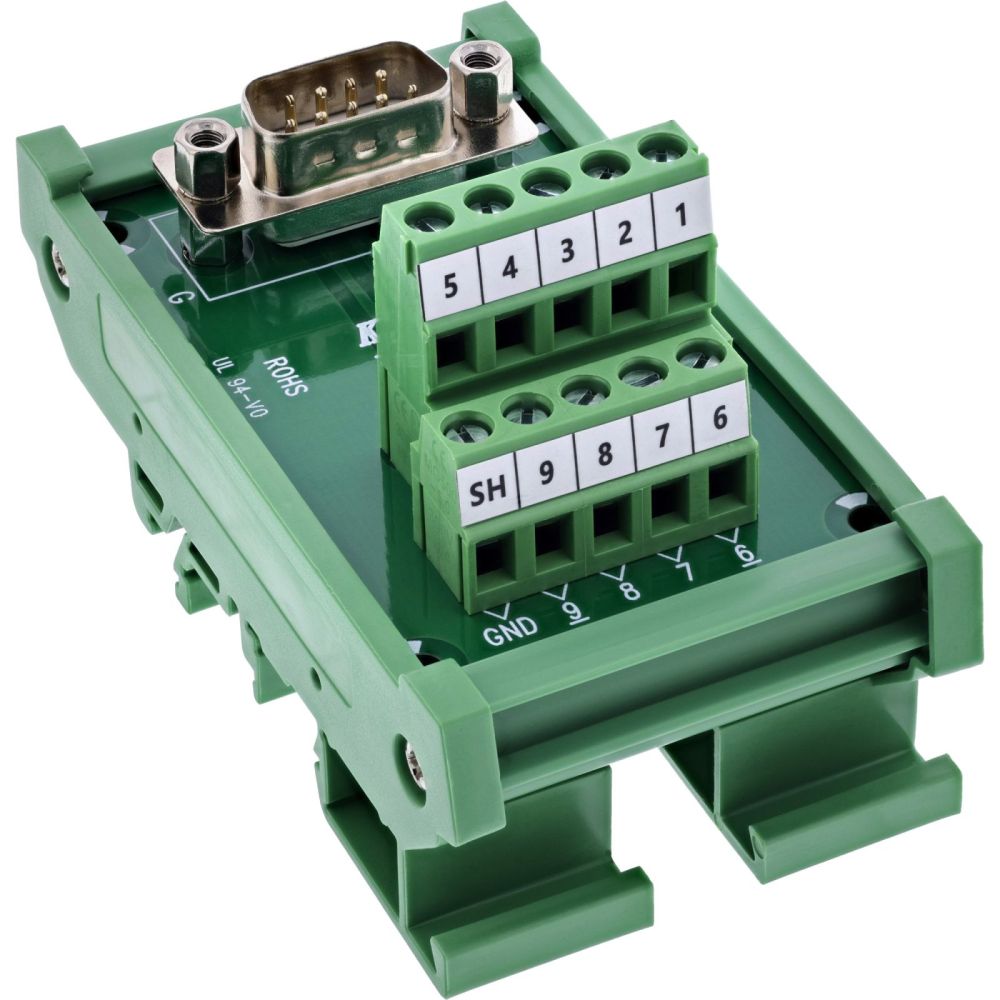

The InLine® D‑Sub 9 terminal block with connector was specially developed for structured installations in control cabinets or on DIN DIN rails. The side-accessible screw terminals with pressure plate mounts enable quick wiring of single wires in the 14–26 AWG range, without any soldering. Assembly is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.

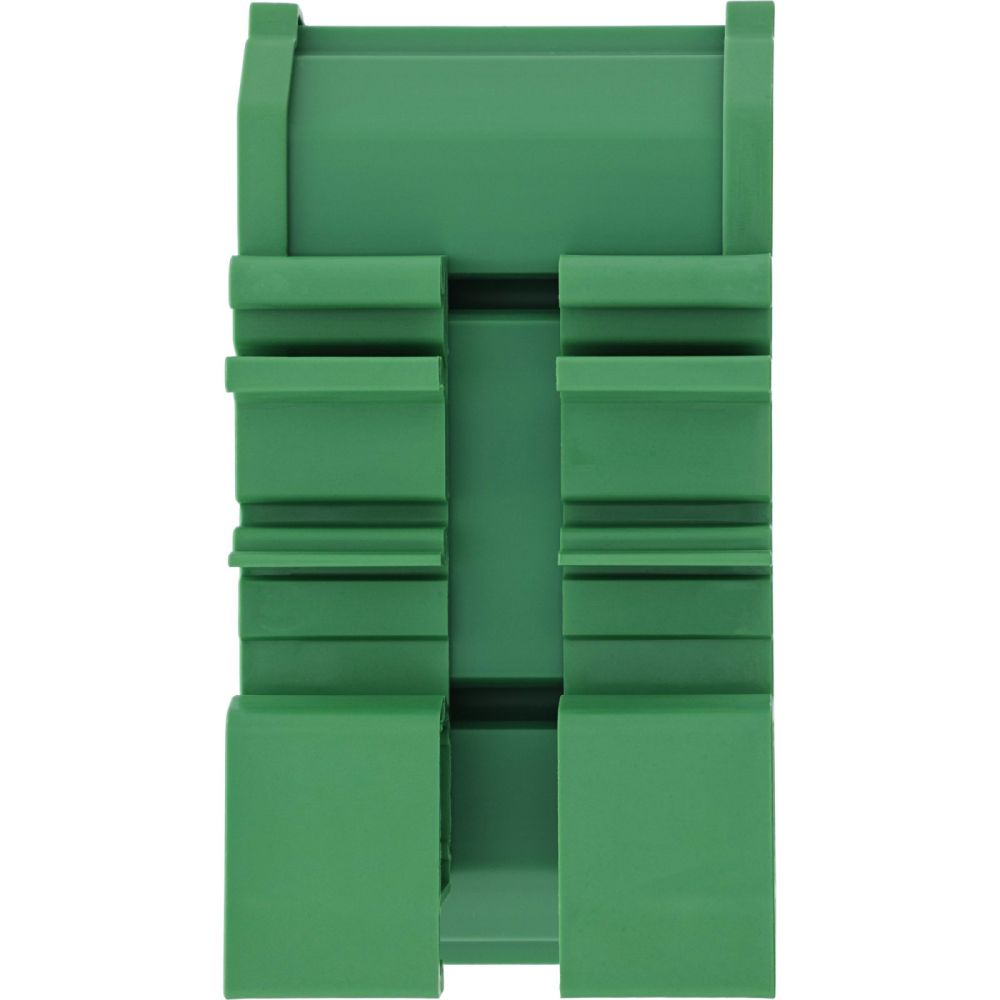

Thanks to the mounting thread (UNC #4-40), the plug can be mechanically secured to matching sockets. The housing design with integrated DIN rail clip allows quick mounting on DIN rails. The EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.

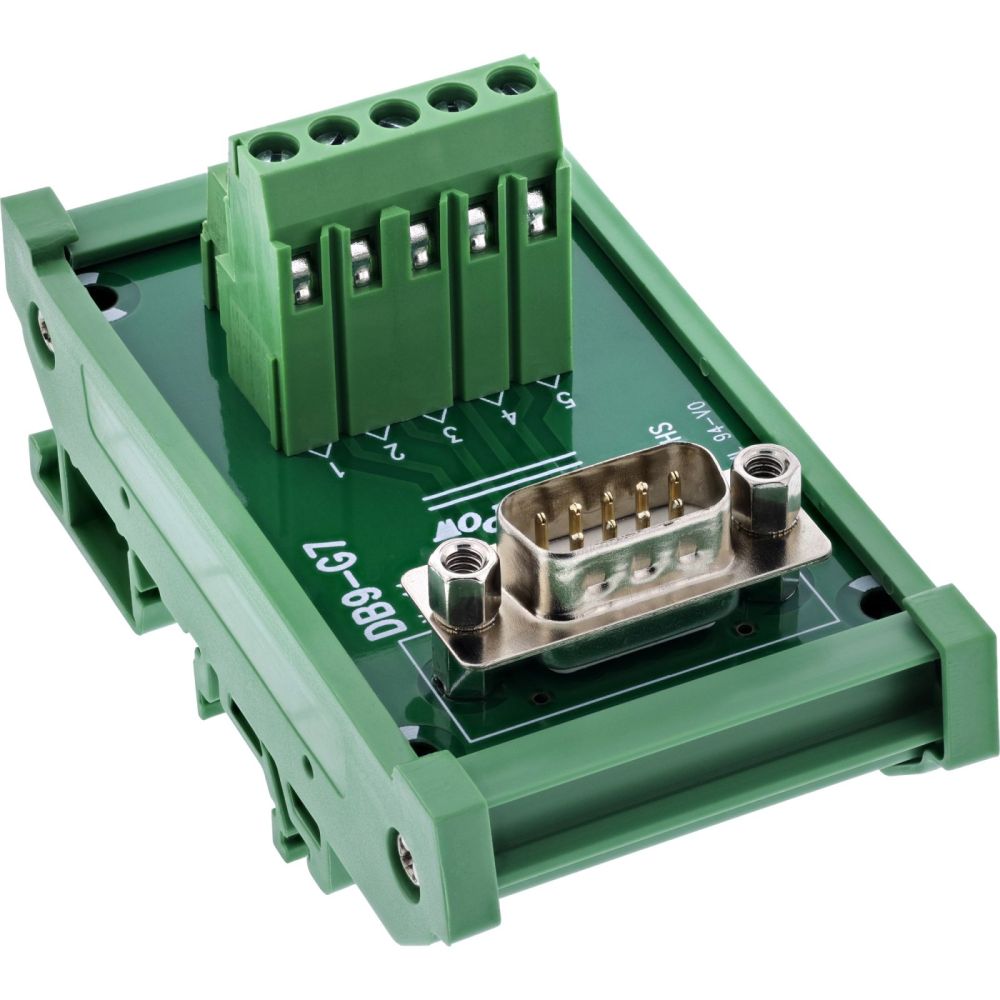

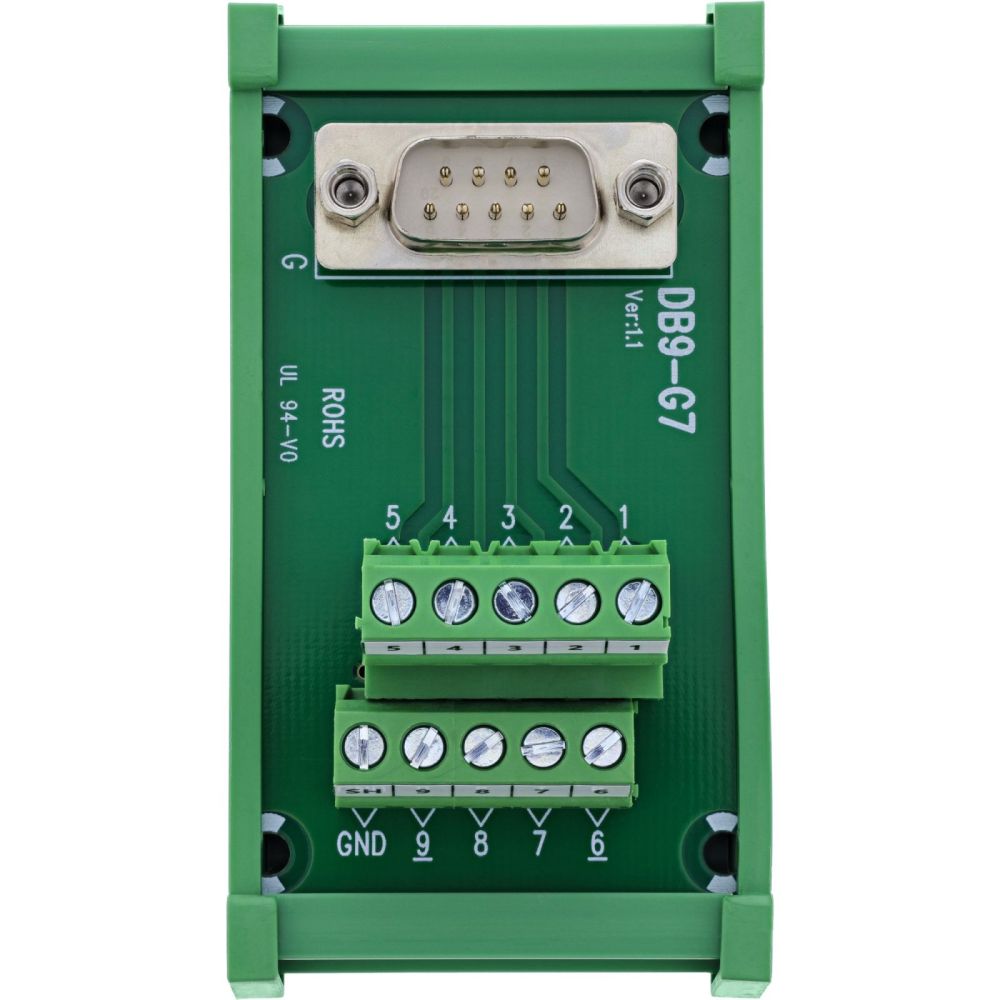

D-Sub 9 connector: Breakout design, with mounting thread for connector locking (UNC #4-40)

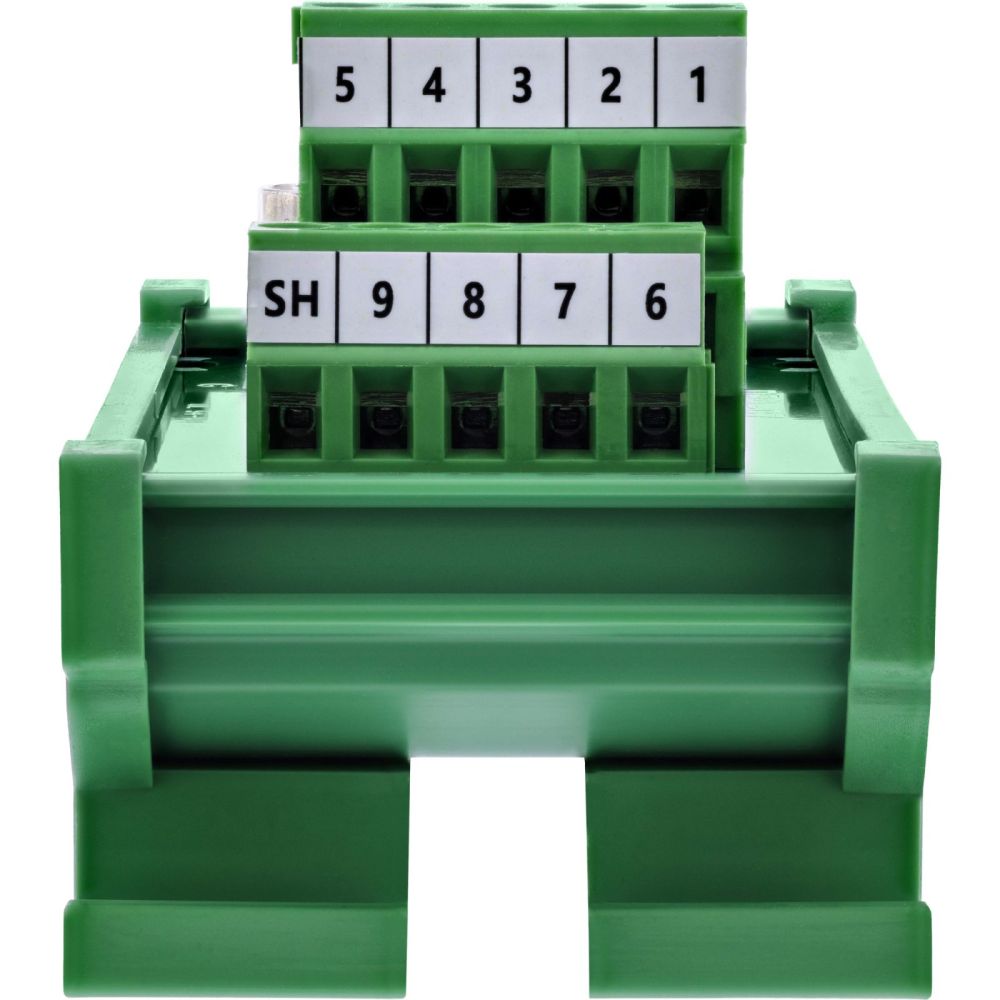

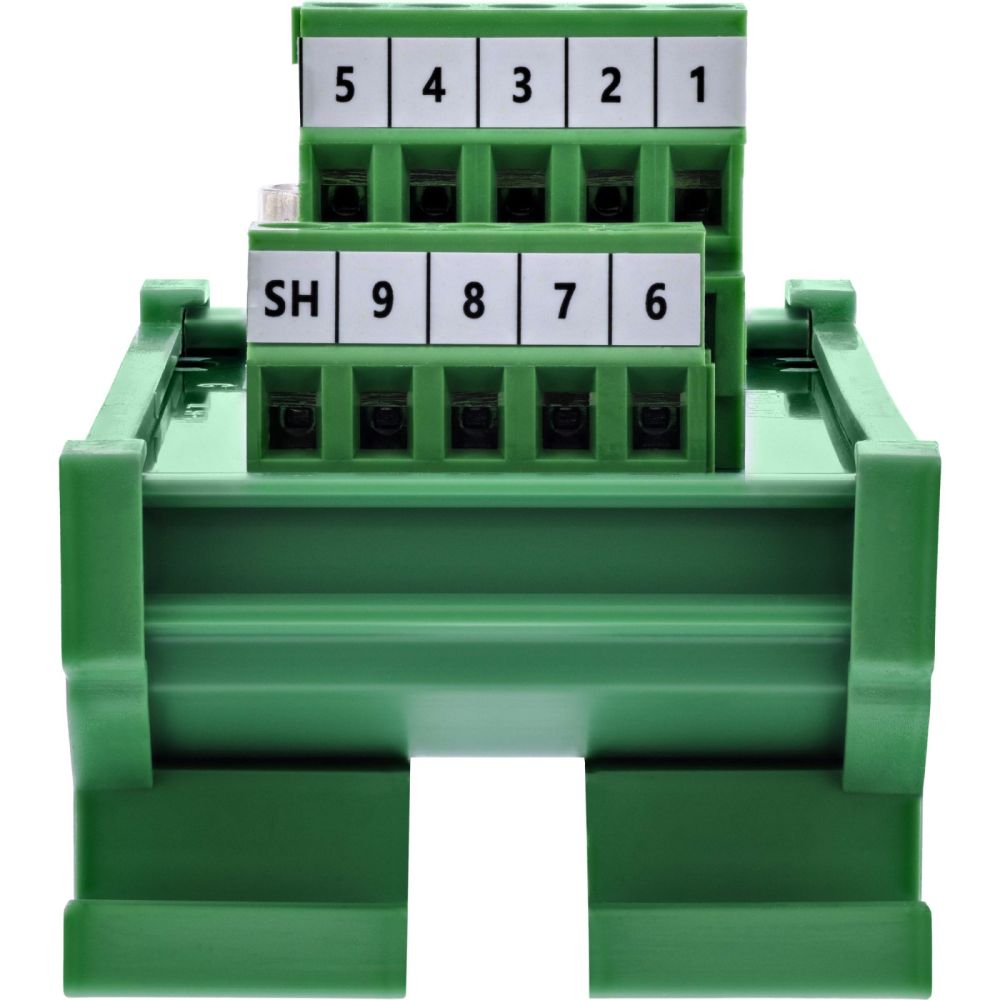

Connection technology: Screw terminal with pressure plate
Connection range: 14–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 46 × 34.8 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Male/Female
Product colour	Green
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	125 mm
Package height	55 mm
Package weight	121 g
Package volume	100 cm³
Package type	Polybag
Technical data
Article length	8.70cm
Length packaging	0.125m
Type	For top-hat rail
Height packaging	0.055m
Packaging volume	0.0001m³
Side A	D-Sub 9 plug
Net weight	0.076kg
Weight	0.121kg
Width packaging	0.095m
Article width	4.60cm
Article height	5.10cm
Weight & dimensions
Dimensions (WxDxH)	46 x 87 x 51 mm
Weight	76 g
Width	46 mm
Depth	87 mm
Height	51 mm

---
