InLine® D-Sub 9 terminal block, socket, screw terminal, top-hat rail content_copy

Time savings during installation: Quick wiring via screw terminals for 14–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to mounting thread: The D-Sub-9 receptacle is equipped with a mounting thread (UNC #4-40) for plug locking and ensures a secure connection to matching plugs.
Versatile use in industry: Ideal for control cabinet construction, machine control, automation, and service and diagnostic environments.
DIN rail mounting for structured installations: The integrated DIN rail clip allows direct mounting in the control cabinet – space-saving and compliant with standards.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission in professional applications.

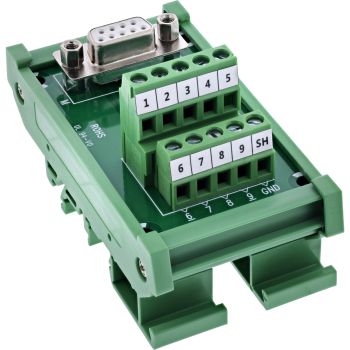

The InLine® D-Sub 9 terminal block with female connector has been specially developed for structured installations in control cabinets or on DIN top-hat rails. The side-accessible screw terminals with pressure plate mounting enable quick wiring of single wires in the 14–26 AWG range, without any soldering. Assembly is tool-assisted with a flat-head screwdriver ≤ 2.5 mm.
Thanks to the mounting thread (UNC #4-40), the socket can be mechanically secured with matching connectors. The housing design with integrated DIN rail clip allows quick mounting on DIN rails. The EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces.
D-Sub 9 female connector: Breakout design, with mounting thread for connector locking (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 14–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10 °C to +70 °C
Insulation layer: EVA insulation on underside
Mounting: Housing for direct mounting on DIN rail
Dimensions: approx. 87 × 46 × 34.8 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Female/Female
Product colour	Green
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	95 mm
Package depth	120 mm
Package height	55 mm
Package weight	122 g
Package volume	100 cm³
Package type	Polybag
Technical data
Article height	5.10cm
Width packaging	0.095m
Article width	4.60cm
Height packaging	0.055m
Net weight	0.077kg
Article length	8.70cm
Length packaging	0.120m
Type	For top-hat rail
Weight	0.122kg
Packaging volume	0.0001m³
Side A	D-Sub 9 socket
Weight & dimensions
Dimensions (WxDxH)	46 x 87 x 51 mm
Weight	77 g
Width	46 mm
Depth	87 mm
Height	51 mm

---
