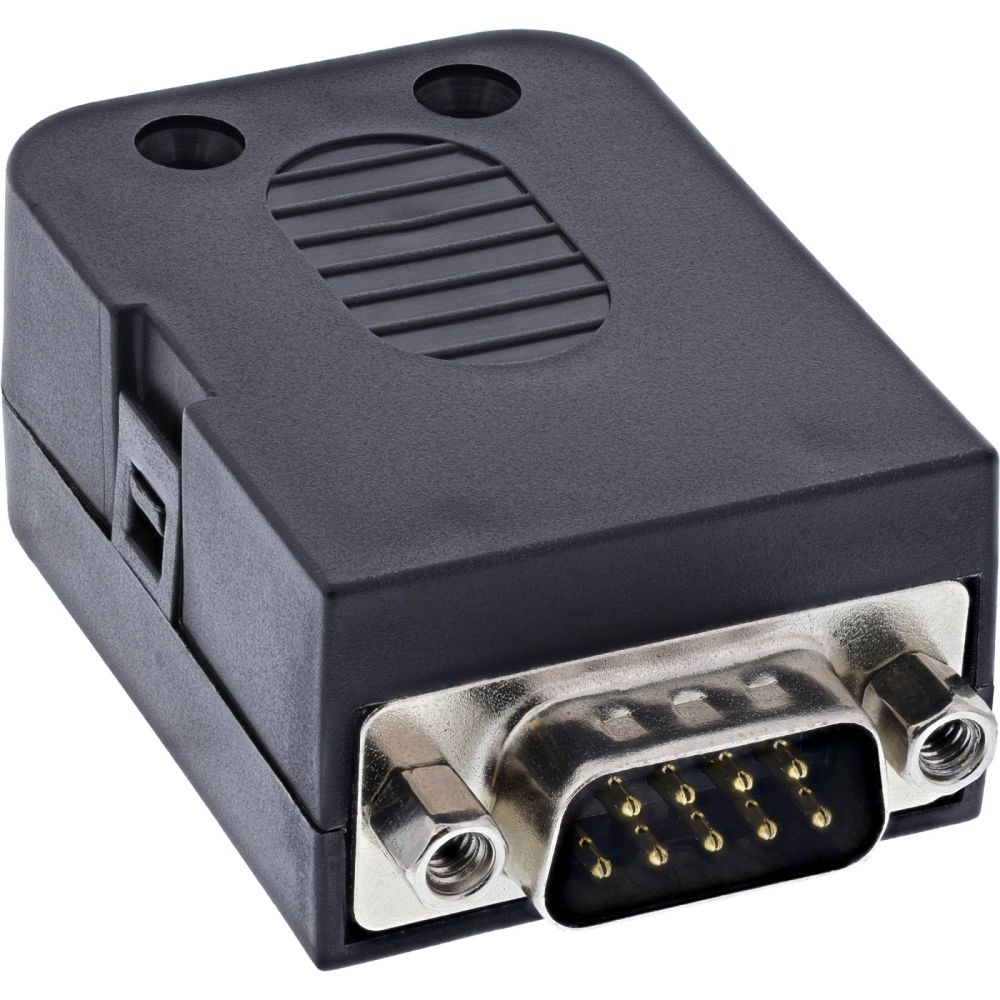

InLine® D-Sub 9 breakout terminal block, plug, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to mounting thread: The D-Sub-9 connector is equipped with a mounting thread (UNC #4-40) for connector locking and enables secure screw connection with matching sockets.
Versatile use in industry: Ideal for test benches, prototyping, commissioning, and mobile service and diagnostic applications.

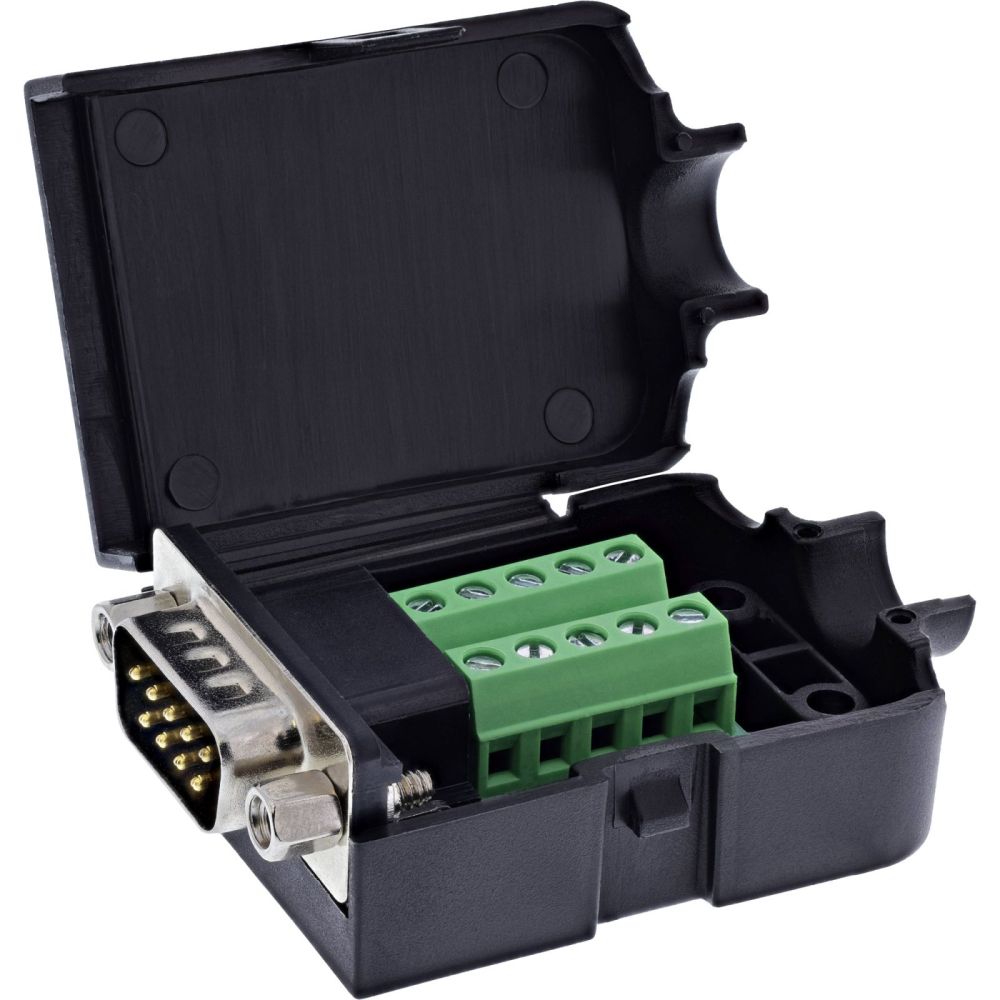

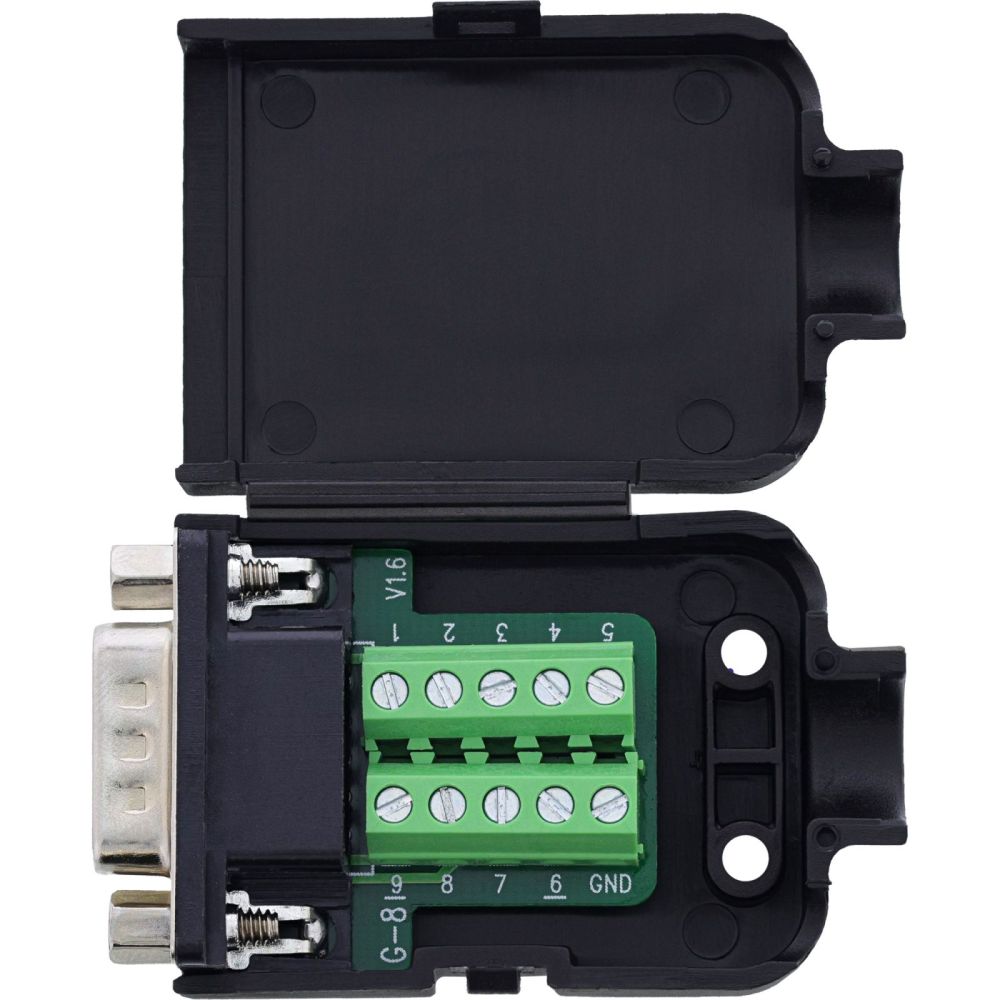

Breakout design with open design: Side-accessible screw terminals enable flexible, temporary signal wiring – without housing mounting.
High signal quality: An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission in professional use.
The InLine® D-Sub 9 breakout terminal block with connector is specially designed for use in test setups, control systems, or field commissioning. The open design with side screw terminals allows for quick wiring of individual wires in the range of 18–26 AWG – without soldering or housing mounting. Actuation is tool-assisted with a flat-blade screwdriver with a blade width ≤ 2.5 mm.
Thanks to the integrated mounting thread (UNC #4-40), the connector can be mechanically secured to matching sockets. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces. The robust, compact design is ideal for test stations, signal diagnostics, and temporary control solutions in mobile applications.
D-Sub 9 connector: Breakout design, with mounting thread for connector locking (UNC #4-40)
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 57.7 × 34.4 × 21 mm (L × W × H)

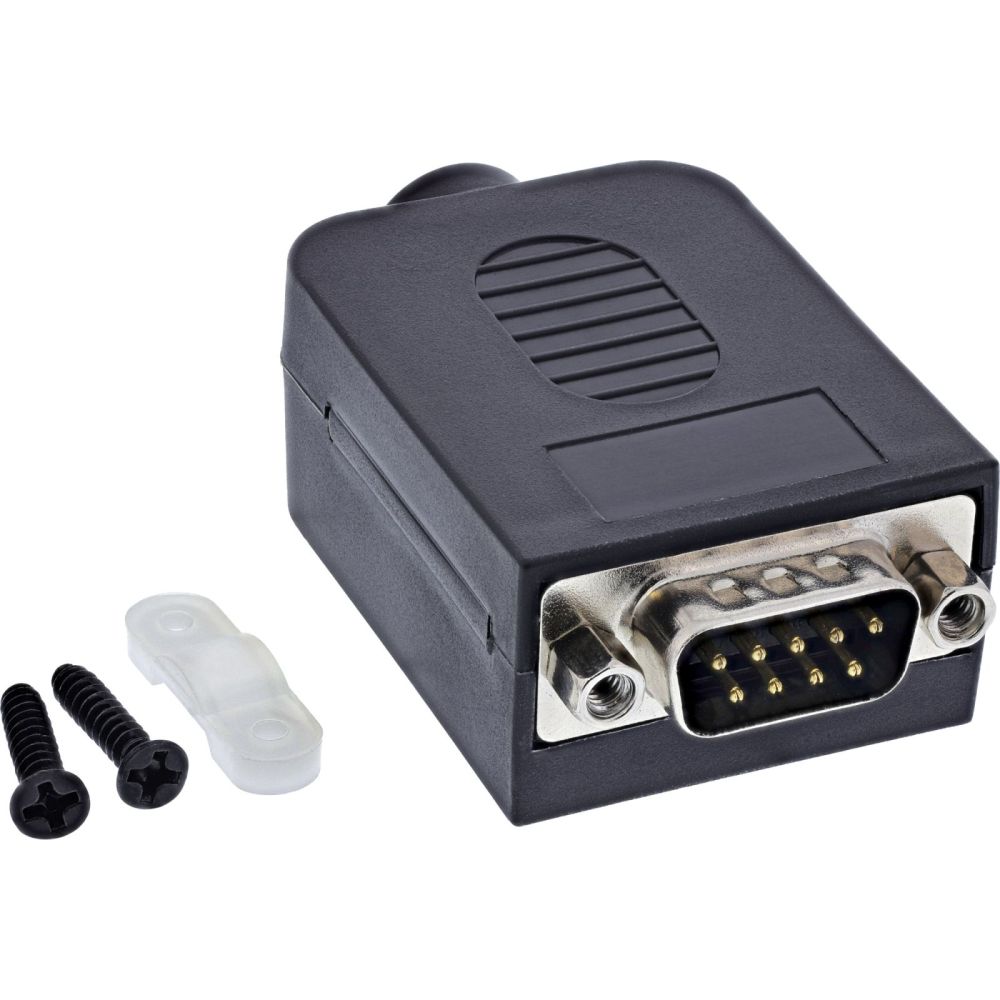

Accessories: 1× pressure plate, 2× screws

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Male/Female
Product colour	Black
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	20 mm
Package weight	28 g
Package volume	100 cm³

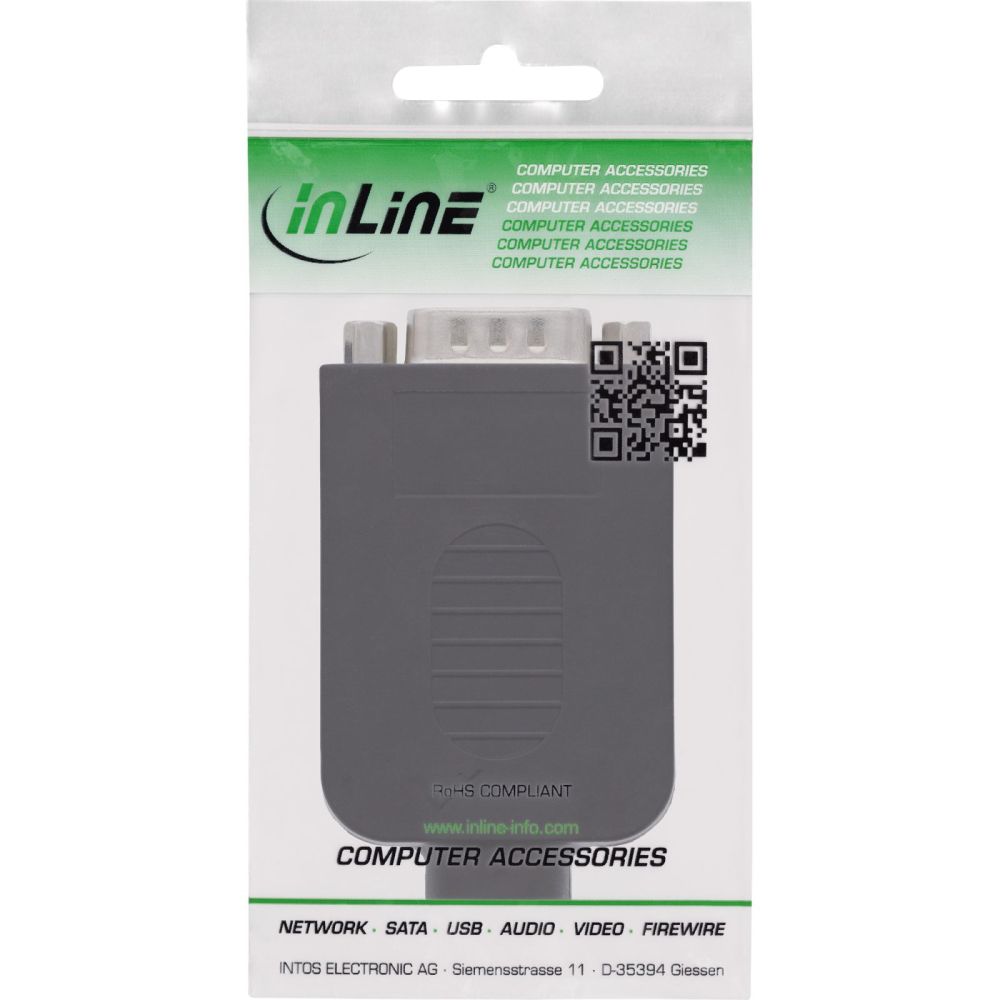

Package type	Polybag
Technical data
Length packaging	0.165m
Variant	Without knurled screw
Width packaging	0.100m
Article width	3.40cm
Height packaging	0.020m
Article length	5.70cm
Packaging volume	0.0001m³
Side A	D-Sub 9 plug
Article height	2.10cm
Net weight	0.025kg
Weight	0.028kg
Weight & dimensions
Dimensions (WxDxH)	34 x 57 x 21 mm
Weight	25 g
Width	34 mm
Depth	57 mm
Height	21 mm

---
