InLine® D-Sub 9 breakout terminal block, socket, screw terminal, knurled screw content_copy

Time savings during installation: Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to knurled screw: The D-Sub-9 socket is equipped with knurled screws and ensures secure, tool-free attachment to matching connectors.
Versatile use in industry: Suitable for control technology, mechanical engineering, test setups, diagnostic purposes, and training systems.

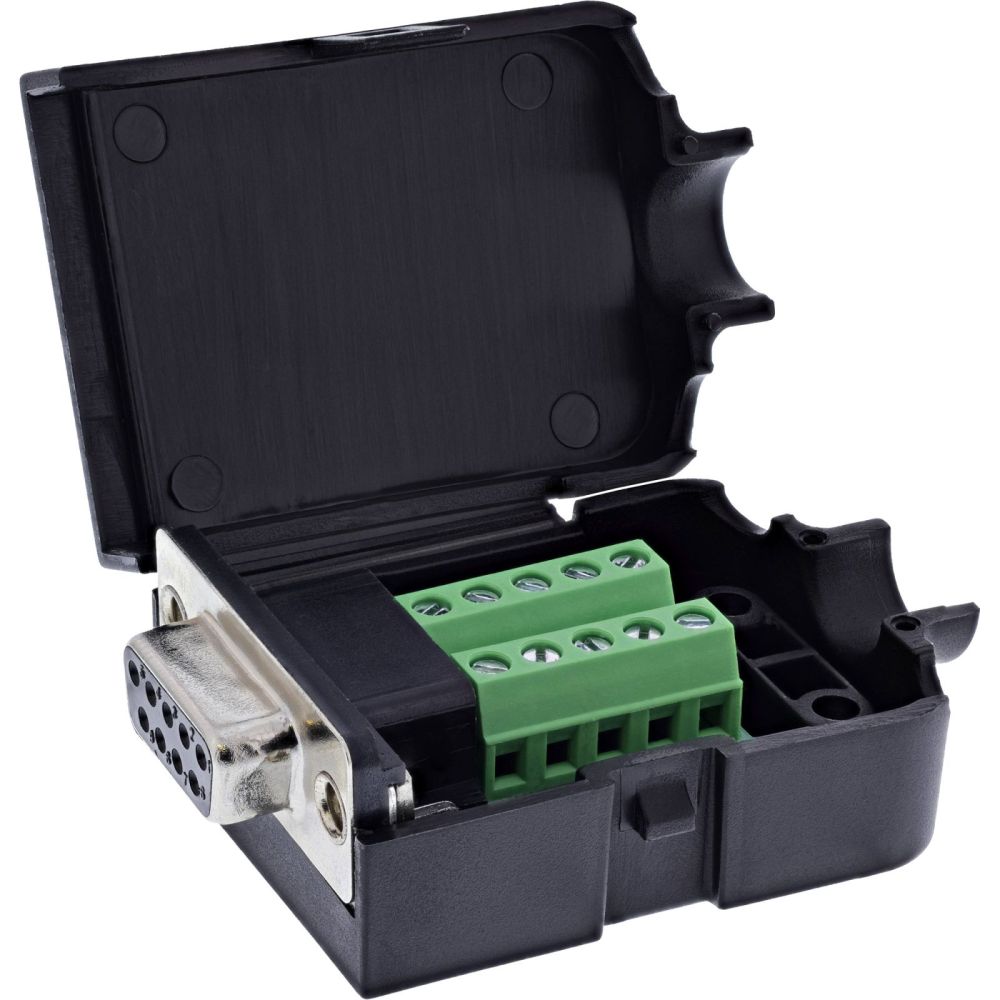

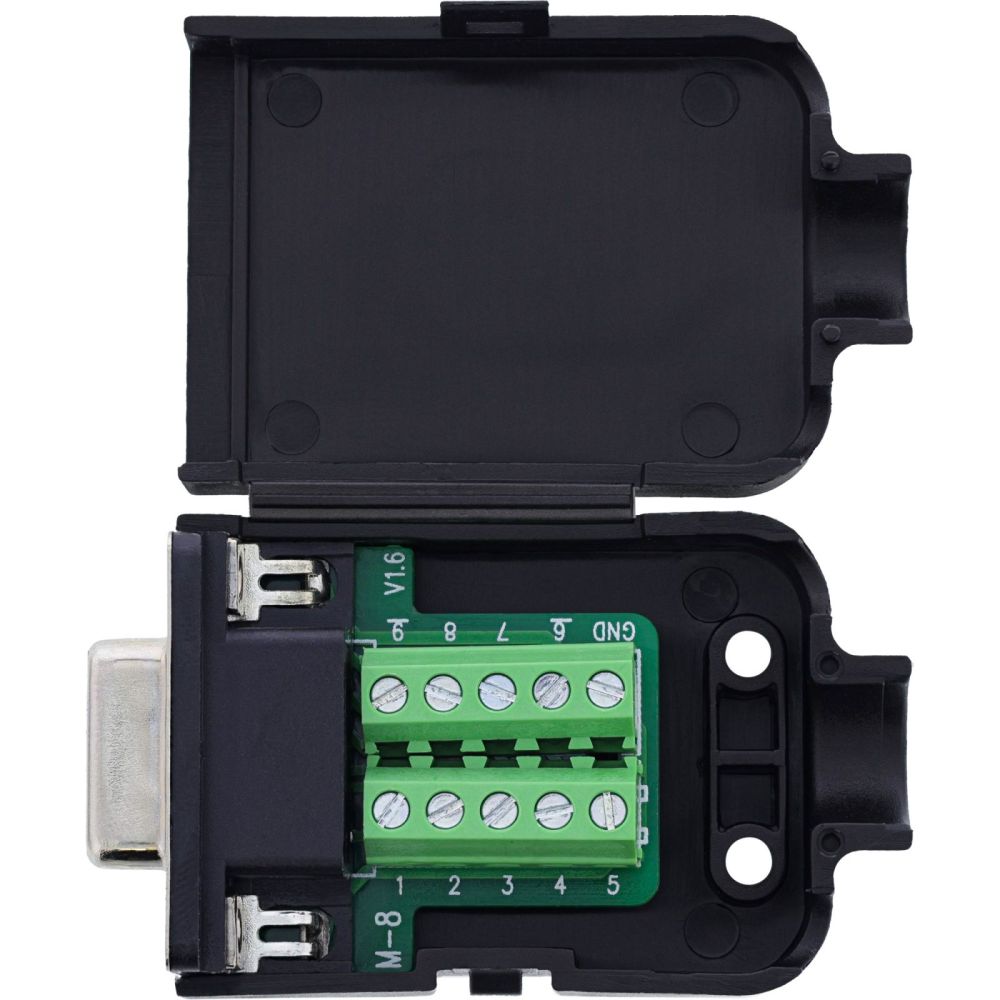

Breakout design with pressure plate: Individual wires can be connected quickly and flexibly to the screw terminals on the rear – ideal for laboratory or field use.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission – even in continuous industrial applications
The InLine® D-Sub 9 breakout terminal block with female connector is ideal for use in test benches, laboratory environments, prototyping applications, or the commissioning of machine components. Individual wires in the 18–26 AWG range can be securely connected via rear screw terminals with pressure plate technology. Wiring is tool-assisted using a flat-blade screwdriver with a blade width ≤ 2.5 mm.
The socket is equipped with knurled screws (#4-40 UNC) that ensure secure, tool-free attachment to matching plugs. An EVA insulating layer provides protection when mounting on conductive surfaces. Thanks to clear terminal labeling and a robust design, the breakout adapter is ideal for test stations, control projects, and mobile service setups.

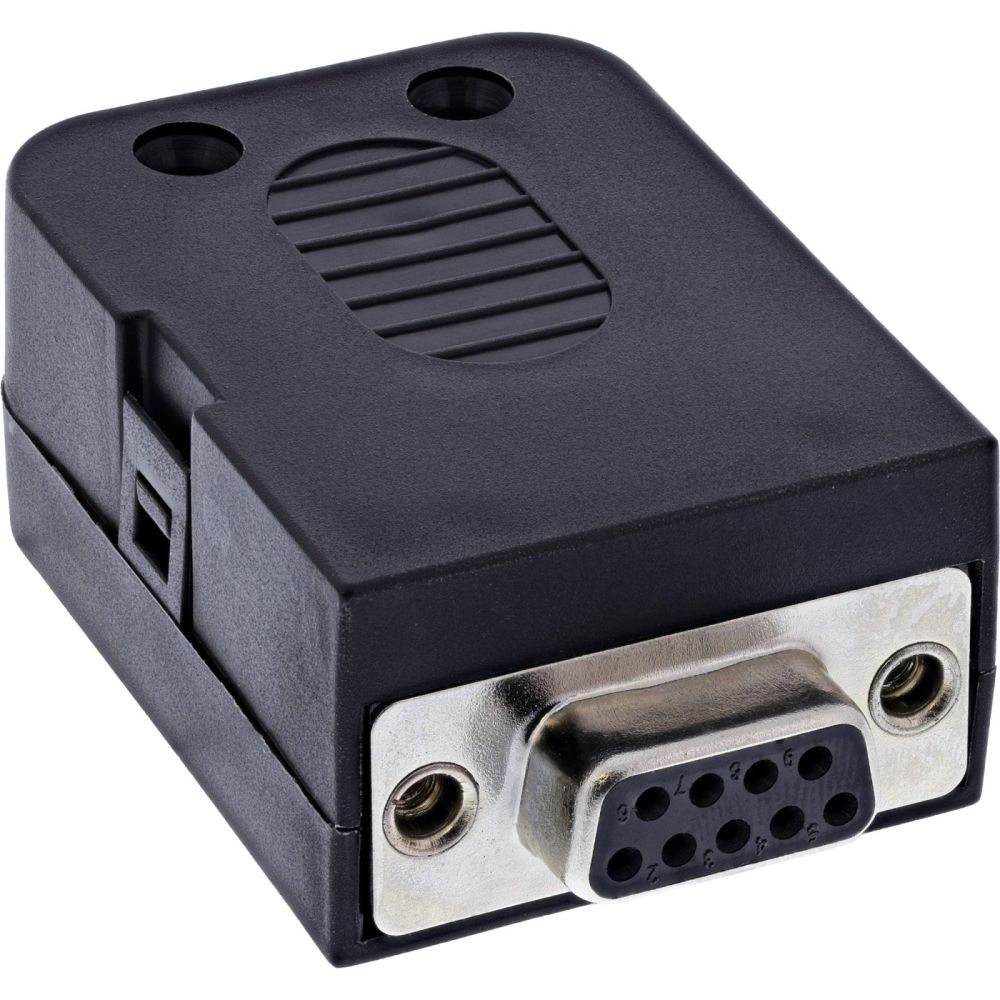

D-Sub 9 socket: Breakout design, with knurled screws (#4-40 UNC)
Connection technology: Screw terminal with pressure plate
Connection range: 18–26 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 0.8 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –20 °C to +105 °C
Insulation layer: EVA insulation on underside
Dimensions: approx. 66.7 × 34.4 mm (L × W)

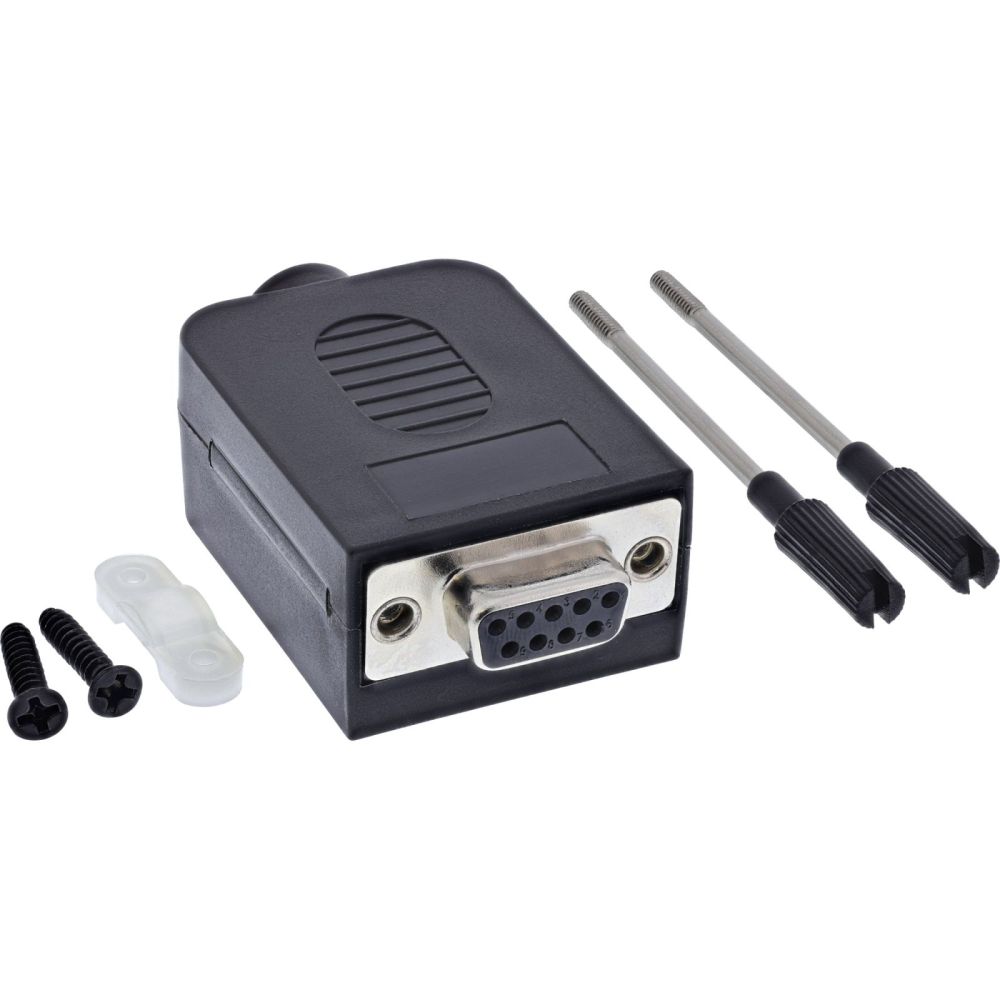

Accessories: 1× pressure plate, 2× screws

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Female/Female
Product colour	Black
AWG wire size	26/18
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	0.8 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-20 - 105 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	20 mm
Package weight	32 g
Package volume	100 cm³
Package type	Polybag
Technical data
Net weight	0.024kg
Weight	0.032kg
Article length	6.70cm
Height packaging	0.020m
Length packaging	0.165m
Variant	Knurled screw
Packaging volume	0.0001m³
Side A	D-Sub 9 socket
Article height	2.10cm
Width packaging	0.100m
Article width	3.40cm
Weight & dimensions
Dimensions (WxDxH)	34 x 67 x 21 mm
Weight	24 g
Width	34 mm
Depth	67 mm
Height	21 mm

---
