InLine® Terminal block D-Sub 9 connector, 2-row, screw terminal content_copy

Time savings during installation: Quick wiring via screw terminals for 12–22 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The D-Sub-9 plug is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry: Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact, 2-row design: Measuring 45.5 × 31 × 16 mm, the terminal block offers a space-saving arrangement – especially in dense wiring of Sub-D interfaces.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial use.
The InLine® terminal block with D-Sub 9 connector in a 2-row design was developed for demanding industrial applications where space requirements and reliable wiring are equally important. Single wires in the range of 12–22 AWG can be securely connected via the screw terminals with a 5.0 mm grid dimension. Installation is carried out using a standard flat-blade screwdriver ≤ 2.5 mm.
The screw lock on the D-Sub connector ensures a stable connection to the mating socket – even with vibration or frequent unplugging. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces. This makes the connection block ideal for control cabinet construction, mobile test setups, or compact device installations.

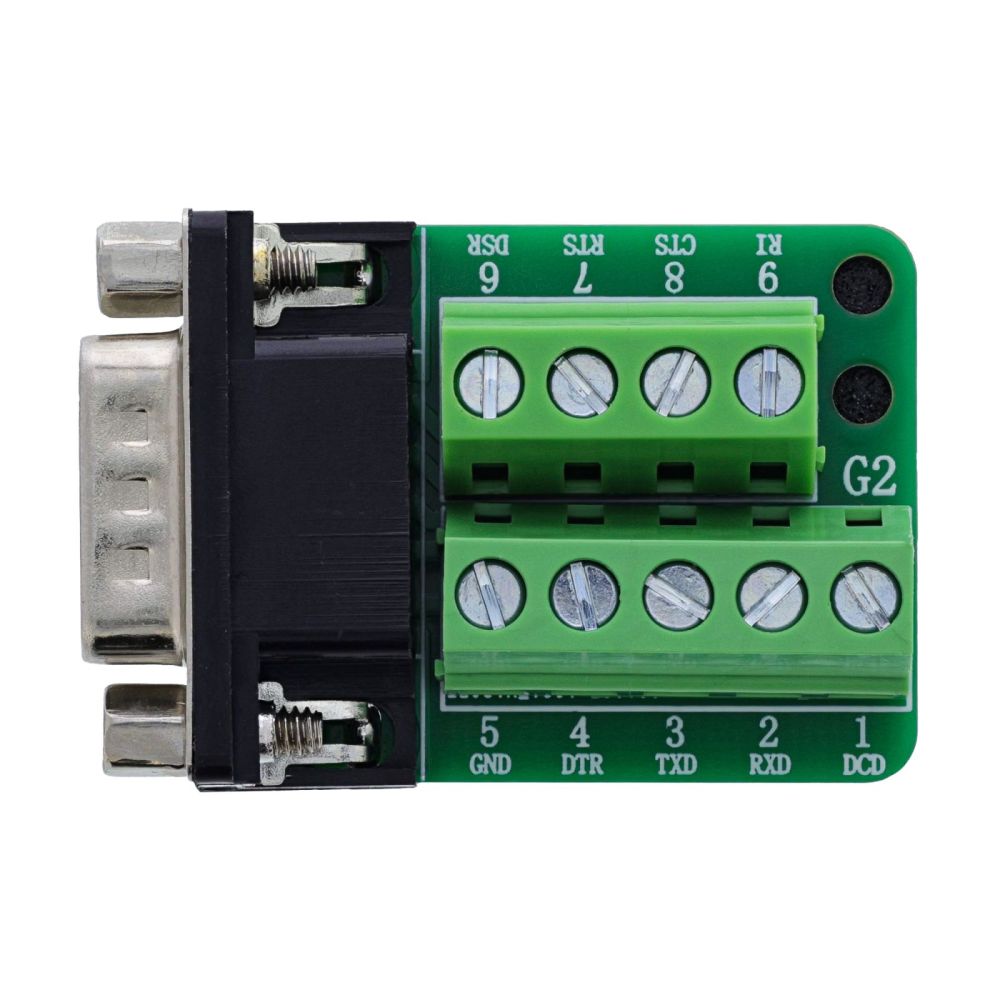

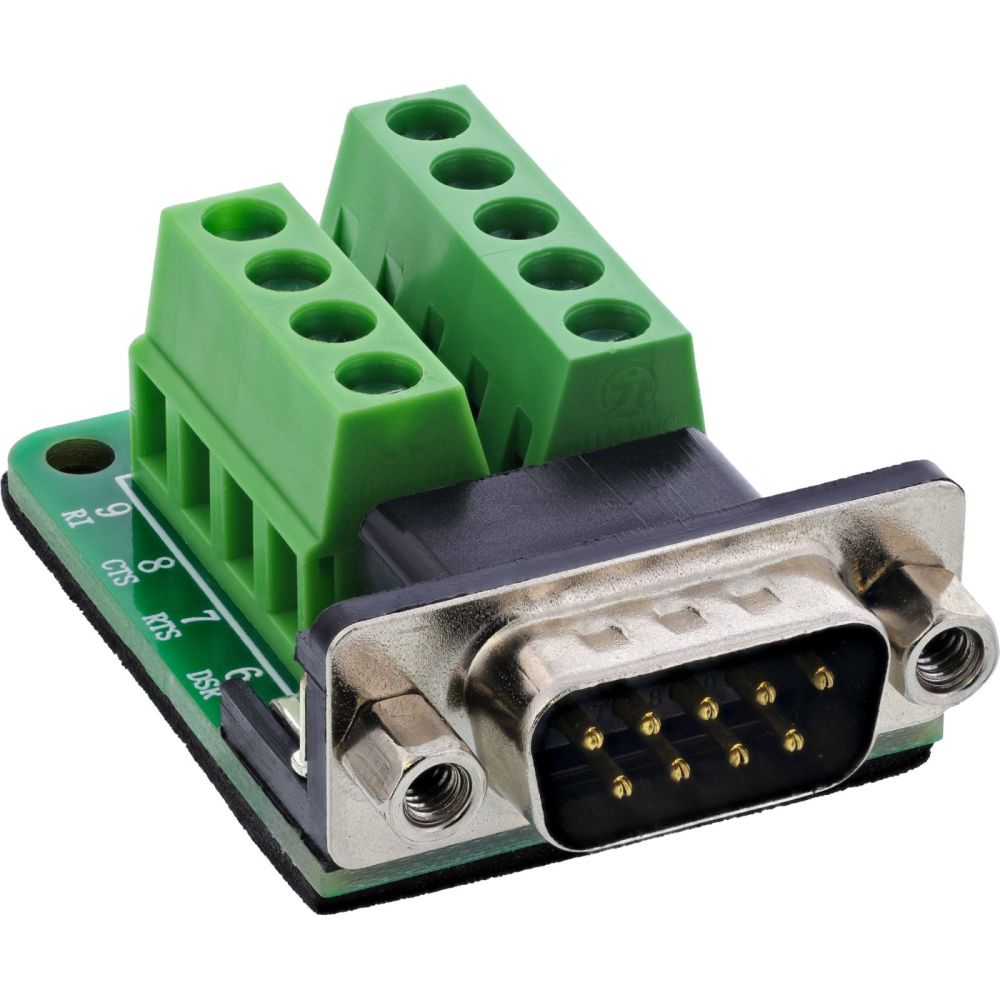

D-Sub 9 connector: 2-row, with integrated screw lock
Connection technology: Screw terminal, grid dimension 5.0 mm
Connection range: 12–22 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10°C to +70°C
Insulation layer: EVA insulation on underside
Dimensions: approx. 45.5 × 31 × 16 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Male/Female
Product colour	Black, Green
AWG wire size	12/22
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	18 mm
Package weight	24 g
Package volume	100 cm³

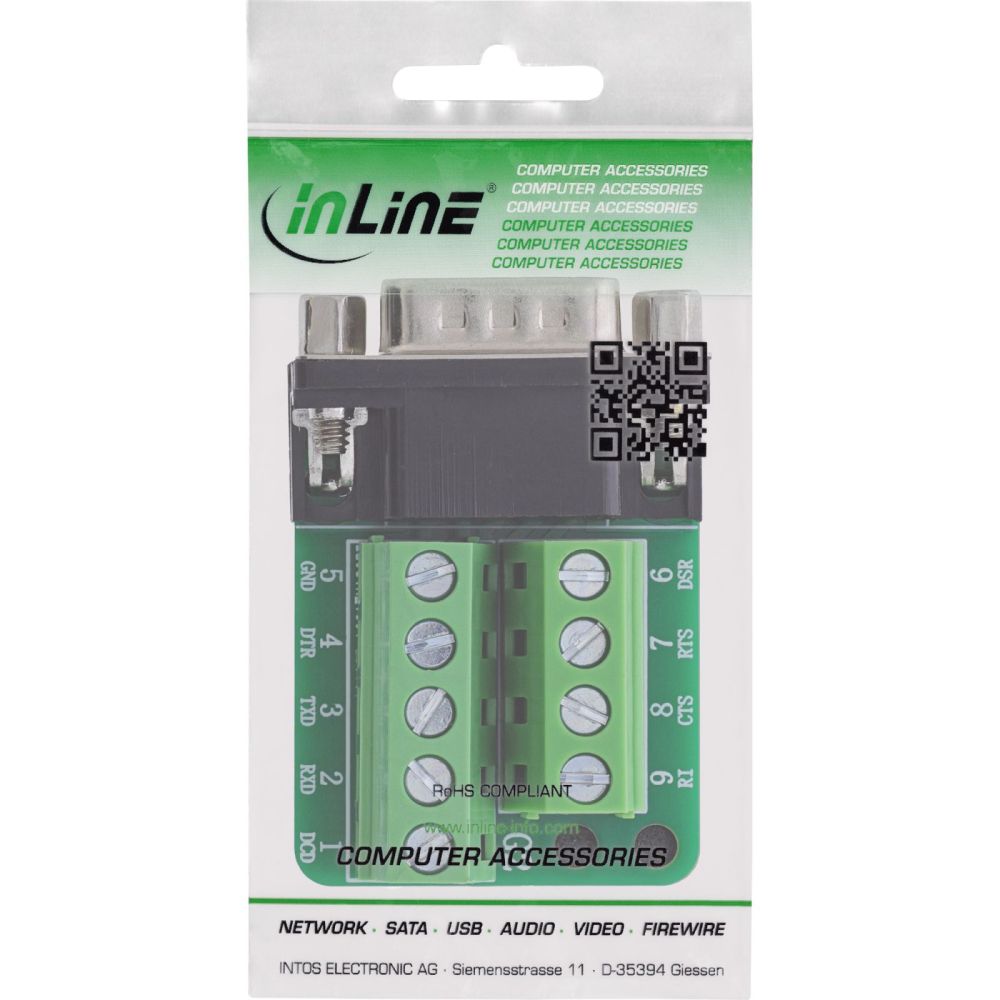

Package type	Polybag
Technical data
Height packaging	0.018m
Article length	4.60cm
Packaging volume	0.0001m³
Side A	D-Sub 9 plug
Net weight	0.022kg
Weight	0.024kg
Length packaging	0.165m
Article width	3.10cm
Width packaging	0.100m
Article height	1.80cm
Weight & dimensions
Dimensions (WxDxH)	31 x 46 x 18 mm
Weight	22 g
Width	31 mm
Depth	46 mm
Height	18 mm

---
