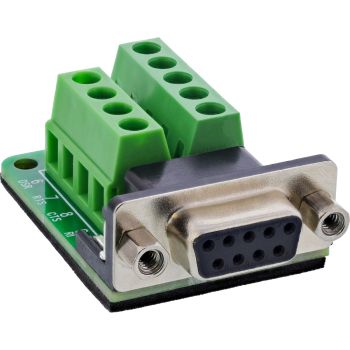

InLine® Terminal block D-Sub 9 socket, 2-row, screw terminal, screw lock content_copy

Time savings during installation: Quick wiring via screw terminals for 12–22 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock: The D-Sub-9 socket is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry: Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact, 2-row design: Measuring 45.5 × 31 × 16 mm, the terminal block offers a space-saving arrangement – especially in dense wiring of Sub-D interfaces.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial applications.
The InLine® terminal block with D-Sub 9 socket in a 2-row design is designed for professional wiring solutions in control cabinet and device construction. The screw terminals with a 5.0 mm pitch enable the secure connection of single wires in the 12–22 AWG range. Assembly is tool-assisted using a flat-blade screwdriver with a blade width ≤ 2.5 mm.
The D-Sub socket can be securely screwed to the mating connector via an integrated screw lock, thus ensuring a vibration-proof connection. An EVA insulating layer provides protection when mounting on conductive surfaces. The compact 2-row design makes the connection block particularly suitable for industrial installations with high packing density – e.g., in control cabinets, machines, or mobile service units.
D-Sub 9 socket: 2-row, with integrated screw lock
Connection technology: Screw terminal, 5.0 mm pitch
Connection range: 12–22 AWG
Actuation: With flat-blade screwdriver ≤ 2.5 mm
Rated current: 1 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10°C to +70°C
Insulation layer: EVA insulation on underside
Dimensions: approx. 45.5 × 31 × 16 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Female/Female
Product colour	Black, Green
AWG wire size	12/22
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	18 mm
Package weight	25 g
Package volume	100 cm³
Package type	Polybag
Technical data
Length packaging	0.165m
Article width	3.10cm
Weight	0.025kg
Packaging volume	0.0001m³
Side A	D-Sub 9 socket
Height packaging	0.018m
Width packaging	0.100m
Article height	1.80cm
Net weight	0.022kg
Article length	4.60cm
Weight & dimensions
Dimensions (WxDxH)	31 x 46 x 18 mm
Weight	22 g
Width	31 mm
Depth	46 mm
Height	18 mm

---
