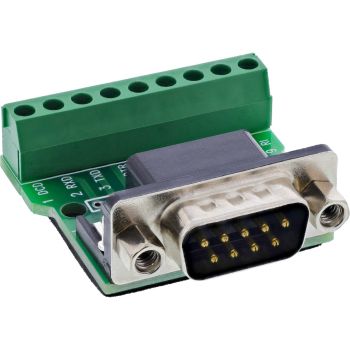

InLine® Terminal block D-Sub 9 plug, screw terminal, screw lock content_copy

Time savings during installation: Fast wiring via screw terminals for 18–24 AWG – tool-assisted with flat-head screwdriver ≤ 2 mm.
Stable connection thanks to screw lock: The D-Sub-9 connector is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry: Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact design: The terminal block can be easily integrated even in limited space – whether on a DIN rail or in mobile units.
High signal quality: An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial applications.
The InLine® terminal block with D-Sub 9 connector and screw terminal connections was developed for professional use in serial signal wiring. The screw terminals with a 3.96 mm pitch enable secure connection of single wires in the 18–24 AWG range. They are operated using a standard flat-blade screwdriver with a blade width ≤ 2 mm.
The integrated screw lock ensures a stable connection to matching D-Sub sockets – even with vibration or frequent plugging. The EVA insulation layer on the underside provides additional protection when mounting on conductive surfaces. The compact design makes this terminal block a practical, durable solution for industrial applications where reliability, flexibility, and ease of use are required.
D-Sub 9 connector: With integrated screw lock
Connection technology: Screw terminal, pitch 3.96 mm
Connection range: 18–24 AWG
Actuation: With flat-blade screwdriver ≤ 2 mm
Rated current: 1 A per pin
Max. operating voltage: 100 V between two signals
Insulation resistance: ≥ 10 MΩ @ 300 V DC
Operating temperature: –10°C to +70°C
Insulation layer: EVA insulation on underside
Dimensions: approx. 38.5 × 32 × 16 mm (L × W × H)

Certificates
Compliance certificates	RoHS, TÜV mark
Features
Connector(s)	Terminal block / D-Sub 9
Connector gender	Male/Female
Product colour	Black, Green
Dielectric strength	300 V
Contact resistance	10 mΩ
Voltage	100 V
Current	1 A
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	165 mm
Package height	16 mm
Package weight	18 g
Package volume	100 cm³
Package type	Polybag
Technical data
Length packaging	0.165m
Article width	3.70cm
Weight	0.018kg
Height packaging	0.016m
Width packaging	0.100m
Article height	1.60cm
Packaging volume	0.0001m³
Side A	D-Sub 9 plug
Net weight	0.015kg
Article length	3.80cm
Weight & dimensions
Dimensions (WxDxH)	37 x 38 x 16 mm
Weight	15 g
Width	37 mm
Depth	38 mm
Height	16 mm

---
