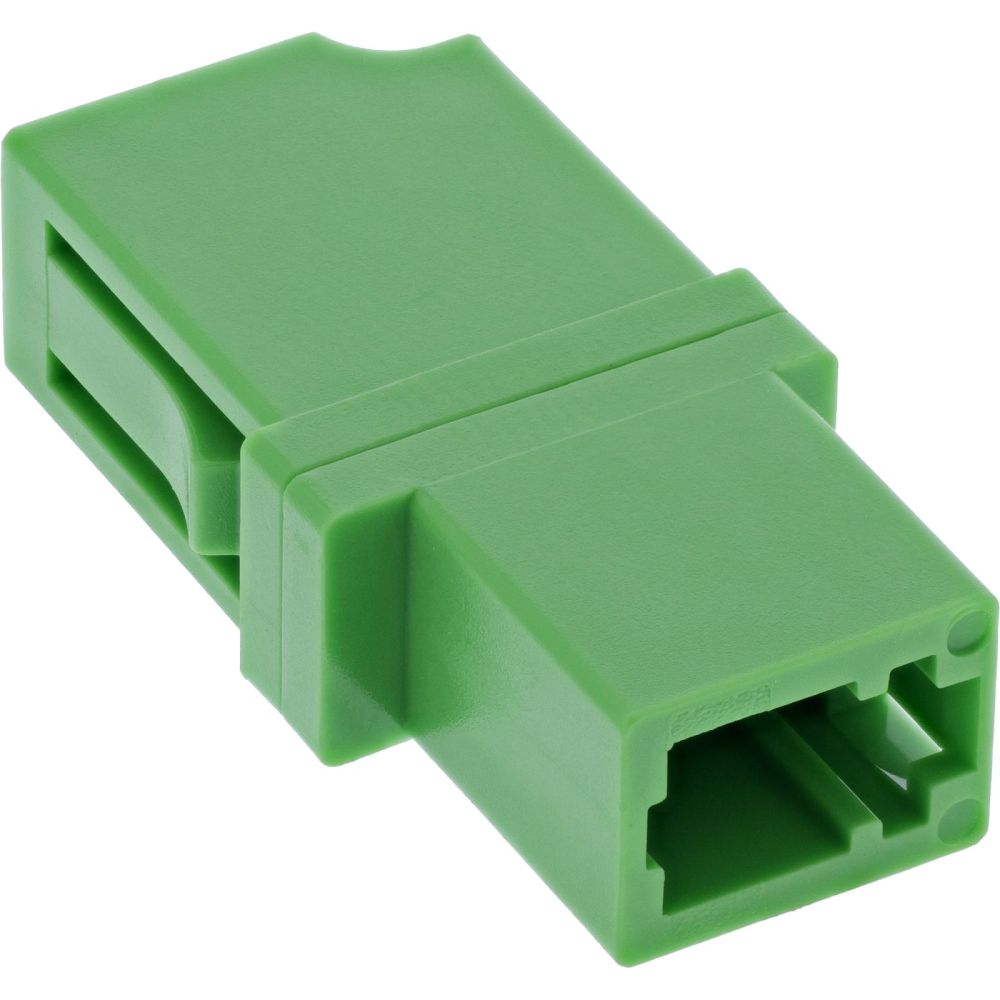

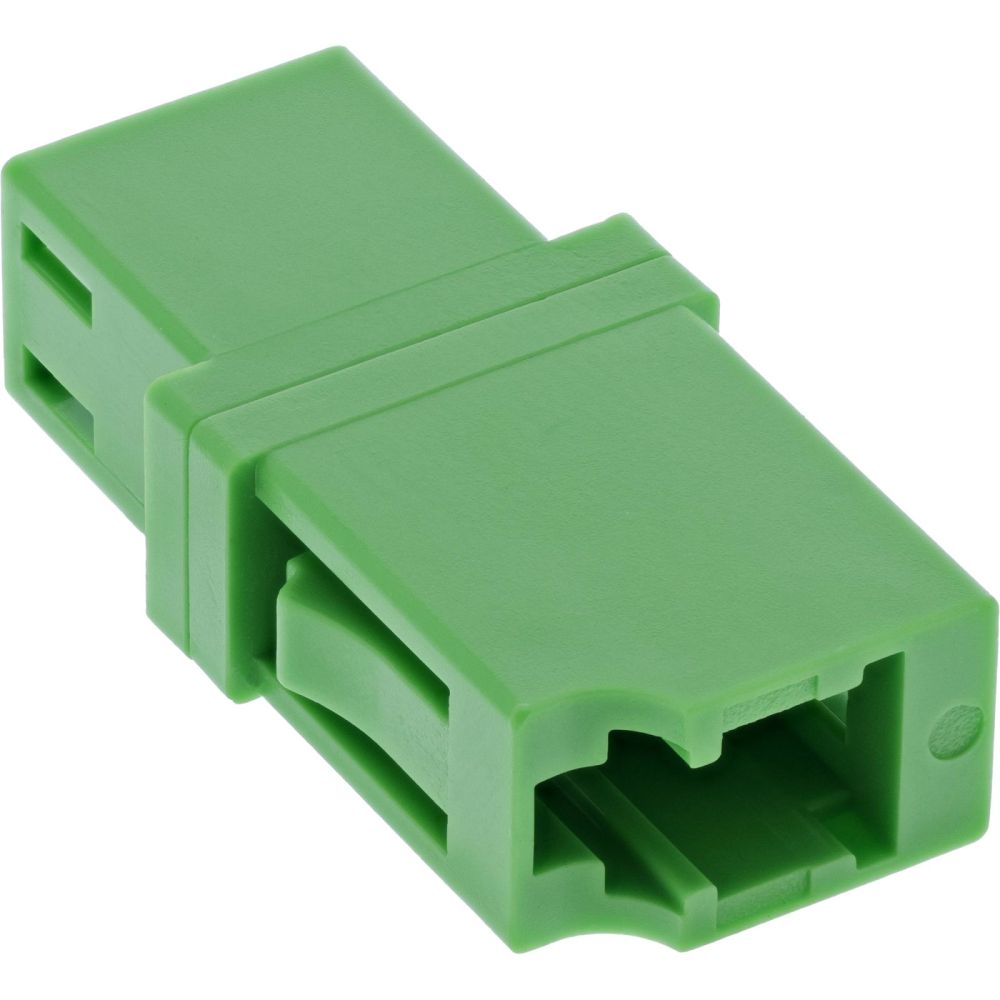

InLine® Fibre optic connector, Simplex LC/LC, Single-mode, ceramic ferrule content_copy

LC single-mode coupler for secure fibre optic extensions in FTTH networksPrecise signal routing: The ceramic sleeve precisely aligns LC connectors and ensures a low-loss connection within single-mode fibre optic links for FTTH and network applications.
Greater operational safety: The integrated laser safety shield reduces light leakage from open connectors and ensures safe use in fibre optic distribution frames and patch panels.
Simple fibre optic extension: Connect two LC connectors quickly and permanently to form a continuous single-mode link without the need for additional splicing or complex adjustments.
Sturdy mounting: The metal bracket fits into SC simplex cut-outs and enables reliable mounting in patch panels, distribution frames and existing fibre-optic installations.
Quick identification: The green colour-coding facilitates the identification of single-mode connections and supports clear organisation within complex fibre-optic networks.
The InLine LC/LC Simplex connector provides a precise and permanent connection between two single-mode fibre-optic cables. It is suitable for FTTH installations, fibre-optic distribution frames, patch panels and structured network cabling.
The integrated ceramic ferrule ensures precise alignment of the LC connectors and supports reliable signal transmission. This makes the coupler suitable for applications where a stable and clean connection of optical fibres is required.
For added safety, the coupler features an integrated laser safety shield. This reduces light leakage from unused ports and ensures the safe handling of fibre-optic connections during day-to-day operations.
The sturdy metal bracket allows installation in compatible SC simplex cut-outs. This allows the coupler to be flexibly integrated into existing fibre-optic infrastructures. The green colour-coding also facilitates the rapid identification of single-mode connections during the installation, maintenance and expansion of existing networks.
Whether in FTTH networks, fibre-optic patch panels, backbone cabling or telecommunications applications: The connector ensures a reliable connection between LC single-mode plugs and enables the structured expansion of existing fibre-optic links.
Connection: 2x LC female
Type: Simplex LC/LC connector
Housing: PC in accordance with UL 94V0
Mode: Single-mode
Colour: Green
Laser protection: internal shutter

Features
Number of connectors	2
Connector type	LC
Product colour	Green
Fiber mode structure	Single-mode
Housing material	Polycarbonate (PC)
Ferrule material	Ceramic

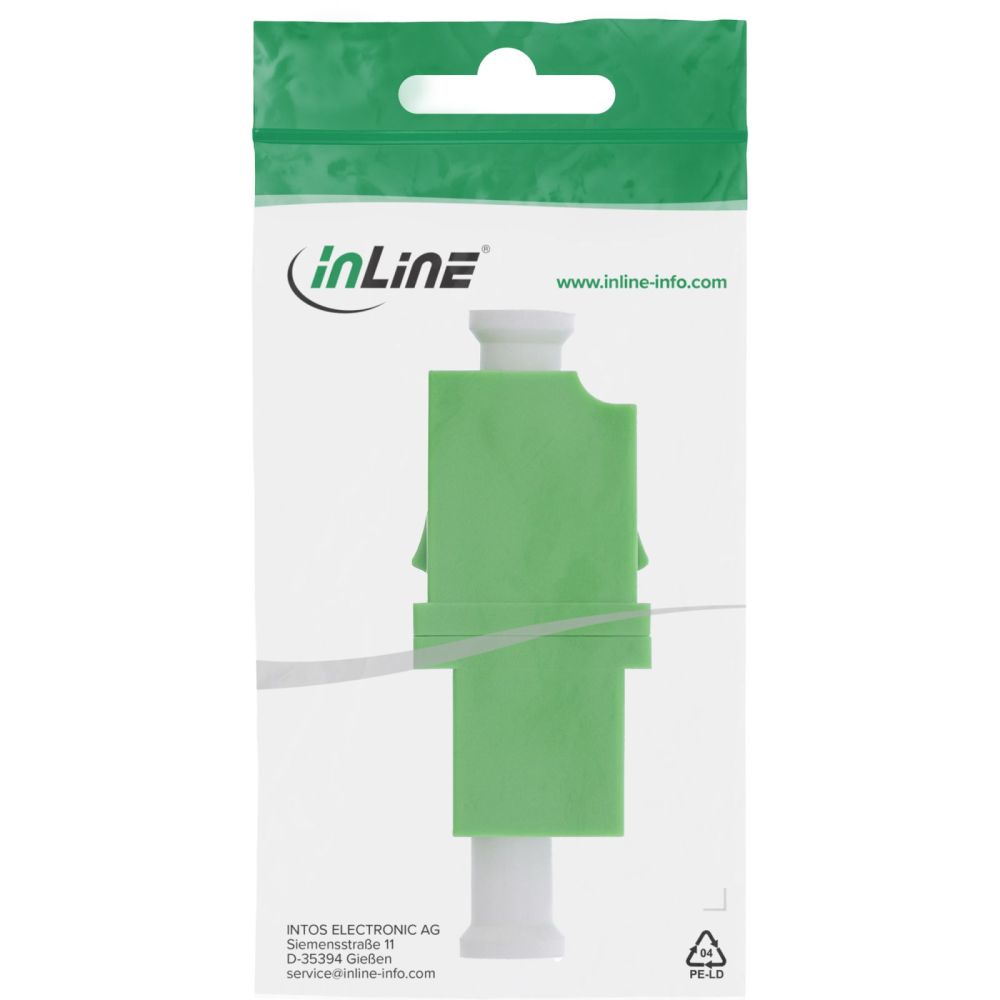

Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	120 mm
Package height	10 mm
Package volume	100 cm³
Package weight	4 g
Technical data
Type	Single Mode
Side B	LC female
Length packaging	0.120m
Article length	2.50cm
Weight	0.004kg
Packaging volume	0.0001m³
Article width	0.70cm
Signal	Network
Width packaging	0.070m
Article height	1.30cm
Variant	Ceramic sleeve simplex
Height packaging	0.010m
Net weight	0.001kg
Side A	LC female
Weight & dimensions
Width	7 mm
Depth	25 mm
Height	13 mm
Weight	1 g

---
