InLine® RCA Audio over LAN / Ethernet / RJ45 Cable max. 50m complete set content_copy

Analog audio connections via RJ45 without active devicesRoom-to-room transmission: Route analog stereo signals over passive structured RJ45 cabling using patch cables.
Simple setup: Passive operation without power supply or active network devices.
Flexible connectors: 2x RCA plugs and 1x 3.5 mm jack plug connect common sources and receivers.
Longer distances possible: Up to 50 m depending on conductor cross-section and contact resistance of the patch cable.
Ready to use: Set with 2 adapters and approx. 10 cm connection cable each.
The passive adapter set enables the transmission of analog stereo audio signals over existing RJ45 cabling. Patch cables are used to connect between 2x RCA or 1x 3.5 mm jack and an RJ45 socket. This allows you to quickly set up connections between rooms without additional active devices.
In professional IT environments, for on-site deployments and in service operations, existing infrastructure can be used efficiently. Existing patch panels and cable routes enable temporary or permanent audio connections between rooms without laying new cables.

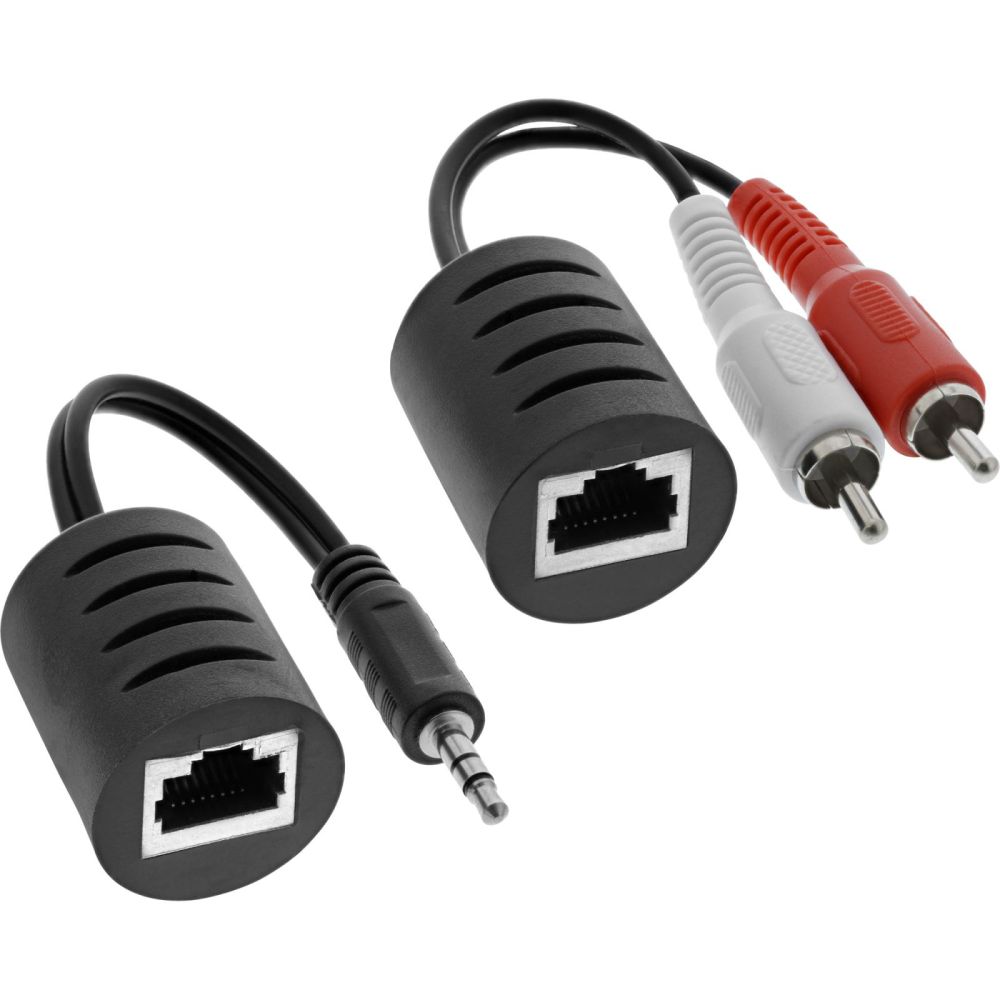

Set: 2 adapters

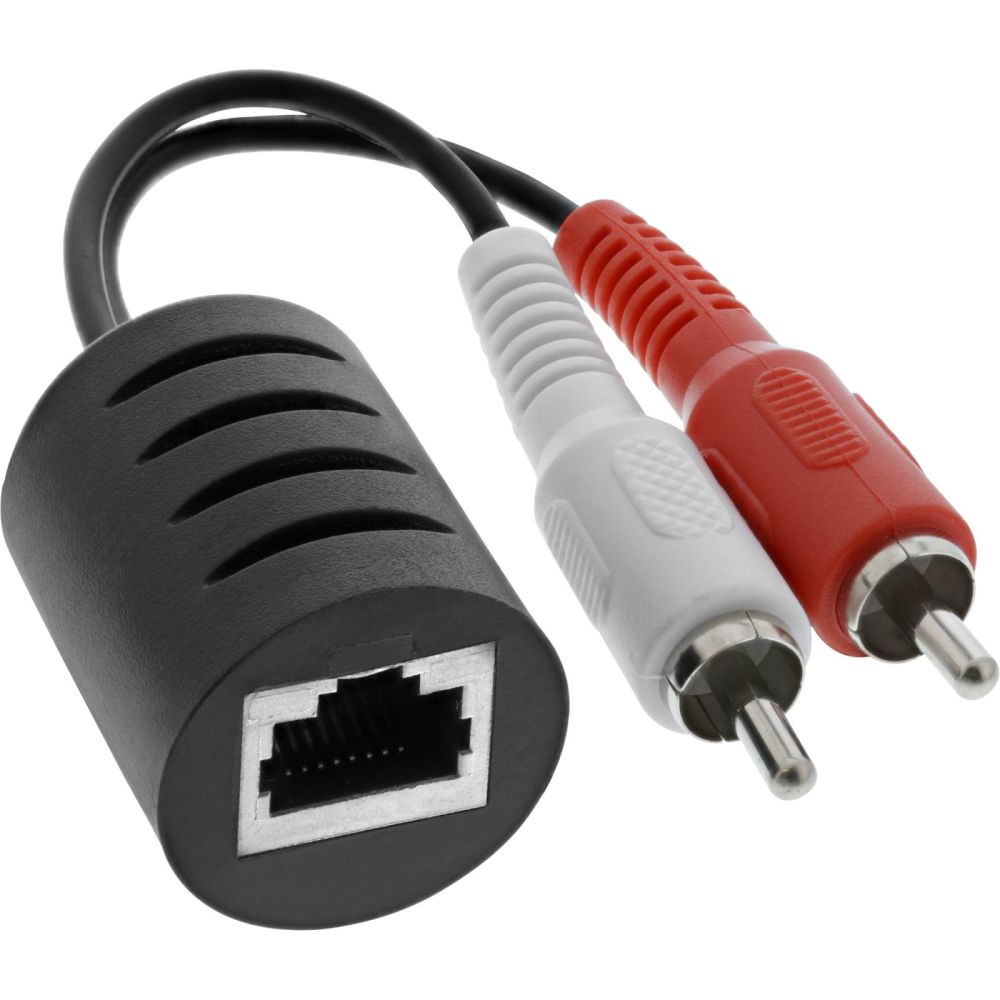

Connection 1: 2x RCA plugs to RJ45 socket

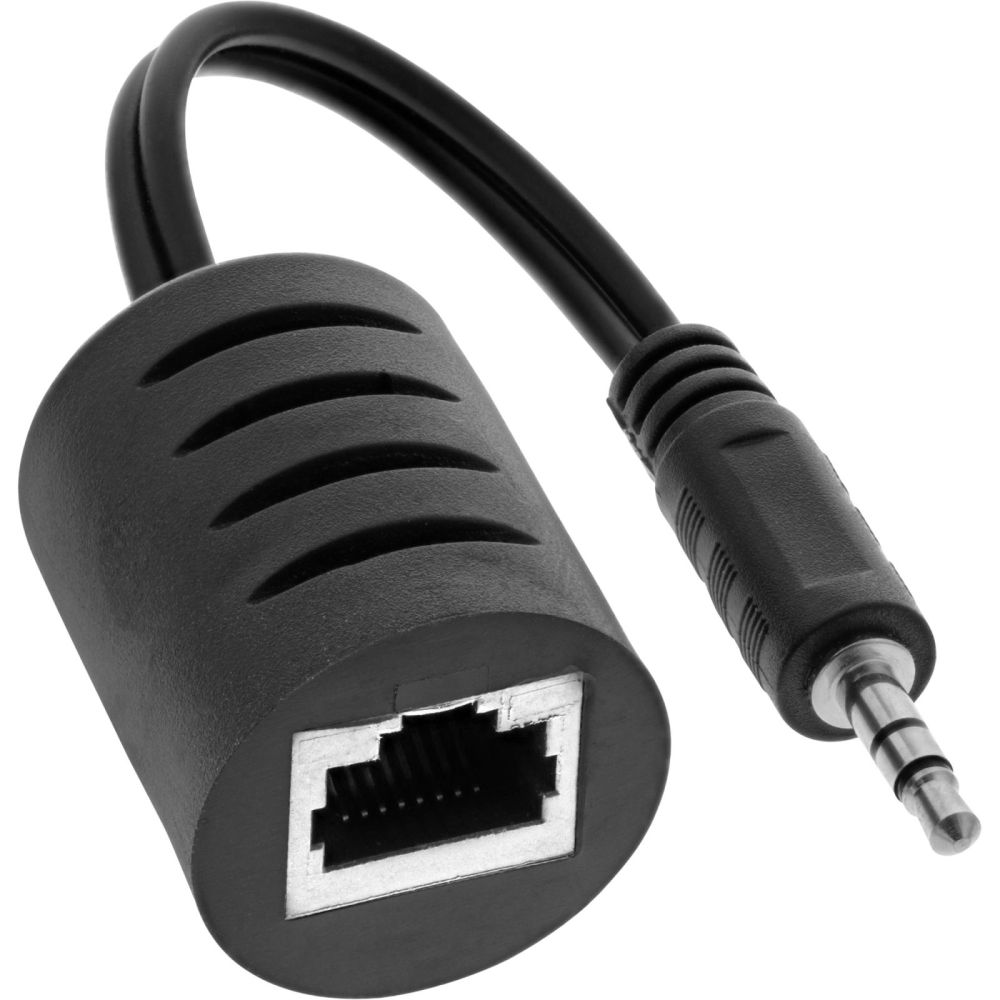

Connection 2: 1x 3.5 mm jack plug to RJ45 socket
Signal: Analog stereo
Maximum patch cable length: 50 m (depending on conductor cross-section and contact resistance)
Cable length: 2x approx. 10 cm

Features
Maximum transfer distance	50 m
Cable length	0.1 m
Product colour	Black
Packaging data
Package width	60 mm
Package depth	100 mm
Package height	35 mm
Package weight	63 g
Technical data
Interface	RCA, 3.5mm jack
Length packaging	0.100m
Height packaging	0.035m
Packaging volume	0.0002m³
Max. distance	50m
Net weight	0.060kg
Width packaging	0.060m
Weight	0.063kg
Technical details
Connector 1	2x RCA M / 3.5mm
Connector 2	RJ45
Package volume	200 cm³
Weight & dimensions
Weight	60 g

---
