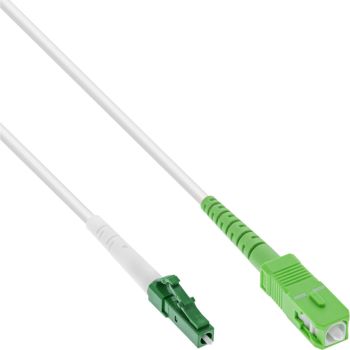

InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 50 m content_copy

Fibre optic cable between fibre outlet and modemMatching FTTH connection: The cable connects LC/APC and SC/APC ports with an 8° APC polish. It suits indoor devices with optical interfaces.
Armoured cable construction: Flexible stainless steel spiral tubing is integrated into the fibre cable. The additional armour complements its construction for routing between matching fibre ports.
Discreet cable routing: The white jacket visually matches light walls and skirting boards, allowing visible routing in living areas.
Singlemode technology: The OS2 fibre with 9/125 µm meets the specified G657.A2 specification. The simplex cable provides an optical connection via matching LC/APC and SC/APC interfaces.
Documented measurements: Insertion loss is below 0.30 dB, typically below 0.20 dB. Return loss is above 60 dB. A test report is included with the fibre cable.

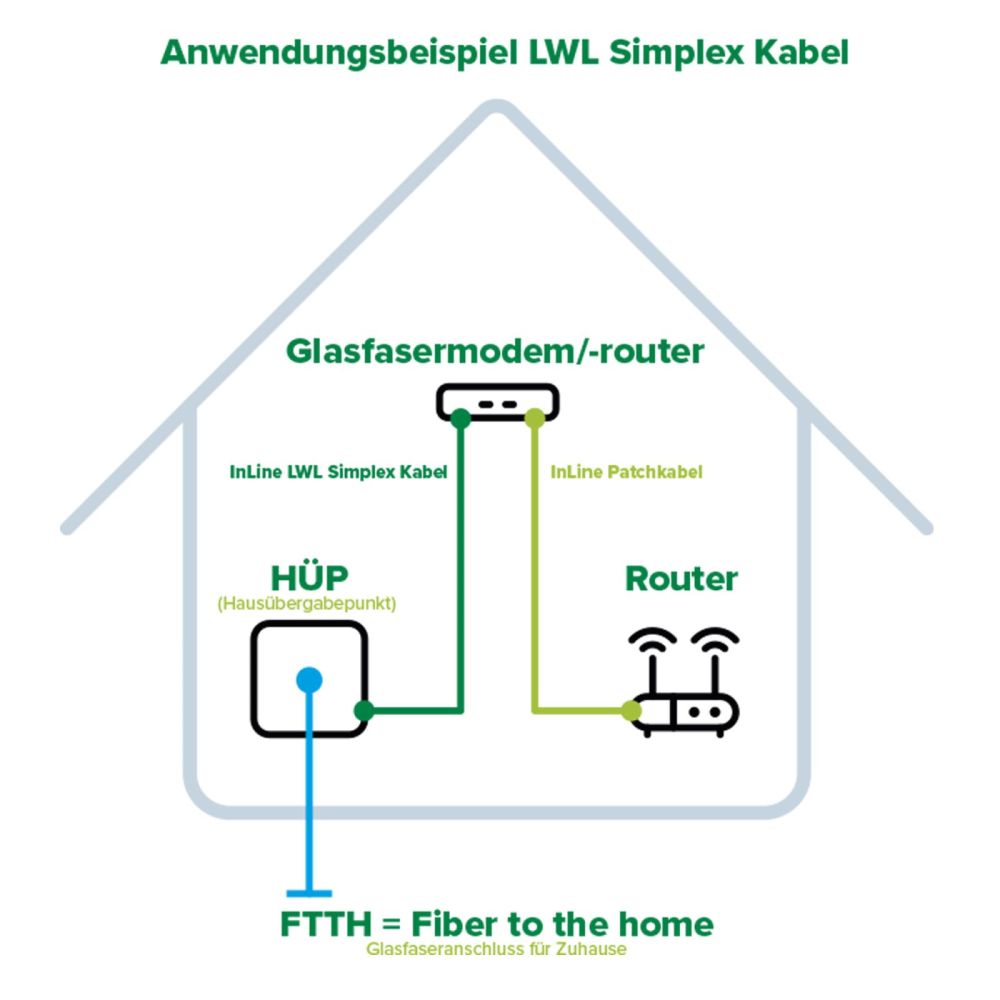

The InLine fibre optic cable connects matching LC/APC and SC/APC ports in an FTTH installation, for example a fibre access point and a modem with a suitable optical interface.
The white jacket allows discreet routing in light-coloured living areas. If the outlet is away from the desired equipment location, choose a suitable length to plan the cable path.
Integrated flexible stainless steel spiral tubing complements the construction, providing an armoured fibre cable where that mechanical construction is desired.
The halogen-free jacket and compact 3.0 mm diameter complete the construction. Available versions allow selection of the required length for the connection distance.

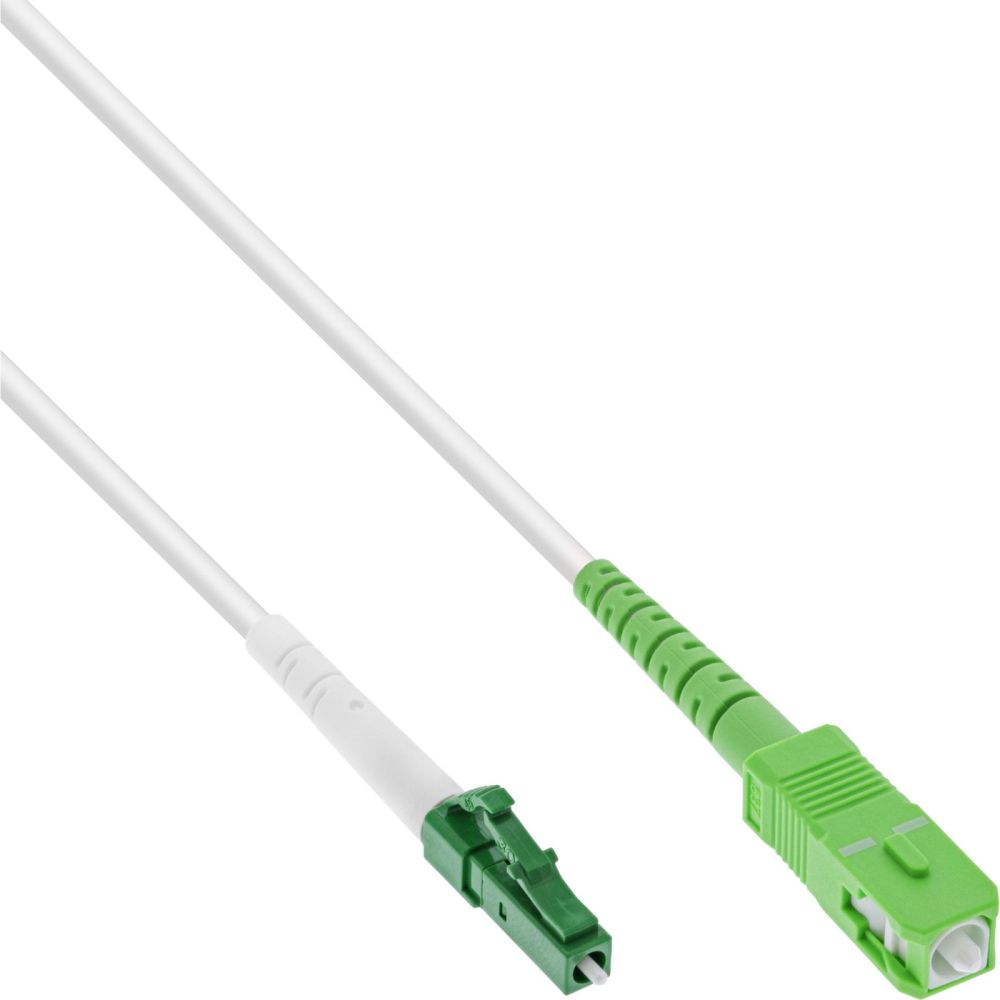

Select the LC/APC-to-SC/APC connector combination. Both connectors have an 8° APC polish. Intended for singlemode fibre connections with matching interfaces.
Cable type: Fibre optic simplex cable, FTTH, single-fibre
Fibre: Singlemode OS2, 9/125 µm, G657.A2
Fibre designation: I-VH-2E G657.A2
Connectors: LC/APC to SC/APC, APC polish 8°
Cable construction: Flexible stainless steel spiral tubing, armoured
Cable diameter: 3.0 mm ± 0.2 mm
Outer jacket: Halogen-free, white
Insertion loss (IL): Return loss (RL):

60 dB

Operating and storage temperature: -40 to +85 °C
Standards: IEC 61034-2, IEC 60332-3, IEC 60754-2, IEC 61754-20
Test documentation: Test report included

Certificates
Certification	IEC 610304-2 IEC60332-3-1 IEC60754-2 IEC 61754-20
Features
Cable length	50 m
Fibre optic type	OS2
Connector 1	LC
Connector 2	SC
Connector 1 gender	Male
Connector 2 gender	Male
Connector polish type	APC
Cable type	FTTH
Product colour	White
Core diameter	9 µm
Cladding diameter	125 µm
Fiber mode structure	Single-mode
Jacket material	Low smoke zero halogen (LSZH)
Full duplex
Plug and Play
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	9 x 50000 x 9 mm

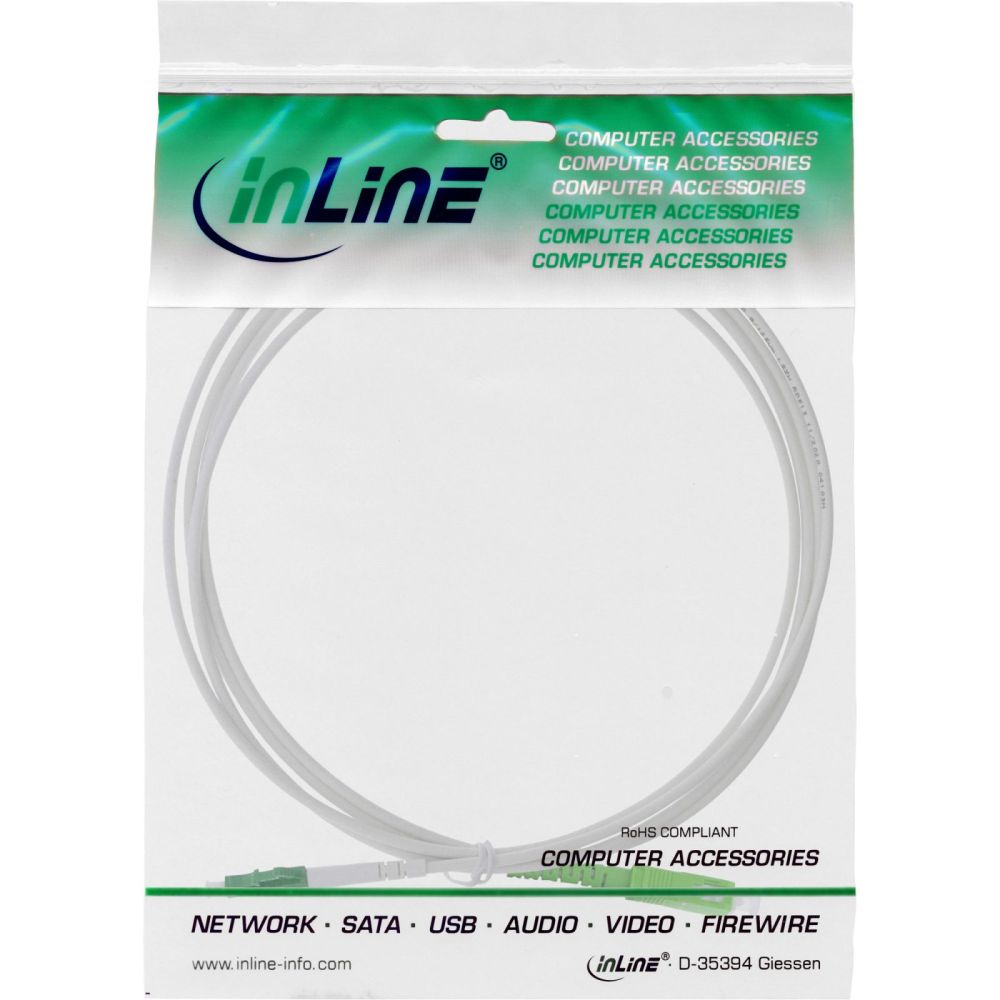

Packaging content
Quantity per pack	1 pc(s)
Test protocol included
Packaging data
Package width	225 mm
Package depth	225 mm
Package height	30 mm
Package volume	1600 cm³
Package weight	684 g
Technical data
Variant	APC 8°
Signal	Network
Outer diameter	3.0mm
Article width	0.90cm
Weight	0.684kg
Number of fibres	Simplex (FTTH)
Net weight	0.681kg
Cable Ø	3mm
Side A	LC/APC plug
Bending radius (dynamic)	>60mm
Colour	White
Cut side A	APC 8°
Width packaging	0.225m
Length	50m
Side B	SC/APC plug
Cut side B	APC 8°
Operation temperature	-20 to +80°C
Storage temperature	-40 to +85°C
Packaging volume	0.0016m³
Bending radius (static)	>30mm
Fibre class	OS2 (9/125µm) G657A2
Height packaging	0.030m
Length packaging	0.225m
Article height	0.90cm
Article length	5000.00cm
UL
Test protocol enclosed
Weight & dimensions
Cable diameter	3 mm
Weight	681 g

---
