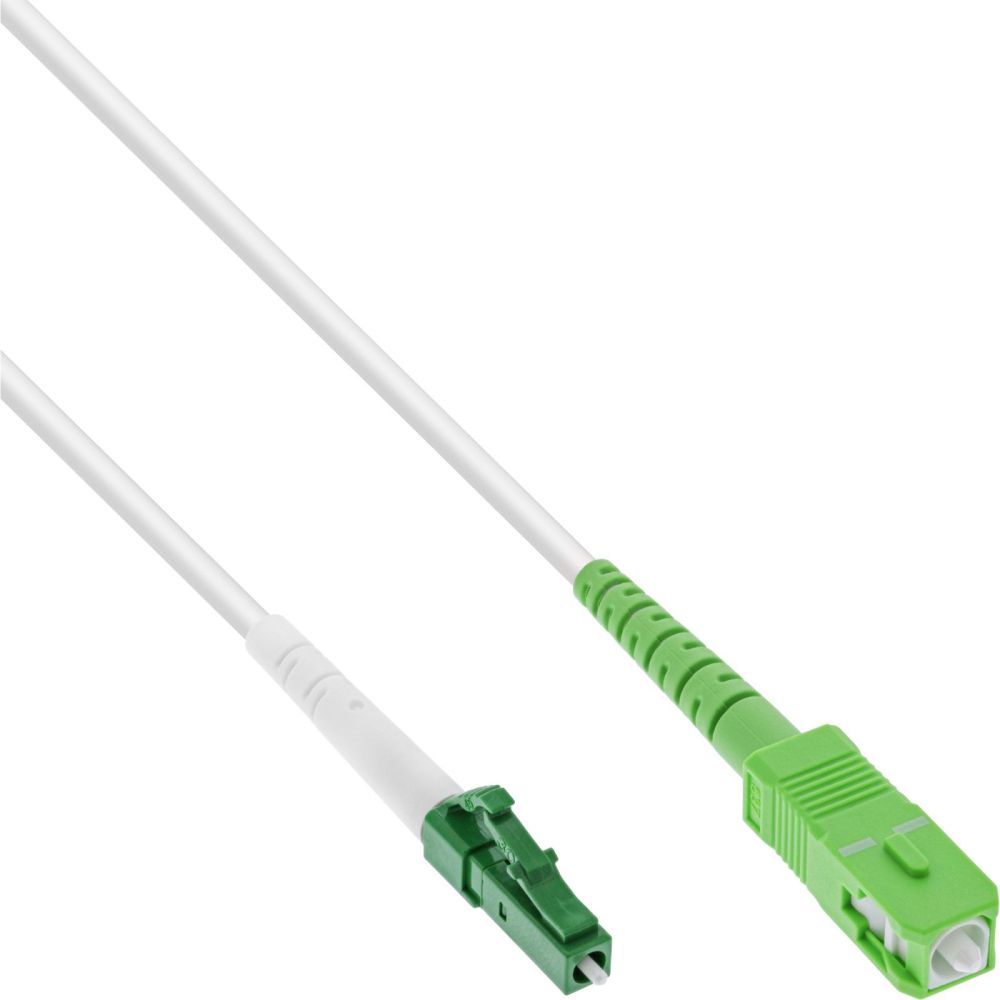

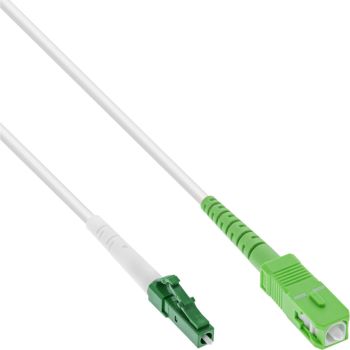

InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m
|
6,36 EUR |
|||||||||||
|
( 7,57 EUR incl. VAT ) ≈ £5.32 | ≈ $7.12 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22197317 | ||||||||||
| Mfg Part No: | 88410 | ||||||||||
| UPC/EAN: | 4043718295838 | ||||||||||
| Weight: | 0.163 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 88410:
Armoured cable construction: Flexible stainless steel spiral tubing is integrated into the fibre cable. The additional armour complements its construction for routing between matching fibre ports.
Discreet cable routing: The white jacket visually matches light walls and skirting boards, allowing visible routing in living areas.
Singlemode technology: The OS2 fibre with 9/125 µm meets the specified G657.A2 specification. The simplex cable provides an optical connection via matching LC/APC and SC/APC interfaces.
Documented measurements: Insertion loss is below 0.30 dB, typically below 0.20 dB. Return loss is above 60 dB. A test report is included with the fibre cable.

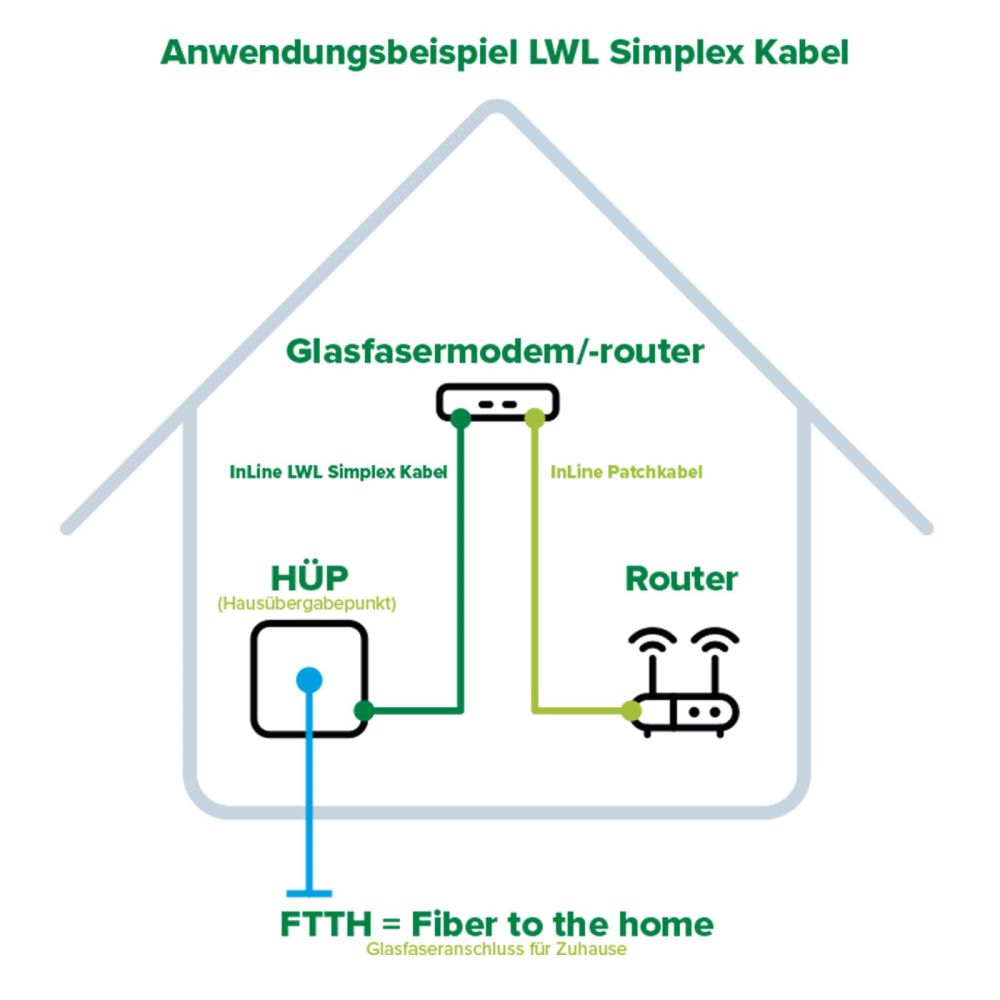

The InLine fibre optic cable connects matching LC/APC and SC/APC ports in an FTTH installation, for example a fibre access point and a modem with a suitable optical interface.
The white jacket allows discreet routing in light-coloured living areas. If the outlet is away from the desired equipment location, choose a suitable length to plan the cable path.
Integrated flexible stainless steel spiral tubing complements the construction, providing an armoured fibre cable where that mechanical construction is desired.
The halogen-free jacket and compact 3.0 mm diameter complete the construction. Available versions allow selection of the required length for the connection distance.
Select the LC/APC-to-SC/APC connector combination. Both connectors have an 8° APC polish. Intended for singlemode fibre connections with matching interfaces.
Cable type: Fibre optic simplex cable, FTTH, single-fibre
Fibre: Singlemode OS2, 9/125 µm, G657.A2
Fibre designation: I-VH-2E G657.A2
Connectors: LC/APC to SC/APC, APC polish 8°
Cable construction: Flexible stainless steel spiral tubing, armoured
Cable diameter: 3.0 mm ± 0.2 mm
Outer jacket: Halogen-free, white
Insertion loss (IL): Return loss (RL):
60 dB
Operating and storage temperature: -40 to +85 °CStandards: IEC 61034-2, IEC 60332-3, IEC 60754-2, IEC 61754-20
Test documentation: Test report included
| Certificates | |
| Certification | IEC 610304-2 IEC60332-3-1 IEC60754-2 IEC 61754-20 |
| Features | |
| Cable length | 10 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | APC |
| Cable type | FTTH |
| Product colour | White |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Jacket material | Low smoke zero halogen (LSZH) |
| Full duplex | |
| Plug and Play | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| Dimensions (WxDxH) | 9 x 10000 x 9 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Test protocol included | |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 175 mm |
| Package height | 15 mm |
| Package volume | 500 cm³ |
| Package weight | 163 g |
| Technical data | |
| Colour | White |
| Cut side A | APC 8° |
| Operation temperature | -20 to +80°C |
| Cable Ø | 3mm |
| Bending radius (dynamic) | >60mm |
| Height packaging | 0.015m |
| Length packaging | 0.175m |
| Article length | 1000.00cm |
| Outer diameter | 3.0mm |
| Article height | 0.90cm |
| Bending radius (static) | >30mm |
| Fibre class | OS2 (9/125µm) G657A2 |
| Side A | LC/APC plug |
| Length | 10m |
| Variant | APC 8° |
| Number of fibres | Simplex (FTTH) |
| Signal | Network |
| Width packaging | 0.175m |
| Net weight | 0.150kg |
| Packaging volume | 0.0005m³ |
| Article width | 0.90cm |
| Storage temperature | -40 to +85°C |
| Side B | SC/APC plug |
| Cut side B | APC 8° |
| Weight | 0.163kg |
| UL | |
| Test protocol enclosed | |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 150 g |
Questions & answers
What is the delivery time of InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m?
The article InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 88410 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m always at the best possible price. We can give you a discount of 2% on InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of InLine® Fibre optic simplex cable, FTTH, LC/APC to SC/APC, OS2, white, 10 m we can offer you a price of 6,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
