InLine® Fibre optic simplex cable, FTTH, LC/APC, OS2, white, 3 m
|
4,72 EUR |
|||||||||||
|
( 5,62 EUR incl. VAT ) ≈ £3.95 | ≈ $5.28 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22197305 | ||||||||||
| Mfg Part No: | 88303 | ||||||||||
| UPC/EAN: | 4043718295937 | ||||||||||
| Weight: | 0.055 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 88303:
Additional armour: Flexible stainless steel spiral tubing is integrated into the cable, providing additional metal armour for indoor installation.
Discreet cable routing: The white outer jacket blends into light-coloured rooms. Its 3.0 mm ± 0.2 mm diameter allows routing along walls or furniture.
Matching fibre technology: The cable uses OS2 singlemode fibre with 9/125 µm to G657.A2. Connect the LC/APC-to-LC/APC cable to fibre components with matching ports.
Technical documentation: A test report is included with the FTTH cable. The halogen-free outer jacket and specified insertion and return loss values complete its technical features.

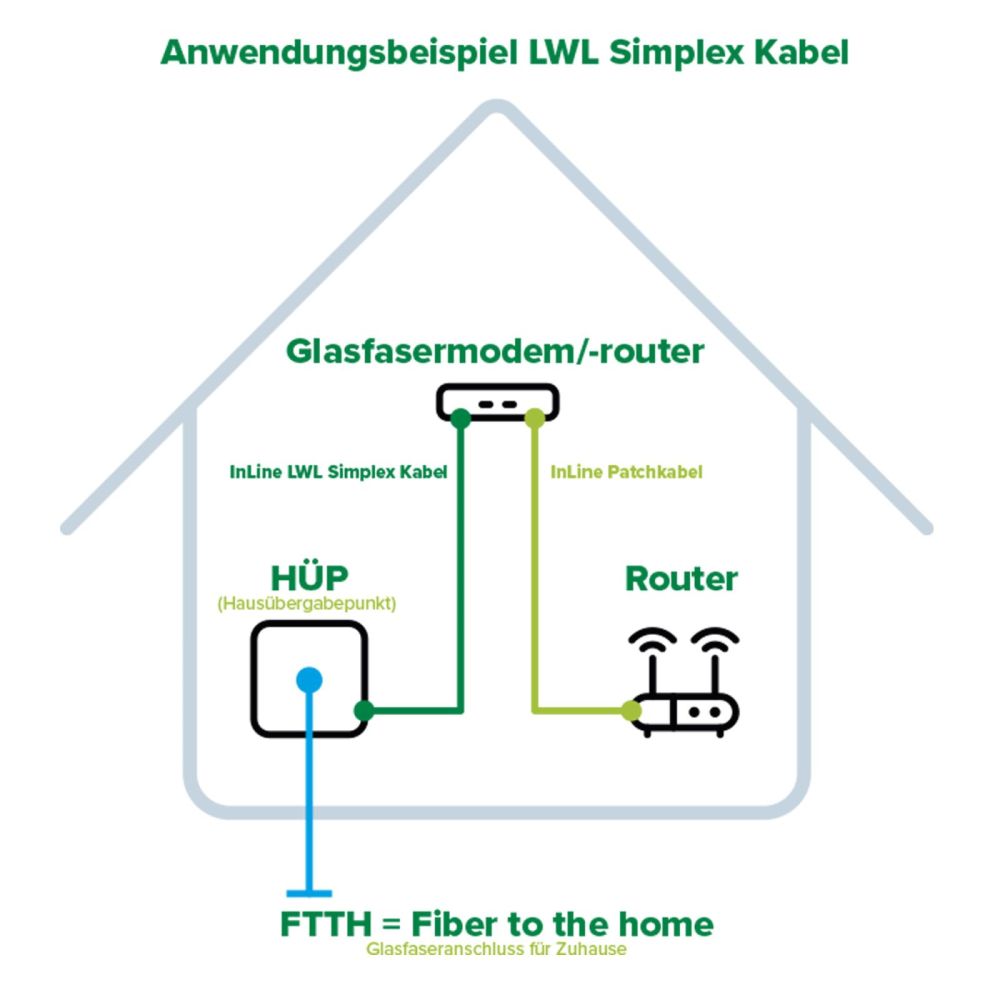

The InLine fibre optic cable connects a fibre outlet to a compatible modem. Suitable for FTTH applications where the connection is established inside a building or routed over a longer distance.
If the fibre outlet is not at the desired modem location, the cable bridges the distance. Matching LC/APC connectors are required at both connection points.
The white jacket enables discreet routing in light-coloured rooms, for example along a wall or near a desk.
Available cable lengths adapt the connection to the room layout. If the modem is moved later, a suitable cable length can also be selected.
Intended for fibre cabling with compatible LC/APC components. Check the connectors on your equipment before connection.
Cable type: Fibre optic simplex cable, FTTH
Fibre type: Singlemode, OS2
Fibre core / cladding: 9/125 µm
Fibre specification: I-VH-2E G657.A2
Connectors: LC/APC 8° to LC/APC 8°
Connector polish: APC, 8°
Cable outer diameter: 3.0 mm ± 0.2 mm
Cable construction: Single-fibre
Armour: Flexible stainless steel spiral tubing
Outer jacket: Halogen-free
Jacket colour: White
Insertion loss (IL): Typical insertion loss (IL): Return loss (RL):
60 dB
Operating temperature: -40 to +85 °CStorage temperature: -40 to +85 °C
Standards: IEC 61034-2, IEC 60332-3, IEC 60754-2, IEC 61754-20
Documentation: Test report included
| Features | |
| Cable length | 3 m |
| Fibre optic type | OS2 |
| Connector 1 | SC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | APC |
| Product colour | White |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Full duplex | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| Dimensions (WxDxH) | 5 x 3000 x 5 mm |
| Packaging content | |
| Test protocol included | |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 170 mm |
| Package height | 11 mm |
| Package volume | 400 cm³ |
| Package weight | 55 g |
| Technical data | |
| Outer diameter | 3.0mm |
| Article width | 0.50cm |
| Packaging volume | 0.0004m³ |
| Storage temperature | -40 to +85°C |
| Width packaging | 0.170m |
| Article length | 300.00cm |
| Variant | APC 8° |
| Signal | Network |
| Height packaging | 0.011m |
| Length packaging | 0.170m |
| Article height | 0.50cm |
| Side B | SC/APC plug |
| Cut side A | APC 8° |
| Net weight | 0.048kg |
| Bending radius (dynamic) | >60mm |
| Bending radius (static) | >30mm |
| Fibre class | OS2 (9/125µm) G657A2 |
| Colour | White |
| Number of fibres | Simplex (FTTH) |
| Cable Ø | 3mm |
| Side A | SC/APC plug |
| Cut side B | APC 8° |
| Operation temperature | -20 to +80°C |
| Weight | 0.055kg |
| Test protocol enclosed | |
| UL | |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 48 g |
