InLine® Fibre optic simplex cable, FTTH, LC/APC 8°, OS2, armoured, white, 50 m
|
17,70 EUR |
|
|
( 21,06 EUR incl. VAT ) ≈ £14.81 | ≈ $19.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197416 |
| Mfg Part No: | 88250 |
| UPC/EAN: | 4043718123773 |
| Weight: | 0.68 kg |
Product information for Inline 88250:
Robust fibre optic cable for indoor installationAdditional mechanical protection: Flexible stainless steel spiral armour protects the inner fibre during indoor cable routing.
Matching fibre connection: The cable has LC/APC connectors with an 8° polish at both ends, connecting compatible fibre ports and end devices with matching interfaces.
Flexible cable routing: The 3.0 ± 0.2 mm diameter and flexible design support routing along walls or skirting boards and integration into existing rooms.
Discreet installation: The white, halogen-free outer jacket suits visible routing in light-coloured rooms where the FTTH cable remains exposed.
Documented transmission values: The singlemode fibre cable has specified insertion and return loss values. An included test report makes the measured values traceable.
The InLine fibre optic cable connects compatible fibre ports to suitable end devices and fibre components. LC/APC connectors with an 8° polish at both ends clearly identify the connector type.
A key feature is flexible stainless steel spiral armour, providing additional mechanical protection to the inner fibre. This benefits routing along walls, skirting boards or visible cable paths.
The white outer jacket blends discreetly into light-coloured living and working areas. The halogen-free jacket completes the technical construction.

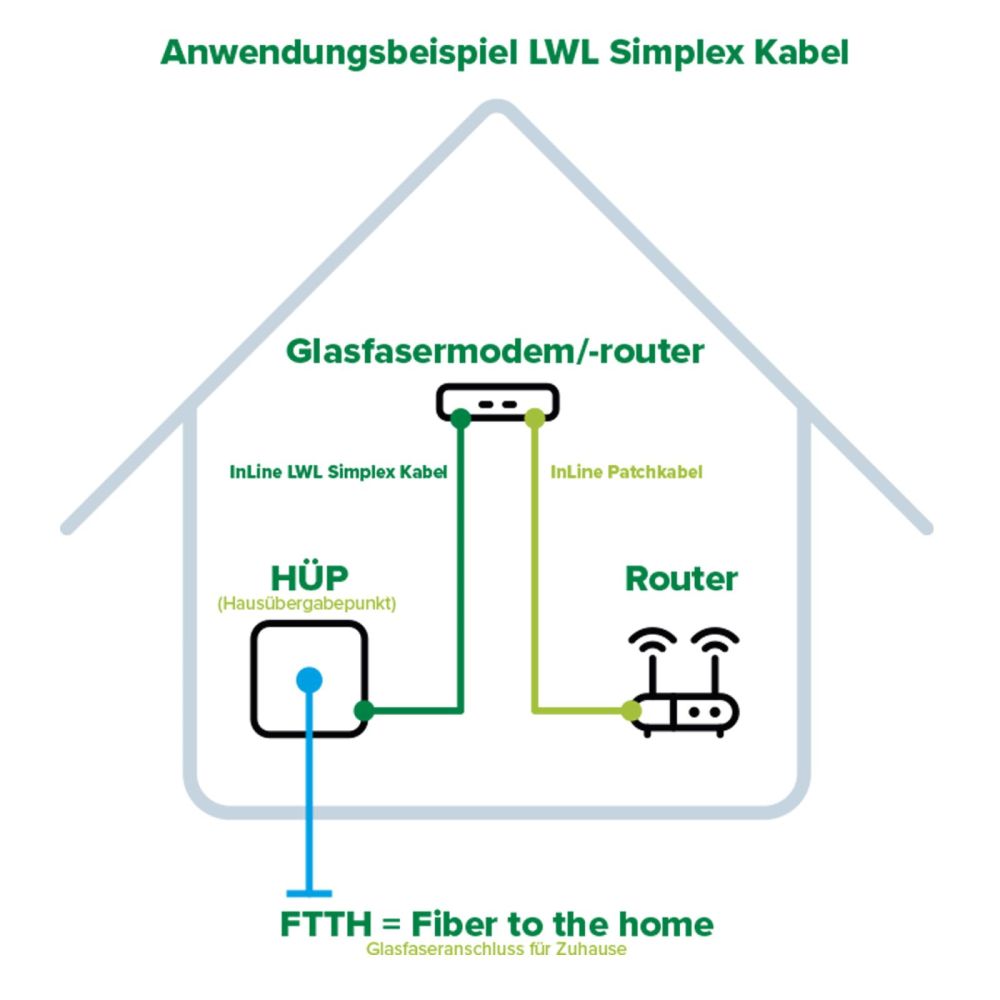

Suitable for FTTH connections with matching LC/APC interfaces. If compatible fibre equipment is repositioned, the connection can be adapted to local conditions.
Cable type: Fibre optic simplex cable, FTTH, single-fibre
Fibre type: Singlemode OS2, 9/125 µm, G.657.A2
Cable designation: I-VH-2E G.657.A2
Connectors: LC/APC 8° to LC/APC 8°, APC polish at both ends
Cable construction: Armoured with flexible stainless steel spiral tubing
Outer diameter: 3.0 ± 0.2 mm
Outer jacket: Halogen-free, white
Insertion loss (IL): Return loss (RL):
Standards specified: IEC 61034-2, IEC 60332-3, IEC 60754-2, IEC 61754-20
Documentation: Test report included
Matching fibre connection: The cable has LC/APC connectors with an 8° polish at both ends, connecting compatible fibre ports and end devices with matching interfaces.
Flexible cable routing: The 3.0 ± 0.2 mm diameter and flexible design support routing along walls or skirting boards and integration into existing rooms.
Discreet installation: The white, halogen-free outer jacket suits visible routing in light-coloured rooms where the FTTH cable remains exposed.
Documented transmission values: The singlemode fibre cable has specified insertion and return loss values. An included test report makes the measured values traceable.
The InLine fibre optic cable connects compatible fibre ports to suitable end devices and fibre components. LC/APC connectors with an 8° polish at both ends clearly identify the connector type.
A key feature is flexible stainless steel spiral armour, providing additional mechanical protection to the inner fibre. This benefits routing along walls, skirting boards or visible cable paths.
The white outer jacket blends discreetly into light-coloured living and working areas. The halogen-free jacket completes the technical construction.
Suitable for FTTH connections with matching LC/APC interfaces. If compatible fibre equipment is repositioned, the connection can be adapted to local conditions.
Cable type: Fibre optic simplex cable, FTTH, single-fibre
Fibre type: Singlemode OS2, 9/125 µm, G.657.A2
Cable designation: I-VH-2E G.657.A2
Connectors: LC/APC 8° to LC/APC 8°, APC polish at both ends
Cable construction: Armoured with flexible stainless steel spiral tubing
Outer diameter: 3.0 ± 0.2 mm
Outer jacket: Halogen-free, white
Insertion loss (IL): Return loss (RL):
60 dB
Temperature range: Operation and storage each -40 to +85 °CStandards specified: IEC 61034-2, IEC 60332-3, IEC 60754-2, IEC 61754-20
Documentation: Test report included
| Features | |
| Cable length | 50 m |
| Fibre optic type | OS2 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector polish type | APC |
| Product colour | White |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Insertion loss | 0.3 dB |
| Return loss | 60 dB |
| Full duplex | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Other features | |
| Dimensions (WxDxH) | 5 x 50000 x 11 mm |
| Packaging content | |
| Test protocol included | |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 220 mm |
| Package height | 35 mm |
| Package volume | 1700 cm³ |
| Package weight | 680 g |
| Technical data | |
| Variant | APC 8° |
| Cut side B | APC 8° |
| Storage temperature | -40 to +85°C |
| Height packaging | 0.035m |
| Length packaging | 0.220m |
| Article length | 5000.00cm |
| Bending radius (dynamic) | >60mm |
| Colour | White |
| Outer diameter | 3.0mm |
| Article height | 1.10cm |
| Side A | LC/APC plug |
| Number of fibres | Simplex (FTTH) |
| Width packaging | 0.220m |
| Cable Ø | 3mm |
| Bending radius (static) | >30mm |
| Fibre class | OS2 (9/125µm) G657A2 |
| Net weight | 0.677kg |
| Signal | Network |
| Weight | 0.680kg |
| Packaging volume | 0.0017m³ |
| Article width | 0.50cm |
| Side B | LC/APC plug |
| Cut side A | APC 8° |
| Operation temperature | -20 to +80°C |
| Length | 50m |
| Test protocol enclosed | |
| UL | |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 677 g |
