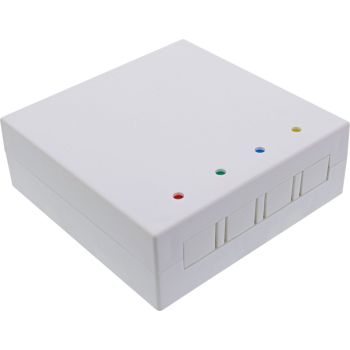

InLine® FTTH empty box for up to 4x LC duplex / 4x SC simplex, surface-mounted content_copy

Suitable for modern fiber optic connections - supports up to 4x LC duplex or 4x SC simplex, ideal for your home network or office.
Simple wall mounting without effort - thanks to the surface-mounted design, it is quick and easy to install, even on existing flush-mounted boxes (60 mm).
Space-saving design - the compact housing (80 x 80 x 28 mm) blends discreetly into any environment and ensures tidy cable routing.
Sophisticated cable management - with integrated strain relief and versatile cable entry for reliable and secure installation.
High-quality workmanship - robust ABS housing with color-coded ports for a better overview and durability in fiber optic expansion.
The InLine® FTTH empty box is the ideal solution for anyone who wants to implement their fiber optic cabling in a clean, space-saving and future-proof way. Whether in the home network or in the apartment - the surface-mounted box impresses with its sophisticated design, high functionality and easy handling during installation.
It offers space for up to 4x LC duplex or 4x SC simplex connections and is therefore suitable for all common FTTH installations. Thanks to its compact dimensions of just 80 x 80 x 28 mm, it even fits into tight installation situations and blends unobtrusively into its surroundings. The empty box can be mounted directly on the wall or optionally attached to an existing flush-mounted box (60 mm screw spacing).

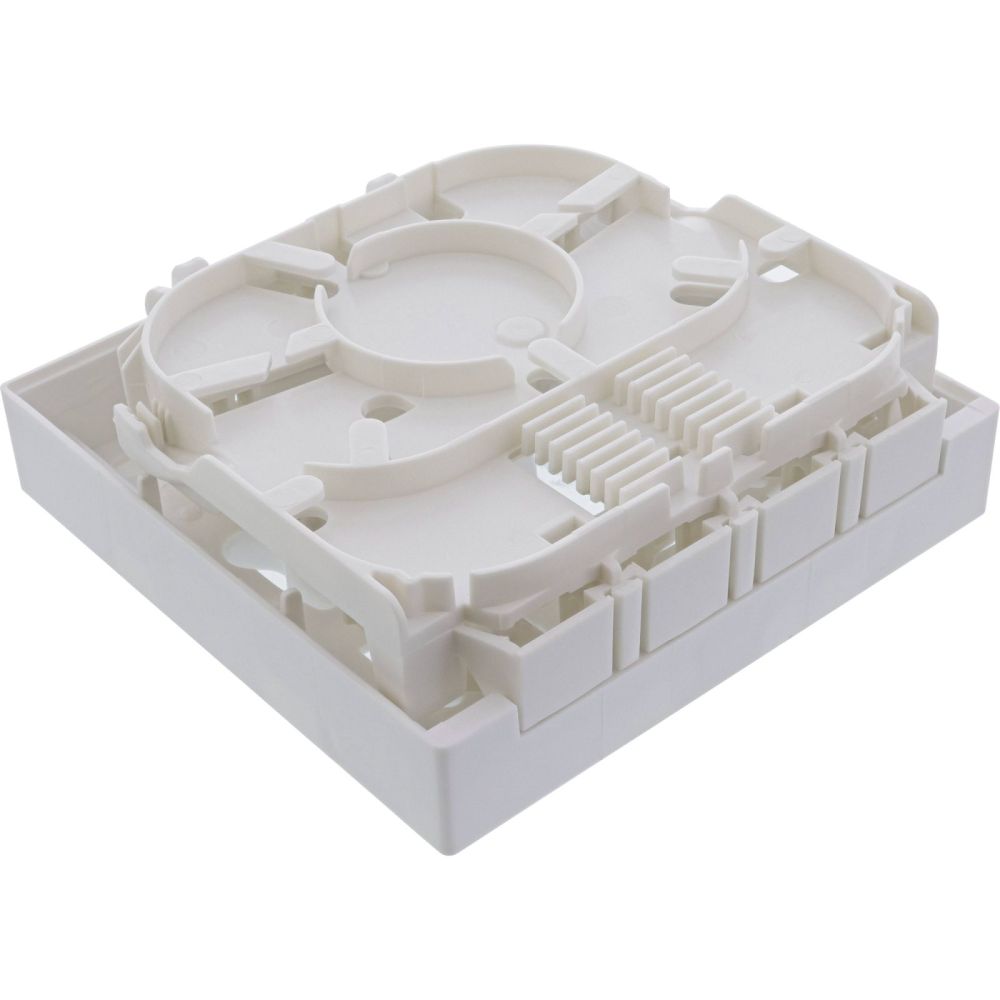

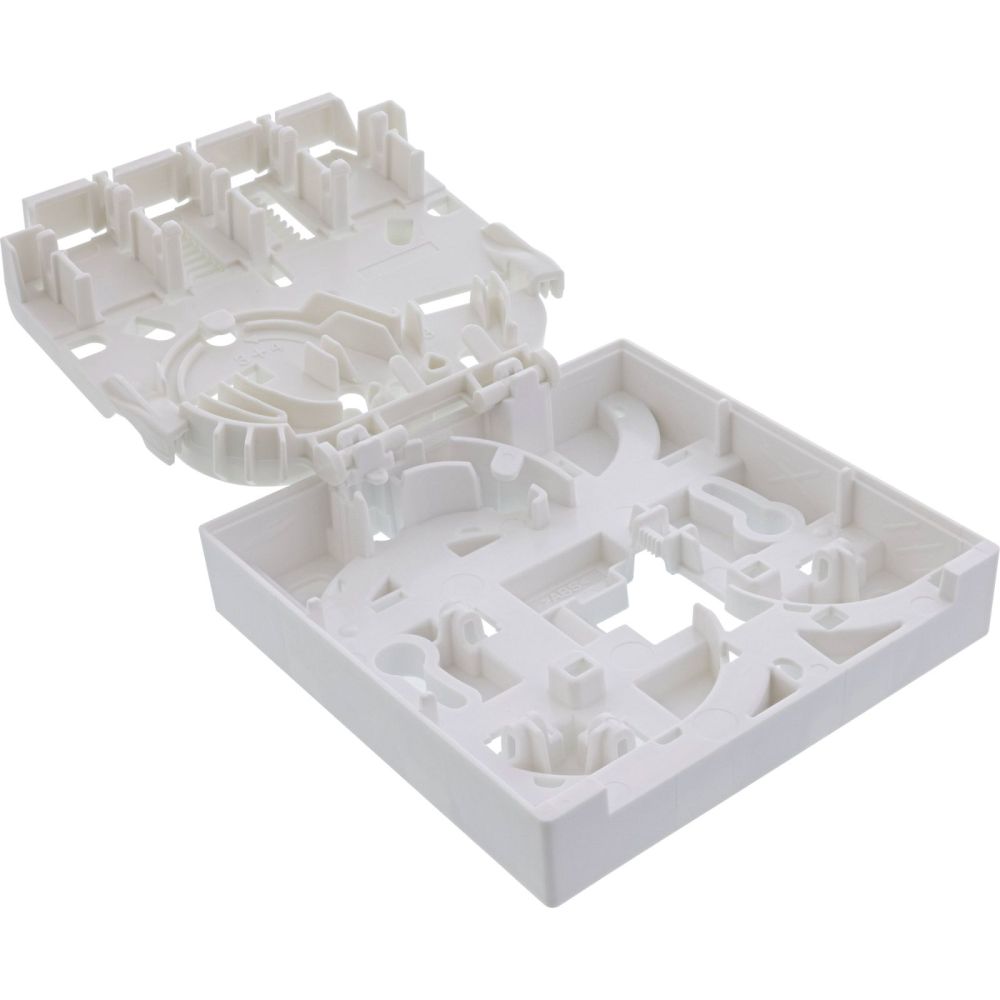

An integrated cable management system with strain relief ensures that the fiber optic cables are laid and fixed securely and clearly. In addition, the color coding of the ports enables clear and error-free assignment of the connections.
Made of high-quality ABS plastic, the housing is robust and durable - perfect for long-term use in the fiber optic sector. This makes the InLine® FTTH empty box a smart choice for anyone who values quality and a professional look.
Casing material: ABS plastic
Casing color: White
Mounting type: Surface-mounted
Dimensions: 80 x 80 x 28 mm
Screw spacing: 60 mm (suitable for flush-mounted boxes)
Integrated cable management

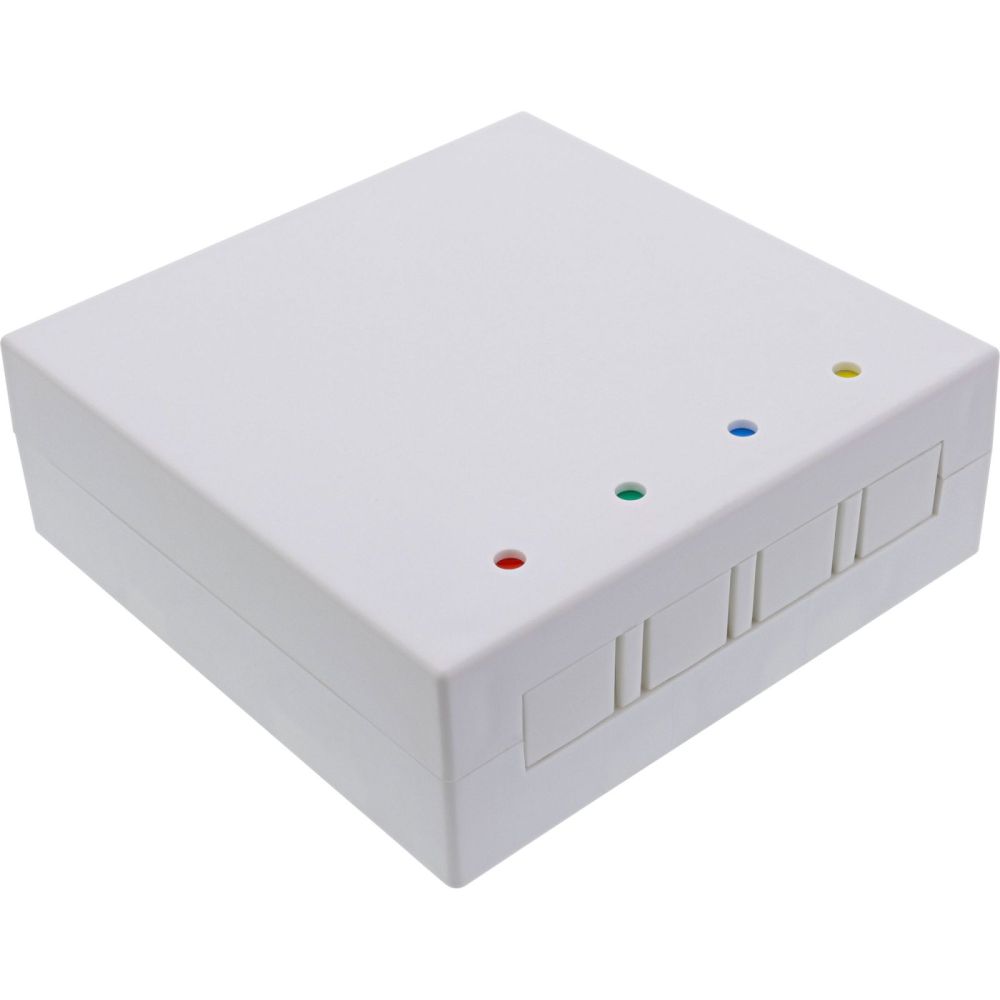

Color-coded port identification
Scope of delivery: 1x FTTH empty box incl. mounting material

Features
Connector type	LC/SC
Product colour	White
Full duplex
Logistics data
Package volume	200 cm³
Packaging data
Package width	90 mm
Package depth	105 mm
Package height	30 mm
Package weight	65 g
Package type	Box
Technical data
Packaging volume	0.0002m³
Length packaging	0.105m
Article length	8.00cm
Type	Surface-mounted
Net weight	0.055kg
Side A	4x SC Simplex or 4x LC Duplex
Width packaging	0.090m
Article width	8.00cm
Article height	3.00cm
Weight	0.065kg
Height packaging	0.030m
Weight & dimensions
Width	80 mm
Depth	80 mm
Height	30 mm
Weight	55 g

---
