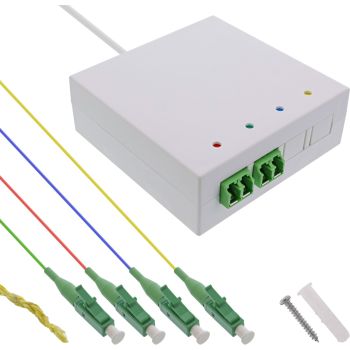

InLine® FTTH extension box pre-assembled 4x LC/APC 9/125µm 10m content_copy

Fast fiber optic connection in your home: With this pre-assembled box, you can conveniently extend your fiber optic cable to your modem or router.
Easy installation without special knowledge: The surface-mounted box is ready to use, saves time, and requires no additional tools or splicing equipment.
4-way connection for maximum flexibility: Ideal for apartment buildings: Supply up to four end devices or apartments with fiber optic internet.
Reliable transmission quality: Thanks to OS2 9/125µm single-mode cable with LC/APC connectors, a low-loss and stable connection is ensured.
Unobtrusive design for any environment: The white box blends discreetly into living areas; mounting accessories and insertion aid are included.

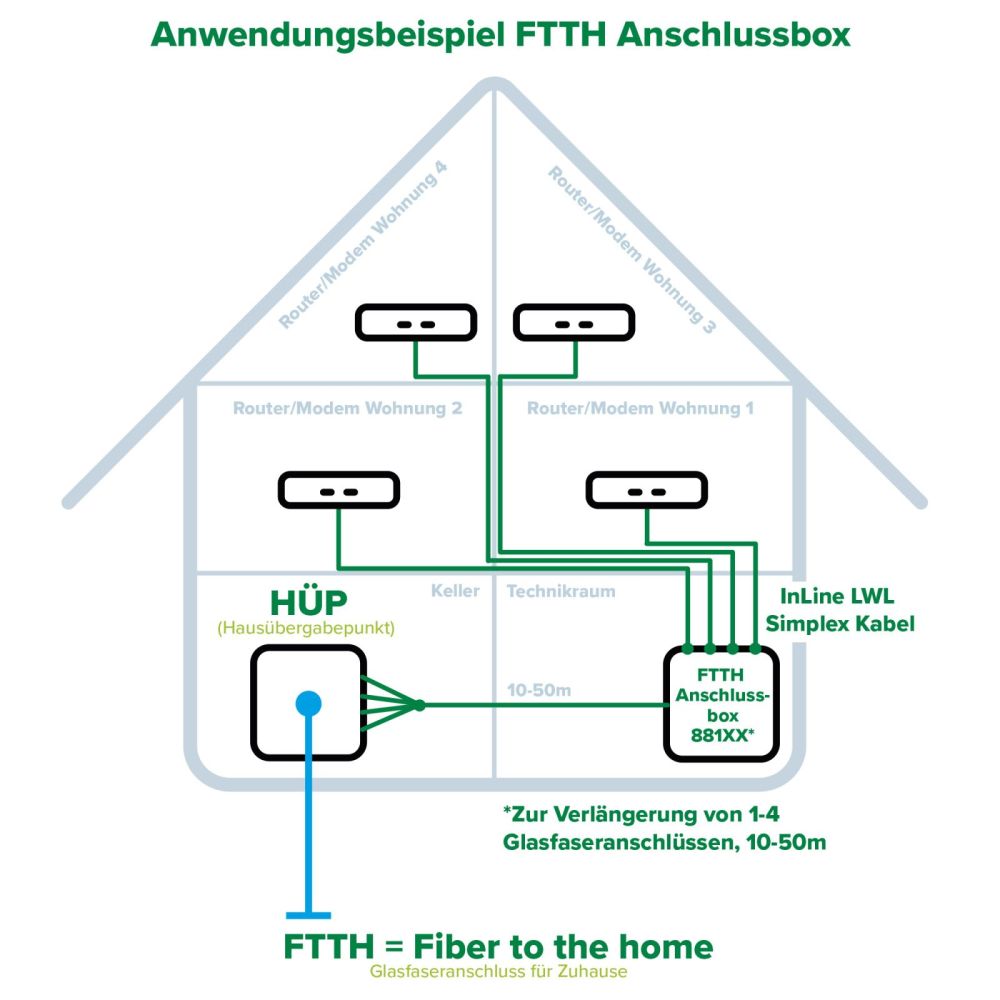

Experience the advantages of fiber optic technology in your home now – with the FTTH extension box from InLine®. This practical surface-mounted solution is ideal if the building entry point (BEP) is in an inconvenient location and you want to route the fiber optic signal to another room or apartment unit.

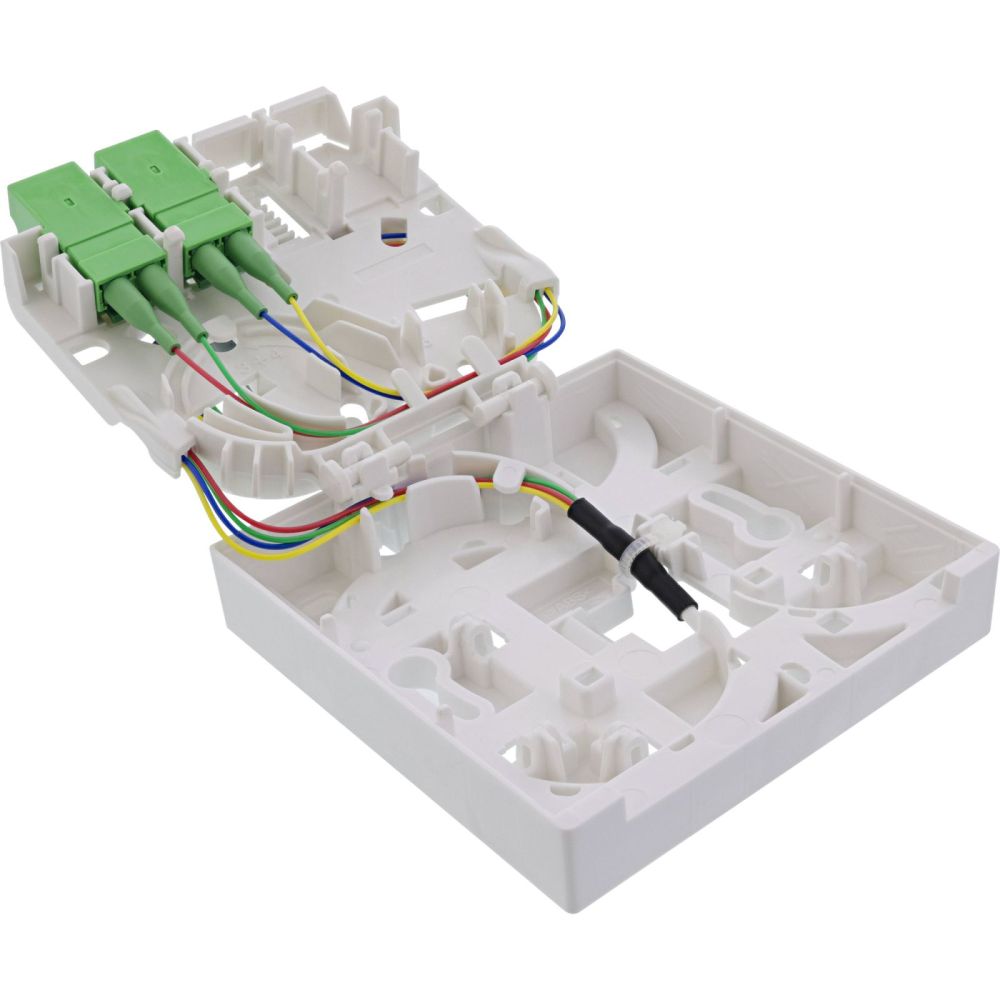

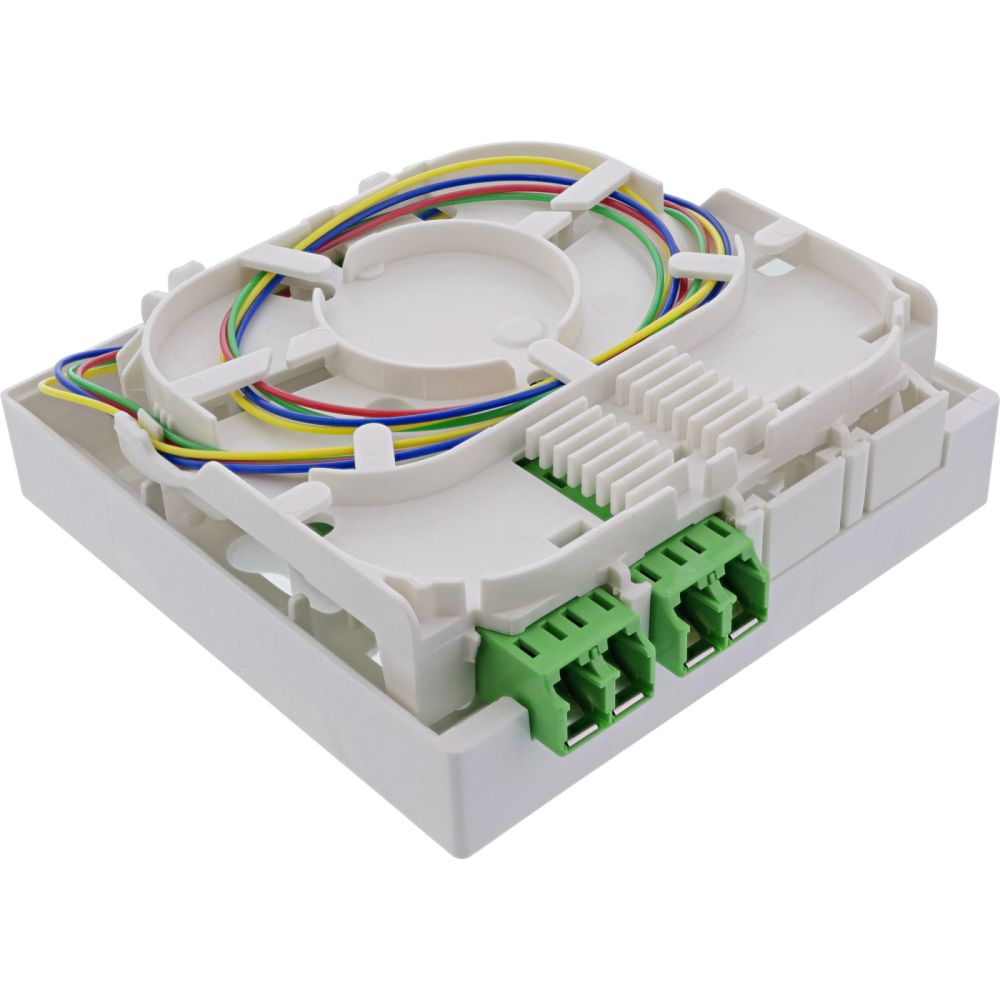

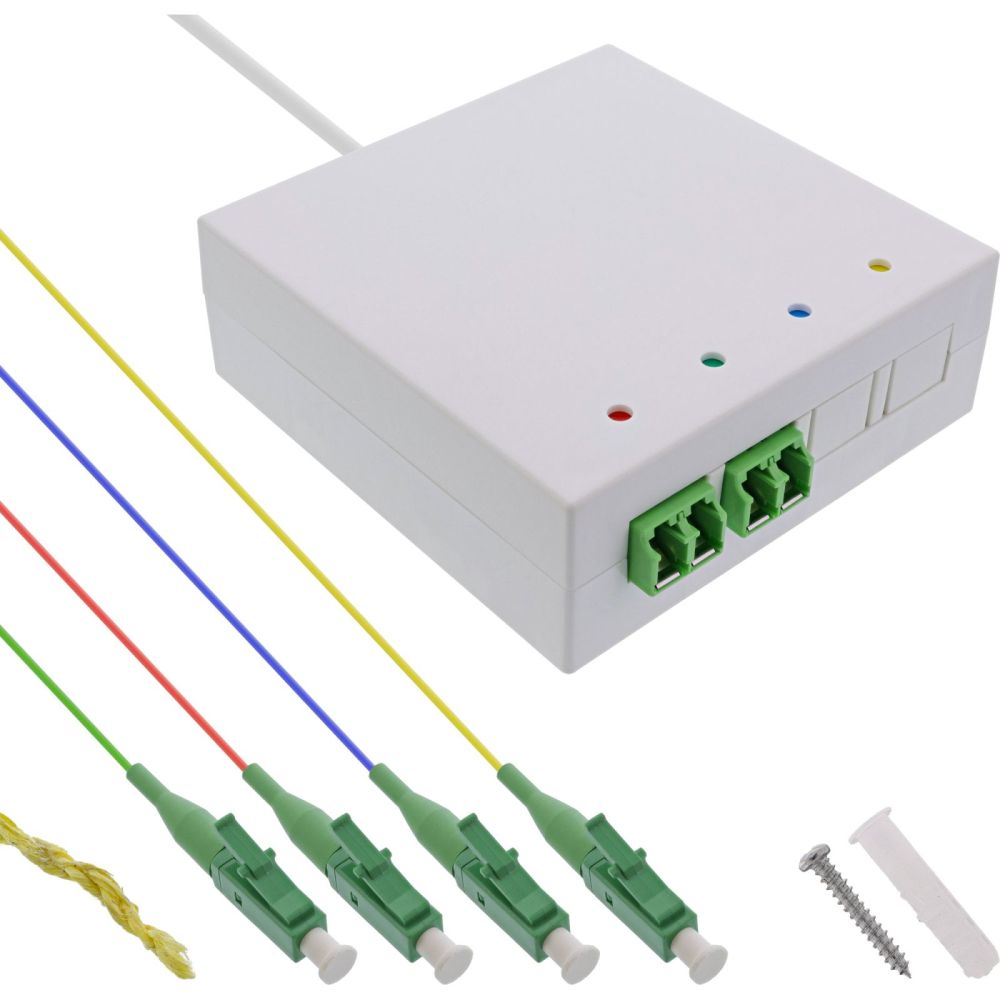

The connection box contains a 10 m long OS2 single-mode cable (9/125 µm), which is pre-assembled with four LC/APC 8° connectors. This eliminates the need for complicated splicing – you can establish the connection immediately. Four integrated LC sockets make it possible to connect several modems or routers at the same time – ideal for families, shared apartments, or multi-unit buildings.

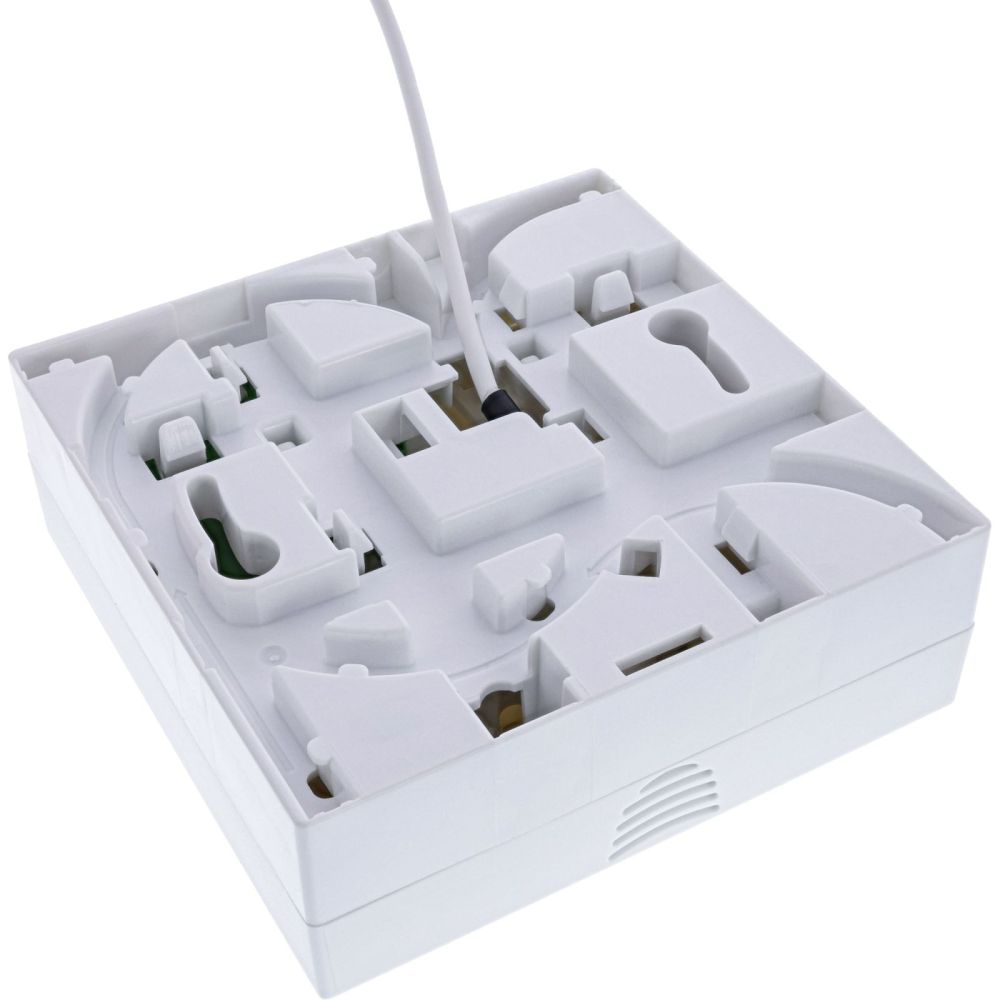

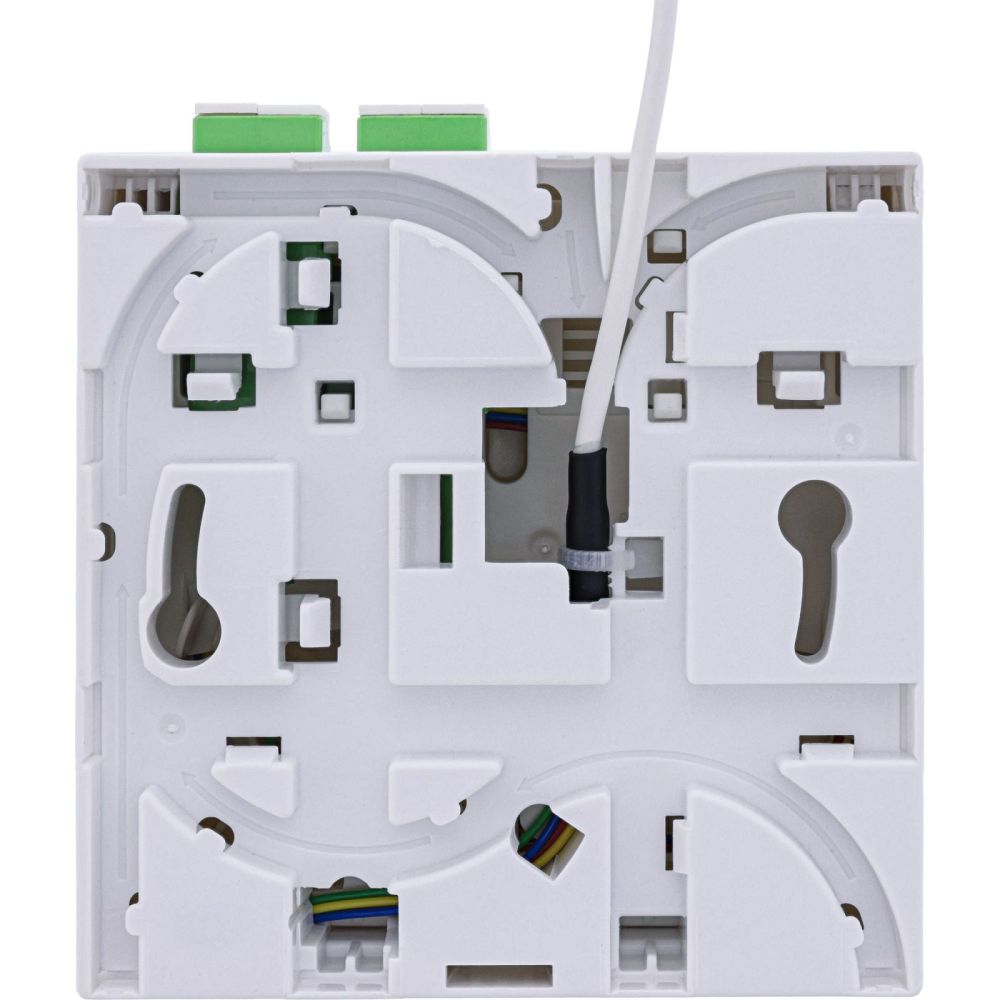

The housing can be easily mounted on plaster or on a flush-mounted box with 60 mm screw spacing. Thanks to its discreet white design, the box fits in well with any living room or utility room.

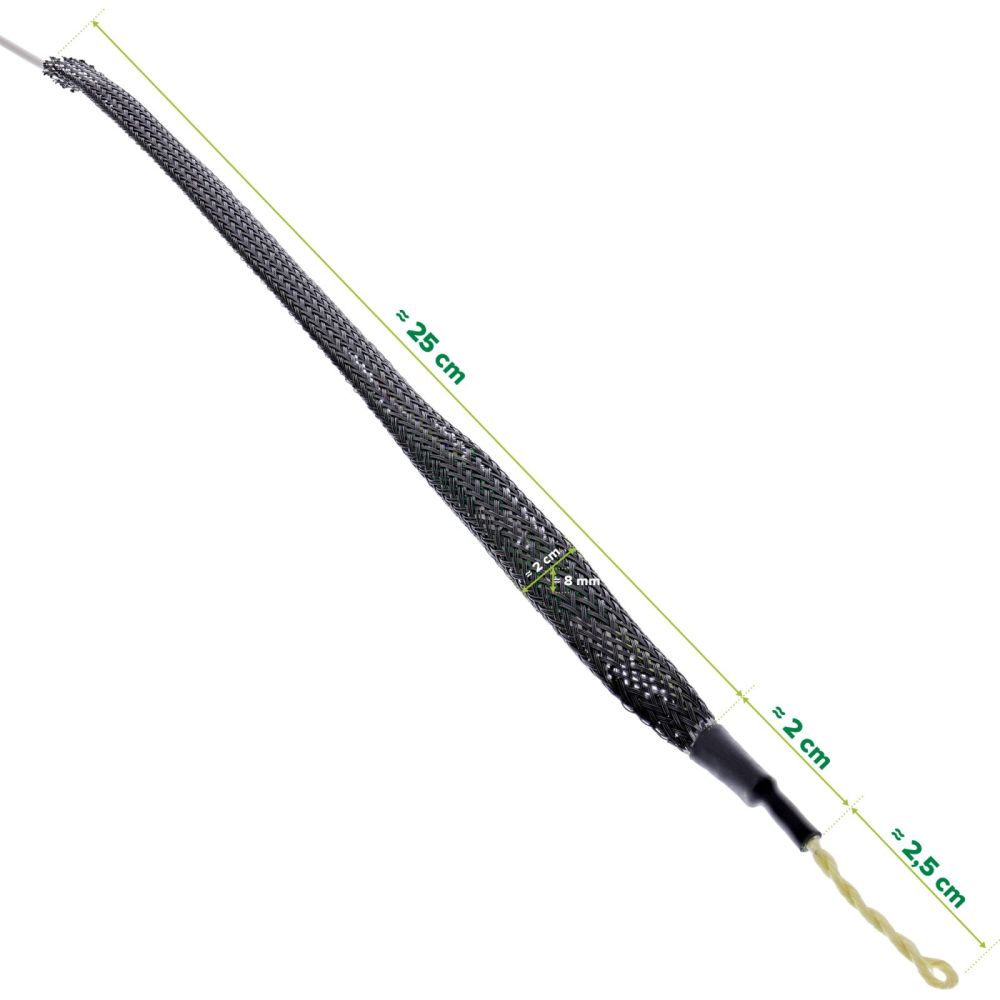

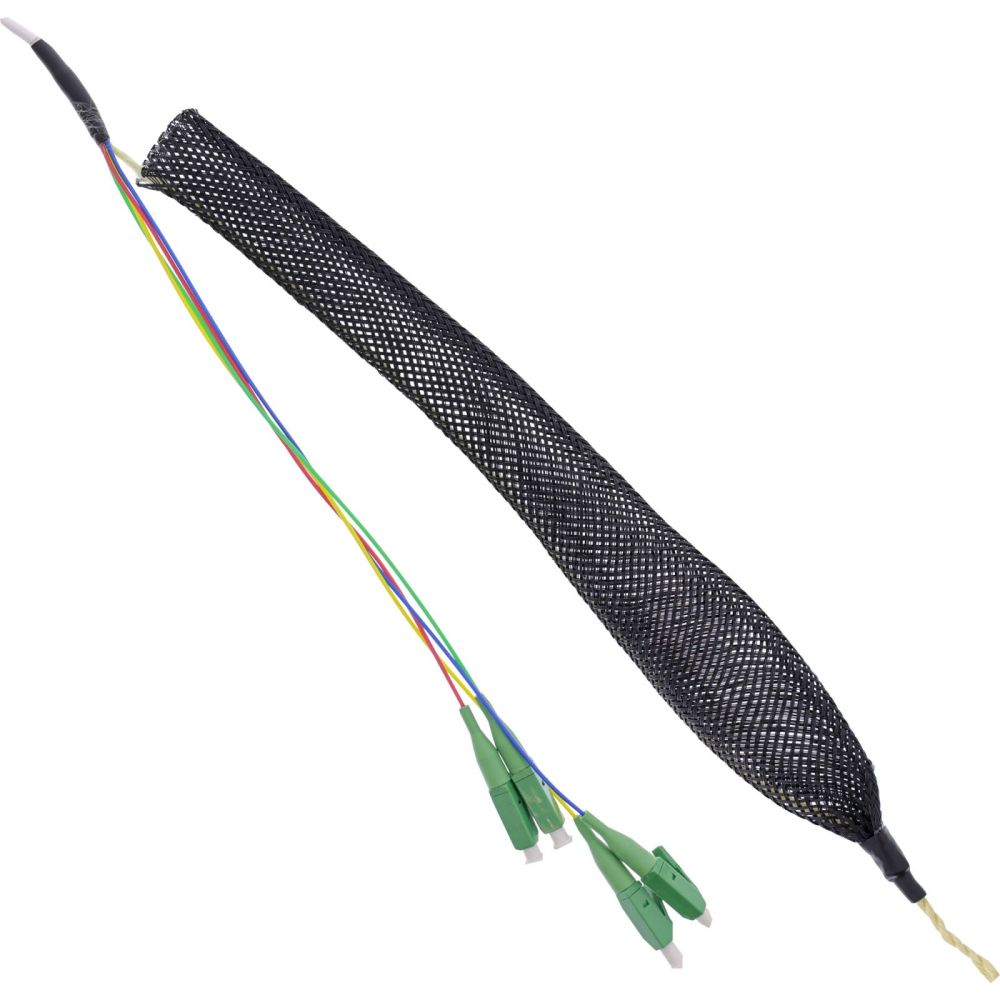

The included pull-through aid makes it quick and easy to install through empty conduits (min. 20 mm diameter). Mounting materials are also included.The minimum bending radius for pulling cables into conduit pipes is 300 mm.
InLine® stands for quality, flexibility, and easy installation – experience the power of the perfect connection.
Housing dimensions: 80 × 80 × 28 mm
Mounting type: Surface-mounted
Minimum diameter of the empty tubes: 20 mm
Fiber: 4 fibers according to G657.A2, OS2 single mode 9/125µm, color-coded (yellow, green, blue, red)
Halogen-free sheath, CPR B2ca-s1a.d0.a1, color: white, diameter approx. 2.2 mm
Tensile strength: 100 N
Compressive strength: 100 N / 100 mm
Color: White
Screw spacing: 60 mm
Fiber: 4x OS2 9/125 µm single mode
Includes: Pull-in aid, mounting screws

Features
Connector type	LC/APC
Fibre optic type	OS2
Connector gender	Male/Female
Product colour	White
Fiber mode structure	Single-mode
Logistics data
Country of origin	Germany
Package volume	2900 cm³
Packaging data
Package width	235 mm
Package depth	250 mm
Package height	5 mm
Package weight	260 g

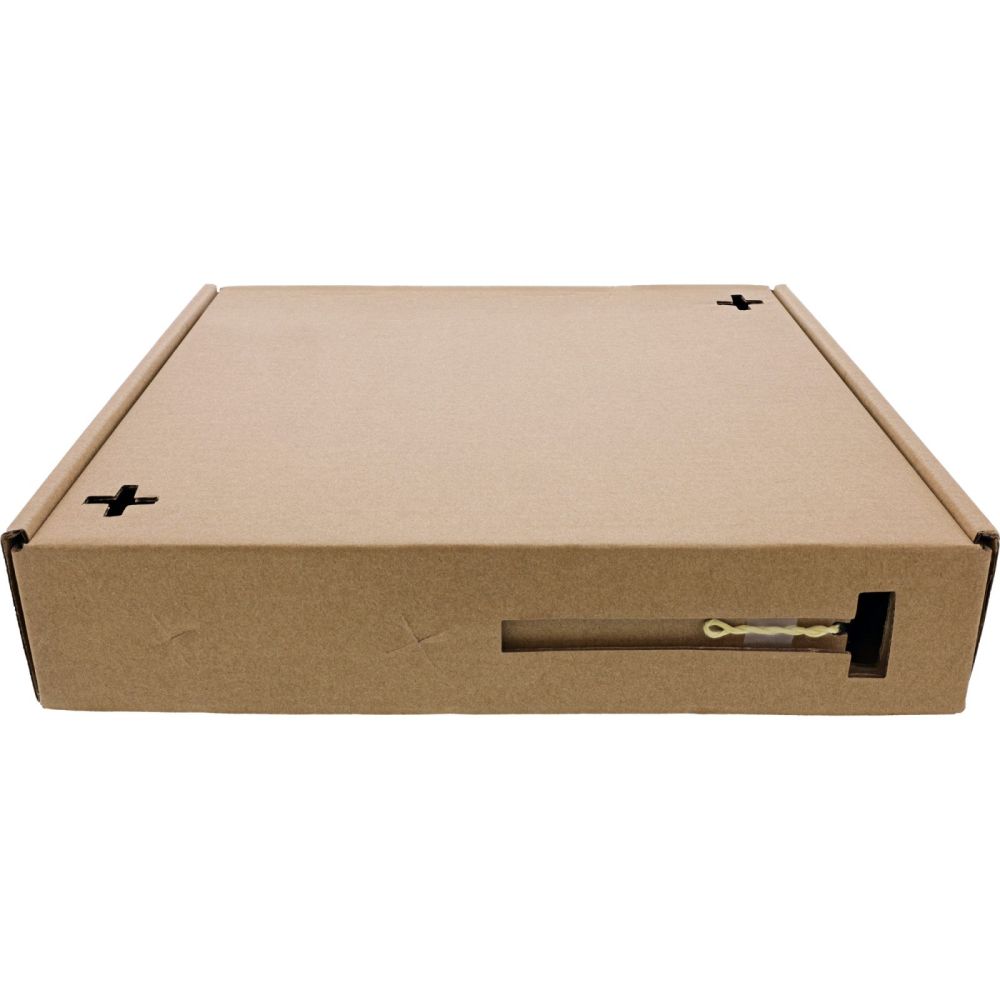

Package type	Box
Technical data
Side A	LC/APC plug
Article length	1000.00cm
Outer diameter	2.2mm
Signal	Network
Operation temperature	-40 to +75°C
Weight	0.260kg
Storage temperature	-40 to +75°C
Article width	8.00cm
Length packaging	0.250m
Width packaging	0.235m
Side B	LC female
Height packaging	0.005m
Fibre class	OS2 (9/125µm) G657A2
Number of fibres	4
Article height	3.00cm
Colour	White
Net weight	0.160kg
Cut side A	APC 8°
Packaging volume	0.0029m³
Length	10m
Weight & dimensions
Width	80 mm
Depth	10000 mm
Height	30 mm
Weight	160 g

---
