InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 15m
|
7,87 EUR |
|
|
( 9,37 EUR incl. VAT ) ≈ £6.59 | ≈ $8.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196905 |
| Mfg Part No: | 82925D |
| UPC/EAN: | 4043718096244 |
| Weight: | 0.227 kg |
Product information for Inline 82925D:
Fibre optic duplex cable, SC to SC, OS2 single-mode 9/125 µm, LSZH fibreReliable data transmission: Fibre optic duplex cable with OS2 single-mode 9/125 µm for stable, low-loss signal transmission in fibre optic networks
Precise SC connection: SC to SC connectors enable a precise connection between network components with corresponding interfaces
Halogen-free LSZH jacket: Suitable for installations with heightened requirements regarding safety and material behaviour in the event of smoke generation
Duplex design: Two fibres enable simultaneous transmission and reception of data for stable communication links
Versatile applications: Ideal as a fibre optic patch cable for networks, server cabinets and structured cabling
This fibre optic duplex cable with SC to SC connectors is suitable for connecting network components in fibre optic installations. It supports stable, low-loss data transmission and is designed for applications using single-mode OS2 fibre.
With a 9/125 µm core, the cable is suitable for applications where longer distances need to be bridged. The duplex design enables simultaneous transmission in both directions and ensures reliable communication between the connected devices.
The SC connectors provide a precise and secure connection with compatible interfaces. The LSZH jacket is halogen-free and supports use in environments with heightened requirements regarding safety and material behaviour.
The various length options allow the appropriate cable to be selected for different installation requirements.

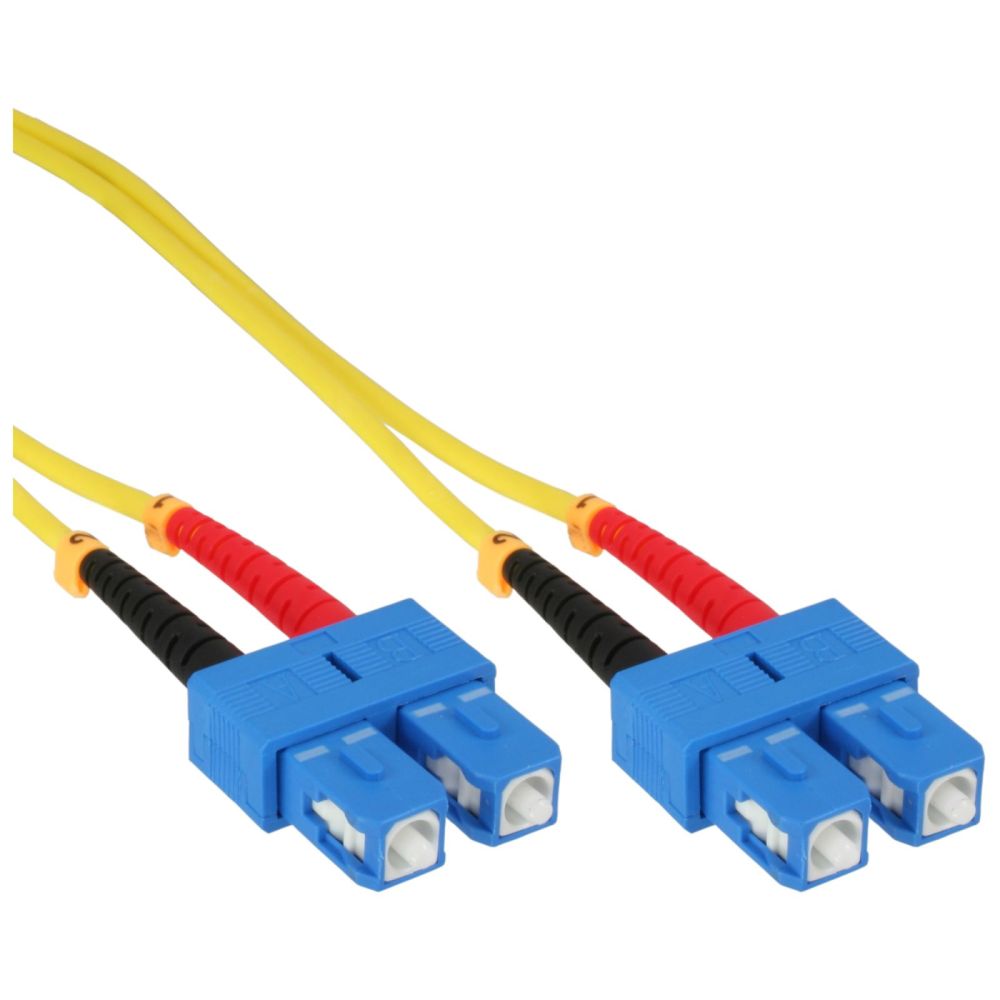

2x SC male to 2x SC male
Fibre: OS2 single-mode 9/125 µm
Duplex cable construction
Sheath: LSZH halogen-free
Diameter: 3.0 mm (x2)
Colour: Yellow
Precise SC connection: SC to SC connectors enable a precise connection between network components with corresponding interfaces
Halogen-free LSZH jacket: Suitable for installations with heightened requirements regarding safety and material behaviour in the event of smoke generation
Duplex design: Two fibres enable simultaneous transmission and reception of data for stable communication links
Versatile applications: Ideal as a fibre optic patch cable for networks, server cabinets and structured cabling
This fibre optic duplex cable with SC to SC connectors is suitable for connecting network components in fibre optic installations. It supports stable, low-loss data transmission and is designed for applications using single-mode OS2 fibre.
With a 9/125 µm core, the cable is suitable for applications where longer distances need to be bridged. The duplex design enables simultaneous transmission in both directions and ensures reliable communication between the connected devices.
The SC connectors provide a precise and secure connection with compatible interfaces. The LSZH jacket is halogen-free and supports use in environments with heightened requirements regarding safety and material behaviour.
The various length options allow the appropriate cable to be selected for different installation requirements.
2x SC male to 2x SC male
Fibre: OS2 single-mode 9/125 µm
Duplex cable construction
Sheath: LSZH halogen-free
Diameter: 3.0 mm (x2)
Colour: Yellow
| Features | |
| Cable length | 15 m |
| Fibre optic type | OS2 |
| Connector 1 | SC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Blue, Yellow |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Full duplex | |
| Other features | |
| Core / cladding diameter | 9/125 µm |
| Dimensions (WxDxH) | 25 x 15000 x 10 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Test protocol included | |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 255 mm |
| Package height | 31 mm |
| Package volume | 1600 cm³ |
| Package weight | 227 g |
| Technical data | |
| Packaging volume | 0.0016m³ |
| Side A | SC plug |
| Article length | 1500.00cm |
| Cable Ø | 3mm |
| Height packaging | 0.031m |
| Weight | 0.227kg |
| Cut side B | UPC |
| Operation temperature | -20 to +80°C |
| Length | 15m |
| Colour | Yellow |
| Fibre class | OS2 (9/125µm) G652D |
| Storage temperature | -40 to +85°C |
| Width packaging | 0.200m |
| Length packaging | 0.255m |
| Article height | 1.00cm |
| Number of fibres | Duplex |
| Signal | Network |
| Cut side A | UPC |
| Net weight | 0.214kg |
| Outer diameter | 3.0mm |
| Article width | 2.50cm |
| Side B | SC plug |
| UL | |
| Test protocol enclosed | |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 214 g |
