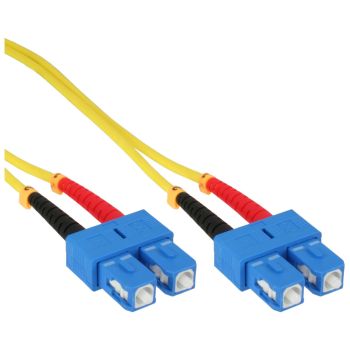

InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 2m content_copy

Fibre optic duplex cable, SC to SC, OS2 single-mode 9/125 µm, LSZH fibreReliable data transmission: Fibre optic duplex cable with OS2 single-mode 9/125 µm for stable, low-loss signal transmission in fibre optic networks
Precise SC connection: SC to SC connectors enable a precise connection between network components with corresponding interfaces
Halogen-free LSZH jacket: Suitable for installations with heightened requirements regarding safety and material behaviour in the event of smoke generation
Duplex design: Two fibres enable simultaneous transmission and reception of data for stable communication links
Versatile applications: Ideal as a fibre optic patch cable for networks, server cabinets and structured cabling
This fibre optic duplex cable with SC to SC connectors is suitable for connecting network components in fibre optic installations. It supports stable, low-loss data transmission and is designed for applications using single-mode OS2 fibre.
With a 9/125 µm core, the cable is suitable for applications where longer distances need to be bridged. The duplex design enables simultaneous transmission in both directions and ensures reliable communication between the connected devices.
The SC connectors provide a precise and secure connection with compatible interfaces. The LSZH jacket is halogen-free and supports use in environments with heightened requirements regarding safety and material behaviour.
The various length options allow the appropriate cable to be selected for different installation requirements.
2x SC male to 2x SC male
Fibre: OS2 single-mode 9/125 µm
Duplex cable construction
Sheath: LSZH halogen-free
Diameter: 3.0 mm (x2)
Colour: Yellow

Features
Cable length	2 m
Fibre optic type	OS2
Connector 1	SC
Connector 2	SC
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Yellow
Core diameter	9 µm
Cladding diameter	125 µm
Jacket material	Low smoke zero halogen (LSZH)
Full duplex
Other features
Core / cladding diameter	9/125 µm
Packaging content
Quantity per pack	1 pc(s)
Test protocol included
Packaging data
Package width	175 mm
Package depth	245 mm
Package height	13 mm
Package volume	600 cm³
Package weight	51 g
Technical data
Width packaging	0.175m
Length packaging	0.245m
Fibre class	OS2 (9/125µm) G652D
Weight	0.051kg
Outer diameter	3.0mm
Article length	200.00cm
Height packaging	0.013m
Signal	Network
Colour	Yellow
Cut side A	UPC
Number of fibres	Duplex
Side B	SC plug
Net weight	0.044kg
Side A	SC plug
Packaging volume	0.0006m³
Cut side B	UPC
Operation temperature	-20 to +80°C
Cable Ø	3mm
Storage temperature	-40 to +85°C
UL
Test protocol enclosed
Weight & dimensions
Cable diameter	3 mm
Weight	44 g

---
