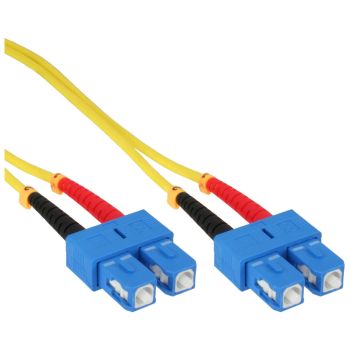

InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m
|
6,26 EUR |
|||||||||||
|
( 7,45 EUR incl. VAT ) ≈ £5.24 | ≈ $7.00 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22196919 | ||||||||||
| Mfg Part No: | 82905 | ||||||||||
| UPC/EAN: | 4043718130658 | ||||||||||
| Weight: | 0.09 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 82905:
Precise SC connection: SC to SC connectors enable a precise connection between network components with corresponding interfaces
Halogen-free LSZH jacket: Suitable for installations with heightened requirements regarding safety and material behaviour in the event of smoke generation
Duplex design: Two fibres enable simultaneous transmission and reception of data for stable communication links
Versatile applications: Ideal as a fibre optic patch cable for networks, server cabinets and structured cabling
This fibre optic duplex cable with SC to SC connectors is suitable for connecting network components in fibre optic installations. It supports stable, low-loss data transmission and is designed for applications using single-mode OS2 fibre.
With a 9/125 µm core, the cable is suitable for applications where longer distances need to be bridged. The duplex design enables simultaneous transmission in both directions and ensures reliable communication between the connected devices.
The SC connectors provide a precise and secure connection with compatible interfaces. The LSZH jacket is halogen-free and supports use in environments with heightened requirements regarding safety and material behaviour.
The various length options allow the appropriate cable to be selected for different installation requirements.
2x SC male to 2x SC male
Fibre: OS2 single-mode 9/125 µm
Duplex cable construction
Sheath: LSZH halogen-free
Diameter: 3.0 mm (x2)
Colour: Yellow
| Features | |
| Cable length | 5 m |
| Fibre optic type | OS2 |
| Connector 1 | 2x SC |
| Connector 2 | 2x SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Full duplex | |
| Other features | |
| Dimensions (WxDxH) | 25 x 5000 x 12 mm |
| Packaging content | |
| Test protocol included | |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 245 mm |
| Package height | 13 mm |
| Package volume | 600 cm³ |
| Package weight | 90 g |
| Technical data | |
| Cut side B | UPC |
| Operation temperature | -20 to +80°C |
| Side B | SC plug |
| Packaging volume | 0.0006m³ |
| Number of fibres | Duplex |
| Signal | Network |
| Length | 5m |
| Cut side A | UPC |
| Net weight | 0.082kg |
| Side A | SC plug |
| Colour | Yellow |
| Fibre class | OS2 (9/125µm) G652D |
| Height packaging | 0.013m |
| Outer diameter | 3.0mm |
| Article width | 2.50cm |
| Cable Ø | 3mm |
| Length packaging | 0.245m |
| Article height | 1.20cm |
| Weight | 0.090kg |
| Width packaging | 0.175m |
| Article length | 500.00cm |
| Storage temperature | -40 to +85°C |
| Test protocol enclosed | |
| UL | |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Weight | 82 g |
Questions & answers
What is the delivery time of InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m?
The article InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 82905 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m always at the best possible price. We can give you a discount of 2% on InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of InLine® Fibre optic duplex cable, SC/SC, 9/125µm, OS2, 5m we can offer you a price of 6,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
