InLine® Network Cable Tester for BNC RJ11 RJ45
|
10,23 EUR |
|
|
( 12,17 EUR incl. VAT ) ≈ £8.56 | ≈ $11.45 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197269 |
| Mfg Part No: | 79998 |
| UPC/EAN: | 4043718009091 |
| Weight: | 0.218 kg |
Product information for Inline 79998:

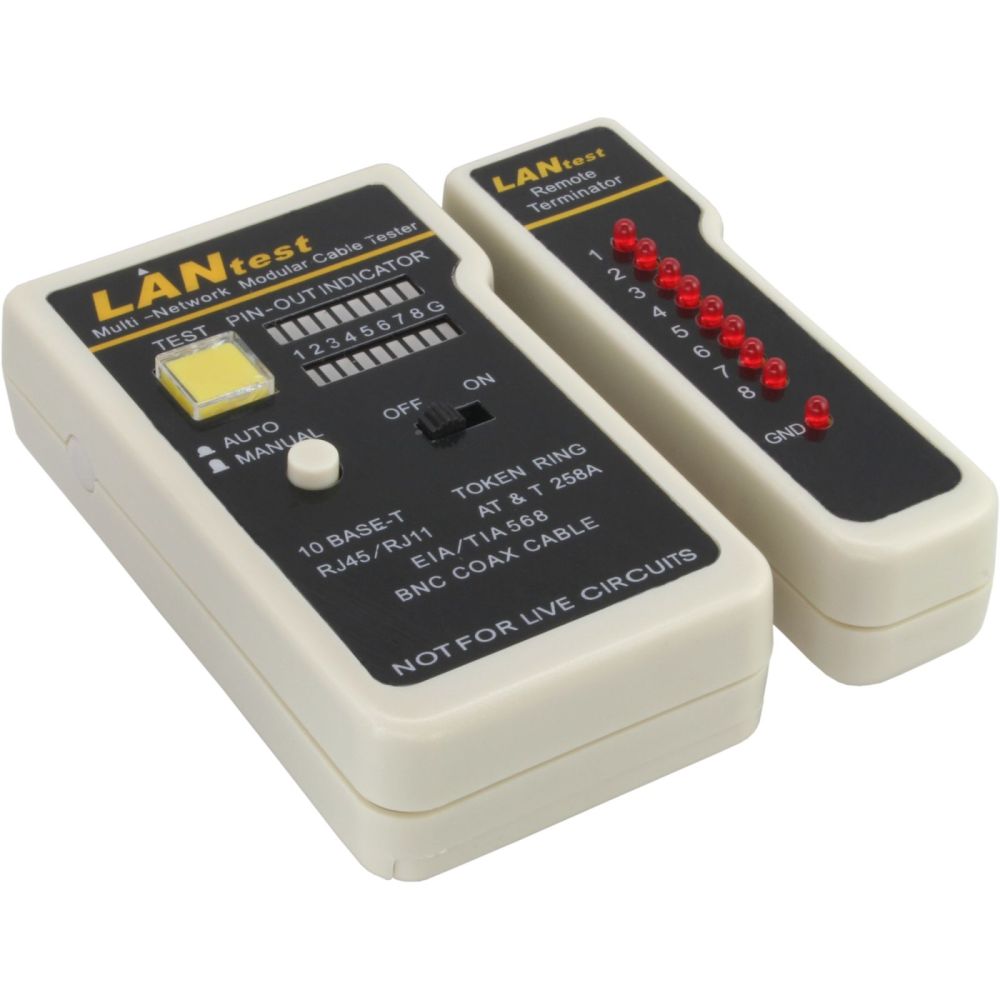

Quick troubleshooting on network, telephone, and coaxial cablesClear line status at a glance: 9 LEDs clearly visualize wire sequence and shielding.
Individual test control: Automatic or manual mode depending on the task.

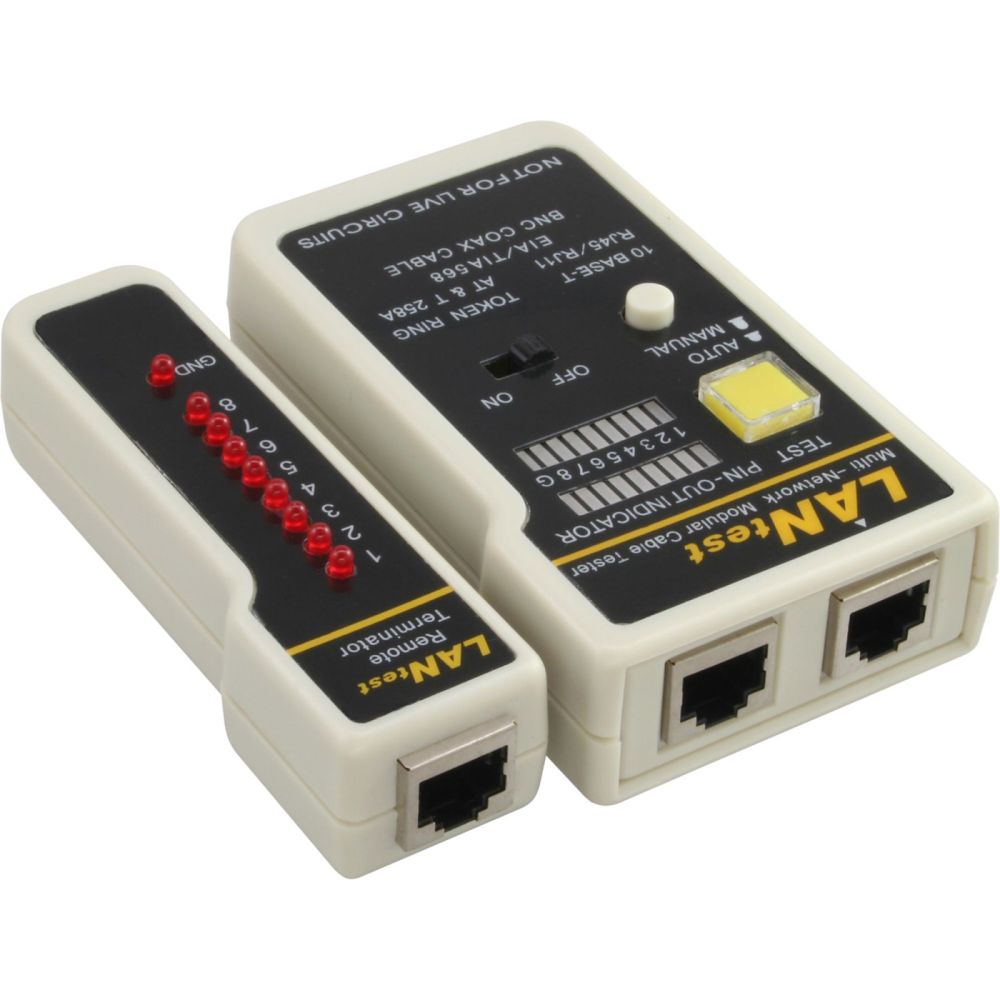

Convenient remote cable testing: Main unit and remote unit with RJ45 sockets for tests at both ends.
Versatile cable coverage: RJ45, RJ11, ISDN, UTP, STP, and BNC testing with suitable adapter.

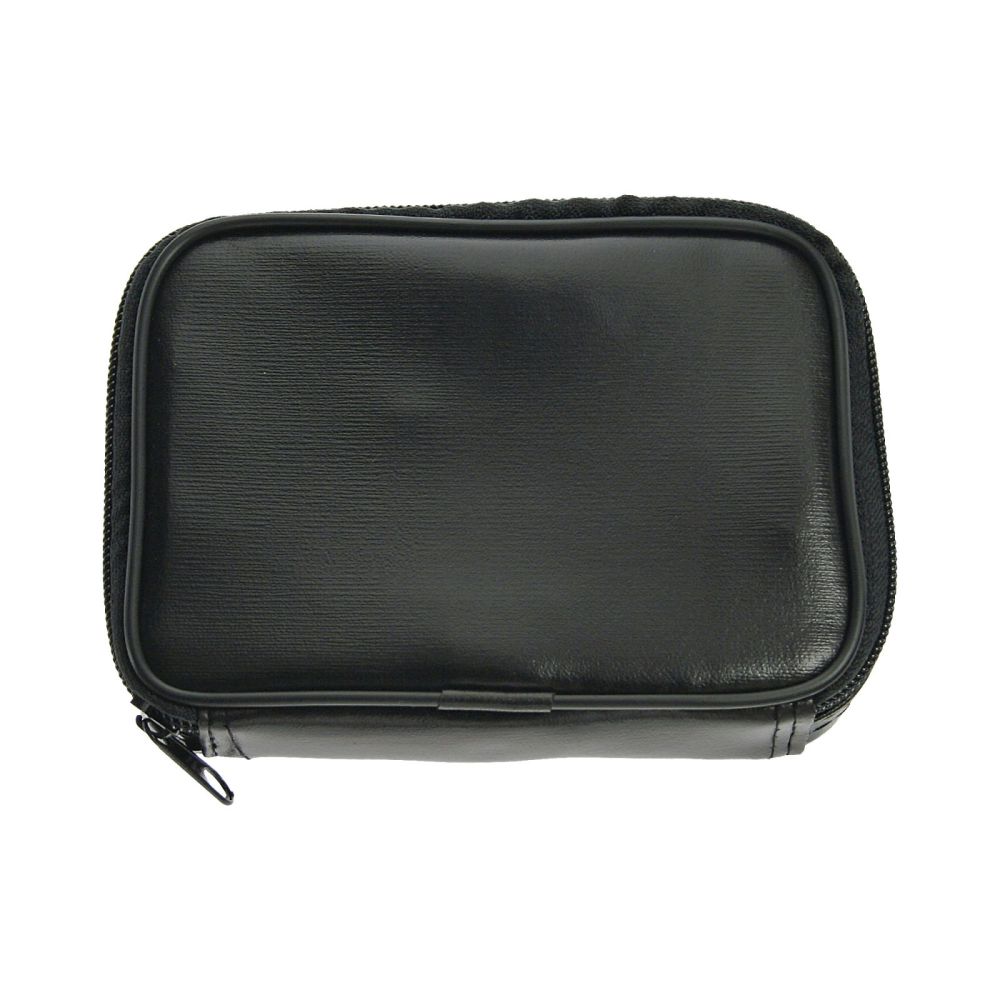

Mobile and protected transport: Includes faux leather case and adapters.
This passive tester lets you test network and telephone cables quickly and systematically. The 9-LED light bar display makes wiring and shielding immediately visible. As needed, choose between automatic sequence or manual step-by-step testing. For coaxial cables, a 50 Ohm BNC adapter is used, allowing these cables to be tested conveniently as well.
The tester supports common cabling standards and is suitable for professional IT environments, on-site installations, and service deployments in existing infrastructures of companies and public institutions. The included faux leather case and adapters facilitate safe transport and direct use at the test point.
Main unit connection: 2x RJ45 sockets
Remote unit connection: 1x RJ45 socket
Display: 9 LEDs as a light bar
Operating modes: Automatic, Manual
Compatibility: EIA/TIA 356/568/568B/Token Ring
Testable cable types: RJ45, RJ11, ISDN, UTP, STP, BNC
BNC adapter: 50 Ohm (for coaxial tests)
Power supply: 9 V alkaline battery
Dimensions main unit: 103 x 60 x 26 mm
Dimensions remote unit: 103 x 30 x 26 mm
Weight: Main unit 120 g, remote unit 40 g
Scope of delivery: faux leather case and adapters
Type: passive Ethernet tester
Individual test control: Automatic or manual mode depending on the task.
Convenient remote cable testing: Main unit and remote unit with RJ45 sockets for tests at both ends.
Versatile cable coverage: RJ45, RJ11, ISDN, UTP, STP, and BNC testing with suitable adapter.
Mobile and protected transport: Includes faux leather case and adapters.
This passive tester lets you test network and telephone cables quickly and systematically. The 9-LED light bar display makes wiring and shielding immediately visible. As needed, choose between automatic sequence or manual step-by-step testing. For coaxial cables, a 50 Ohm BNC adapter is used, allowing these cables to be tested conveniently as well.
The tester supports common cabling standards and is suitable for professional IT environments, on-site installations, and service deployments in existing infrastructures of companies and public institutions. The included faux leather case and adapters facilitate safe transport and direct use at the test point.
Main unit connection: 2x RJ45 sockets
Remote unit connection: 1x RJ45 socket
Display: 9 LEDs as a light bar
Operating modes: Automatic, Manual
Compatibility: EIA/TIA 356/568/568B/Token Ring
Testable cable types: RJ45, RJ11, ISDN, UTP, STP, BNC
BNC adapter: 50 Ohm (for coaxial tests)
Power supply: 9 V alkaline battery
Dimensions main unit: 103 x 60 x 26 mm
Dimensions remote unit: 103 x 30 x 26 mm
Weight: Main unit 120 g, remote unit 40 g
Scope of delivery: faux leather case and adapters
Type: passive Ethernet tester
| Features | |
| Product colour | White |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 185 mm |
| Package height | 35 mm |
| Package weight | 218 g |
| Package volume | 700 cm³ |
| Power | |
| Number of batteries supported | 1 |
| Technical data | |
| Type | Tester for BNC |
| Height packaging | 0.035m |
| Packaging volume | 0.0007m³ |
| Weight | 0.218kg |
| Length packaging | 0.185m |
| Net weight | 0.195kg |
| Width packaging | 0.110m |
| Weight & dimensions | |
| Weight | 195 g |
