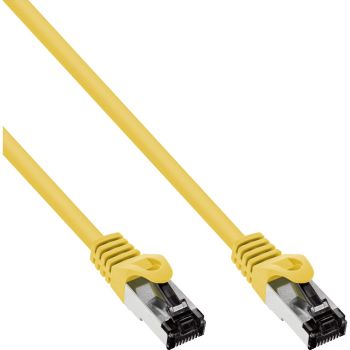

InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m
|
2,80 EUR |
|||||||||||
|
( 3,33 EUR incl. VAT ) ≈ £2.34 | ≈ $3.13 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22197349 | ||||||||||
| Mfg Part No: | 78833Y | ||||||||||
| UPC/EAN: | 4043718294558 | ||||||||||
| Weight: | 0.022 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 78833Y:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Features | |
| Product colour | Yellow |
| Cable length | 0.3 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 105 x 300 x 16 mm |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 135 mm |
| Package height | 16 mm |
| Package weight | 22 g |
| Package volume | 300 cm³ |
| Technical data | |
| Height packaging | 0.016m |
| Side A | RJ45 plug straight |
| Colour | Yellow |
| Patch cable category | Cat.8.1 |
| Conductor material | CU (copper) |
| Width packaging | 0.105m |
| Max. supported data transfer rate | 40Gb/s |
| Storage temperature | -20 to +70°C |
| Length packaging | 0.135m |
| Max. supported power | 90W |
| Type | Cat.8.1 |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Assignment | 1:1 |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Design | Round cable |
| Packing | Retail |
| Side B | RJ45 plug straight |
| Net weight | 0.019kg |
| Signal | Network |
| Packaging volume | 0.0003m³ |
| Article length | 30.00cm |
| Data transmission rate | 40Gb/s |
| Operation temperature | -10 to +60°C |
| Article width | 10.50cm |
| Shielding | S/FTP (PiMf) |
| Length | 0.30m |
| Article height | 1.60cm |
| Weight | 0.022kg |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 300 mm |
| Height | 16 mm |
| Weight | 19 g |
Questions & answers
What is the delivery time of InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m?
The article InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 78833Y to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m always at the best possible price. We can give you a discount of 2% on InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, yellow, 0.3m we can offer you a price of 2,78 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
