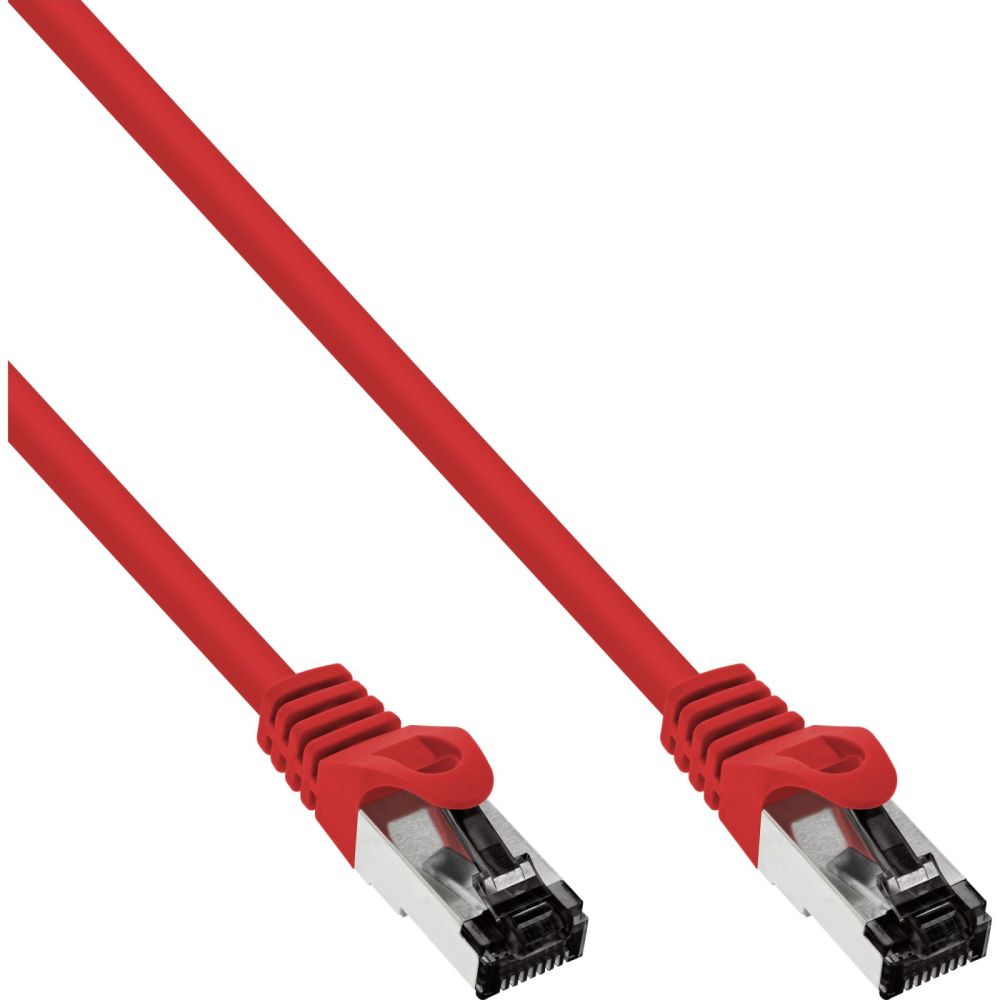

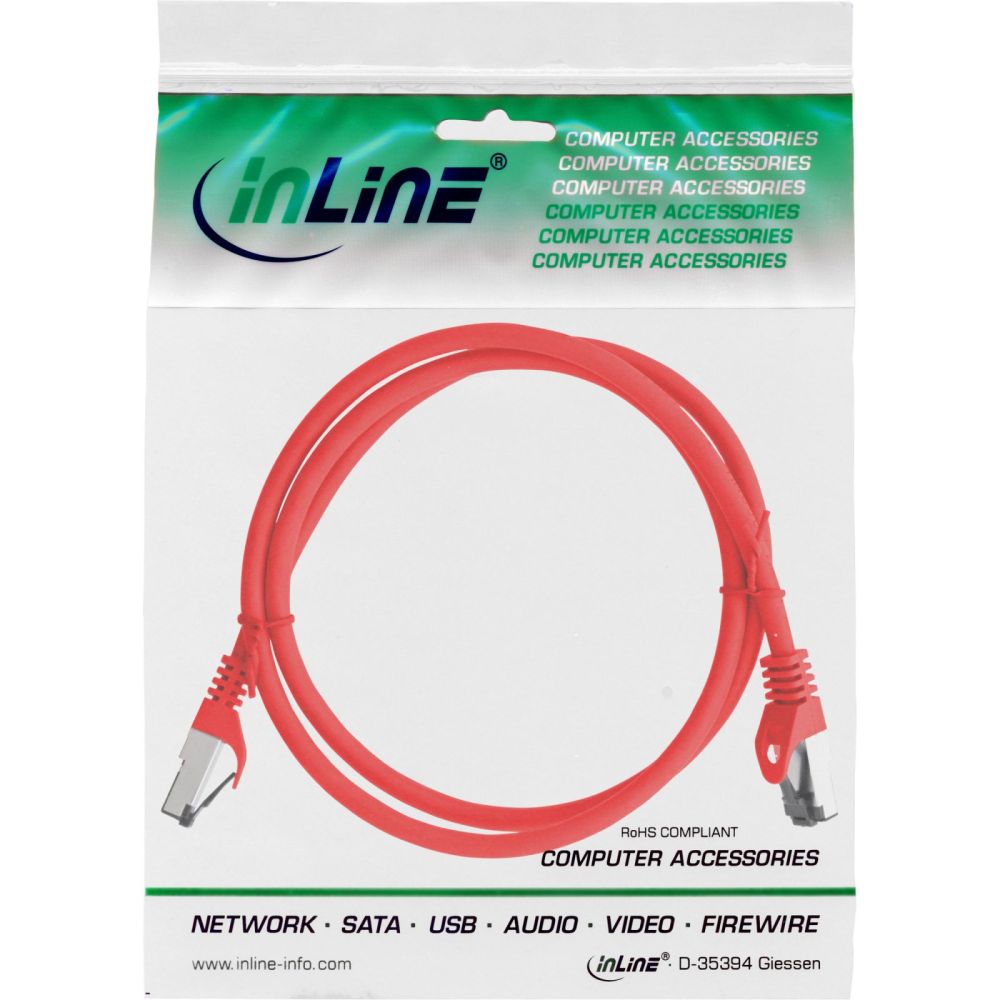

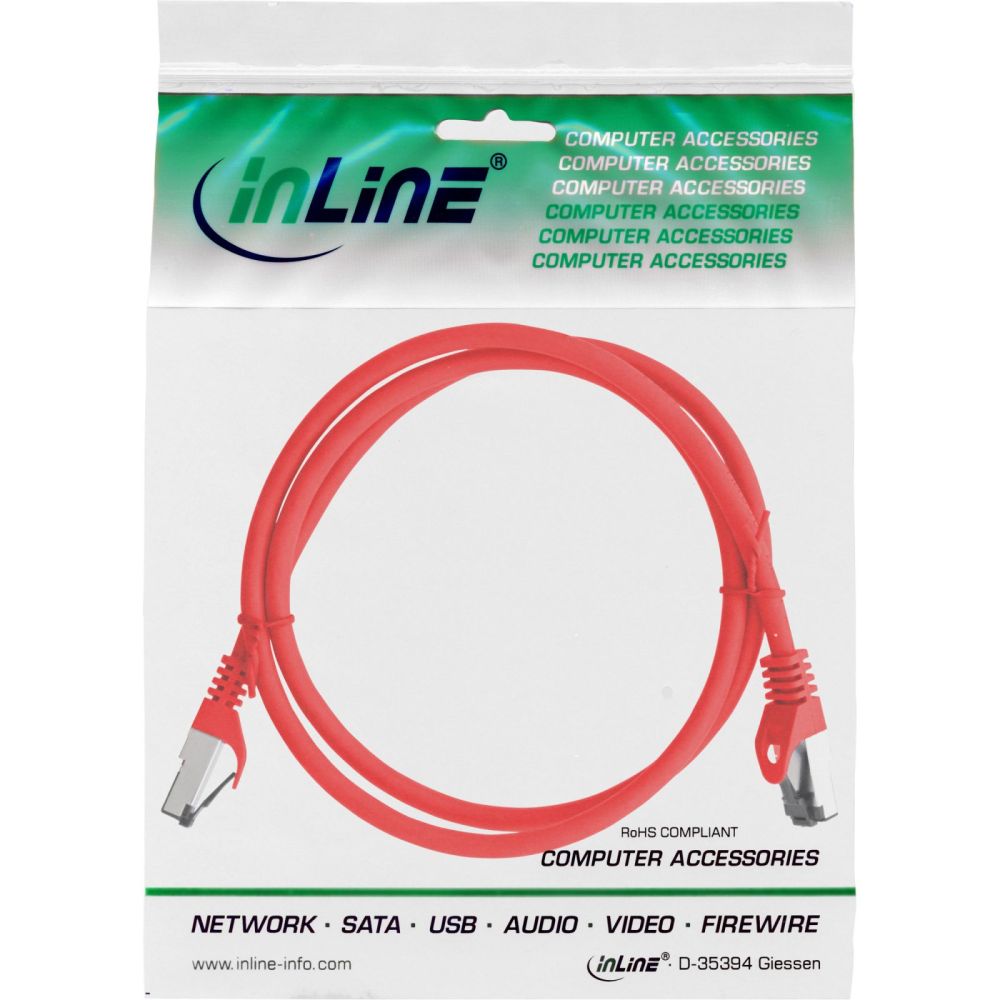

InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, red, 1.5m
|
4,33 EUR |
|||||||||||
|
( 5,15 EUR incl. VAT ) ≈ £3.62 | ≈ $4.85 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 22197296 | ||||||||||
| Mfg Part No: | 78814R | ||||||||||
| UPC/EAN: | 4043718287475 | ||||||||||
| Weight: | 0.068 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 78814R:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Features | |
| Product colour | Red |
| Cable length | 1.5 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 26 |
| Frequency | 2000 MHz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 13 x 1500 x 15 mm |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 140 mm |
| Package height | 15 mm |
| Package weight | 68 g |
| Package volume | 300 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Width packaging | 0.140m |
| Article width | 1.30cm |
| Shielding | S/FTP (PiMf) |
| Packaging volume | 0.0003m³ |
| Article length | 150.00cm |
| Data transmission rate | 40Gb/s |
| Assignment | 1:1 |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Design | Round cable |
| Packing | Retail |
| Side B | RJ45 plug straight |
| Signal | Network |
| Type | Cat.8.1 |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Conductor material | CU (copper) |
| Net weight | 0.061kg |
| Max. supported data transfer rate | 40Gb/s |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.8.1 |
| Length packaging | 0.140m |
| Max. supported power | 90W |
| Height packaging | 0.015m |
| Side A | RJ45 plug straight |
| Colour | Red |
| Length | 1.50m |
| Operation temperature | -10 to +60°C |
| Article height | 1.50cm |
| Weight | 0.068kg |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 1500 mm |
| Height | 15 mm |
| Weight | 61 g |
