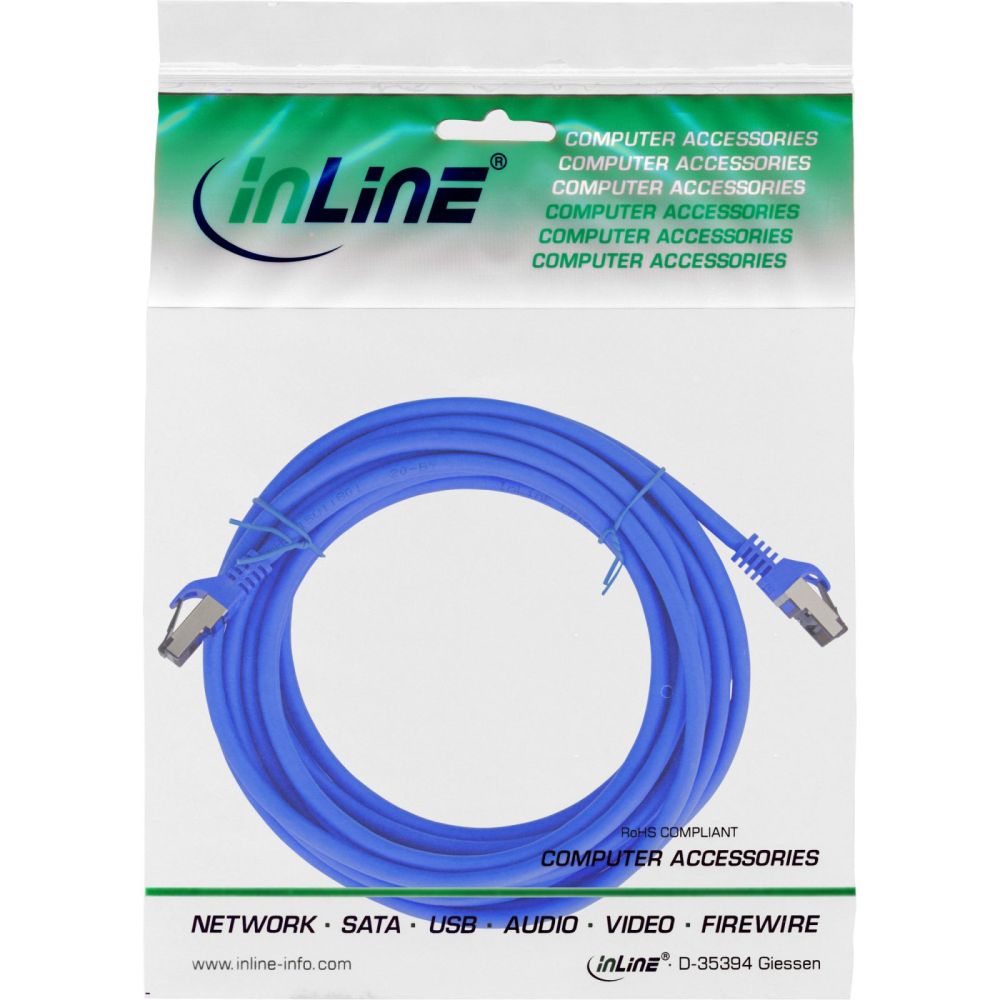

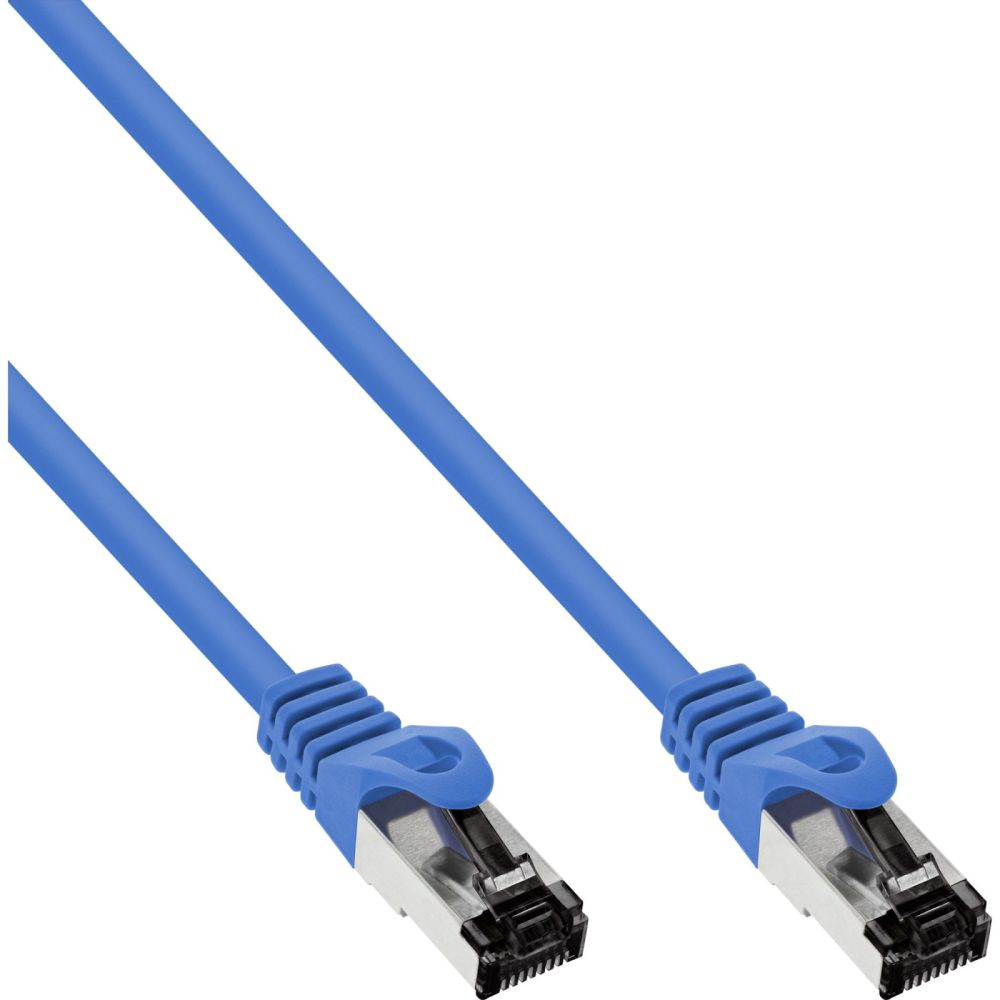

InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz blue, 7.5m
|
13,11 EUR |
|
|
( 15,60 EUR incl. VAT ) ≈ £10.97 | ≈ $14.67 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197142 |
| Mfg Part No: | 78807B |
| UPC/EAN: | 4043718287192 |
| Weight: | 0.28 kg |
Product information for Inline 78807B:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Features | |
| Product colour | Blue |
| Cable length | 7.5 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 2000 MHz |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 13 x 7500 x 15 mm |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 280 g |
| Package volume | 900 cm³ |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Width packaging | 0.170m |
| Article width | 1.30cm |
| Shielding | S/FTP (PiMf) |
| Patch cable category | Cat.8.1 |
| Packing | Retail |
| Side B | RJ45 plug straight |
| Net weight | 0.266kg |
| Signal | Network |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 40Gb/s |
| Storage temperature | -20 to +70°C |
| Height packaging | 0.030m |
| Side A | RJ45 plug straight |
| Length packaging | 0.170m |
| Max. supported power | 90W |
| Packaging volume | 0.0009m³ |
| Article length | 750.00cm |
| Weight | 0.280kg |
| Type | Cat.8.1 |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Assignment | 1:1 |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Design | Round cable |
| Colour | Blue |
| Length | 7.50m |
| Article height | 1.50cm |
| Data transmission rate | 40Gb/s |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 7500 mm |
| Height | 15 mm |
| Weight | 266 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz blue, 7.5m?
The article InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz blue, 7.5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 78807B to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz blue, 7.5m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz blue, 7.5m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
