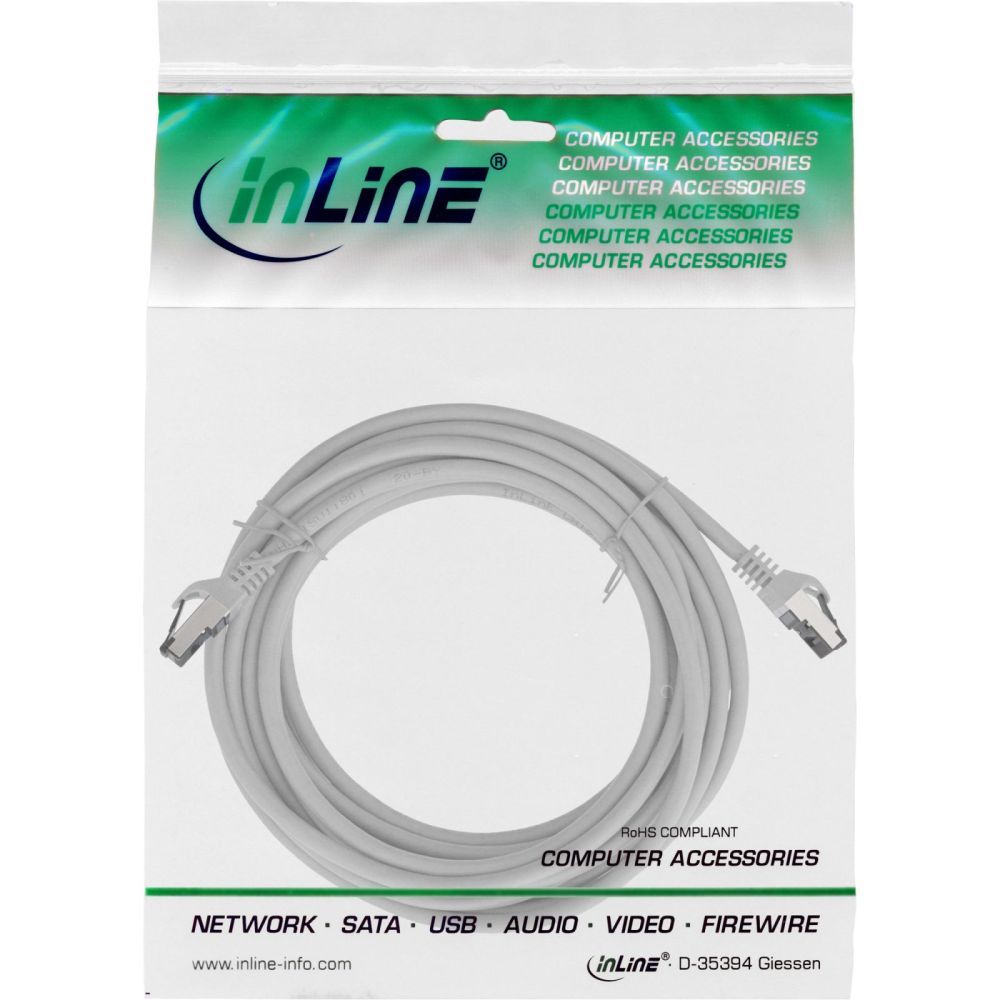

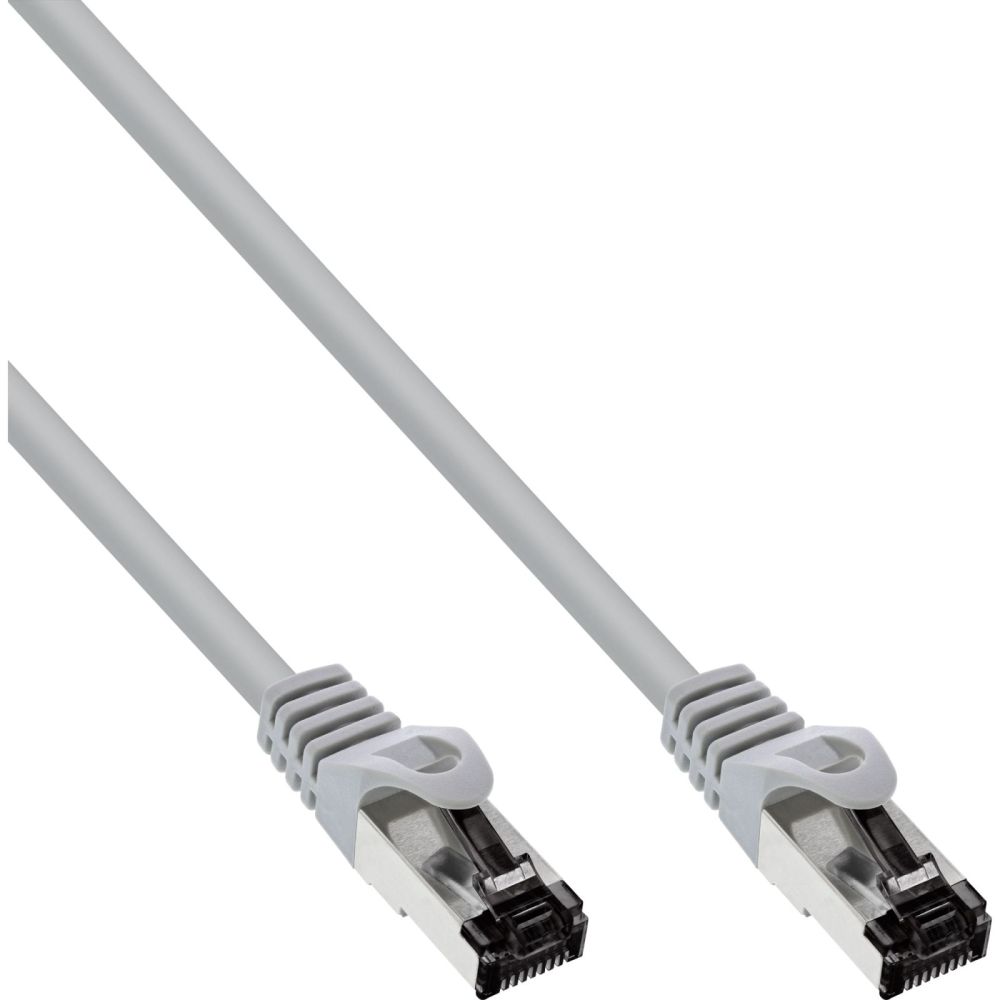

InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, grey, 5m
|
11,25 EUR |
|
|
( 13,39 EUR incl. VAT ) ≈ £9.42 | ≈ $12.59 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197307 |
| Mfg Part No: | 78805 |
| UPC/EAN: | 4043718287369 |
| Weight: | 0.196 kg |
Product information for Inline 78805:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Features | |
| Product colour | Grey |
| Cable length | 5 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Frequency | 2000 MHz |
| Other features | |
| Dimensions (WxDxH) | 15 x 5000 x 15 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 30 mm |
| Package weight | 196 g |
| Package volume | 800 cm³ |
| Technical data | |
| Conductor material | CU (copper) |
| Width packaging | 0.160m |
| Article width | 1.50cm |
| Shielding | S/FTP (PiMf) |
| Assignment | 1:1 |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 40Gb/s |
| Storage temperature | -20 to +70°C |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Design | Round cable |
| Colour | Grey |
| Packaging volume | 0.0008m³ |
| Article length | 500.00cm |
| Data transmission rate | 40Gb/s |
| Article height | 1.50cm |
| Length | 5m |
| Height packaging | 0.030m |
| Side B | RJ45 plug straight |
| Net weight | 0.182kg |
| Signal | Network |
| Side A | RJ45 plug straight |
| Patch cable category | Cat.8.1 |
| Weight | 0.196kg |
| Type | Cat.8.1 |
| Length packaging | 0.160m |
| Max. supported power | 90W |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 5000 mm |
| Height | 15 mm |
| Weight | 182 g |
Questions & answers
What is the delivery time of InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, grey, 5m?
The article InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, grey, 5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 78805 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, grey, 5m always at the best possible price. We can give you a discount of 2% on InLine® Patch cable, S/FTP (PiMf), Cat.8.1, 2000MHz, halogen-free, grey, 5m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
