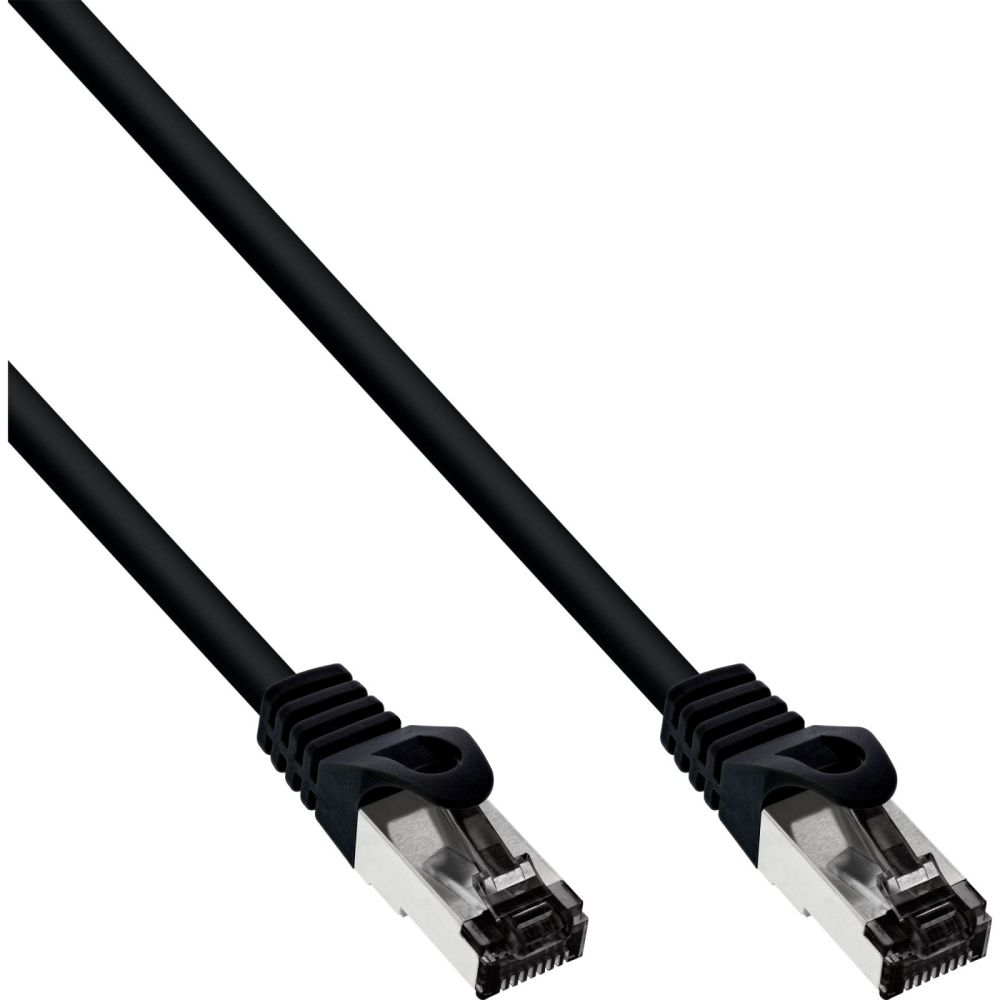

InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 10m
|
15,38 EUR |
|
|
( 18,30 EUR incl. VAT ) ≈ £12.87 | ≈ $17.21 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196971 |
| Mfg Part No: | 78800S |
| UPC/EAN: | 4043718285464 |
| Weight: | 0.324 kg |
Product information for Inline 78800S:
S/FTP PiMF
Plug black
PIN Gold plate 50µ"
26AWG
Conductor: Copper
AL-MG braid
Pin out: TIA/EIA568B
Jacket: LSZH
ISO/IEC 11801 Class I 2000Mhz
Fluke Channel Test ISO 11801 channel Class I
IEC60754-2 IEC 61034
Support PoE per IEEE 802.3af, PoE+ per IEEE 802.3at
Plug Contacts durability: 750 cycles min
Operating Temperature: -10 ~+60°C
| Certificates | |
| Certification | EIA/TIA 568-C |
| Features | |
| Product colour | Black |
| Cable length | 10 m |
| Cable standard | Cat8.1 |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| AWG wire size | 26 |
| Data transfer rate | 40000 Mbit/s |
| Frequency | 2000 MHz |
| Plug and Play | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Other features | |
| Dimensions (WxDxH) | 13 x 10000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 215 mm |
| Package height | 30 mm |
| Package weight | 324 g |
| Package volume | 1400 cm³ |

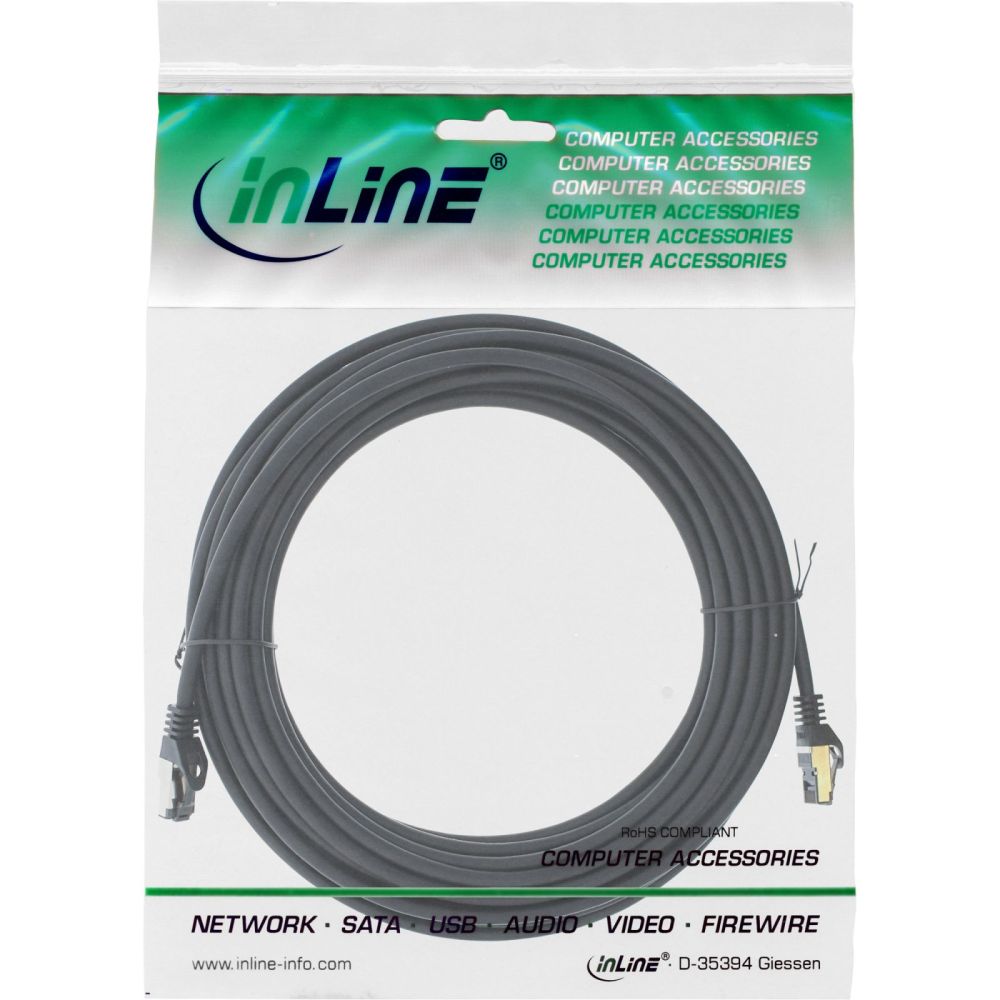

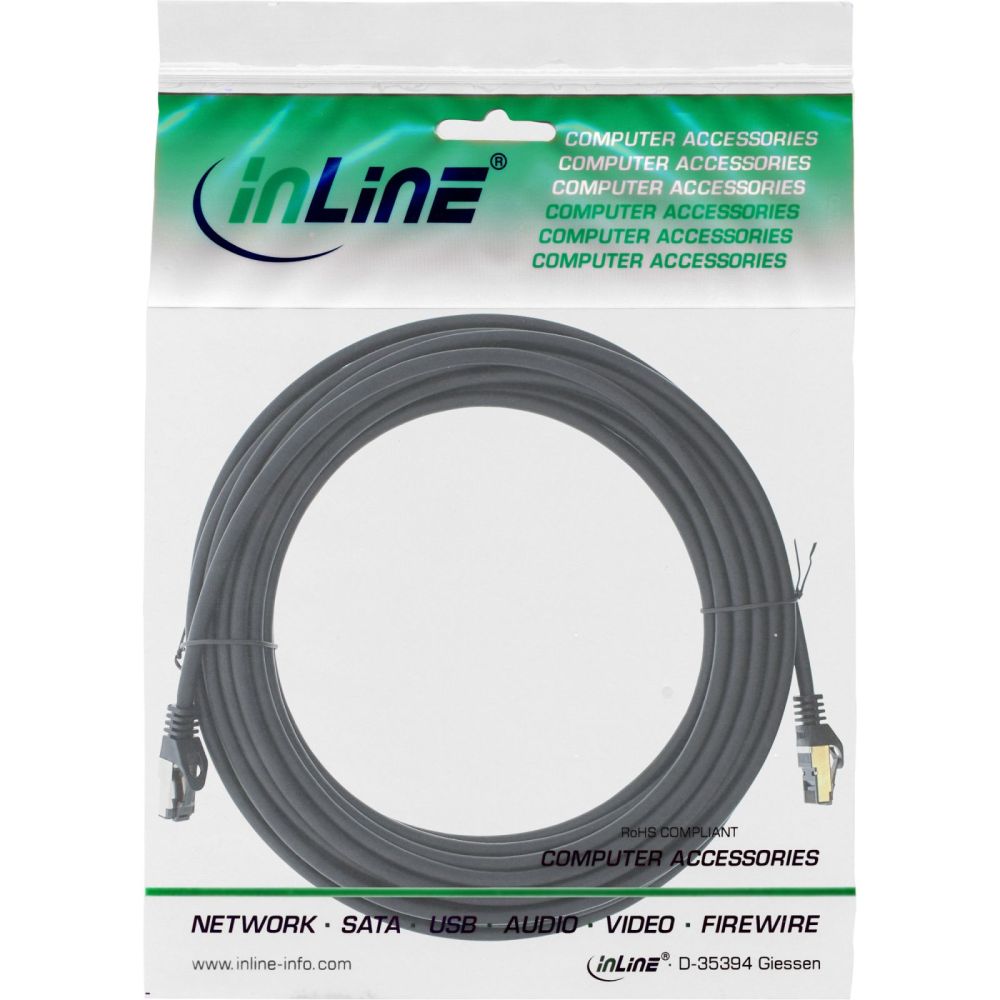

| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Patch cable category | Cat.8.1 |
| Colour | Black |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported power | 90W |
| Signal | Network |
| Conductor material | CU (copper) |
| Article width | 1.30cm |
| Storage temperature | -20 to +70°C |
| Assignment | 1:1 |
| Operation temperature | -10 to +60°C |
| Width packaging | 0.215m |
| Design | Round cable |
| Type | Cat.8.1 |
| Sheath | Halogen-free (LSZH) |
| Wire pairs used for power transmission | All |
| Diameter | AWG 26 |
| Packaging volume | 0.0014m³ |
| Article length | 1000.00cm |
| Data transmission rate | 40Gb/s |
| Article height | 1.50cm |
| Shielding | S/FTP (PiMf) |
| Side A | RJ45 plug straight |
| Net weight | 0.321kg |
| Length | 10m |
| Weight | 0.324kg |
| Height packaging | 0.030m |
| Side B | RJ45 plug straight |
| Max. supported PoE standard | 802.3bt |
| Length packaging | 0.215m |
| Max. supported data transfer rate | 40Gb/s |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 10000 mm |
| Height | 15 mm |
| Weight | 321 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 10m?
The article InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 10m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 78800S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 10m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black, 10m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
