InLine® Outdoor network cable reel, Cat.6A PUR RJ45, 50m, black content_copy

Developed for extreme outdoor use: PUR jacket reliably protects the network cable against UV radiation, abrasion, cracks and heavy use.
Reliable data transmission up to 10GBase-T: The Cat.6A S/FTP cable is double-shielded and Fluke Channel tested – ideal for stable connections in outdoor areas.
PoE, PoE+ and PoE++ capable: Power and connect networks – ideal for IP cameras, access points or mobile workstations.

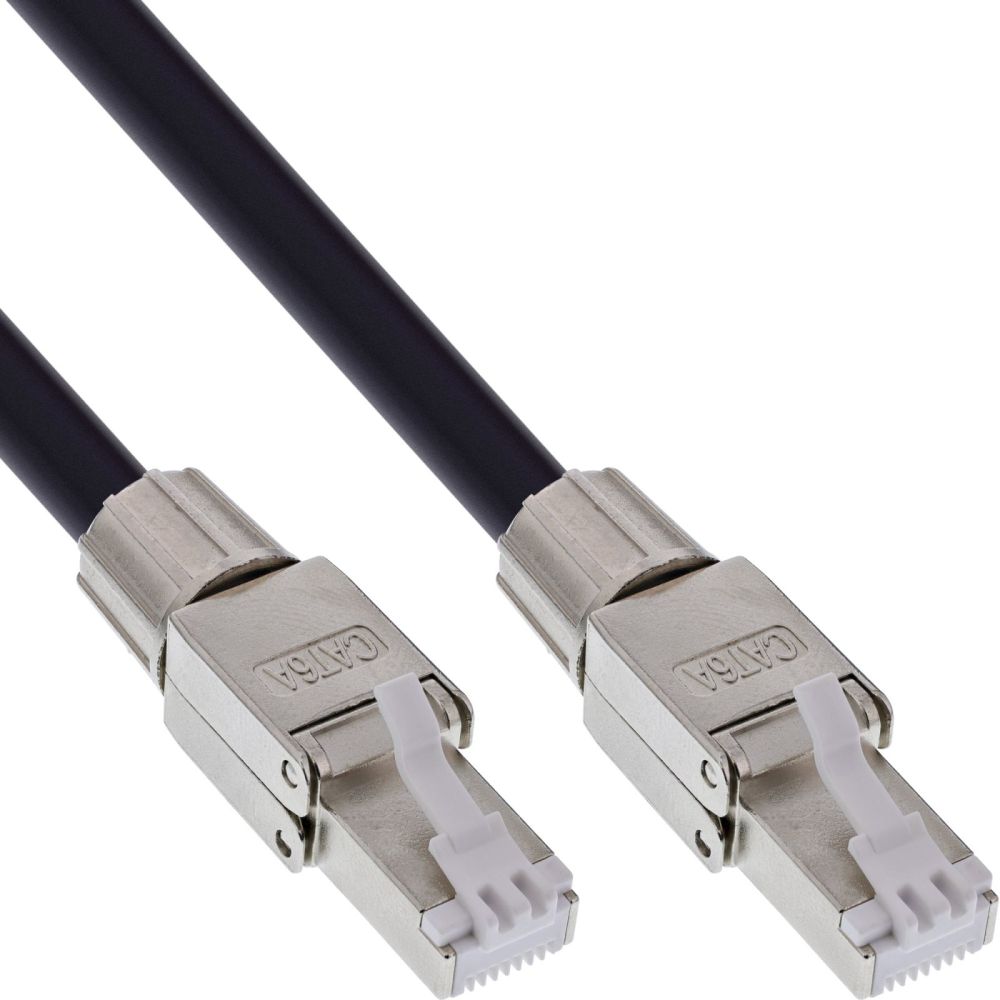

Gold-plated RJ45 plugs for permanently stable connections: Corrosion-resistant contacts ensure a long service life and interference-free data transmission.

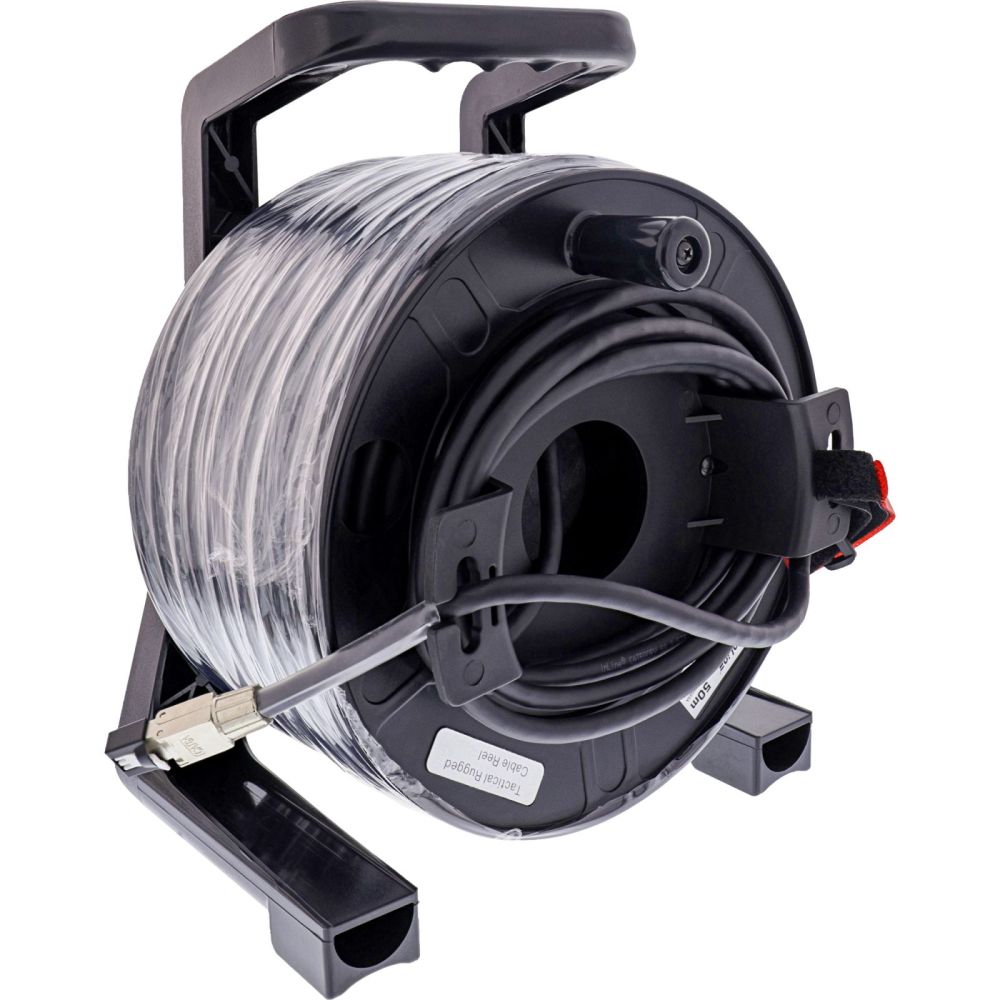

Cable reel with IP67 suitability: Durable, easy to transport and immediately ready for use - ideal for construction, event technology or rescue operations.
The InLine® Outdoor Cat.6A network cable reel is specially designed for use in harsh environments. The robust S/FTP cable with PUR outer jacket offers maximum resistance and network security in any weather. Whether in outdoor areas, on construction sites, in industry or at mobile events, this cable reel delivers a high-performance connection even under extreme conditions.
Thanks to the double S/FTP shielding and the pure copper conductors (23AWG), data transmission is stable and interference-free - up to 10GBase-T, tested by Fluke Channel Test. The gold-plated RJ45 plugs ensure long-lasting, corrosion-resistant contacts. The high-quality PUR jacket provides effective protection against UV radiation, abrasion, cracks and cold.
In addition, the cable reel supports PoE, PoE+ and PoE++ – ideal for cameras, access points or other network devices in outdoor areas. The pre-assembled reel is lightweight, robust and quickly ready for use. The IP67 protection rating and robust design ensure reliable performance even under difficult conditions.

Category: Cat.6A S/FTP
Outer jacket: PUR, UV and abrasion resistant
Plug: RJ45, gold-plated
Conductor material: 4x2x23AWG copper
PoE: PoE, PoE+, PoE++
Ütransmission: Up to 10GBase-T, Fluke tested
Protection class: IP67-compliant
Outlet diameter: 7.8 ± 0.20 mm
Colour: black


Certificates
Compliance certificates	UL
Features
Product colour	Black
Cable length	50 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Cable shape	Round
Cable type	Cable on reel
Cabling technology	10GBase-T
AWG wire size	23
Data transfer rate	10000 Mbit/s
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)
Other features
Dimensions (WxDxH)	190 x 240 x 310 mm
Packaging data
Package width	225 mm
Package depth	260 mm
Package height	350 mm
Package weight	4.48 kg
Package volume	20500 cm³
Technical data
Weight	4.481kg
Side B	RJ45 plug straight
Net weight	3.902kg
Length	50m
Outer diameter	7.8mm
Width packaging	0.225m
Data transmission rate	10Gb/s
Side A	RJ45 plug straight
Shielding	S/FTP (PiMf)
Length packaging	0.260m
Article width	19.00cm
Diameter	AWG 23
Height packaging	0.350m
Packaging volume	0.0205m³
Patch cable category	Cat.6A
Design	Round cable
Article length	24.00cm
Article height	31.00cm
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	190 mm
Depth	240 mm
Height	310 mm
Outer diameter	7.8 mm
Weight	3.9 kg

---
