INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 500m drum
|
1.038,26 EUR |
|
|
( 1.235,53 EUR incl. VAT ) ≈ £870.06 | ≈ $1,165.97 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2125907 |
| Mfg Part No: | 77500I |
| UPC/EAN: | 4043718208067 |
| Weight: | 70 kg |
Product information for Inline 77500I:
The duplex installation cable is delivered in a drum box for easy refer to the required length. The packaging consists of a plastic roller on wich the data cable is rolled up. This roller is fixed in a carton, whereby a simple and unwinding is guaranteed. The following are the advantages of drum box:Cost reduction through easy handling on site without additional drum tooling
easy to carry, handy and stackable packaging to pack in construction vehicle
Lightweight (also sendable by parcel service)
Prevention of pollution and damage to the cable by means of cardboard packaging
reduce the average cost for small quantities
Specifications: Cable for installation
Cat. 7a duplex installation cable to 1200MHz

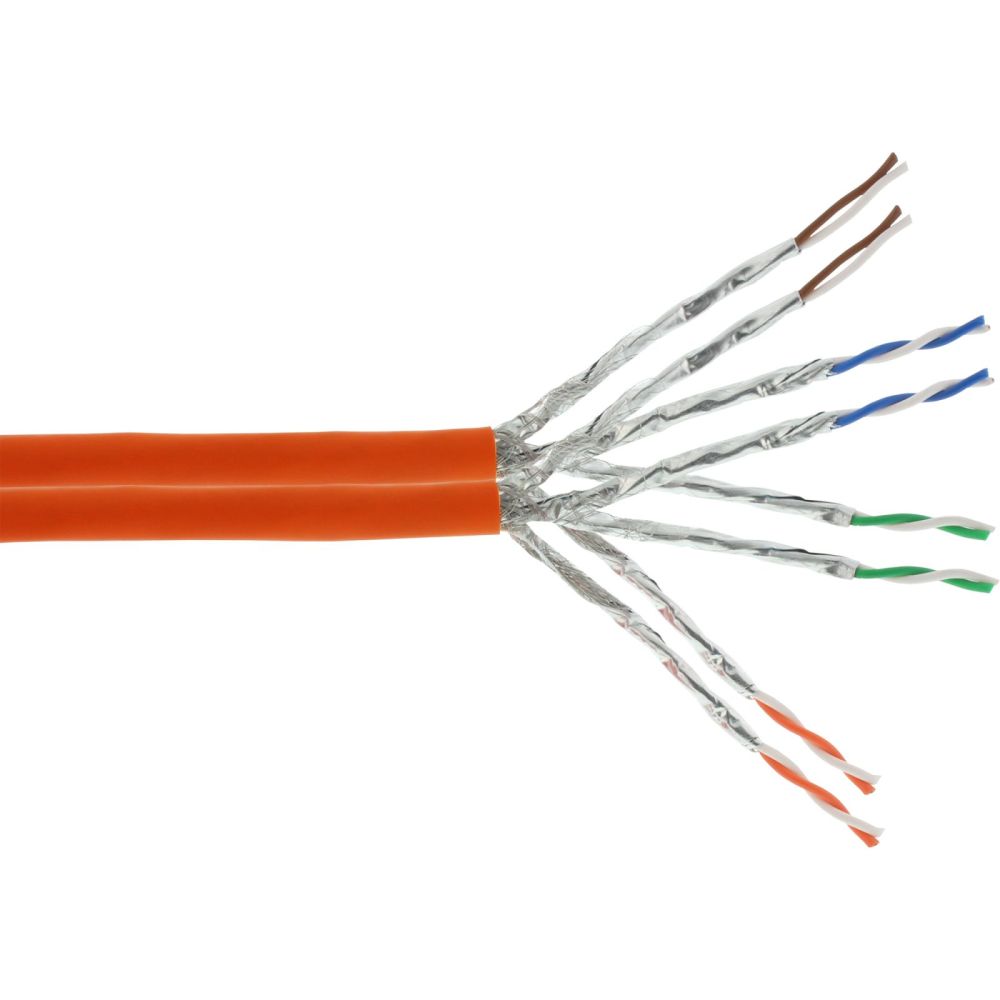

Construction: (2x) 4x2xAWG23/1 S-FTP PiMf
Suitable up to 10Gb
Full copper conductors
Impedance: 100 Ohm, DC resistance: max. 87 Ohm / km
Halogen-free jacket LSOH
Orange sheath
Structure: pairs in metal foil
Overall braid shielding

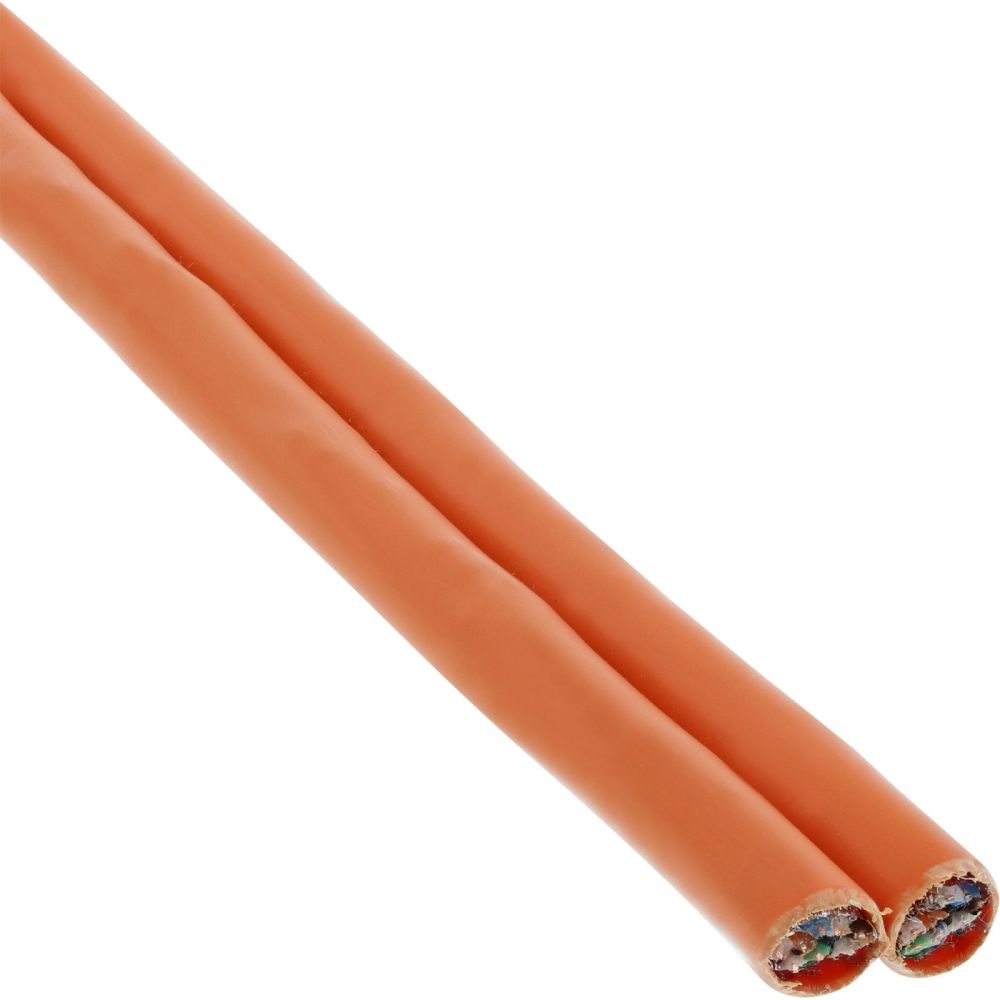

Cable diameter about 2x 8.2mm
Installation temperature: 0 - 50°C, operating temperature: -20°C - 60°C
With meter-printing on cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016

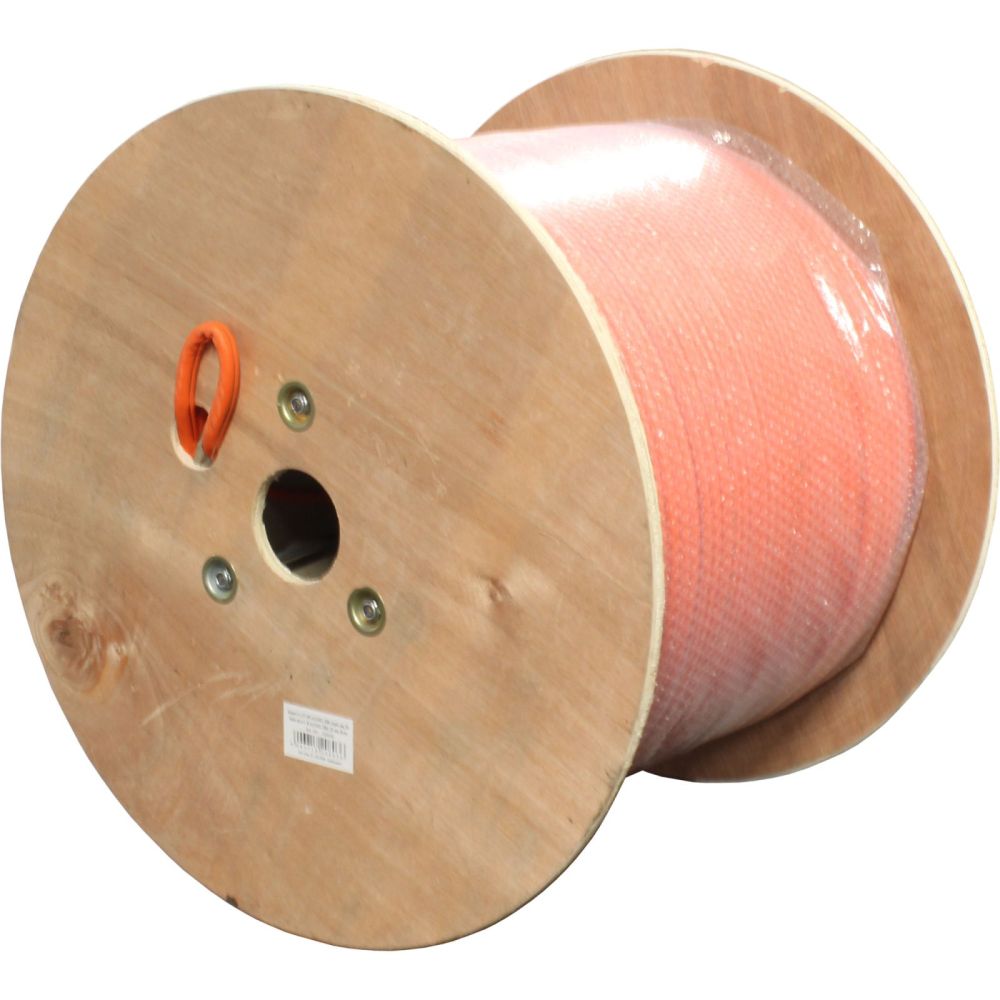

Note: The drum box is only available for the 50m & 100m bundles, whereas 300m & 500m is supplied on one drum.
easy to carry, handy and stackable packaging to pack in construction vehicle
Lightweight (also sendable by parcel service)
Prevention of pollution and damage to the cable by means of cardboard packaging
reduce the average cost for small quantities
Specifications: Cable for installation
Cat. 7a duplex installation cable to 1200MHz
Construction: (2x) 4x2xAWG23/1 S-FTP PiMf
Suitable up to 10Gb
Full copper conductors
Impedance: 100 Ohm, DC resistance: max. 87 Ohm / km
Halogen-free jacket LSOH
Orange sheath
Structure: pairs in metal foil
Overall braid shielding
Cable diameter about 2x 8.2mm
Installation temperature: 0 - 50°C, operating temperature: -20°C - 60°C
With meter-printing on cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016
Note: The drum box is only available for the 50m & 100m bundles, whereas 300m & 500m is supplied on one drum.
| Features | |
| Product colour | Orange |
| Cable length | 500 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Connector 1 | |
| Connector 2 | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
| Input impedance | 100 Ω |
| Packaging data | |
| Package width | 525 mm |
| Package depth | 525 mm |
| Package height | 430 mm |
| Package weight | 70 kg |
| Package volume | 118500 cm³ |
| Technical data | |
| Side A | Without plug |
| Shielding | S/FTP (PiMf) |
| Weight | 70.000kg |
| Max. supported PoE standard | 802.3bt |
| Data transmission rate | 10Gb/s |
| Length packaging | 0.525m |
| Article length | 50000.00cm |
| Side B | Without plug |
| Signal | Network |
| Colour | Orange |
| Packaging volume | 0.1185m³ |
| Max. supported data transfer rate | 10Gb/s |
| Length | 500m |
| NVP value | 76% |
| Outer diameter | 8.2mm |
| Width packaging | 0.525m |
| Net weight | 67.000kg |
| Type | Cat.7A |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Variant | CU, halogen-free |
| Height packaging | 0.430m |
| Max. supported power | 90W |
| Diameter | AWG 23 |
| UL | |
| Weight & dimensions | |
| Depth | 500000 mm |
| Outer diameter | 8.2 mm |
| Weight | 67 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
