INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 300m drum
|
571,29 EUR |
|
|
( 679,84 EUR incl. VAT ) ≈ £478.17 | ≈ $639.27 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2125906 |
| Mfg Part No: | 77300I |
| UPC/EAN: | 4043718208050 |
| Weight: | 38.5 kg |
Product information for Inline 77300I:
easy to carry, handy and stackable packaging to pack in construction vehicle
Lightweight (also sendable by parcel service)
Prevention of pollution and damage to the cable by means of cardboard packaging
reduce the average cost for small quantities

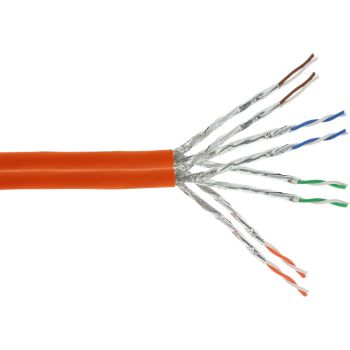

Specifications: Cable for installation
Cat. 7a duplex installation cable to 1200MHz
Construction: (2x) 4x2xAWG23/1 S-FTP PiMf
Suitable up to 10Gb
Full copper conductors
Impedance: 100 Ohm, DC resistance: max. 87 Ohm / km
Halogen-free jacket LSOH
Orange sheath
Structure: pairs in metal foil
Overall braid shielding
Cable diameter about 2x 8.2mm
Installation temperature: 0 - 50°C, operating temperature: -20°C - 60°C
With meter-printing on cable
Reaction to fire Eca according to EN 50575:2014 / A1:2016
Note: The drum box is only available for the 50m & 100m bundles, whereas 300m & 500m is supplied on one drum.
| Features | |
| Product colour | Orange |
| Cable length | 300 m |
| Cable standard | Cat7a |
| Cable shielding | S/FTP (S-STP) |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 23 |
| Connector 1 | |
| Connector 2 | |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Other features | |
| Input impedance | 100 Ω |
| Packaging data | |
| Package width | 480 mm |
| Package depth | 480 mm |
| Package height | 370 mm |
| Package weight | 38.5 kg |
| Package volume | 85200 cm³ |
| Technical data | |
| Length packaging | 0.480m |
| Shielding | S/FTP (PiMf) |
| Weight | 38.500kg |
| Length | 300m |
| Colour | Orange |
| Packaging volume | 0.0852m³ |
| Type | Cat.7A |
| Width packaging | 0.480m |
| Article length | 30000.00cm |
| Outer diameter | 8.2mm |
| Signal | Network |
| Side B | Without plug |
| Data transmission rate | 10Gb/s |
| Variant | CU, halogen-free |
| Height packaging | 0.370m |
| Net weight | 39.800kg |
| Side A | Without plug |
| Diameter | AWG 23 |
| NVP value | 76% |
| UL | |
| Weight & dimensions | |
| Depth | 300000 mm |
| Outer diameter | 8.2 mm |
| Weight | 39.8 kg |
Questions & answers
What is the delivery time of INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 300m drum?
The article INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 300m drum is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 77300I to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 300m drum always at the best possible price. We can give you a discount of 2% on INLINE Duplex installation cable Cat.7a PiMF 2x 4x2x0.58 AWG23 1200MHz LSZH orange 300m drum if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
