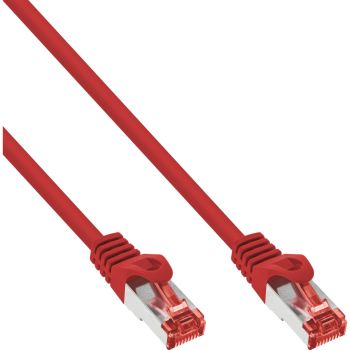

InLine® Patch cable, S/FTP (PiMf), Cat.6, halogen-free, copper, red, 1.5m content_copy

Stable Gigabit connection: S/FTP shielding (PiMf) ensures reliable data transmission at up to 250 MHz – ideal for home networks and professional environments.
Halogen-free outer sheath: Suitable for increased safety when used in offices, public facilities, and living spaces – does not produce toxic gases in the event of a fire.
Durable and robust: Injected bend and snap protection permanently protects the RJ45 connectors from damage – for a long service life.
Easy assignment and handling: Length indication directly on the connector and red-colored RJ45 for a quick overview – ideal for complex cabling.
Optimal signal quality: Solid copper wires (AWG27) ensure stable and low-loss transmission – perfect for demanding network applications.
InLine Cat.6 patch cables are your first choice for reliable Gigabit networks in the home and office. Thanks to high-quality S/FTP shielding (pair in metal foil + braid), they enable stable data transmission up to 1 Gbps at 250 MHz – ideal for routers, switches, patch panels, or smart home components. The cables feature molded RJ45 connectors with molded kink protection and snap-in protection. A red-marked RJ45 connector and a length indication on the connector ensure easy identification during installation. The use of solid copper strands with an AWG27 cross-section ensures consistently high conductivity, even over longer distances. The halogen-free cable sheath meets high safety requirements and prevents the formation of toxic fumes in the event of a fire. This makes the cables suitable not only for private networks, but also for offices, public institutions, and industrial environments.
2x RJ45 plugs molded
Injected kink protection and snap-in protection
Red-colored RJ45 plug for quick differentiation
AWG27 wire cross-section with solid copper strands
Total braided shielding and PiMf - Paired in metal foil (old designation: S-STP PiMf)
Halogen-free sheath
With length indication on the connector
1:1 assignment according to EIA/TIA 568B

Certificates
Compliance certificates	RoHS
Certification	EIA/TIA 568B
Features
Product colour	Red
Cable length	1.5 m
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 gender	Male
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Solid
Conductor material	Copper
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
AWG wire size	27
Data transfer rate	1000 Mbit/s
Frequency	250 MHz
Other features
Dimensions (WxDxH)	12 x 1500 x 15 mm
Quantity	1
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	135 mm
Package depth	150 mm
Package height	20 mm
Package weight	58 g
Package volume	400 cm³
Package type	Polybag
Sustainability
Doesn't contain	Halogen
Technical data
Packing	Retail
Conductor material	CU (copper)
Width packaging	0.135m
Colour	Red
Packaging volume	0.0004m³
Signal	Network
Length	1.50m
Operation temperature	-10 to +60°C
Patch cable category	Cat.6
Side A	RJ45 plug straight
Net weight	0.055kg
Design	Round cable
Type	Cat.6
Length packaging	0.150m
Article width	1.20cm
Diameter	AWG 27
Outer diameter	6,2mm
Shielding	S/FTP (PiMf)
Assignment	1:1
Sheath	Halogen-free (LSZH)
Article length	150.00cm
Data transmission rate	1Gb/s
Article height	1.50cm
Weight	0.058kg
Height packaging	0.020m
Side B	RJ45 plug straight
Storage temperature	-20 to +70°C
PoE/PoE+/PoE++
UL
Weight & dimensions
Width	12 mm
Depth	1500 mm
Height	15 mm
Weight	55 g

---
