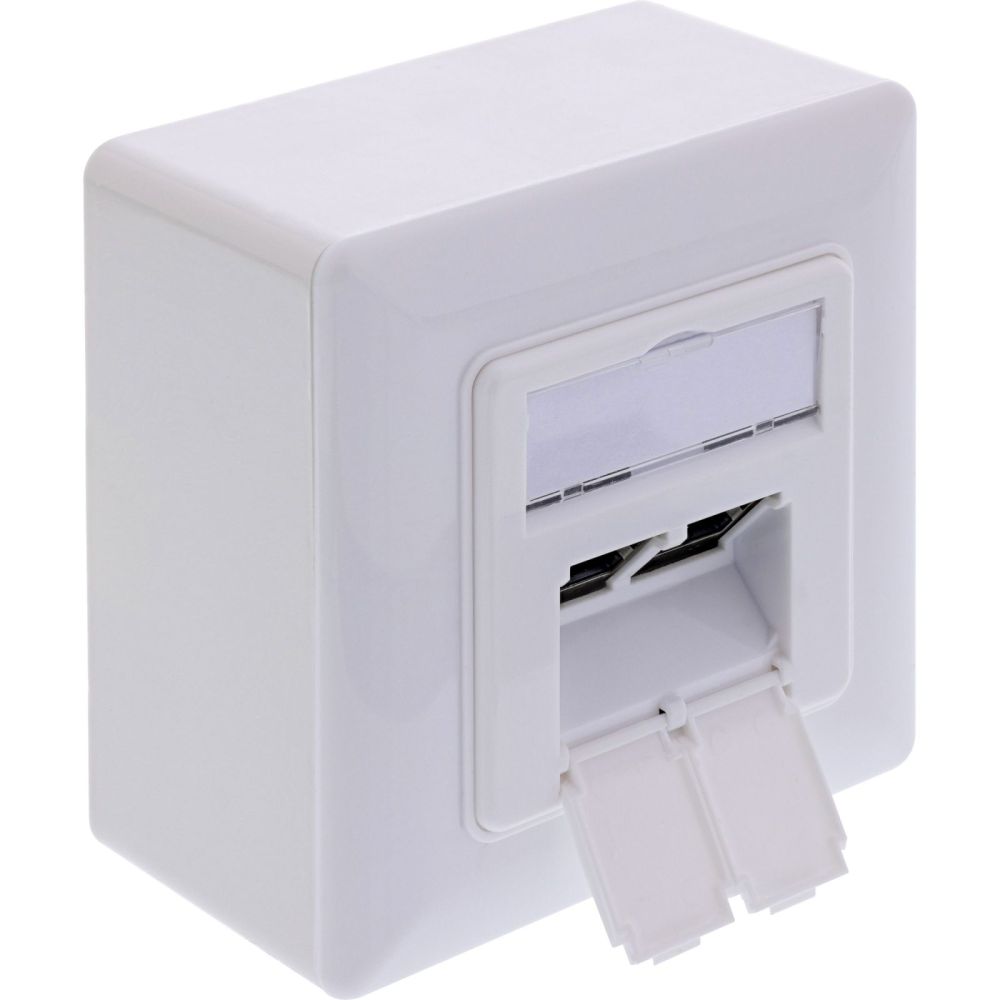

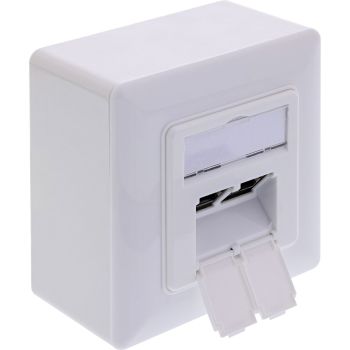

InLine® Cat.6A network socket, 2x RJ45, AP/UP, shielded, white, 76842A content_copy

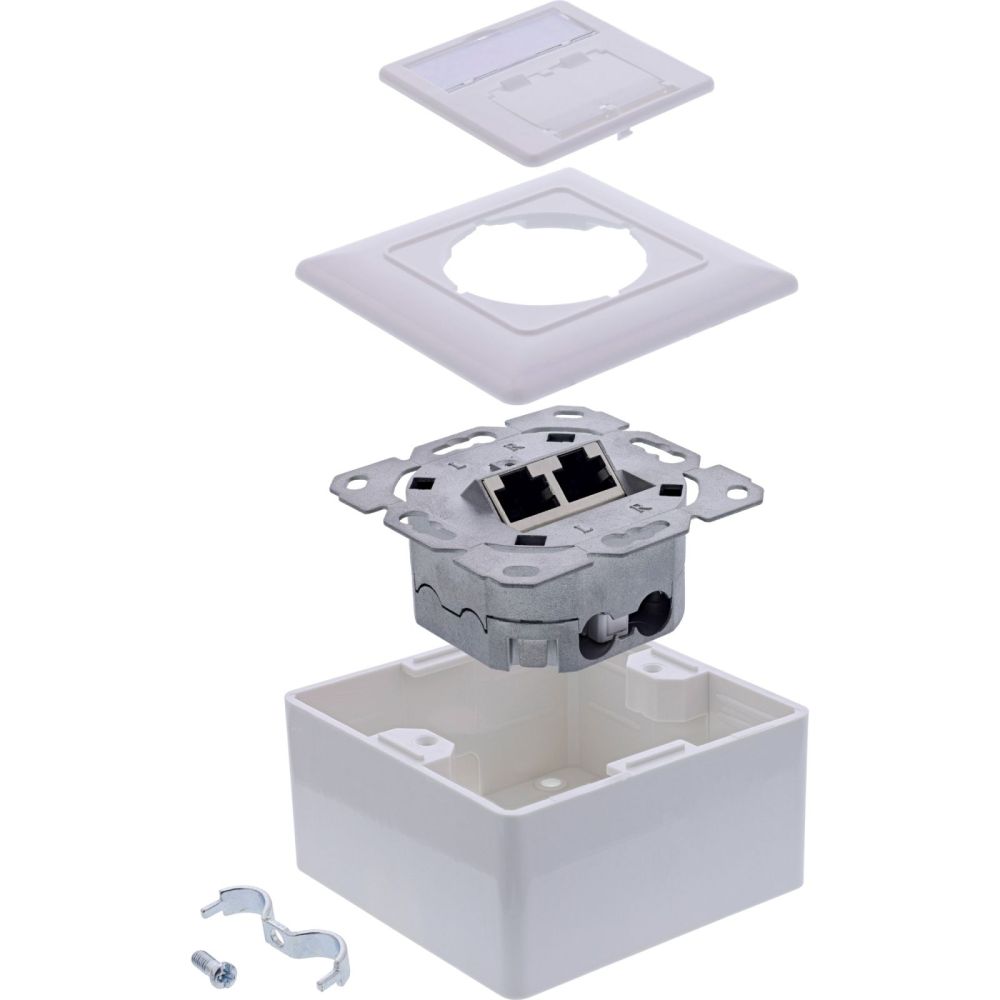

Flexible installation for any environment: The junction box can be mounted both on the wall and in the wall - ideal for any structural situation in the home network.
Two RJ45 ports with LSA technology: For a fast, secure connection - the 8-pole insulation displacement connectors enable tool-free and stable wiring.
High-quality shielding: The fully shielded design ensures interference-free data transmission and stable network connections.

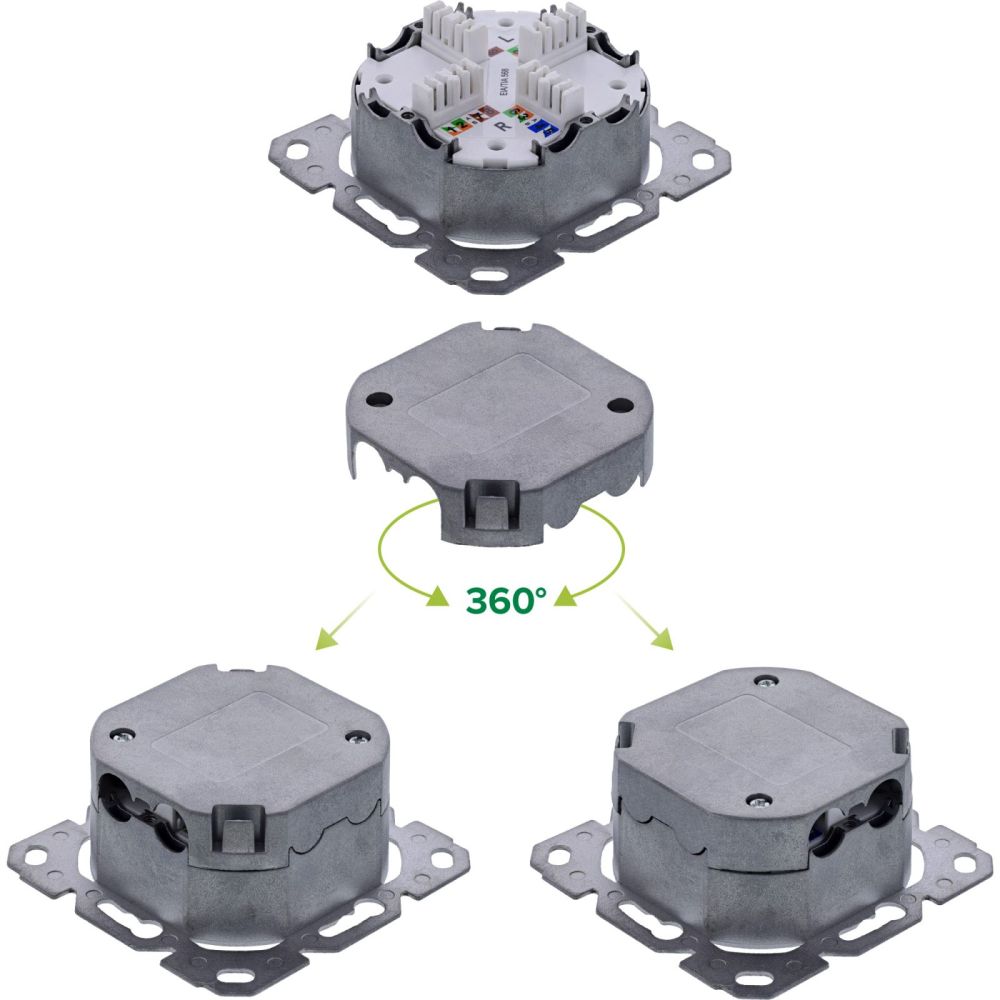

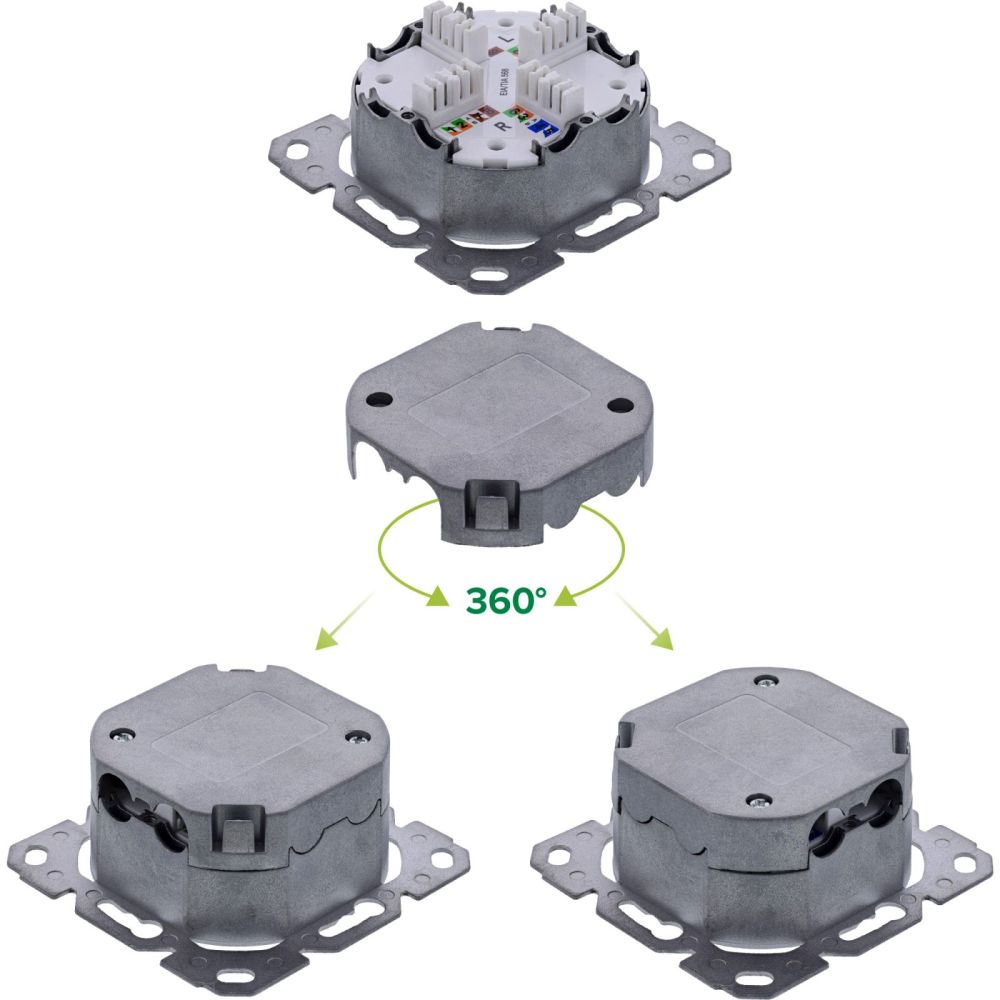

Easy cable entry: Whether from above, below or from the side - the cable can be routed flexibly and fits into cable ducts or cavity walls.
Inconspicuous, modern design: In elegant RAL9010 (white), the box blends discreetly into any living or working environment.
Whether for the home network, the home office workstation or the smart media center - with the InLine® Cat.6A network socket, you can rely on reliable connection technology with versatile application options. The connection socket has two RJ45 sockets and offers secure and easy installation without any special tools thanks to LSA connection technology.Particularly practical: the socket can be flexibly installed on the wall (surface-mounted) or in the wall (flush-mounted) - perfect for renovations or new installations. The cable feed is freely selectable - whether from above, below or to the side - and therefore allows seamless integration into existing structures.The fully shielded design guarantees stable data transmission - even in demanding networks. Its discreet, white RAL9010 design blends unobtrusively into any home or office environment. This network socket is therefore not only functional, but also a visually clean solution.
Category: Cat.6A
Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568
Compatibility: Cat.6, Cat.5e
Connection: 2x RJ45 socket, 2x LSA strip with 8 insulation displacement connectors each
Shielding: Fully metal shielded
Material: Plastic, halogen-free
Color: White (RAL9010)
Cable entry: top, bottom, side
Mounting: screw fastening, surface-mounted/UP
Temperature range: -10 °C to +60 °C


Logistics data
Country of origin	Taiwan
Packaging data
Package width	85 mm
Package depth	85 mm
Package height	65 mm
Package weight	203 g
Package volume	400 cm³
Technical data
Cable entry	Any
Article length	8.00cm
Wire pairs used for power transmission	None
Installation	Surface or flush-mounted
Packaging volume	0.0004m³
Width packaging	0.085m
Max. supported PoE standard	802.3bt
Type	Cat.6A surface-mounted/flush-mounted socket
Max. supported data transfer rate	10Gb/s
Connections	2x RJ45
Storage temperature	-40 to +70°C
Article width	8.00cm
Weight	0.203kg
Length packaging	0.085m
Net weight	0.173kg
Colour	White (RAL9010)
Article height	4.10cm
Height packaging	0.065m
Operation temperature	-10 to +60°C
Max. supported power	90W
Network category	Cat.6A
Keystone SNAP-In compatible
Modules integrated
Technical details
Socket type	2 x RJ-45
Sockets quantity	1
Product colour	White
Dimensions (WxDxH)	80 x 80 x 41 mm
Operating temperature (T-T)	-10 - 60 °C
Compliance certificates	TÜV mark
Weight & dimensions
Width	80 mm
Height	41 mm
Depth	80 mm
Weight	173 g

---
