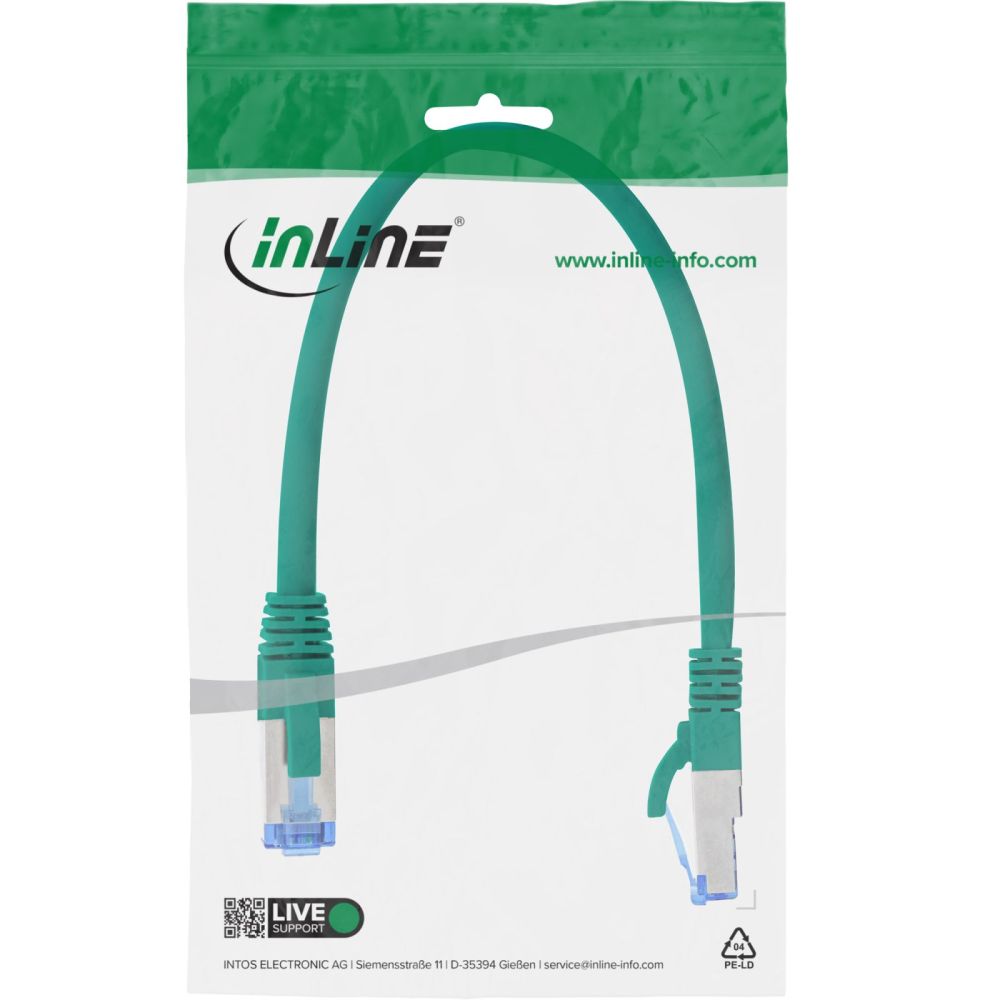

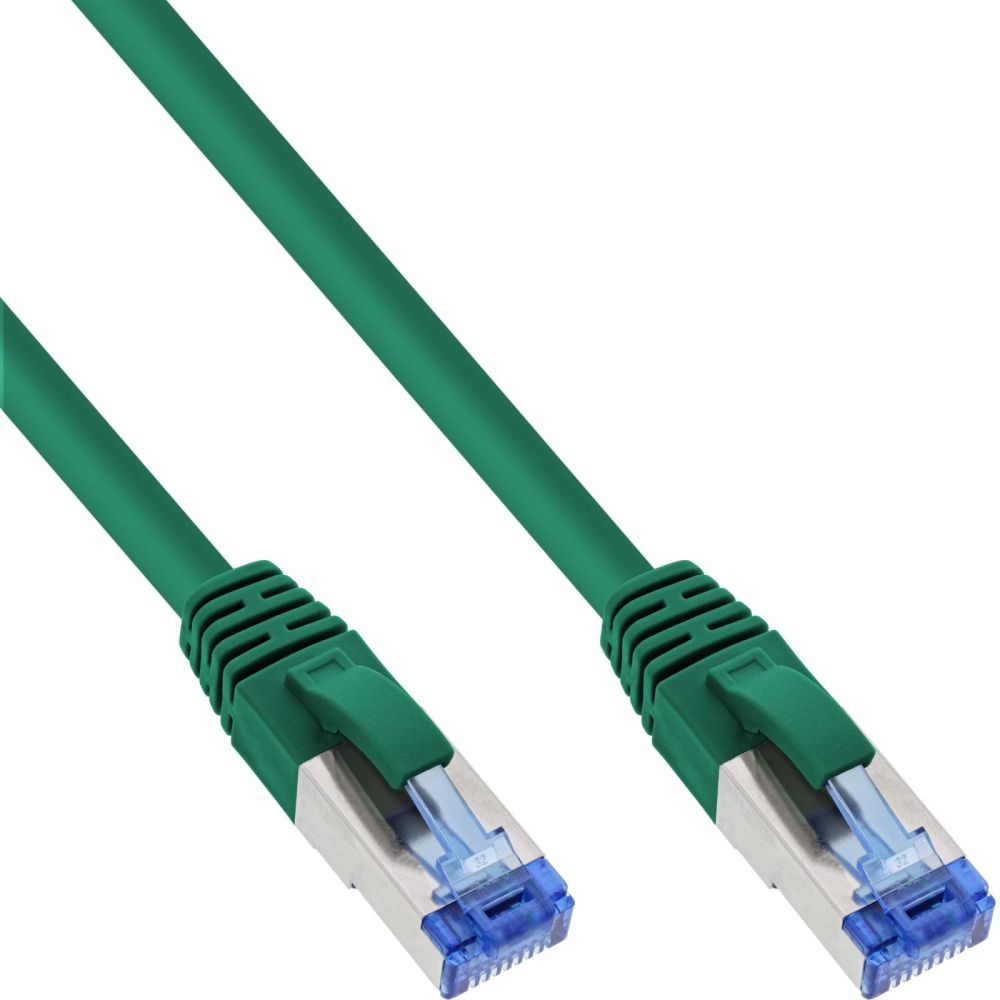

InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m
|
1,55 EUR |
|||||||||||
|
( 1,84 EUR incl. VAT ) ≈ £1.30 | ≈ $1.73 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 266691 | ||||||||||
| Mfg Part No: | 76833G | ||||||||||
| UPC/EAN: | 4043718294350 | ||||||||||
| Weight: | 0.023 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76833G:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications

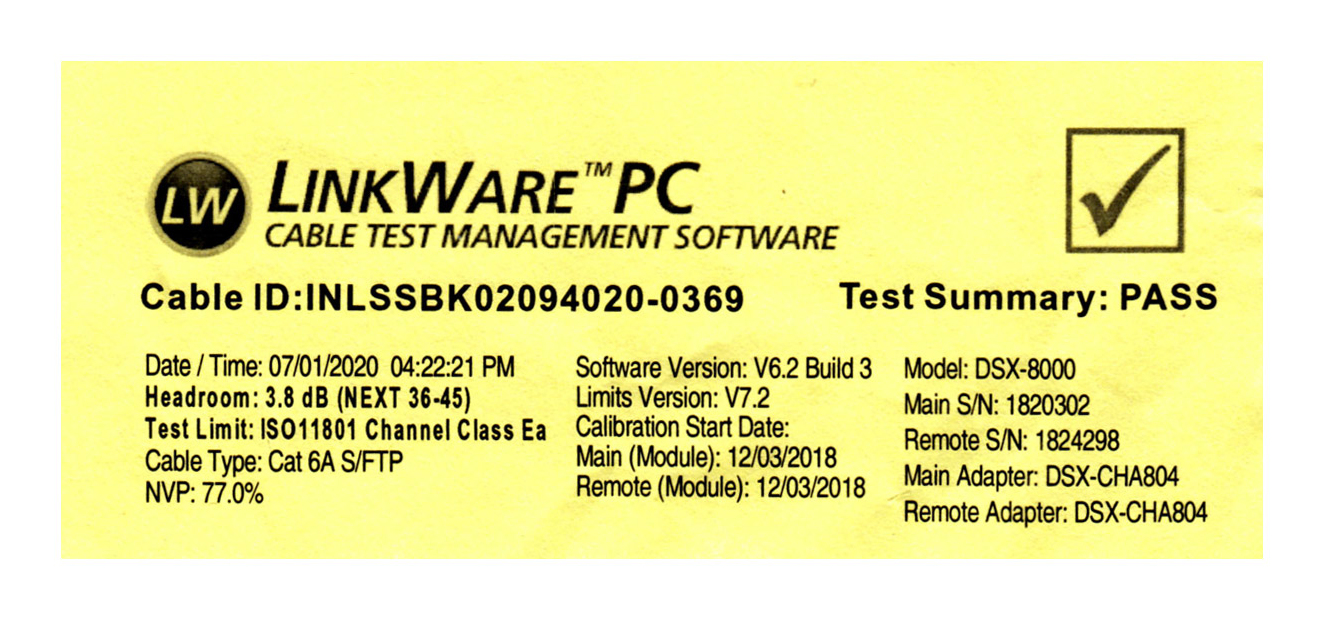

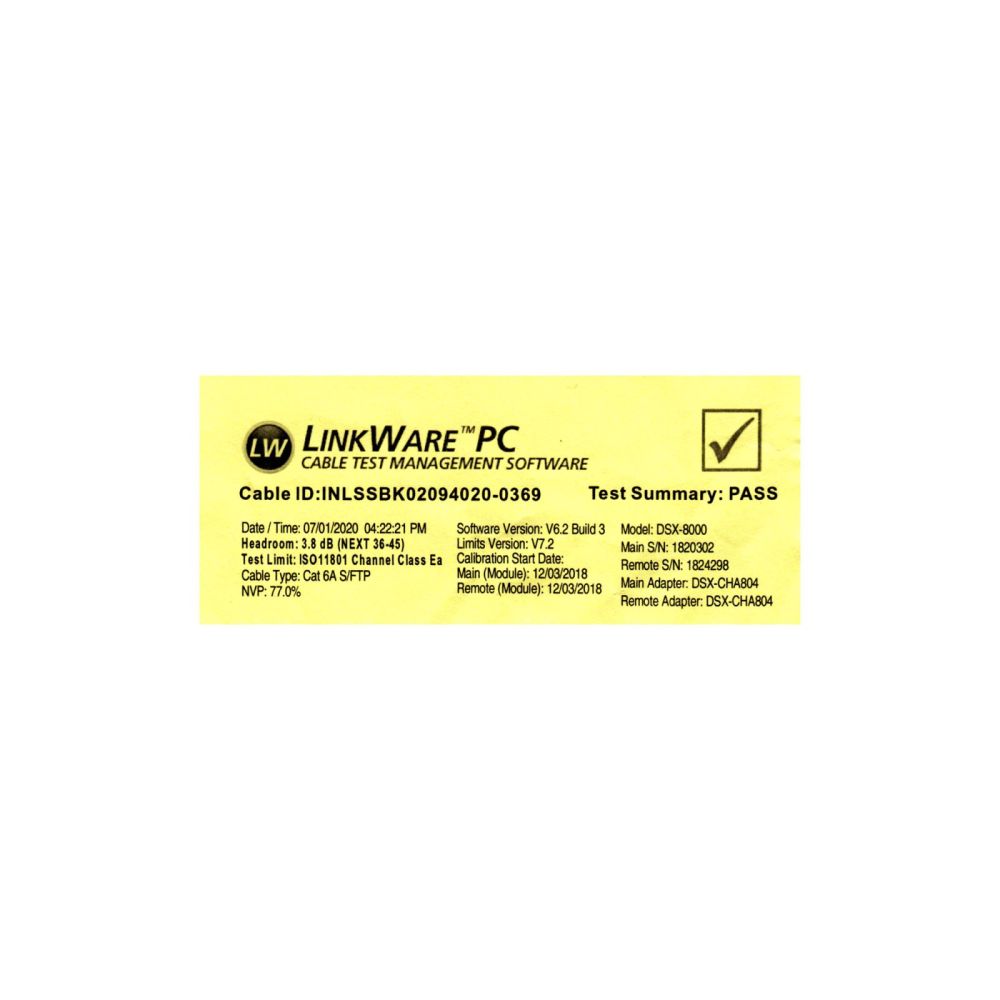

up to 500MHz: incl. enclosed test protocol
| Features | |
| Product colour | Green |
| Cable length | 0.3 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 15 x 300 x 13 mm |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 140 mm |
| Package height | 15 mm |
| Package weight | 23 g |
| Package volume | 200 cm³ |
| Technical data | |
| Colour | Green |
| Packaging volume | 0.0002m³ |
| Net weight | 0.020kg |
| Data transmission rate | 10Gb/s |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Side A | RJ45 plug straight |
| Assignment | 1:1 |
| Width packaging | 0.100m |
| Article width | 1.50cm |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.6A |
| Type | Cat.6A |
| Length packaging | 0.140m |
| Max. supported power | 90W |
| Sheath | Halogen-free (LSZH) |
| Max. supported data transfer rate | 10Gb/s |
| Design | Round cable |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article height | 1.30cm |
| Shielding | S/FTP (PiMf) |
| Height packaging | 0.015m |
| Side B | RJ45 plug straight |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Signal | Network |
| Length | 0.30m |
| Article length | 30.00cm |
| Weight | 0.023kg |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 15 mm |
| Depth | 300 mm |
| Height | 13 mm |
| Weight | 20 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m?
The article InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76833G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz green 0.3m we can offer you a price of 1,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
