InLine® Cat.6A box flush-mounted 2x RJ45 white RAL9010 content_copy

Fast flush-mounted network outlets up to 10 Gb/sTool-free assembly without LSA: Snap-in modules enable quick installation and easy maintenance.
Cat.6A performance up to 500 MHz: High data rates up to 10 Gb/s for structured networks.
Low-interference connection in a metal housing: Fully shielded die-cast housing reduces external influences.
Clean 45° outlet with dust protection: Integrated caps keep the ports free of dust.
Suitable for 50 mm boxes: Designed for AWG 22-26 installation cables and flush-mounting.

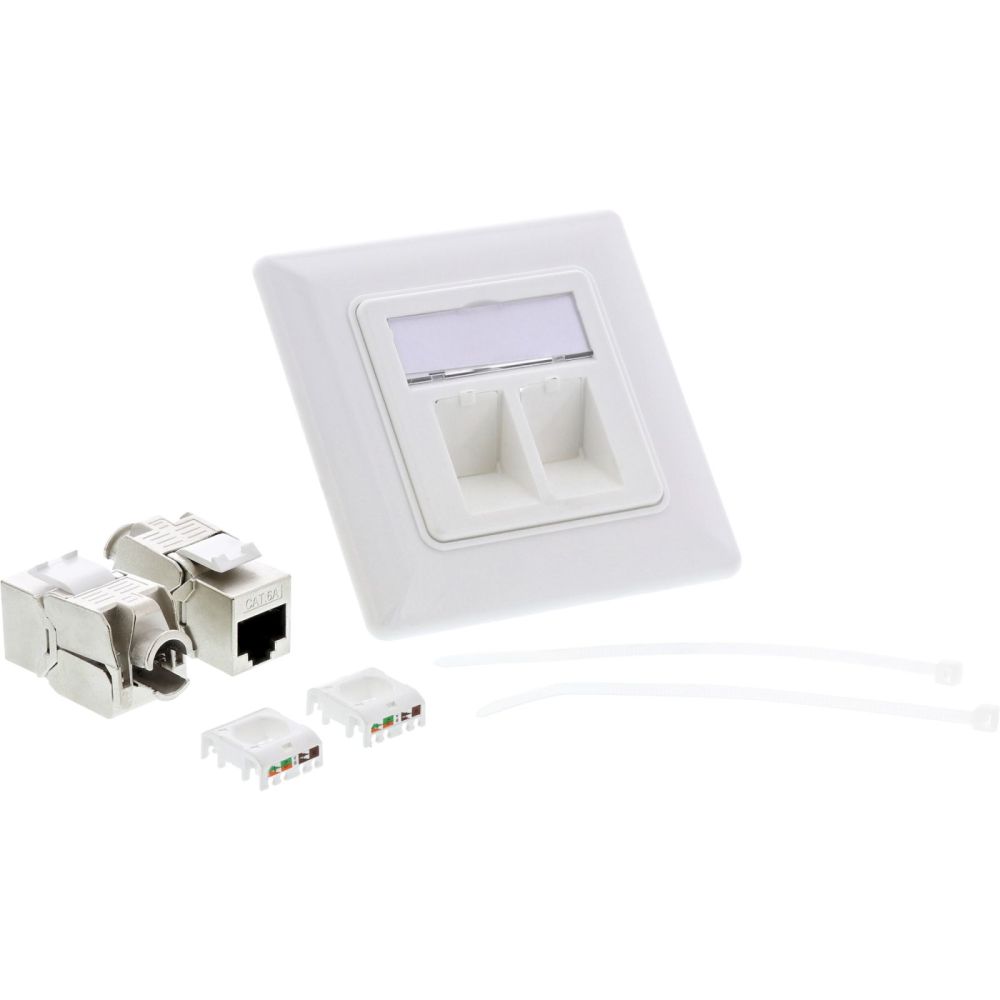

The modular connection box provides two keystone RJ45 sockets for clean flush-mounted cabling. The snap-in modules can be mounted without an LSA tool, color coding according to TIA568B and number coding according to EN50173 support a low-error installation. The 80 mm front panel in White RAL 9010 blends discreetly into interiors, while the 45° outlet with integrated dust caps protects the connections. The fully shielded die-cast housing supports stable signal routing.
In professional IT environments, for on-site installations and in service deployments, the outlet simplifies the setup and extension of existing infrastructures. It corresponds to Cat.6A (500 MHz) according to TIA/EIA 568B.2-10 and integrates smoothly into networks of companies and public institutions.

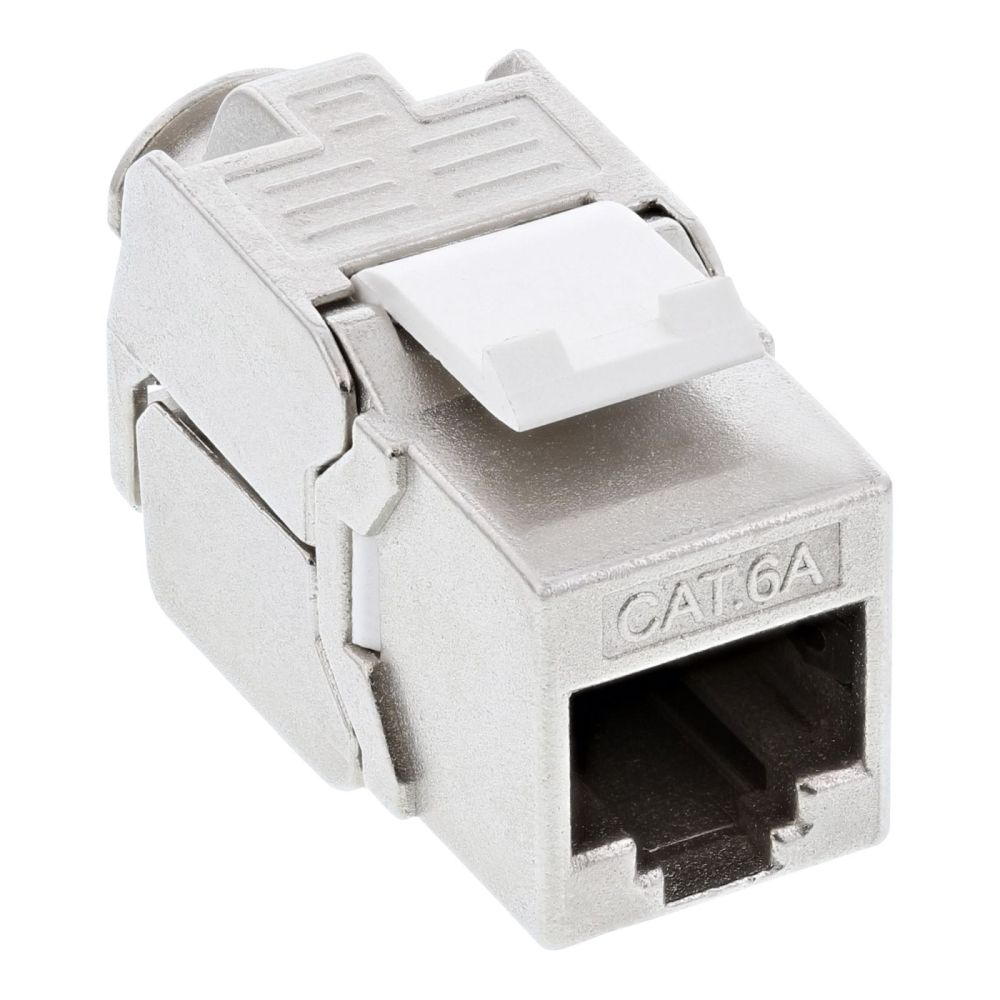

Connection: 2x RJ45 sockets (keystone, snap-in)
Standard: Cat.6A
Frequency: 500 MHz
Data rate: up to 10 Gb/s
Mounting type: flush-mount
Outlet: 45° with dust protection

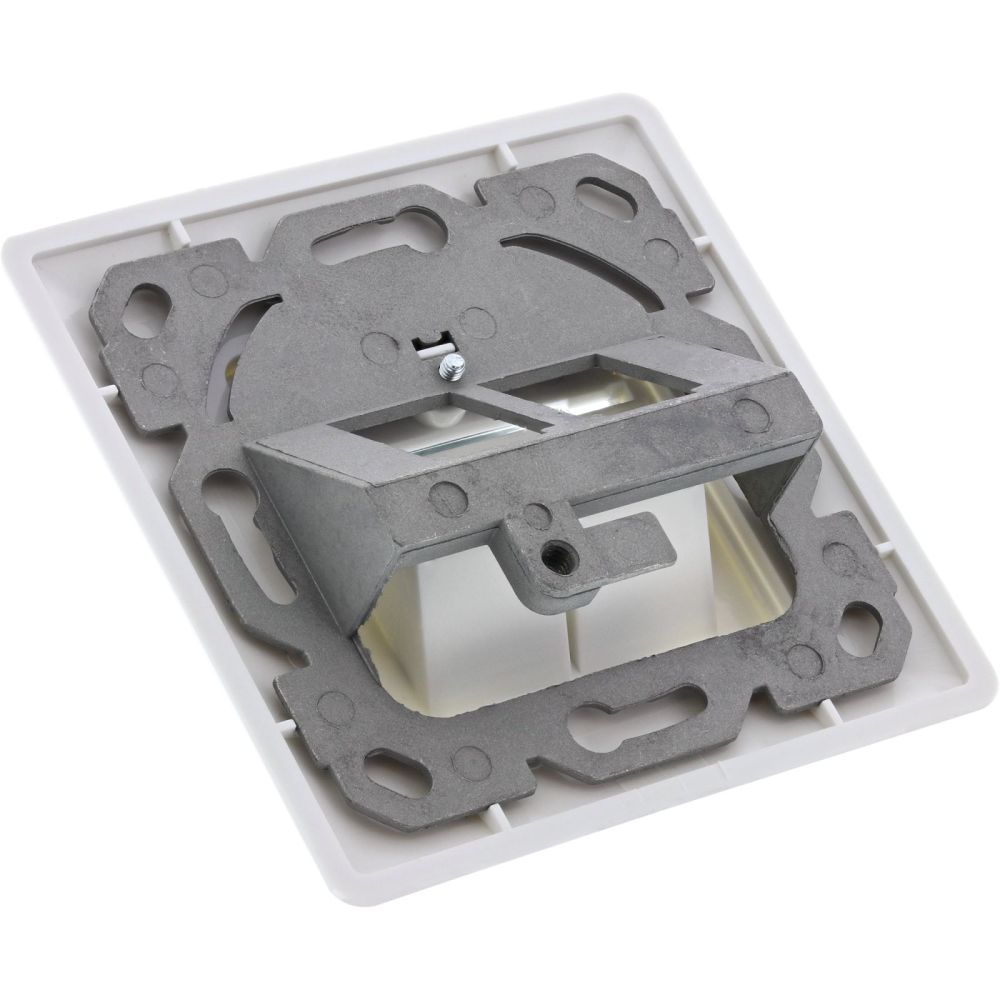

Housing: fully shielded die-cast housing

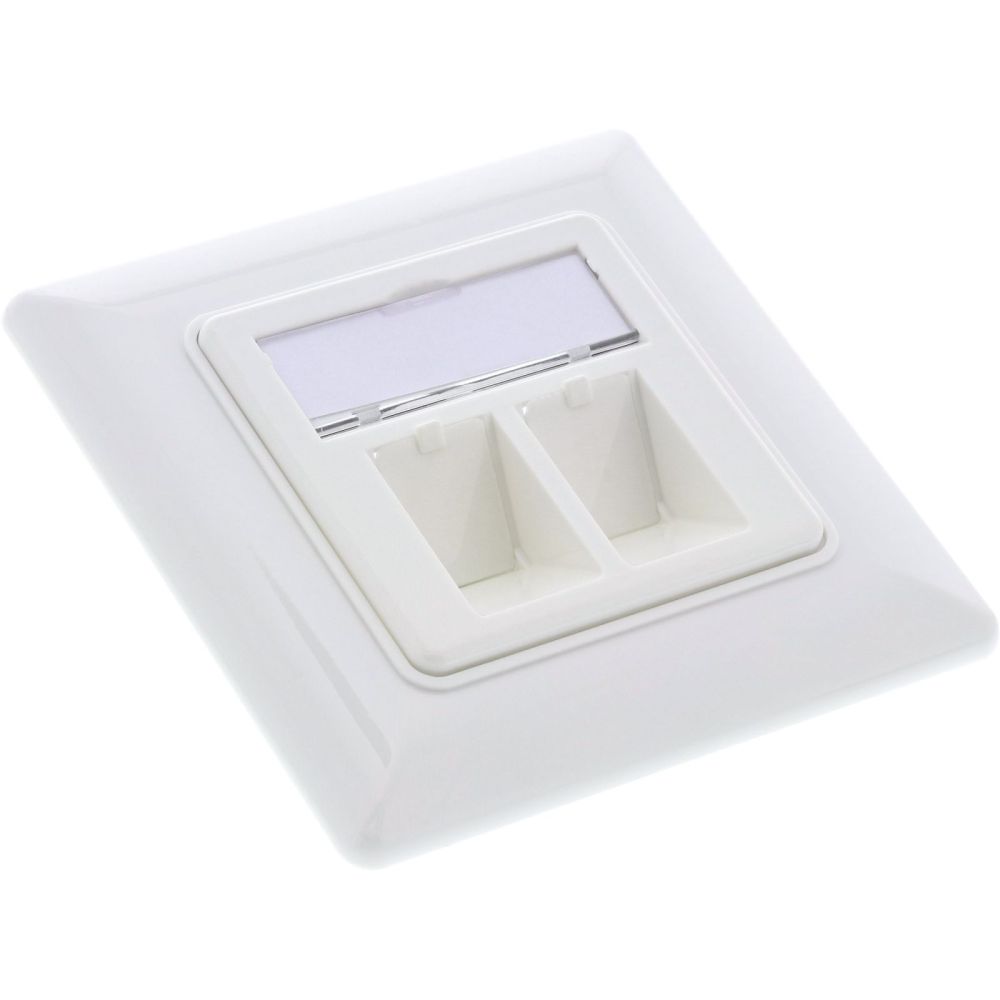

Front panel: 80 mm
Compatible boxes: 50 mm
Color: White RAL 9010
Coding: color-coded according to TIA568B, number-coded according to EN50173
Cable: AWG 22-26 installation cable
Tool requirement: no LSA tool required
Instructions: installation guide enclosed (German/illustrated)
Standards: TIA/EIA 568B.2-10; EN50173

Packaging data
Package width	85 mm
Package depth	85 mm
Package height	67 mm
Package weight	118 g
Package volume	400 cm³
Technical data
Article length	8.00cm
Packaging volume	0.0004m³
Max. supported power	90W
Connections	2x RJ45
Type	Cat.6A connection box UP
Colour	White (RAL9010)
Net weight	0.091kg
Article height	4.00cm
Length packaging	0.085m
Max. supported data transfer rate	10Gb/s
Cable entry	Any
Wire pairs used for power transmission	The specific method used is determined by the PSE (Power Sourcing Equipment)
Network category	Cat.6A
Height packaging	0.067m
Max. supported PoE standard	802.3bt
Weight	0.118kg
Width packaging	0.085m
Article width	8.00cm
Installation	Flush-mounted
Keystone SNAP-In compatible
Modules integrated
Technical details
Product colour	White
Dimensions (WxDxH)	80 x 80 x 40 mm
Weight & dimensions
Width	80 mm
Height	40 mm
Depth	80 mm
Weight	91 g

---
