InLine patch cable Cat.6A S/FTP (PiMf) grey 20m
|
-30% 17,93 EUR 25,44 EUR |
|
|
( 21,34 EUR incl. VAT ) ≈ £15.06 | ≈ $20.12 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2104537 |
| Mfg Part No: | 76820 |
| UPC/EAN: | 4043718249565 |
| Weight: | 0.694 kg |
Further Cat6 Patch Cable from InlineFurther products in category Cat6 Patch Cable
All products of Inline
Product information for Inline 76820:
Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range, for use in data centers and server racksAssignment according to TIA/EIA 568B2.1
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1

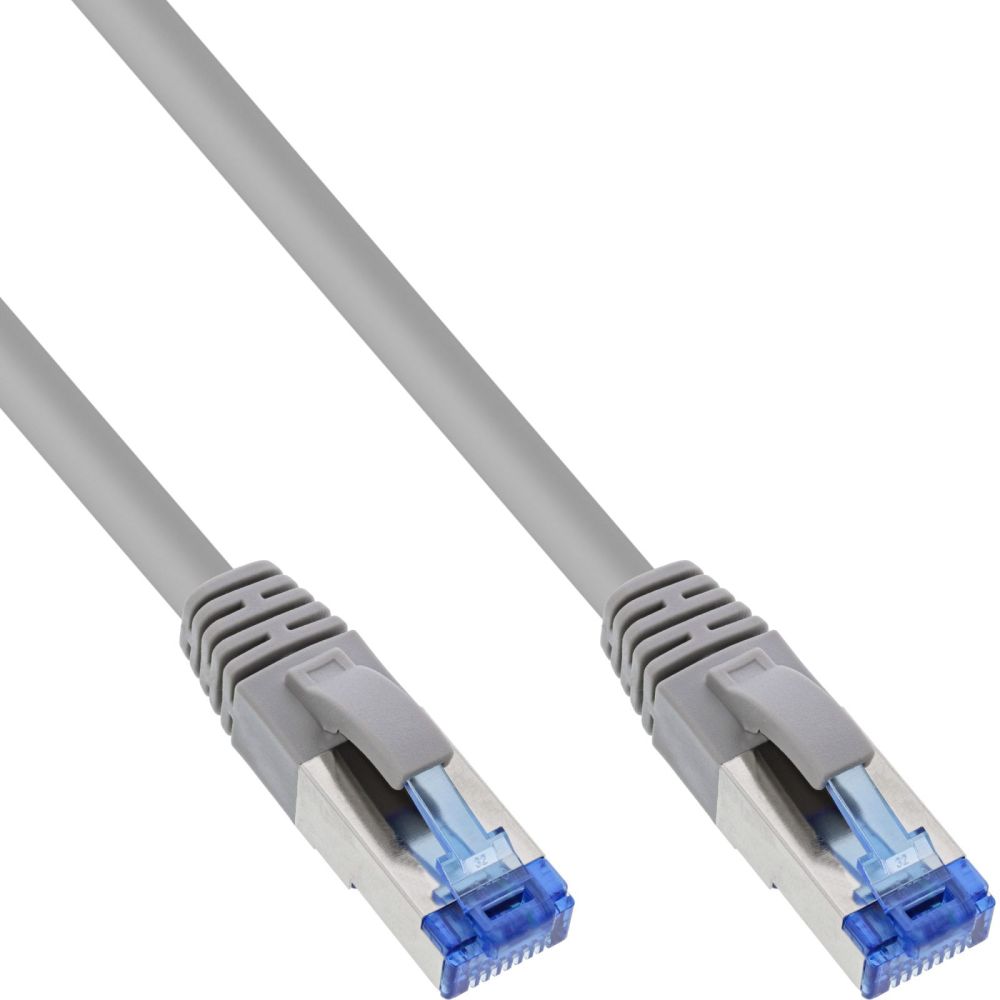

plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number

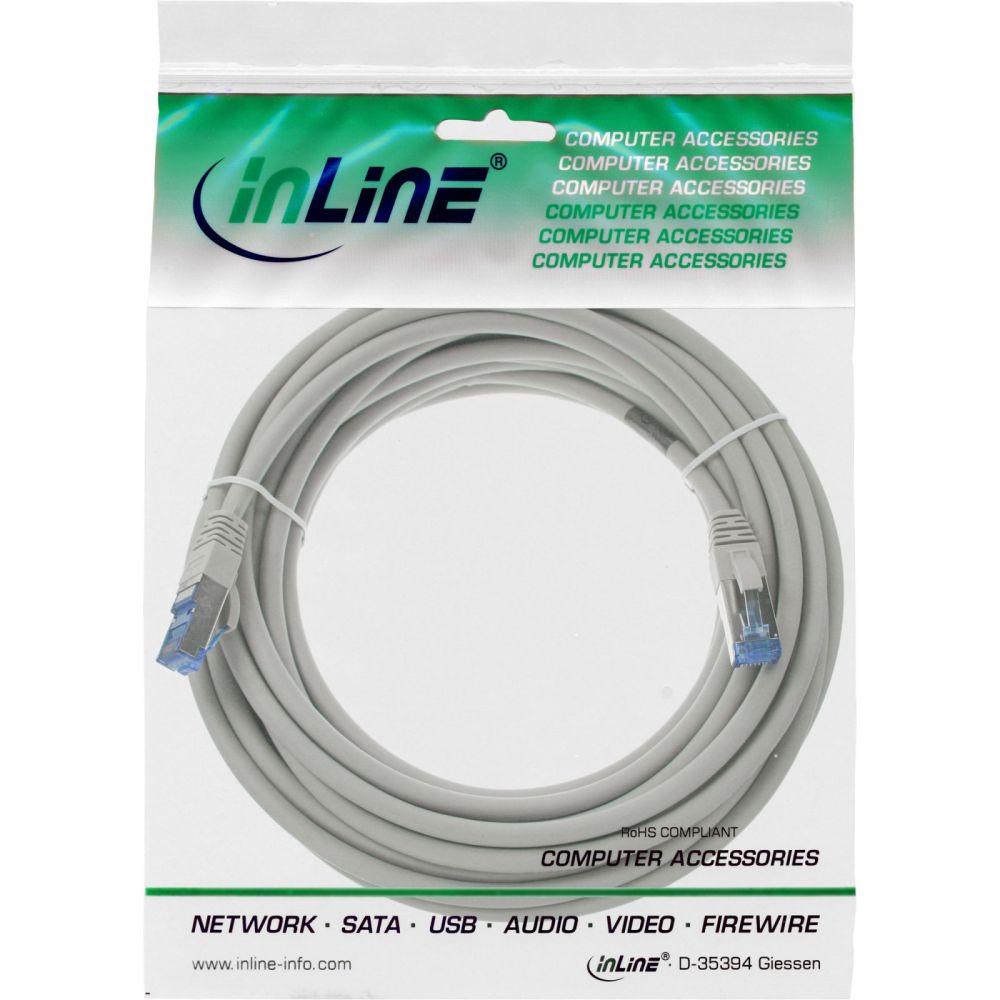

in reclosable PE bag with EAN code
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Features | |
| Product colour | Grey |
| Cable length | 20 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 12 x 20000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 120 mm |
| Package depth | 135 mm |
| Package height | 25 mm |
| Package weight | 694 g |
| Package volume | 400 cm³ |
| Technical data | |
| Packaging volume | 0.0004m³ |
| Article height | 1.50cm |
| Length | 20m |
| Side B | RJ45 plug straight |
| Height packaging | 0.025m |
| Outer diameter | 6,2mm |
| Net weight | 0.691kg |
| Signal | Network |
| Length packaging | 0.135m |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Sheath | Halogen-free (LSZH) |
| Max. supported power | 90W |
| Design | Round cable |
| Side A | RJ45 plug straight |
| Colour | Grey |
| Patch cable category | Cat.6A |
| Article length | 2000.00cm |
| Data transmission rate | 10Gb/s |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article width | 1.20cm |
| Shielding | S/FTP (PiMf) |
| Type | Cat.6A |
| Weight | 0.694kg |
| Max. supported PoE standard | 802.3bt |
| Assignment | 1:1 |
| Width packaging | 0.120m |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 20000 mm |
| Height | 15 mm |
| Weight | 691 g |
