InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz red 15m
|
13,83 EUR |
|
|
( 16,46 EUR incl. VAT ) ≈ £11.58 | ≈ $15.48 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196722 |
| Mfg Part No: | 76815R |
| UPC/EAN: | 4043718276318 |
| Weight: | 0.44 kg |
Product information for Inline 76815R:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1

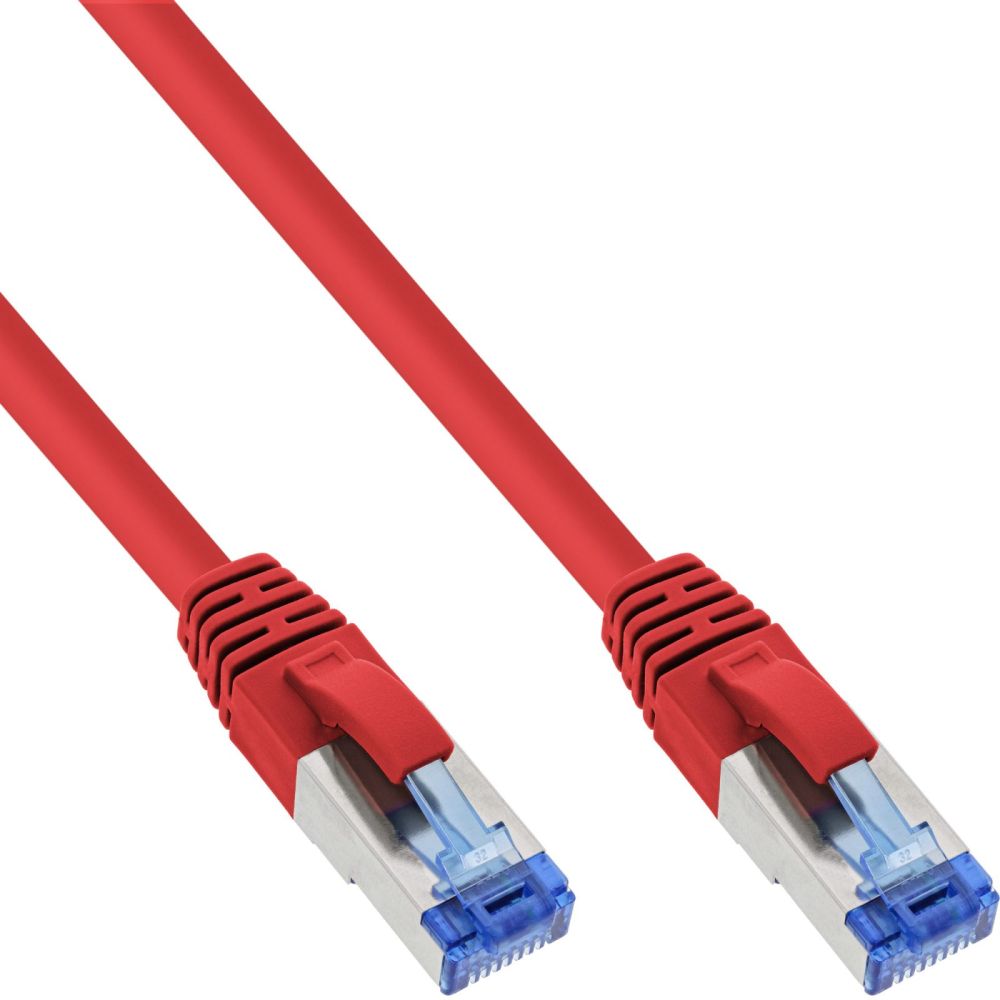

plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number

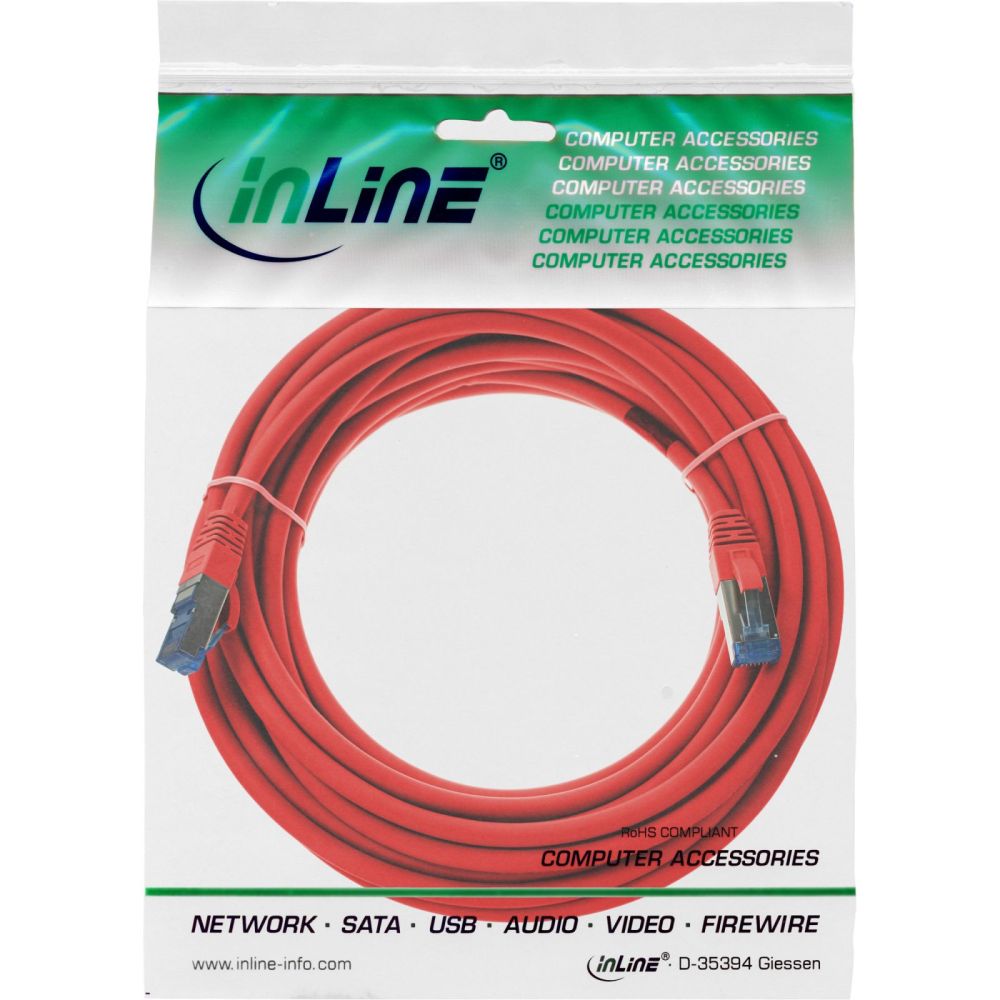

in reclosable PE bag with EAN code
| Features | |
| Product colour | Red |
| Cable length | 15 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 13 x 15000 x 16 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 190 mm |
| Package height | 50 mm |
| Package weight | 440 g |
| Package volume | 1900 cm³ |
| Technical data | |
| Assignment | 1:1 |
| Article width | 1.30cm |
| Shielding | S/FTP (PiMf) |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Weight | 0.440kg |
| Packaging volume | 0.0019m³ |
| Article length | 1500.00cm |
| Data transmission rate | 10Gb/s |
| Side A | RJ45 plug straight |
| Width packaging | 0.200m |
| Height packaging | 0.050m |
| Length packaging | 0.190m |
| Max. supported PoE standard | 802.3bt |
| Type | Cat.6A |
| Sheath | Halogen-free (LSZH) |
| Max. supported power | 90W |
| Design | Round cable |
| Colour | Red |
| Patch cable category | Cat.6A |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| Conductor material | CU (copper) |
| Article height | 1.60cm |
| Length | 15m |
| Side B | RJ45 plug straight |
| Net weight | 0.421kg |
| Signal | Network |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 15000 mm |
| Height | 16 mm |
| Weight | 421 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz red 15m?
The article InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz red 15m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76815R to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz red 15m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz red 15m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
