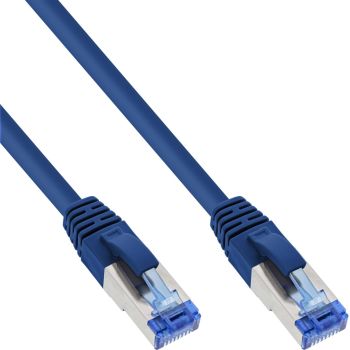

InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h
|
-23% 2,73 EUR 3,56 EUR |
|||||||||||
|
( 3,25 EUR incl. VAT ) ≈ £2.30 | ≈ $3.07 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1641864 | ||||||||||
| Mfg Part No: | 76814B | ||||||||||
| UPC/EAN: | 4043718189366 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76814B:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Certificates | |
| Certification | IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1 |
| Features | |
| Product colour | Blue |
| Cable length | 1.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 26/7 |
| Frequency | 500 MHz |
| Other features | |
| Dimensions (WxDxH) | 12 x 1500 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 115 mm |
| Package height | 20 mm |
| Package weight | 70 g |
| Package volume | 300 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Diameter | AWG 26 |
| Assignment | 1:1 |
| Width packaging | 0.140m |
| Article width | 1.20cm |
| Storage temperature | -20 to +70°C |
| Colour | Blue |
| Packaging volume | 0.0003m³ |
| Net weight | 0.070kg |
| Weight | 0.070kg |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article height | 1.50cm |
| Shielding | S/FTP (PiMf) |
| Side A | RJ45 plug straight |
| Height packaging | 0.020m |
| Side B | RJ45 plug straight |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Signal | Network |
| Sheath | Halogen-free (LSZH) |
| Max. supported data transfer rate | 10Gb/s |
| Design | Round cable |
| Type | Cat.6A |
| Length packaging | 0.115m |
| Max. supported power | 90W |
| Patch cable category | Cat.6A |
| Length | 1.50m |
| Article length | 150.00cm |
| Data transmission rate | 10Gb/s |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 1500 mm |
| Height | 15 mm |
| Weight | 70 g |
Questions & answers
What is the delivery time of InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h?
The article InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76814B to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h always at the best possible price. We can give you a discount of 2% on InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of InLine patch cable, S/FTP (PiMf), Cat.6A, 500MHz, h we can offer you a price of 2,69 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
