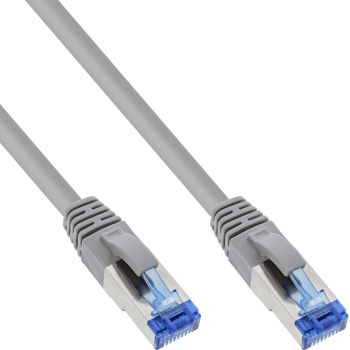

INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m
|
-9% 2,09 EUR 2,30 EUR |
|||||||||||
|
( 2,49 EUR incl. VAT ) ≈ £1.76 | ≈ $2.35 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 844540 | ||||||||||
| Mfg Part No: | 76811 | ||||||||||
| UPC/EAN: | 4043718088621 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76811:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Certificates | |
| Certification | TIA/EIA 568B2.1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 |
| Features | |
| Product colour | Grey |
| Cable length | 1 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 26/7 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 500 MHz |
| Other features | |
| Dimensions (WxDxH) | 12 x 1000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 225 mm |
| Package height | 15 mm |
| Package weight | 53 g |
| Package volume | 600 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Type | Cat.6A |
| Length packaging | 0.225m |
| Max. supported power | 90W |
| Design | Round cable |
| Assignment | 1:1 |
| Width packaging | 0.175m |
| Article width | 1.20cm |
| Shielding | S/FTP (PiMf) |
| Side A | RJ45 plug straight |
| Colour | Grey |
| Side B | RJ45 plug straight |
| Net weight | 0.038kg |
| Signal | Network |
| Data transmission rate | 10Gb/s |
| Packaging volume | 0.0006m³ |
| Article length | 100.00cm |
| Conductor material | CU (copper) |
| Article height | 1.50cm |
| Length | 1m |
| Sheath | Halogen-free (LSZH) |
| Max. supported PoE standard | 802.3bt |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| Height packaging | 0.015m |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Patch cable category | Cat.6A |
| Weight | 0.053kg |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 1000 mm |
| Height | 15 mm |
| Weight | 38 g |
Questions & answers
What is the delivery time of INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m?
The article INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76811 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m always at the best possible price. We can give you a discount of 2% on INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of INLINE Patch Cable S-FTP PiMf Cat.6A 500MHz Halogen Free Copper Grey 1m we can offer you a price of 2,06 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
