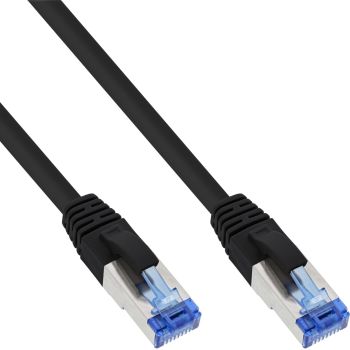

InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz black 7.5m
|
7,61 EUR |
|
|
( 9,06 EUR incl. VAT ) ≈ £6.37 | ≈ $8.52 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22197152 |
| Mfg Part No: | 76807S |
| UPC/EAN: | 4043718189083 |
| Weight: | 0.25 kg |
Product information for Inline 76807S:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Features | |
| Product colour | Black |
| Cable length | 7.5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Cabling technology | 10/100/1000Base-T(X) |
| AWG wire size | 26 |
| Data transfer rate | 10000 Mbit/s |
| Other features | |
| Dimensions (WxDxH) | 12 x 7500 x 15 mm |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 150 mm |
| Package height | 40 mm |
| Package weight | 250 g |
| Package volume | 900 cm³ |
| Technical data | |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Type | Cat.6A |
| Length packaging | 0.150m |
| Max. supported PoE standard | 802.3bt |
| Side A | RJ45 plug straight |
| Assignment | 1:1 |
| Width packaging | 0.150m |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.6A |
| Weight | 0.250kg |
| Conductor material | CU (copper) |
| Operation temperature | -10 to +60°C |
| Article width | 1.20cm |
| Shielding | S/FTP (PiMf) |
| Height packaging | 0.040m |
| Side B | RJ45 plug straight |
| Net weight | 0.247kg |
| Signal | Network |
| Length | 7.50m |
| Packaging volume | 0.0009m³ |
| Article length | 750.00cm |
| Colour | Black |
| Sheath | Halogen-free (LSZH) |
| Max. supported power | 90W |
| Design | Round cable |
| Diameter | AWG 26 |
| Article height | 1.50cm |
| Data transmission rate | 10Gb/s |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 7500 mm |
| Height | 15 mm |
| Weight | 247 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz black 7.5m?
The article InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz black 7.5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76807S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz black 7.5m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz black 7.5m if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
