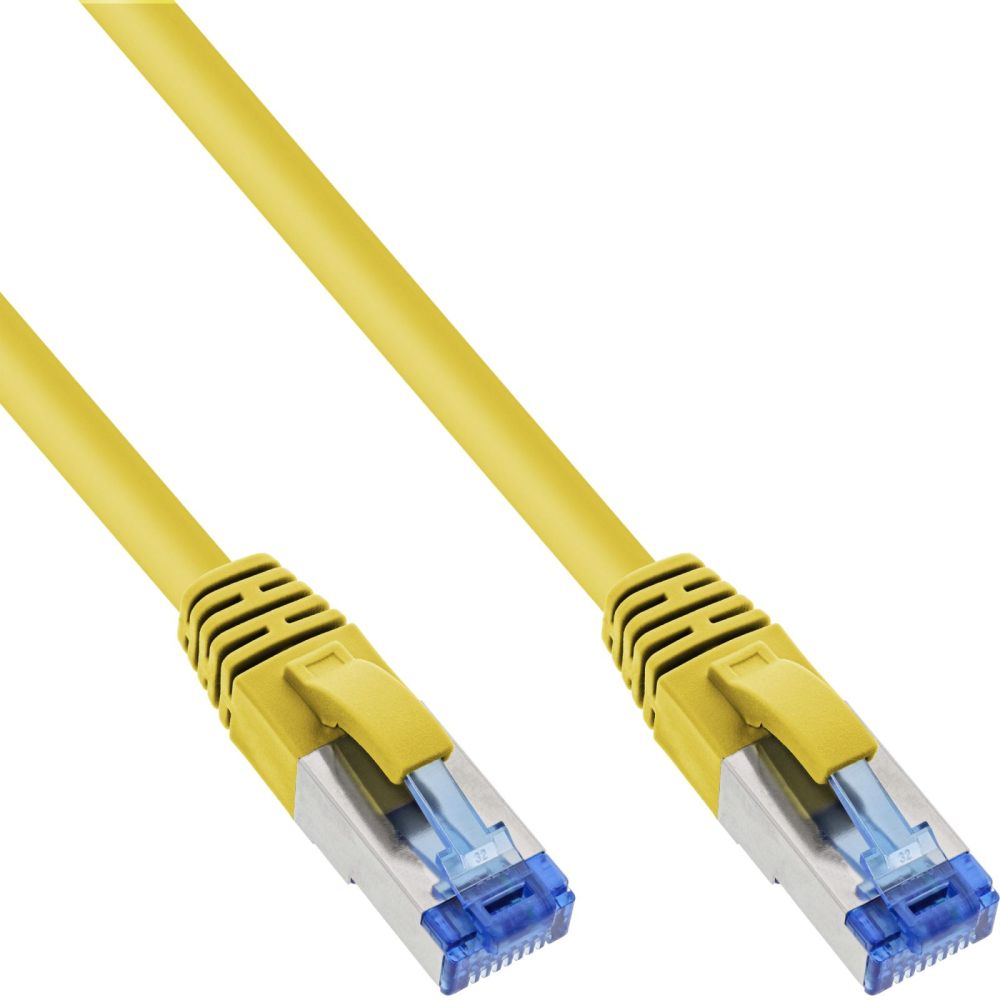

InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m
|
6,24 EUR |
|||||||||||
|
( 7,43 EUR incl. VAT ) ≈ £5.22 | ≈ $6.98 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >500 pieces | |||||||||||
| End-Of-Life: | 26. Jul 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1638976 | ||||||||||
| Mfg Part No: | 76805Y | ||||||||||
| UPC/EAN: | 4043718088898 | ||||||||||
| Weight: | 0.185 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76805Y:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications

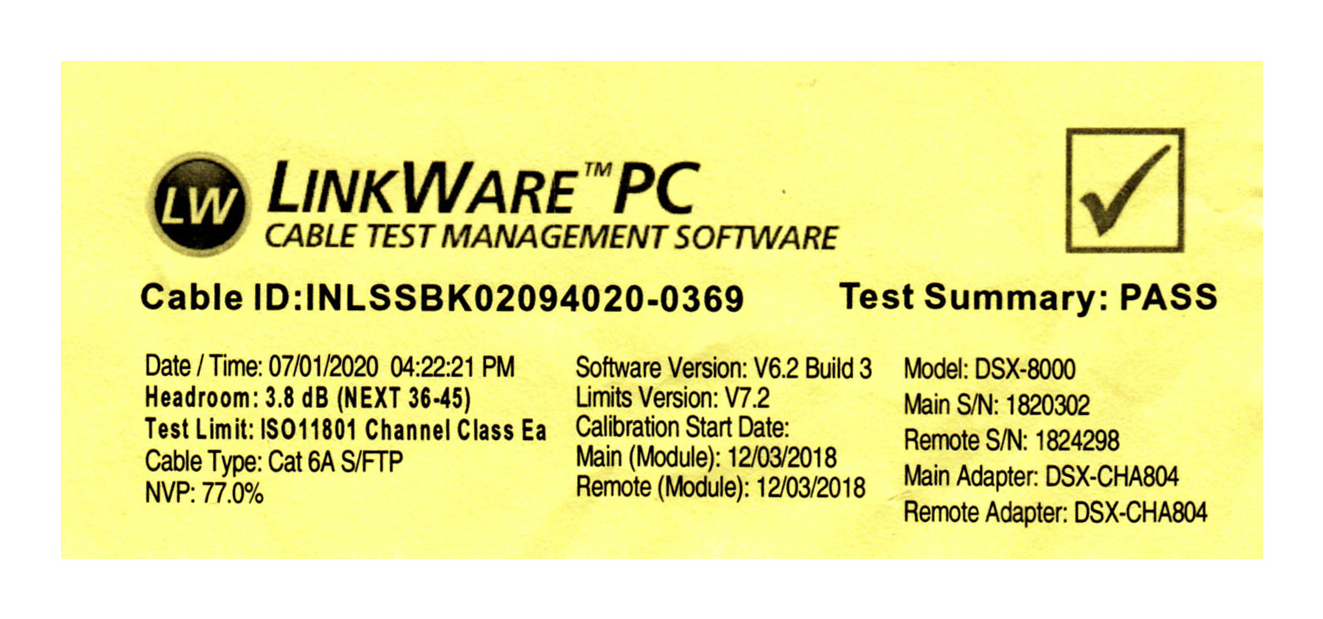

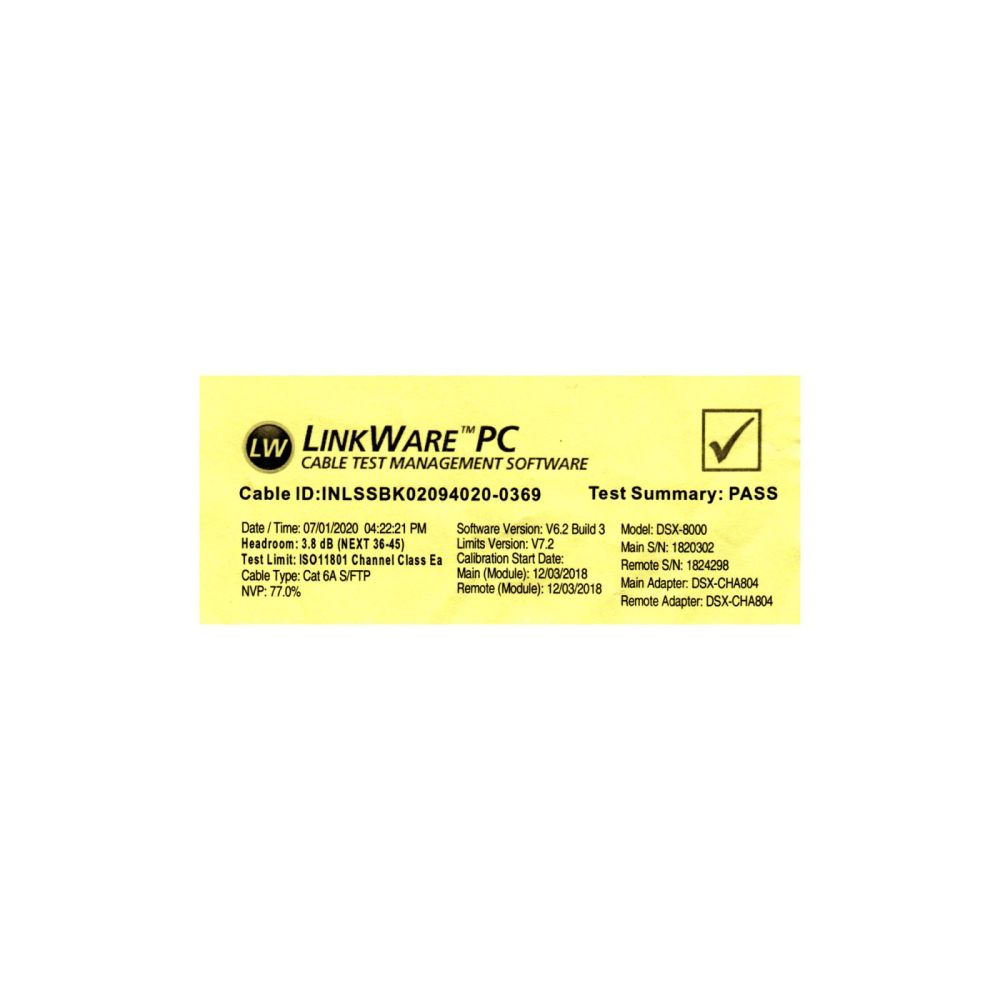

to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number

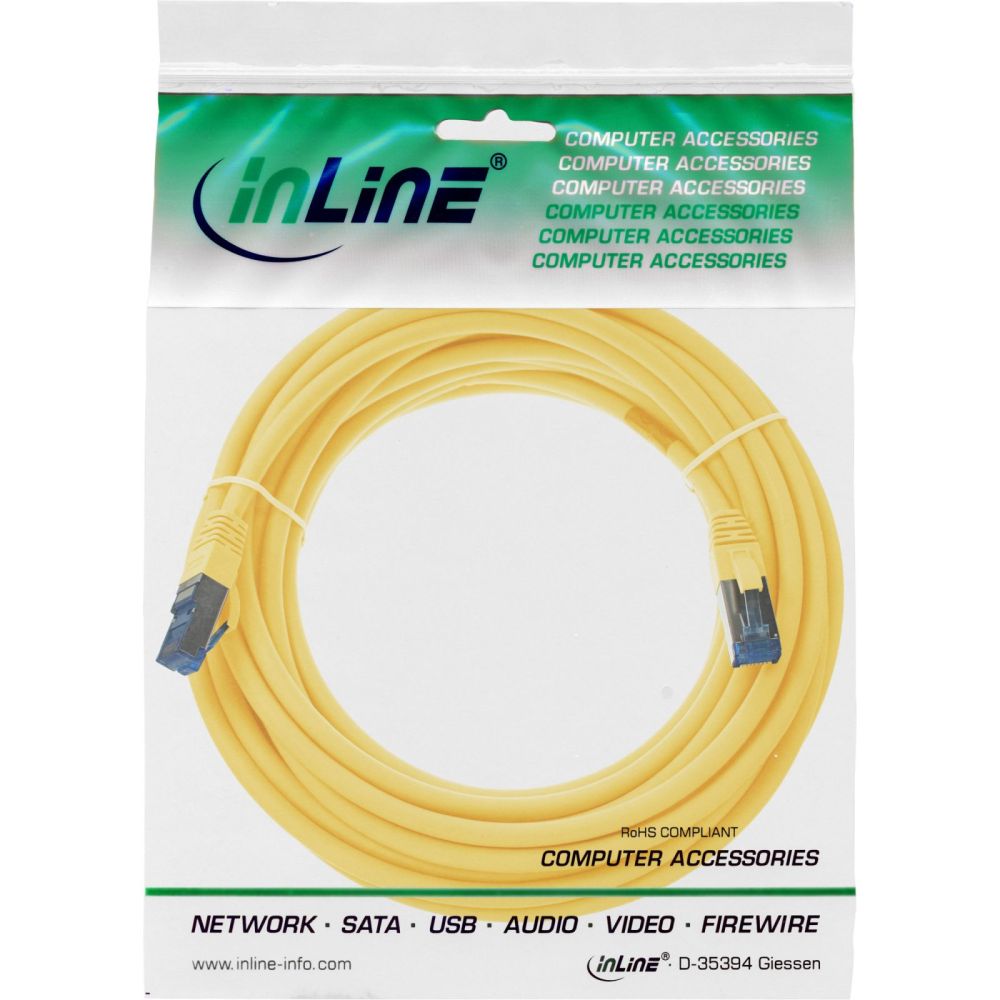

in reclosable PE bag with EAN code
| Features | |
| Product colour | Yellow |
| Cable length | 5 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 12 x 5000 x 16 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 200 mm |
| Package height | 30 mm |
| Package weight | 185 g |
| Package volume | 1000 cm³ |
| Technical data | |
| Type | Cat.6A |
| Sheath | Halogen-free (LSZH) |
| Max. supported power | 90W |
| Design | Round cable |
| Side A | RJ45 plug straight |
| Data transmission rate | 10Gb/s |
| Assignment | 1:1 |
| Width packaging | 0.160m |
| Article width | 1.20cm |
| Shielding | S/FTP (PiMf) |
| Packaging volume | 0.0010m³ |
| Article length | 500.00cm |
| Colour | Yellow |
| Side B | RJ45 plug straight |
| Net weight | 0.177kg |
| Signal | Network |
| Weight | 0.185kg |
| Height packaging | 0.030m |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Packing | Retail |
| Length packaging | 0.200m |
| Conductor material | CU (copper) |
| Article height | 1.60cm |
| Length | 5m |
| Max. supported PoE standard | 802.3bt |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| Patch cable category | Cat.6A |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 5000 mm |
| Height | 16 mm |
| Weight | 177 g |
Questions & answers
What is the delivery time of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m?
The article InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 76805Y to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m always at the best possible price. We can give you a discount of 2% on InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz yellow 5m we can offer you a price of 6,19 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
