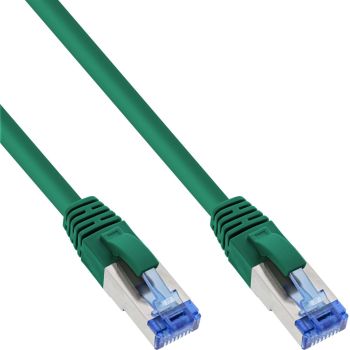

InLine patch cable S/FTP PiMf C6a green 3m
|
-28% 4,19 EUR 5,82 EUR |
|||||||||||
|
( 4,99 EUR incl. VAT ) ≈ £3.53 | ≈ $4.71 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1268424 | ||||||||||
| Mfg Part No: | 76803G | ||||||||||
| UPC/EAN: | 4043718088782 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Inline 76803G:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Certificates | |
| Certification | TIA / EIA 568B2.1, IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 |
| Features | |
| Product colour | Green |
| Cable length | 3 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Twisted pair coupling type | 4x2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| AWG wire size | 26/7 |
| Data transfer rate | 10000 Mbit/s |
| Frequency | 500 MHz |
| Other features | |
| Dimensions (WxDxH) | 12 x 3000 x 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 225 mm |
| Package height | 22 mm |
| Package weight | 114 g |
| Package volume | 900 cm³ |
| Package type | Polybag |
| Sustainability | |
| Doesn't contain | Halogen |
| Technical data | |
| Patch cable category | Cat.6A |
| Length | 3m |
| Height packaging | 0.022m |
| Outer diameter | 6,2mm |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Diameter | AWG 26 |
| Colour | Green |
| Side B | RJ45 plug straight |
| Net weight | 0.111kg |
| Signal | Network |
| Weight | 0.114kg |
| Packaging volume | 0.0009m³ |
| Article length | 300.00cm |
| Design | Round cable |
| Operation temperature | -10 to +60°C |
| Max. supported data transfer rate | 10Gb/s |
| Storage temperature | -20 to +70°C |
| Assignment | 1:1 |
| Width packaging | 0.175m |
| Article width | 1.20cm |
| Shielding | S/FTP (PiMf) |
| Conductor material | CU (copper) |
| Article height | 1.50cm |
| Type | Cat.6A |
| Length packaging | 0.225m |
| Max. supported power | 90W |
| Side A | RJ45 plug straight |
| Data transmission rate | 10Gb/s |
| Sheath | Halogen-free (LSZH) |
| Max. supported PoE standard | 802.3bt |
| UL | |
| PoE/PoE+/PoE++ | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 3000 mm |
| Height | 15 mm |
| Weight | 111 g |
