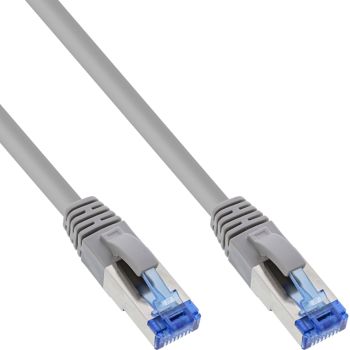

InLine® Patch Cable S/FTP PiMF Cat.6A halogen free 500MHz grey 10m
|
9,25 EUR |
|
|
( 11,01 EUR incl. VAT ) ≈ £7.74 | ≈ $10.35 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22196727 |
| Mfg Part No: | 76800 |
| UPC/EAN: | 4043718088614 |
| Weight: | 0.353 kg |
Product information for Inline 76800:
cable construction S/FTP (PiMf) 4x2xAWG26/7
overall braided shield with paired foil shield
Cable sheath halogen free, LSZH, conform to standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034 IEC332-1
plug RJ45 (8P8C) with 50µ" gold plated contacts and with special design and latch protection
blue colored plug for easy distinction
For Gigabit and 10 Gigabit applications
to 500MHz: 100% Cat.6 test and 100% Cat.6A test (Fluke Channel Link Test) including the attached test protocol and serial number
in reclosable PE bag with EAN code
| Features | |
| Product colour | Grey |
| Cable length | 10 m |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Conductor material | Copper |
| Cabling technology | 10/100/1000BASE-T(X) |
| AWG wire size | 26 |
| Other features | |
| Dimensions (WxDxH) | 12 x 10000 x 15 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 245 mm |
| Package height | 48 mm |
| Package weight | 353 g |
| Package volume | 2400 cm³ |
| Technical data | |
| Conductor material | CU (copper) |
| Article length | 1000.00cm |
| Shielding | S/FTP (PiMf) |
| Colour | Grey |
| Side B | RJ45 plug straight |
| Wire pairs used for power transmission | The specific method used is determined by the PSE (Power Sourcing Equipment) |
| Weight | 0.353kg |
| Patch cable category | Cat.6A |
| Type | Cat.6A |
| Length packaging | 0.245m |
| Max. supported data transfer rate | 10Gb/s |
| Packaging volume | 0.0024m³ |
| Net weight | 0.294kg |
| Data transmission rate | 10Gb/s |
| Packing | Retail |
| Outer diameter | 6,2mm |
| Max. supported PoE standard | 802.3bt |
| Signal | Network |
| Height packaging | 0.048m |
| Sheath | Halogen-free (LSZH) |
| Max. supported power | 90W |
| Diameter | AWG 26 |
| Operation temperature | -10 to +60°C |
| Article width | 1.20cm |
| Design | Round cable |
| Side A | RJ45 plug straight |
| Width packaging | 0.200m |
| Length | 10m |
| Assignment | 1:1 |
| Article height | 1.50cm |
| Storage temperature | -20 to +70°C |
| PoE/PoE+/PoE++ | |
| UL | |
| Weight & dimensions | |
| Width | 12 mm |
| Depth | 10000 mm |
| Height | 15 mm |
| Weight | 294 g |
