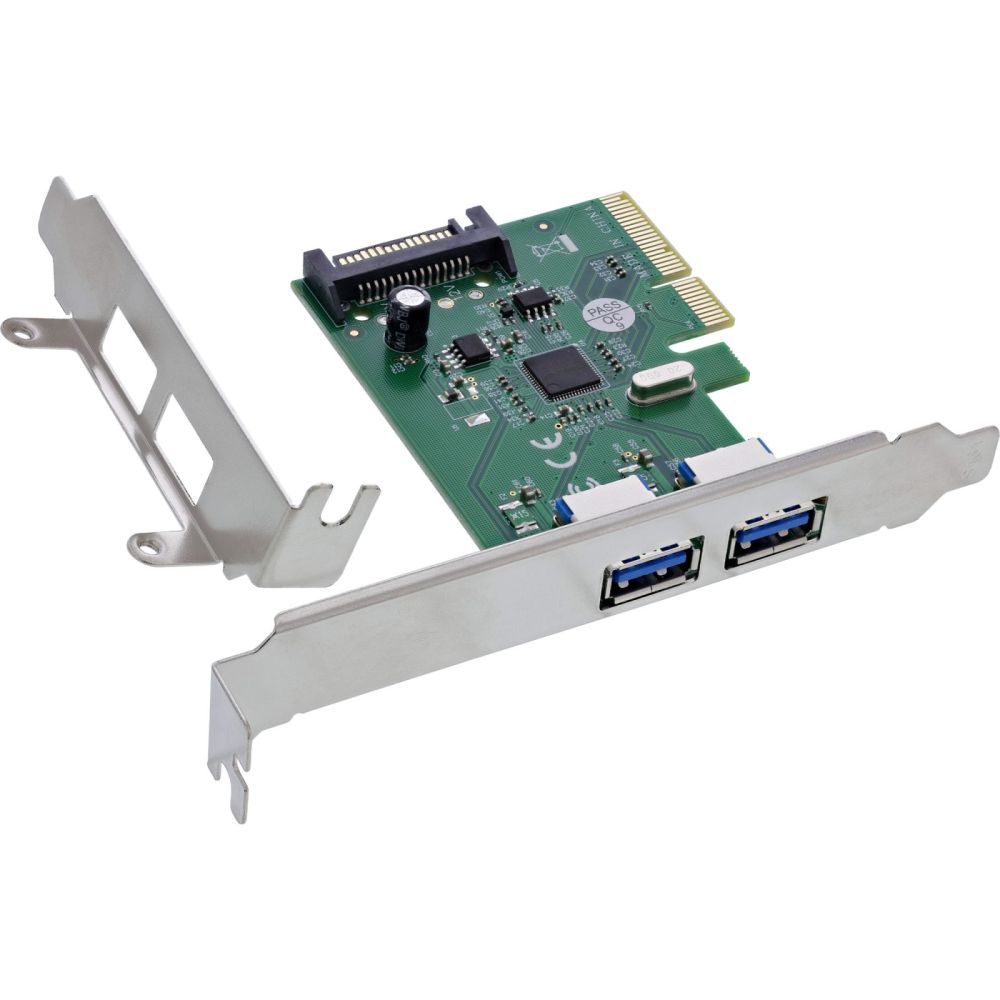

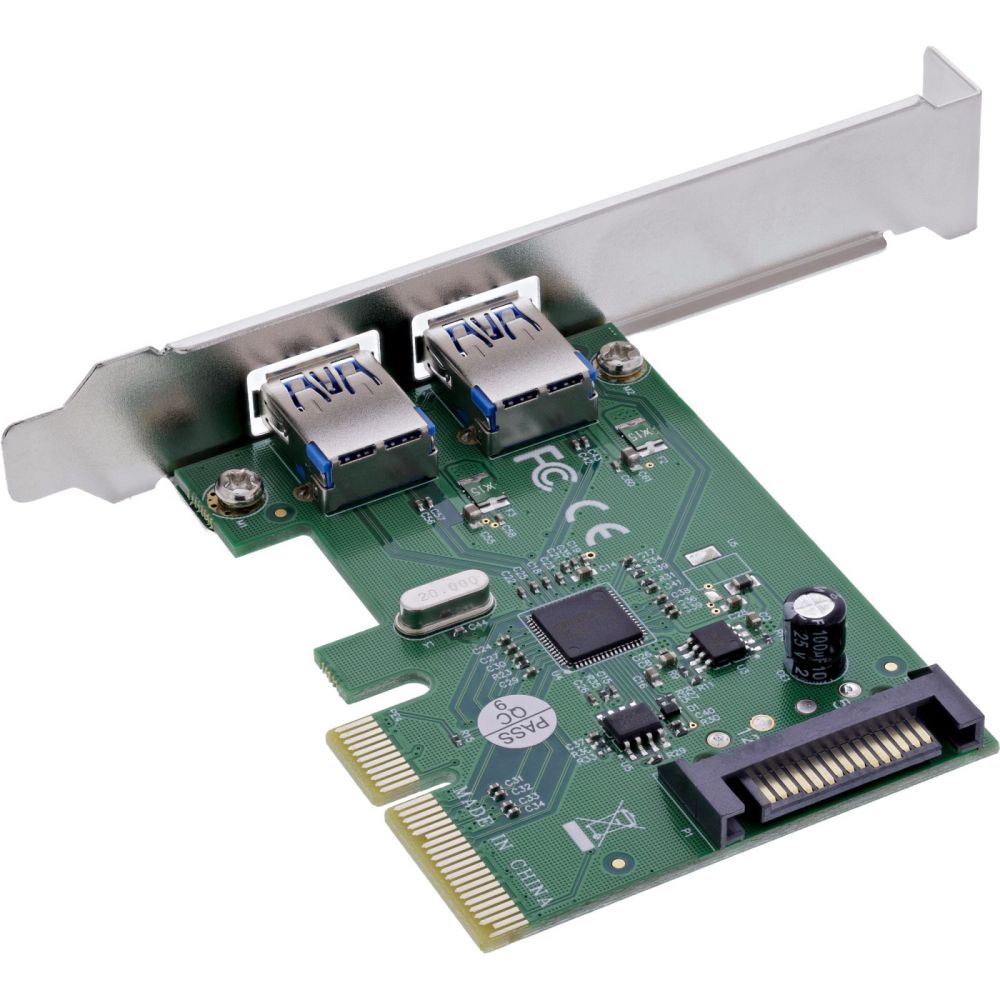

InLine® Interface card, 2x USB-A 3.2 Gen. 2 (10 Gb/s), PCIe x4, SATA content_copy

Modern USB 3.2 expansion: Equips desktop PCs with two fast USB-A 3.2 Gen 2 ports for data rates up to 10 Gbps.
High performance thanks to SATA power: Additional power connection enables the operation of power-intensive devices such as SSD enclosures.
Easy installation: Plug & Play and hot-plug support quick deployment without drivers or complex setup.
Universally compatible: Works with Windows 7 to 11 and Linux from version 3.0 in PCIe x4, x8, or x16 slots.
Compact and flexible: Includes low-profile slot bracket—ideal for standard and mini cases.
The InLine interface card expands your desktop PC with two additional USB-A 3.2 Gen 2 ports with a maximum transfer rate of 10 Gb/s. It is perfect for retrofitting older systems with modern high-speed USB ports, enabling fast data transfers for external SSD enclosures, memory sticks, or docking stations.
The integrated SATA power connection ensures a stable power supply, even for devices with higher energy requirements. Thanks to Plug & Play and Hot Plug, connected devices can be conveniently added or removed during operation without the need for manual driver installation.
The card supports Windows 7 to 11 as well as Linux from version 3.0 and can therefore be used in a variety of system environments. With the included low-profile slot bracket, the card can be used in both standard and compact mini PC cases.
The InLine interface card impresses with its high-quality workmanship, reliable performance, and high compatibility—ideal for anyone who wants to expand their systems with modern USB 3.2 ports.
2x USB-A 3.2 Gen. 2 (10 Gb/s, backward compatible with USB 3.0 and 2.0)
Chipset: ASMedia ASM1142
PCIe standard: v3.0 x4 lane
SATA power connection for additional power supply
Supported operating systems: Windows 7 - 11, Linux from v3.0
Plug & Play and hot-plug capable
Max. current per port: 5 V / 900 mA (with SATA power)
Includes low-profile slot bracket
UASP support (USB Attached SCSI Protocol)

Design
Product colour	Green, Silver
Country of origin	Taiwan
Internal
Hot-Plug support
Features
Chipset	ASMedia ASM1142
Data transfer rate (max)	10 Gbit/s
UASP support
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Other features
Dimensions (WxDxH)	92 x 1.02 x 120 mm
Packaging data
Package width	150 mm
Package depth	140 mm
Package height	30 mm
Package weight	36 g
Package volume	700 cm³
Package type	Hanging box
Mounting brackets included
Drivers included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCIe 3.0
SATA power connector type	SATA 15-pin
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	2
Power
Output current	0.9 A
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported
Technical data
Type	Interface card
Chipset	ASMedia ASM1142
Connections internal	1x SATA power
Article length	9.20cm
Length packaging	0.140m
Weight	0.102kg
Height packaging	0.030m
Slot	PCIe
Width packaging	0.150m
Article height	2.00cm
Interface	USB 3.2 Gen.2
Article width	12.00cm
Transmission rate	10Gb/s
Packaging volume	0.0007m³
Connections external	2x USB-A socket
USB specification	USB 3.2 Gen.2
Net weight	0.036kg
Low Profile
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	92 mm
Depth	1.02 mm
Height	120 mm
Weight	2 kg

---
