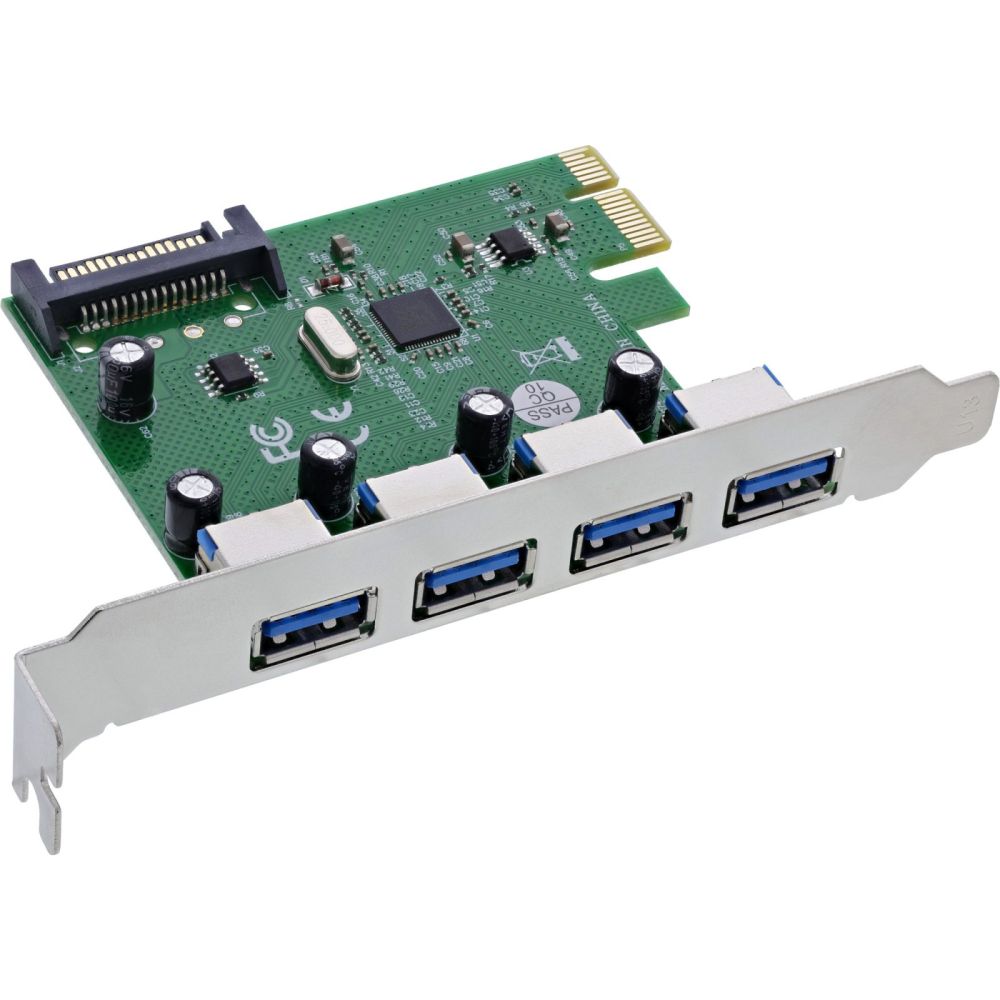

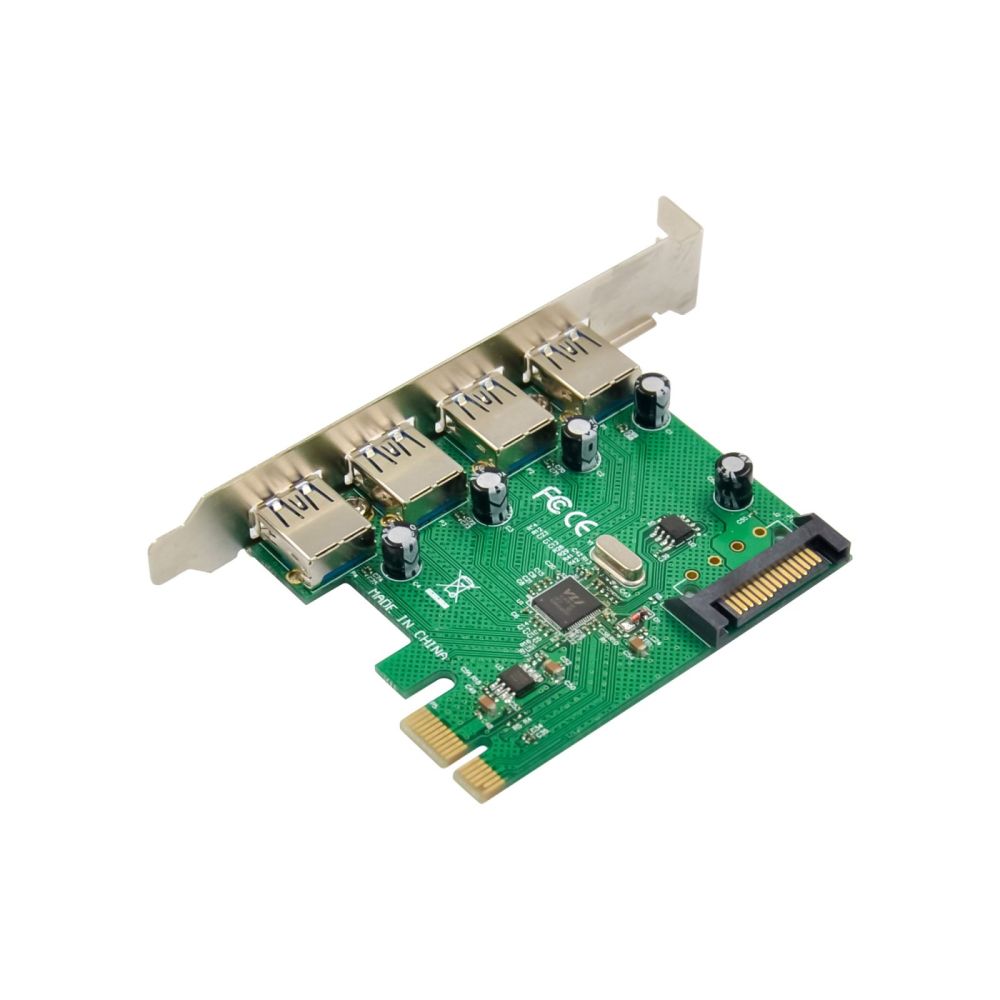

InLine® Interface card, 4x USB-A 3.2 Gen. 1, PCIe x1 content_copy

Four additional USB ports: Expand your PC with four USB-A 3.2 Gen. 1 ports for more flexibility when connecting external devices.
Fast data transfer: Enjoy transfer rates of up to 5 Gb/s—ideal for storage devices, printers, or scanners.
Supports Plug & Play: The card allows for easy installation without additional drivers and is ready to use immediately.
Hot-plug capable: Devices can be connected or removed during operation – convenient and time-saving.
Additional power supply: The SATA connection provides reliable power for connected USB devices when needed.
The InLine PCIe USB interface card is the ideal expansion for your desktop PC. It offers four additional USB-A 3.2 Gen. 1 ports, allowing you to conveniently connect external devices such as USB sticks, printers, hard drives, or scanners. Thanks to the high transfer rate of up to 5 Gb/s, you benefit from fast and stable data connections.
The card is simply installed in a free PCIe slot and is immediately ready for use—without any complicated driver installation. Plug & Play and hot-plug support make it particularly user-friendly: devices can be connected or removed even during operation.
Another advantage is the optional SATA power connection. It ensures a reliable power supply for connected USB devices, especially when multiple devices are used simultaneously. This makes the card suitable not only for private use, but also for demanding setups in home offices or gaming environments.
Its backward compatibility with USB 2.0 also makes it particularly versatile. A robust design, easy handling, and modern technology make this interface card a future-proof expansion for your system.
Technical data
Interfaces: 4× USB-A 3.2 Gen. 1
PCIe standard: PCIe v2.0 x1 lane
Specification: USB 3.2 Gen. 1 (backward compatible with USB 2.0)
Chipset: VIA VL805
UASP support: Yes (USB Attached SCSI Protocol)
Max. current per port: 5 V / 900 mA
Power supply: SATA power (optional)
Card length without slot bracket: approx. 80 mm
Operating temperature: 0 °C to +85 °C (ambient temperature)
Storage temperature: -25 °C to +85 °C
Data rates
SuperSpeed: 5 Gb/s
High-Speed: 480 Mb/s
Full-Speed: 12 Mb/s
Low-Speed: 1.5 Mb/s
System requirements
Free PCIe slot (x1, x4, x8, or x16)
SATA power connector for additional power supply
Supported operating systems
Linux from version 3.0
Windows 7 / 8 / 8.1 / 10 / 11 (32 & 64 bit)
Scope of delivery
1× interface card, 4× USB-A 3.2 Gen. 1, PCIe x1
1× driver CD
1× user manual (DE/EN)

Design
Product colour	Green, Silver
Country of origin	Taiwan
Internal
Hot-Plug support
Features
Chipset	VIA VL805
Data transfer rate (max)	5 Gbit/s
UASP support
Plug and Play
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-25 - 85 °C
Other features
Dimensions (WxDxH)	80 x 1.01 x 120 mm
Packaging data
Package width	150 mm
Package depth	140 mm
Package height	30 mm
Package weight	43 g
Package volume	700 cm³
Package type	Hanging box
Drivers included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard	PCIe 2.0
SATA power connector type	SATA 15-pin
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	4
Power
Output current	0.9 A
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux operating systems supported
Technical data
Length packaging	0.140m
Chipset	VIA VL805
Transmission rate	5Gb/s
Connections external	4x USB-A socket
Slot	PCIe
Height packaging	0.030m
Net weight	0.043kg
Interface	USB 3.2 Gen.1
Width packaging	0.150m
Article height	2.00cm
Article length	8.00cm
Type	Interface card
Article width	12.00cm
Connections internal	None
Packaging volume	0.0007m³
Weight	0.101kg
USB specification	USB 3.2 Gen.1
Low Profile
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	80 mm
Depth	1.01 mm
Height	120 mm
Weight	2 kg

---
