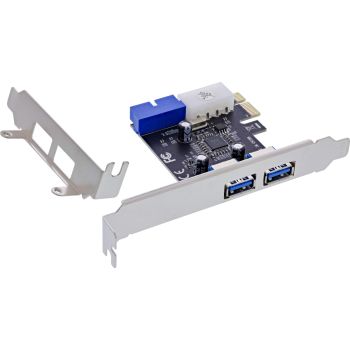

InLine® Interface card, 4x USB 3.2 Gen.1 (2+2), PCIe, Low Profile, VL805 content_copy

Four USB 3.2 Gen.1 ports via PCIe: Two external ports on the card, two via the included slot bracket – ideal for many USB devices.
SuperSpeed up to 5 Gb/s: Fast data transfer for hard drives, cameras, printers, scanners and more – even simultaneously.
Low-profile compatible: Includes standard and low-profile slot bracket – ideal for compact PCs and HTPCs.
Compatible with UASP & Legacy USB: Supports modern USB storage solutions as well as older USB 2.0/1.1 devices.
Easy to install, ready to go: Compatible with Windows XP+, Server 2008 R2+ and Linux from kernel 2.6.x – no drivers required.
This InLine® PCIe card adds four USB 3.2 Gen.1 ports to your PC – two directly on the card and two more via a slot bracket included in delivery. Perfect if you need to connect multiple USB devices at the same time and require fast data transfers.
With up to 5 Gb/s data transfer, the card transfers large files quickly – ideal for backups, photo archives or video files. Thanks to support for UASP, you benefit from significantly higher performance when using SSDs and other modern USB storage media.
The low-profile format allows installation even in compact or HTPC cases. Both standard and low-profile slot brackets are included. Compatible with all common operating systems from Windows XP and Linux from kernel 2.6.x – no additional drivers required.
An optimal solution for anyone who wants to upgrade their PC with fast and flexible USB ports.
Interface: PCI Express V2.0 (x1)
External ports: 2x USB-A direct, 2x USB-A via slot bracket
Internal port: 1x 19-pin USB 3.2 Gen.1 header
Slot bracket: Standard and low profile
Data rates: up to 5 Gb/s (backward compatible with USB 2.0/1.1)
Chipset: VIA VL805
Protocols: USB 3.x, USB 2.0, UASP, XHCI
Compatible systems: Windows XP or newer, Server 2008 R2 or newer, Linux from kernel 2.6.x

Design
Country of origin	China
Internal
Features
Data transfer rate (max)	5 Gbit/s
Other features
Dimensions (WxDxH)	120 x 1.07 x 80 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	36 g
Package volume	700 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Interface	USB 3.2 Gen.1
Width packaging	0.140m
Article height	2.00cm
Connections external	2x USB-A socket
Type	Interface card
Article width	8.00cm
USB specification	USB 3.2 Gen.1
Packaging volume	0.0007m³
Net weight	0.036kg
Weight	0.107kg
Article length	12.00cm
Connections internal	19pin mainboard socket (for 2x USB-A)
Slot	PCIe
Length packaging	0.150m
Chipset	VIA VL805
Transmission rate	5Gb/s
Height packaging	0.030m
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.07 mm
Height	80 mm
Weight	2 kg

---
