InLine® PCIe card, 3x+1x USB 3.2 Gen.1, Molex compatible 4-pin power connector content_copy

Expands your PC with four additional USB 3.2 Gen.1 ports – three external and one internal USB-A port
Supports USB Super-Speed (up to 5 Gb/s) for fast data transfers
Backward compatible with older USB standards (USB 2.0, USB 1.1)
Molex compatible 4-pin connector for additional power supply for high power requirements
Plug & Play – No external drivers required

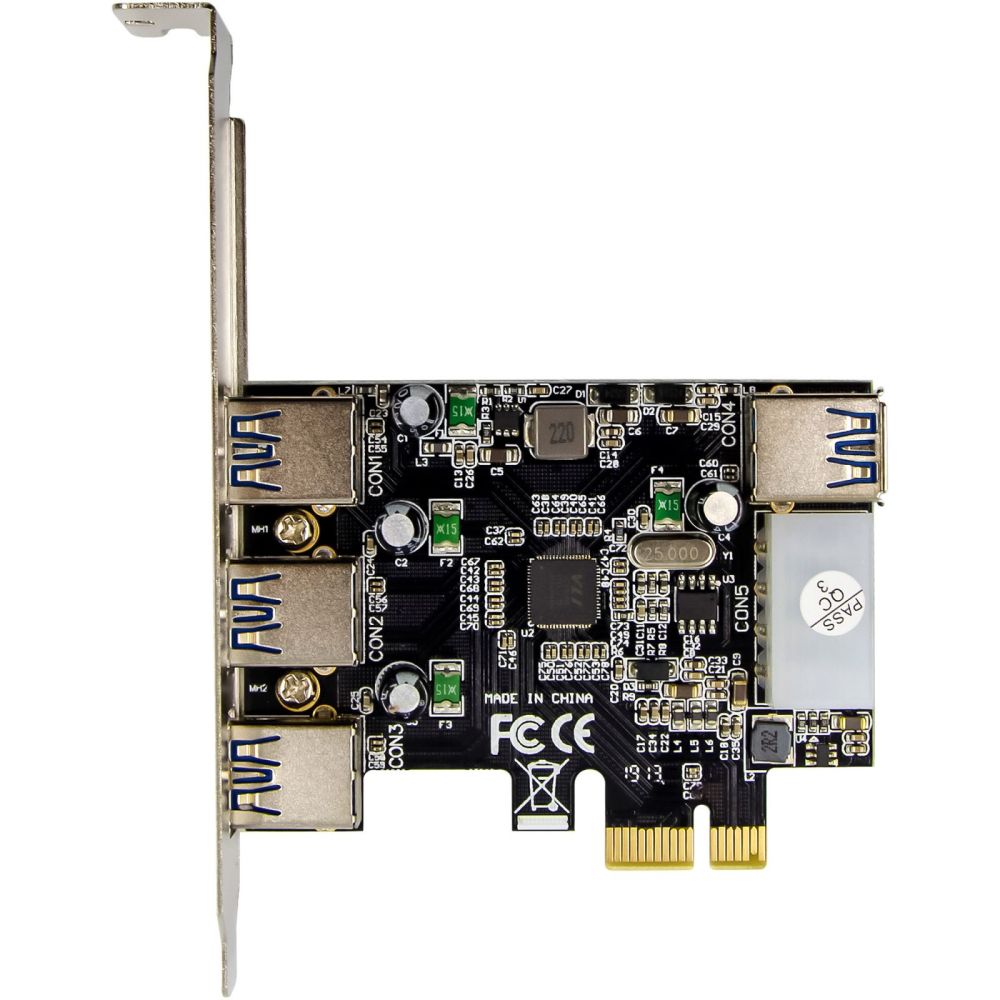

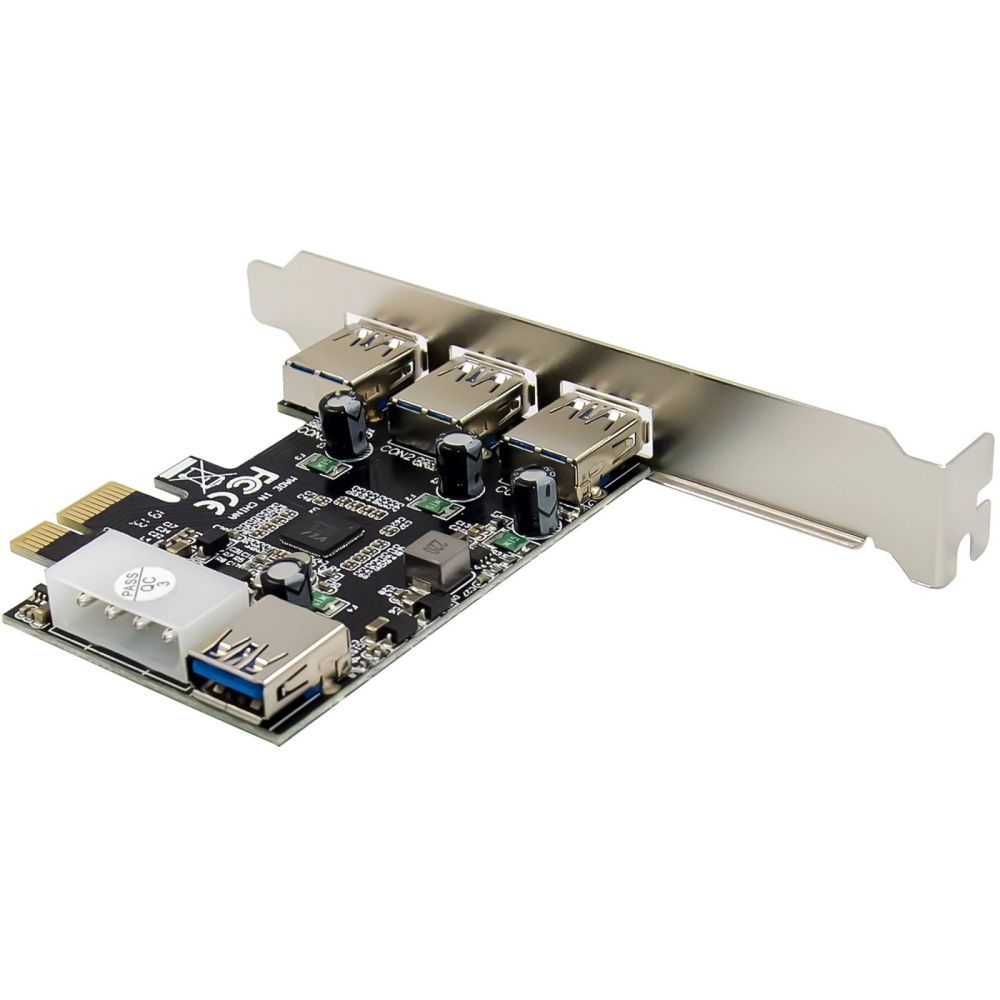

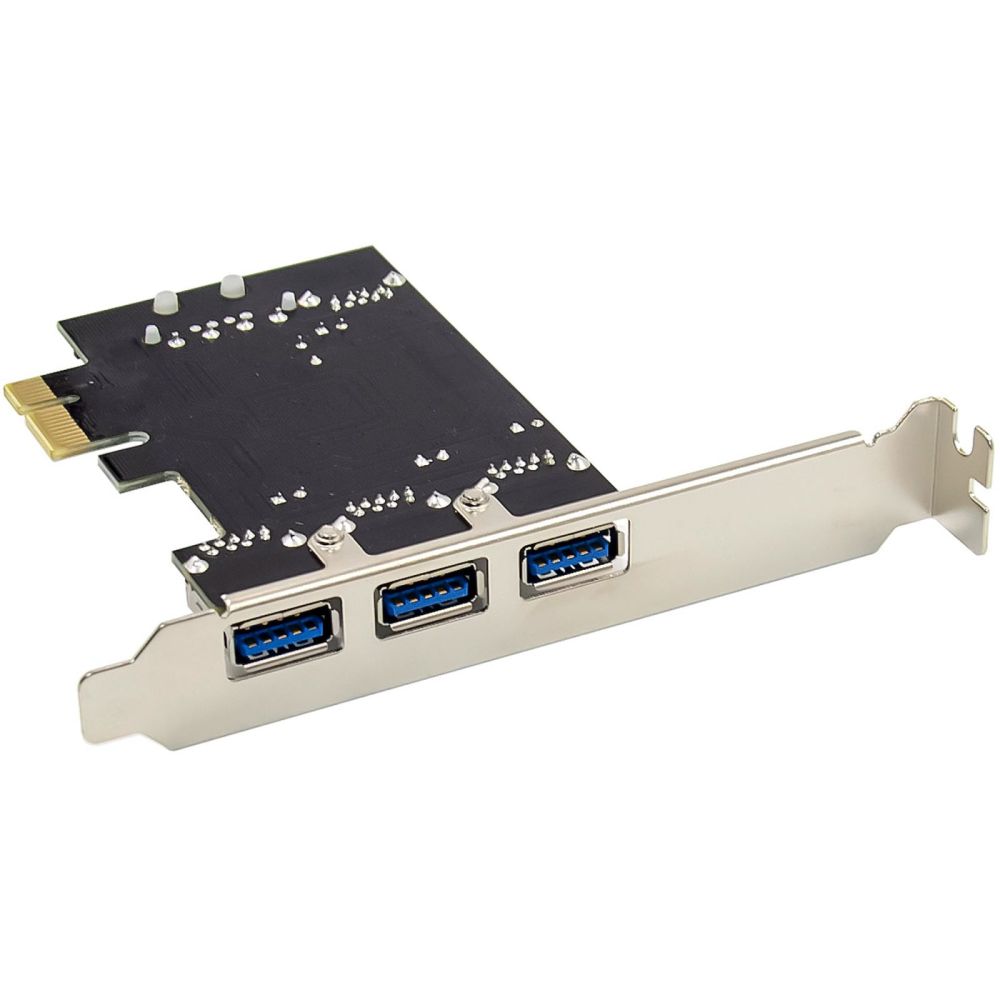

This InLine® PCI Express card enables the simple expansion of a PC by three external and one internal USB 3.2 Gen.1 port. Thanks to the VIA VL805 host controller, the card offers USB super speed with up to 5 Gb/s and is completely backwards compatible with older USB standards.

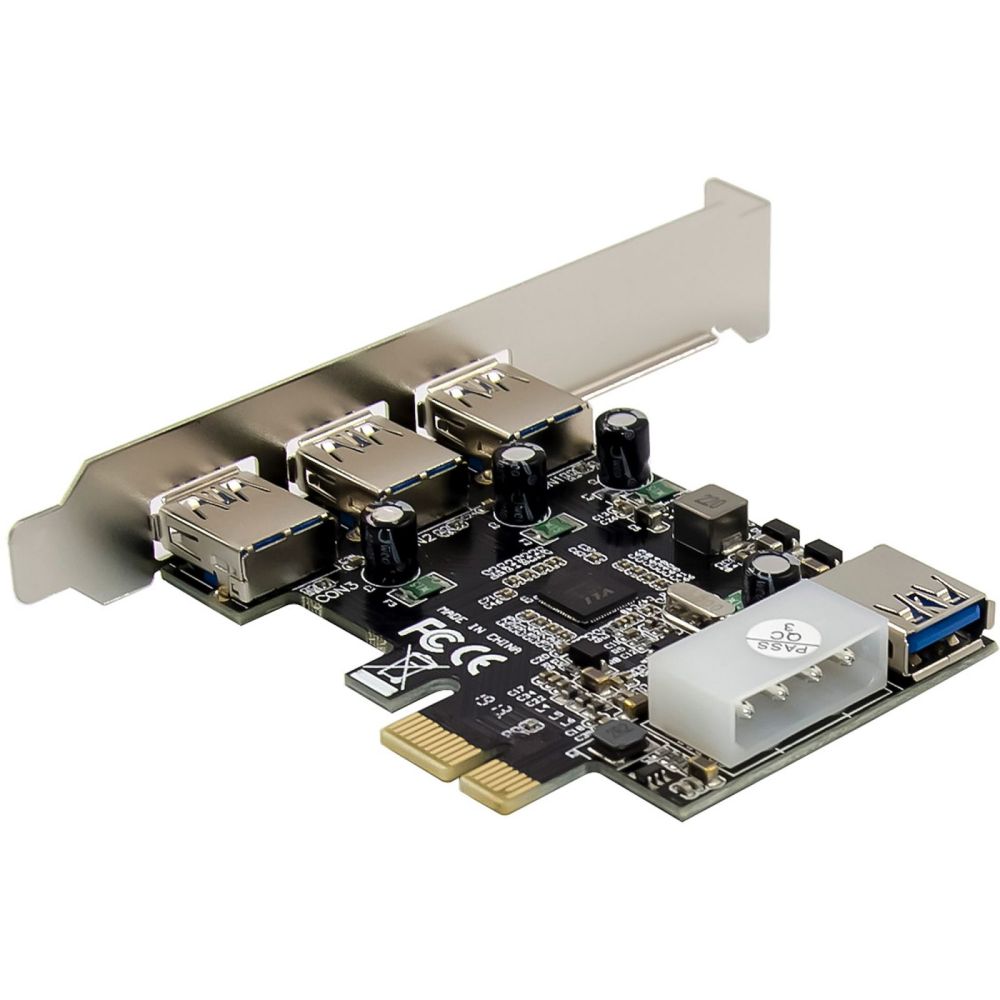

For the stable operation of external devices with higher power consumption, the card has a Molex-compatible 4-pin power connector, which ensures an additional power supply if required. The card supports Plug & Play and Hot Plug and is ready for immediate use.

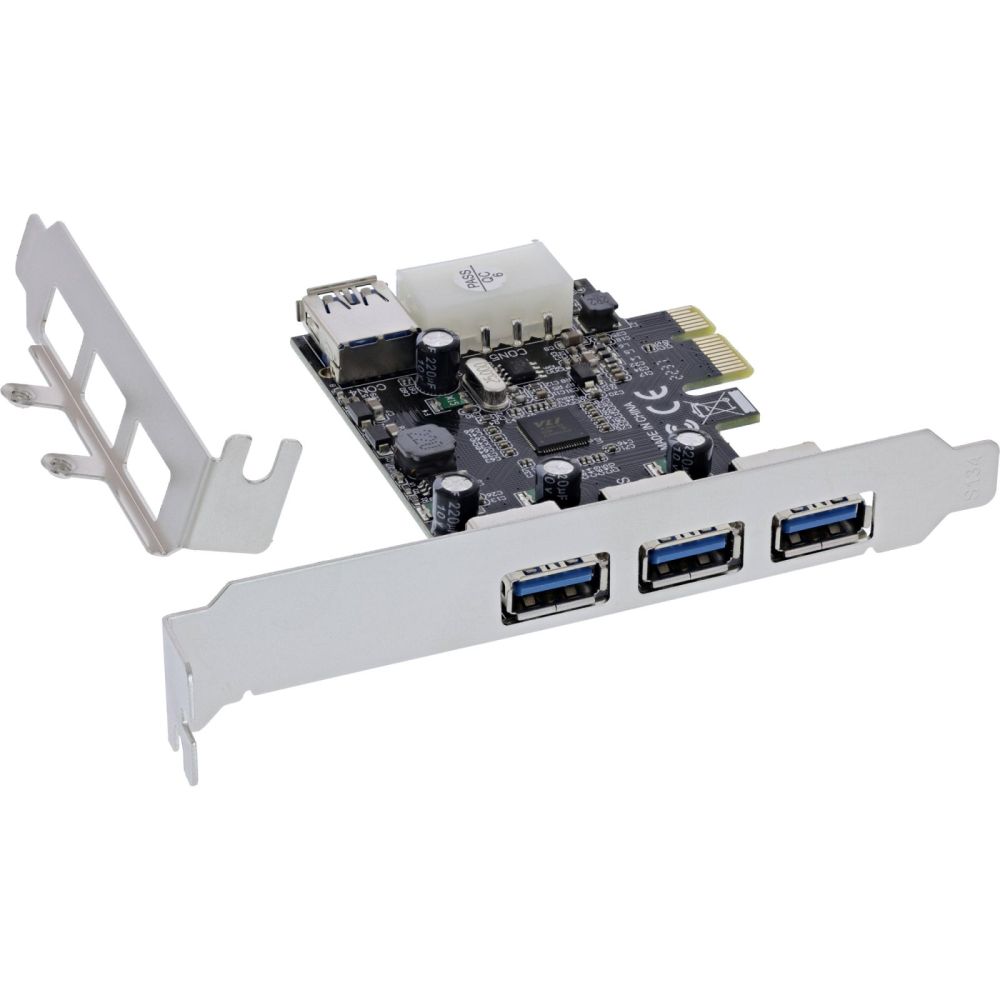

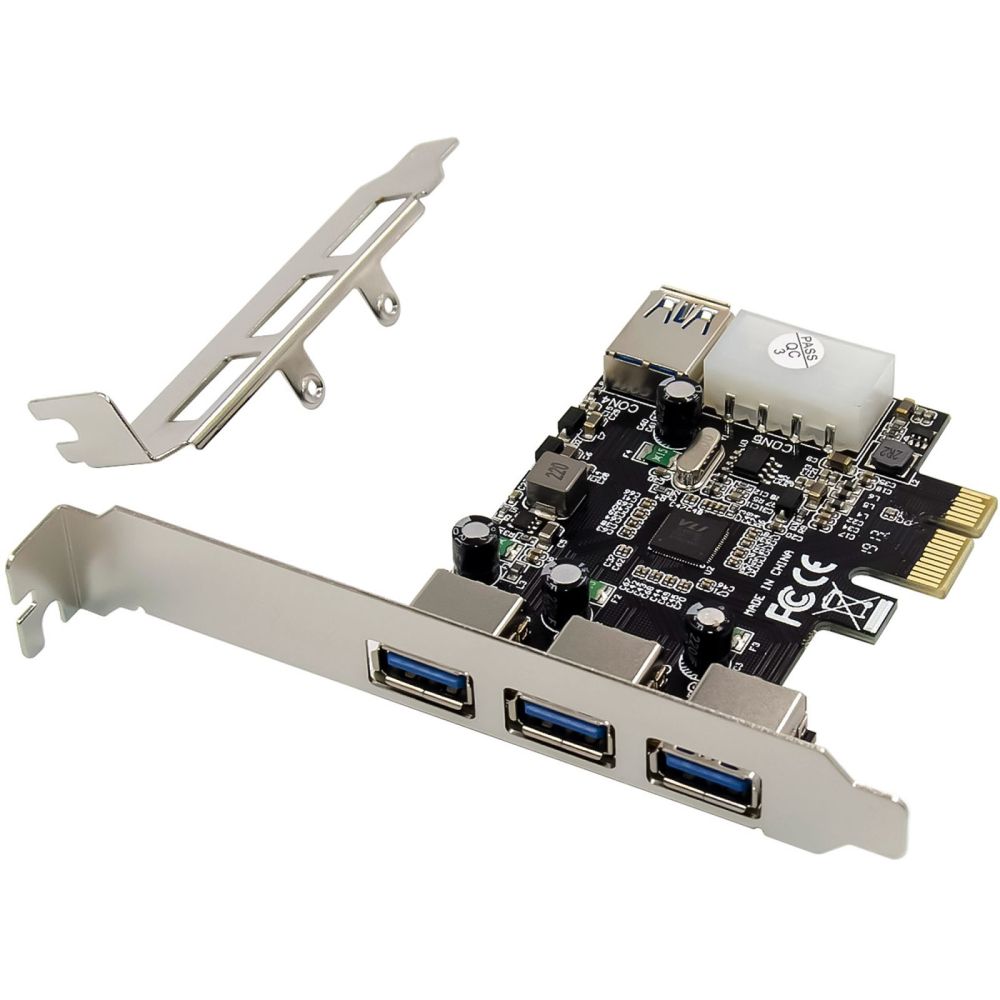

The compact design and the supplied low-profile slot bracket enable installation in both standard PCs and compact cases.
Technical data:
Bus type & PCIe: PCIe v2.0
Chipset: VIA VL805 (USB)
Ports – interfaces:3 x external USB 3.2 Gen.1 A sockets
1 x internal USB 3.2 Gen.1 A port
1 x Molex compatible 4-pin power connector
Data rates:Super-Speed: up to 5 Gb/s
High speed: 480 Mb/s
Full speed: 12 Mb/s
Low speed: 1.5 Mb/s
Dimensions: 80 mm x 60 mm (PCIe board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Supports legacy USB functions
Plug & play and hot plug compatible
No external drivers required
System requirements: Hardware:
PC with one free PCIe slot (x1, x4, x8 or x16)
Motherboard with support for PCI Express Base Specification 1.0 or higher
If required: a free Molex compatible 4-pin connector
Operating system support:
Windows: 11, 10, 8.1, 8, 7, Vista, XP
Linux: from kernel 2.6.31
Scope of delivery:
1 x InLine® PCI Express card, 3x+1x USB 3.2 Gen.1
1 x low-profile slot bracket
1 x CD with driver
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
Hot-Plug support
Features
Chipset	VIA VL805
Data transfer rate (max)	5 Gbit/s
Plug and Play
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	91 x 1.07 x 120 mm
Packaging data
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	45 g
Package volume	1200 cm³
Package type	Hanging box
Mounting brackets included
Drivers included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	Molex 4-pin, USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Technical data
Type	Interface card
Chipset	VIA VL805
Transmission rate	5Gb/s
Interface	USB 3.2 Gen.1
Article length	9.10cm
USB specification	USB 3.2 Gen.1
Article height	2.20cm
Connections external	3x USB-A socket
Width packaging	0.140m
Article width	12.00cm
Height packaging	0.155m
Net weight	0.045kg
Slot	PCIe
Length packaging	0.033m
Connections internal	1x USB-A socket
Weight	0.107kg
Packaging volume	0.0012m³
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	91 mm
Depth	1.07 mm
Height	120 mm
Weight	2.2 kg

---
