InLine® Interface card, 2x USB-A, 1x USB-C 3.2 Gen.1, PCIe, PD3.0, 6pin content_copy

Three additional USB ports via PCIe: 1x USB-C and 2x USB-A – ideal for modern and classic USB devices.
USB-C with charging function (PD3.0): Up to 30W charging power for smartphones, tablets or notebooks – directly via the PC.
Fast USB 3.2 Gen.1 data rate: Transfer speeds up to 5 Gb/s – for large files, backups and media.
External power supply via 6-pin PCIe: For stable performance even with multiple devices connected.
Compatible with Windows & Linux: Driver-free from Windows XP and Linux Kernel 2.6.x – easy integration.

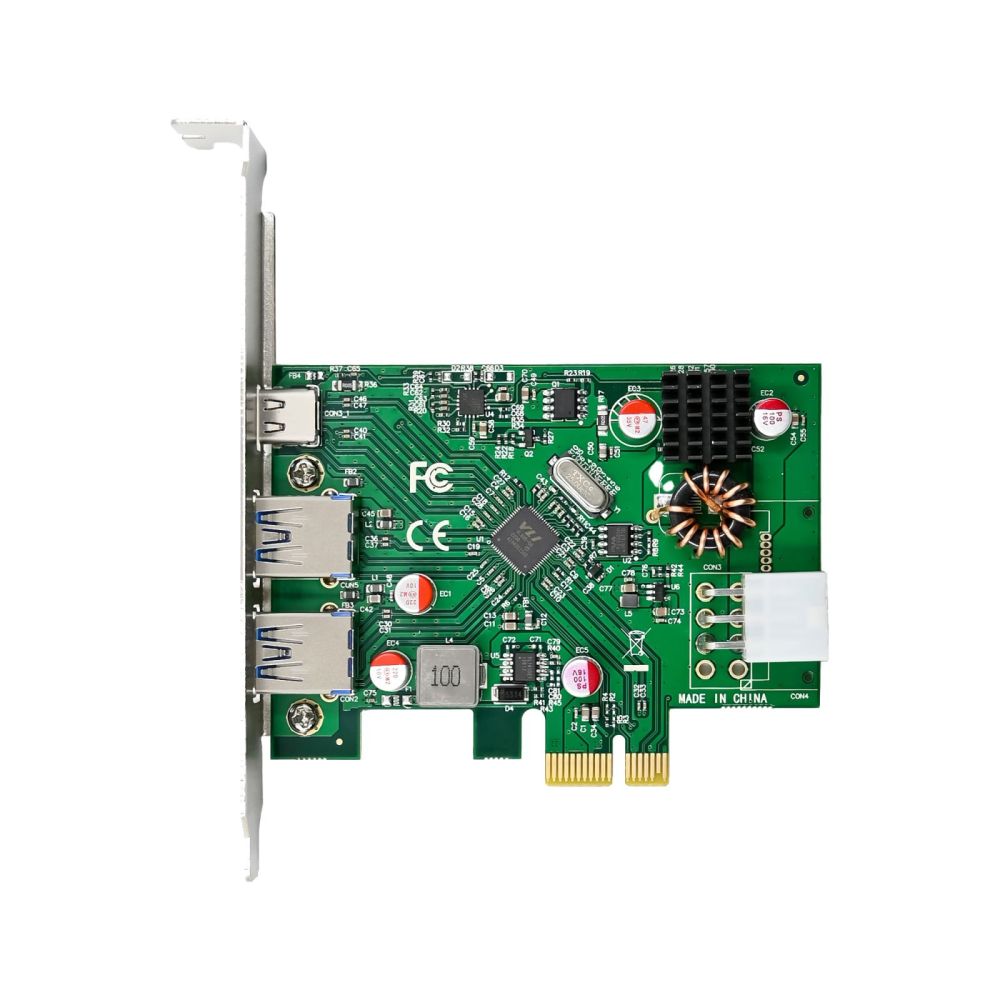

The InLine® PCIe USB card brings modern connectivity to your system. It offers two USB-A 3.2 Gen.1 ports and one USB-C port with Power Delivery 3.0. Perfect for anyone who wants to connect devices, charge them or transfer files quickly.
With up to 5 Gb/s data transfer, the card is ideal for backups, media editing or quick access to external drives. The USB-C port not only delivers data, but also supplies devices with up to 30 W of power – enough for smartphones, tablets or ultra-mobile notebooks.
The additional 6-pin power connector ensures a stable power supply to all ports – even during intensive simultaneous use. The VIA VL805 chipset guarantees reliable operation with full compatibility with modern Windows and Linux systems.
Simply plug it into a free PCIe slot and you're ready for the modern USB world.
Interface: PCI Express 2.0
External connections: 2x USB-A, 1x USB-C (PD3.0)
Internal connection: 6-pin PCIe power connector
Data rates: up to 5 Gb/s (downward compatible with USB 2.0/1.1)
Charging power: USB-C max. 30 W (20 V / 1.5 A), USB-A max. 4.5 W
Chipset: VIA VL805
Compatible operating systems: Windows XP or newer, Server 2008 R2 or newer, Linux 2.6.x or higher

Design
Country of origin	China
Internal
Features
Data transfer rate (max)	5 Gbit/s
Other features
Dimensions (WxDxH)	120 x 1.36 x 95 mm
Packaging data
Package width	175 mm
Package depth	150 mm
Package height	30 mm
Package weight	55 g
Package volume	800 cm³

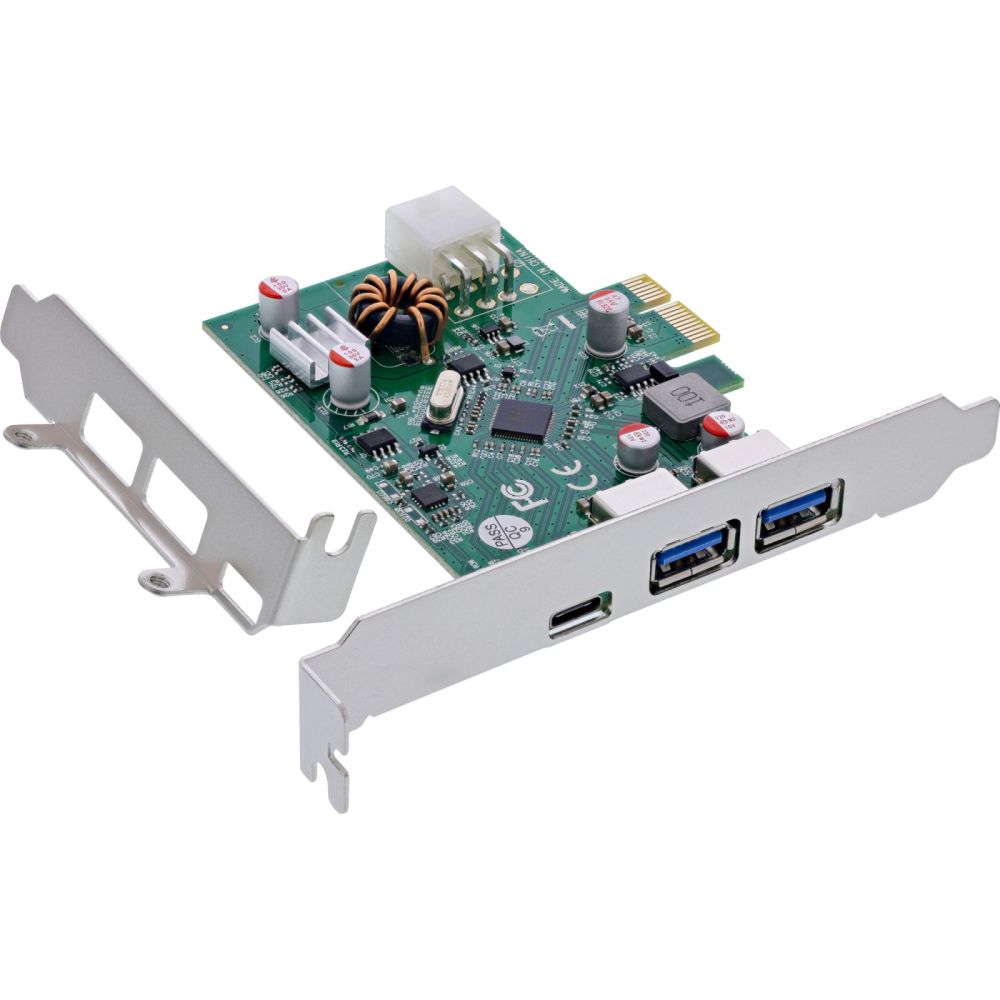

Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB 3.2 Gen 1 (3.1 Gen 1), USB Type-C
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Power
Supplementary power connectors	1x 6-pin
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Article width	9.50cm
Connections internal	None
Length packaging	0.150m
Weight	0.136kg
Connections external	2x USB-A socket + 1x USB-C socket
Article length	12.00cm
Type	Interface card
Chipset	VIA VL805
Height packaging	0.030m
Slot	PCIe
Width packaging	0.175m
Packaging volume	0.0008m³
Transmission rate	5Gb/s
Article height	2.00cm
USB specification	USB 3.2 Gen.1
Net weight	0.055kg
Interface	USB 3.2 Gen.1
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.36 mm
Height	95 mm
Weight	2 kg

---
