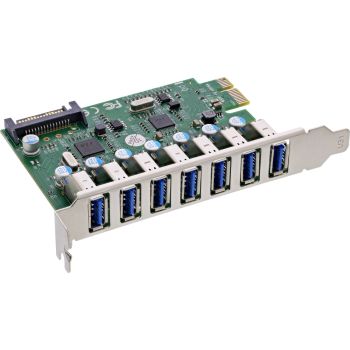

InLine® Interface card, 7x USB-A 3.2 Gen.1, PCIe, SATA power, VL805 content_copy

Seven additional USB-A ports: Expansion via PCIe – ideal for printers, scanners, keyboards, mice, mass storage devices and more.
High data rates with USB 3.2 Gen.1: Supports up to 5 Gb/s for fast file transfers and powerful USB devices.
SATA power connection for stable power supply: Ideal when using multiple power-hungry USB peripherals such as chargers or docking stations.
Compatible with many devices: Also supports older USB 2.0/1.1 devices – ideal for mixed hardware environments.
Broad OS support: Works with Windows XP or newer, Server 2008 and modern Linux distributions.
The InLine® PCIe USB card with seven USB-A 3.2 Gen.1 ports adds modern high-speed connections to your computer. Whether external hard drives, keyboard, mouse, card reader or docking stations – with this card you have enough connections with up to 5 Gb/s.
An additional SATA power connection ensures sufficient power supply to all ports – even for power-intensive devices or when multiple connections are used simultaneously.
Thanks to the VIA VL805+VL812 chipset combination, the card is particularly reliable and compatible with a wide range of end devices.
Full backward compatibility with USB 2.0 and 1.1 also allows the use of older peripherals.
Installation and driver installation are quick and easy: the card fits into any free PCIe slot and is compatible with Windows XP, Server 2008 and modern Linux systems.
Perfect for users who want to connect multiple devices at the same time and benefit from maximum performance.
Interface: PCI Express 2.0
External connections: 7x USB-A 3.2 Gen.1
Internal connection: 1x SATA power (15-pin)
Data rates: up to 5 Gb/s (USB 3.2 Gen.1)
Chipset: VIA VL805 + VL812
Downward compatibility: USB 2.0 / 1.1
Compatible systems: Windows XP or newer, Server 2008 or newer, Linux from kernel 2.6.x

Design
Country of origin	China
Internal
Features
Data transfer rate (max)	5 Gbit/s
Other features
Dimensions (WxDxH)	125 x 1.32 x 85 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	62 g
Package volume	700 cm³
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
SATA power connector type	SATA 15-pin
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Height packaging	0.030m
Slot	PCIe
Length packaging	0.150m
Net weight	0.062kg
Interface	USB 3.2 Gen.1
Article height	2.50cm
Packaging volume	0.0007m³
Weight	0.132kg
USB specification	USB 3.2 Gen.1
Type	Interface card
Chipset	VIA VL805+VL812
Connections internal	1x SATA power
Connections external	7x USB-A female
Width packaging	0.140m
Article width	8.50cm
Transmission rate	10Gb/s
Article length	12.50cm
Low Profile
Weight & dimensions
Width	125 mm
Depth	1.32 mm
Height	85 mm
Weight	2.5 kg

---
