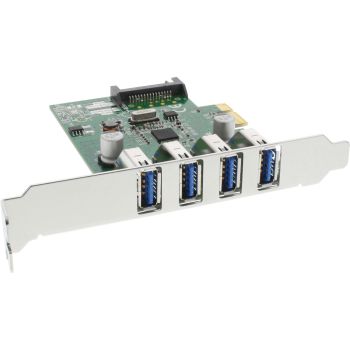

InLine® USB 3.2 4 Port Host Controller PCIe incl LP Bracket and SATA Aux. Power content_copy

Quickly add four additional USB ports via PCIeFour USB ports available immediately: Add 4x USB Type A via the PCIe slot.
Fast data transfer: Up to 5 Gb/s with USB 3.2 Gen.1 for external drives and devices.
Stable device power supply: Max. 5 V/900 mA per port with SATA power connected.
Flexible in slim enclosures: Low-profile slot bracket included.
High compatibility: Backward compatible with USB 2.0 and PCIe 1.0.
The PCIe interface card adds four USB Type A ports with USB 3.2 Gen.1 to your computer. This lets you connect external drives, cameras, or measuring instruments with high performance and transfer large amounts of data quickly. The internal SATA power connector provides up to 5 V/900 mA per port so that even power-hungry accessories run reliably.
Especially for upgrades in existing infrastructures, the card offers quick setup and flexible use. In professional IT environments, for on-site deployments and in service operations, workstations in companies and public institutions benefit from additional USB ports, including in small-form-factor systems with the included low-profile slot bracket.
Connection: 4x USB Type A sockets
Interface: PCI Express slot
PCIe standard: Base specifications Rev. 2.0 (backward compatible with 1.0)
USB standard: USB 3.2 Gen.1 (backward compatible with USB 2.0)
Data rate: up to 5 Gb/s (USB 3.2 Gen.1), up to 480 Mb/s (USB 2.0)
Power connector: internal SATA
Output per port: max. 5 V/900 mA (when the power connector is connected)
Slot bracket: low-profile included
Chipset: VIA VLI VL805
Operating systems: Windows 11, 10, 7/Vista/XP/2008 (32/64-bit)
Scope of delivery: 4-port USB 3.2 PCIe card, manual (EN), low-profile slot bracket, driver CD

Design
Internal
Features
Data transfer rate (max)	5 Gbit/s
Other features
Data transfer rate	5000 Mbit/s
Dimensions (WxDxH)	90 x 1.31 x 120 mm
Packaging data
Package width	140 mm
Package depth	195 mm
Package height	35 mm
Package weight	75 g
Package volume	1000 cm³
Ports & interfaces
Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Low-profile
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Technical data
Interface	USB 3.2 Gen.1
Connections external	4x USB-A socket
USB specification	USB 3.2 Gen.1
Chipset	VIA VL805
Weight	0.131kg
Width packaging	0.140m
Packaging volume	0.0010m³
Article width	12.00cm
Connections internal	1x SATA power
Slot	PCIe
Type	Interface card
Article height	1.90cm
Length packaging	0.195m
Article length	9.00cm
Height packaging	0.035m
Net weight	0.075kg
Transmission rate	5Gb/s
Low Profile
Weight & dimensions
Width	90 mm
Depth	1.31 mm
Height	120 mm
Weight	1.9 kg

---
