InLine® Interface card, M.2 B+M to 10 Gb/s RJ45 content_copy

Compact design with high performance: The M.2 interface with B+M key saves space and enables fast network connectivity even in small systems.
Full 10 Gigabit performance: The Aquantia AQC107 controller supports speeds of up to 10 Gb/s for demanding network environments.
Maximum compatibility: Supports Windows, Linux, VMware ESXi, and common server operating systems for a wide range of applications.
Professional network features: With jumbo frames up to 16K, VLAN, QoS, flow control, and PTP for professional applications and precise time synchronization.

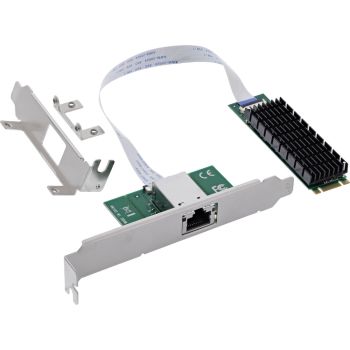

Easy to integrate: Includes RJ45 module with slot bracket and SAS connection cable – ideal for retrofitting when LAN ports are missing.
The InLine® M.2 B+M interface card offers a powerful solution for retrofitting fast LAN connections in the smallest of spaces. Equipped with the high-quality Aquantia AQC107 chipset, it enables transfer rates of up to 10 Gb/s – ideal for data-intensive applications in professional systems and private high-speed networks.
Thanks to the M.2 interface with B+M key and PCIe v3.0 x2 lane connection, the card can be integrated into compact systems that do not have a conventional RJ45 port, saving space. The included RJ45 module and slot bracket are connected via a SAS cable and allow the connection of a network cable with speeds of up to 10 gigabits.
The interface card supports important functions such as flow control to prevent packet loss, VLAN tagging for structured networks, Quality of Service (QoS) for prioritized data traffic, and PTP (IEEE 1588v2) for precise time synchronization – perfect for professional applications such as virtualization, server solutions, or industrial PCs.
Tech-savvy end users also benefit: whether gaming, home server, or NAS connection—with this card, your system is ready for the future. Compatible with numerous operating systems, including Windows, Linux, and VMware, the card can be flexibly integrated into existing setups.
Simply install, connect, and use full bandwidth—for a reliable and fast professional-grade network connection.
Interface: M.2 B+M Key (PCIe-based)
PCIe standard: PCIe v3.0 x2 lane (electrical, internal via M.2 slot)
LAN port: 1× RJ45 (via RJ45 module)
Data rates: 10 Gb/s (10GBASE-T), 5 Gb/s (5GBASE-T), 2.5 Gb/s (2.5GBASE-T), 1 Gb/s (1000BASE-T), 100 Mb/s (100BASE-T)
Chipset: Aquantia AQC107
Jumbo frames: up to 16 Kbytes
Flow control: IEEE 802.3x
VLAN: IEEE 802.1Q
Prioritization: IEEE 802.1p
PTP support: IEEE 1588
Auto-MDI/MDI-X
Cable requirements (10 Gb/s): Cat 6a or higher (up to 100 m)
Cable requirements (up to 5 Gb/s): Cat 5e or higher (up to 100 m)
Supported operating systems: Windows, Linux, VMware
Required: M.2 B+M key with PCIe signal routing
Scope of delivery: Interface card, RJ45 module, SAS cable, driver CD, instructions

Design
Component for	PC/Server
Chipset	Aquantia AQC107
Country of origin	Taiwan
Internal
Network
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 1588, IEEE 1588v2, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Cabling technology	10GBase-T
Jumbo frames	16000
Ethernet LAN
Jumbo frames support
VLAN support
Other features
Dimensions (WxDxH)	52 x 1.23 x 20 mm
Package volume	1100 cm³
Packaging content
Resource CD
Manual
Packaging data
Package width	140 mm
Package depth	155 mm
Package height	30 mm
Package weight	49 g
Ports & interfaces
Connectivity technology	Wired
Host interface	M.2
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
System requirements
Windows operating systems supported
Linux operating systems supported
Technical data
Packaging volume	0.0011m³
Weight	0.123kg
Slot	PCIe
Type	Interface card
Article width	2.00cm
Transmission rate	10Gb/s
Width packaging	0.140m
Article height	12.00cm
Connections internal	M.2-NVMe-SSD
Article length	5.20cm
Length packaging	0.155m
Chipset	Aquantia AQC107
Connections external	1x RJ45 socket
Height packaging	0.030m
Interface	Network
Net weight	0.049kg
Low Profile
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), TÜV mark
Weight & dimensions
Width	52 mm
Depth	1.23 mm
Height	20 mm
Weight	12 kg

---
