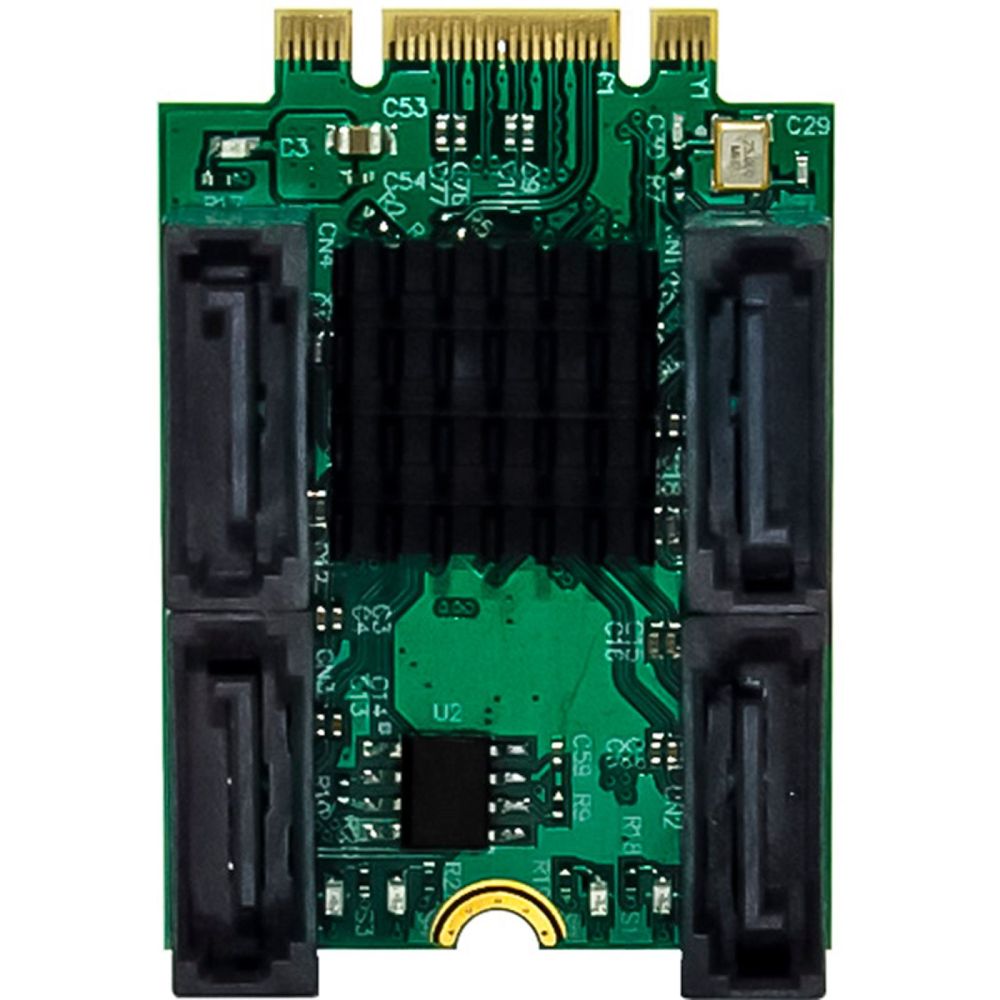

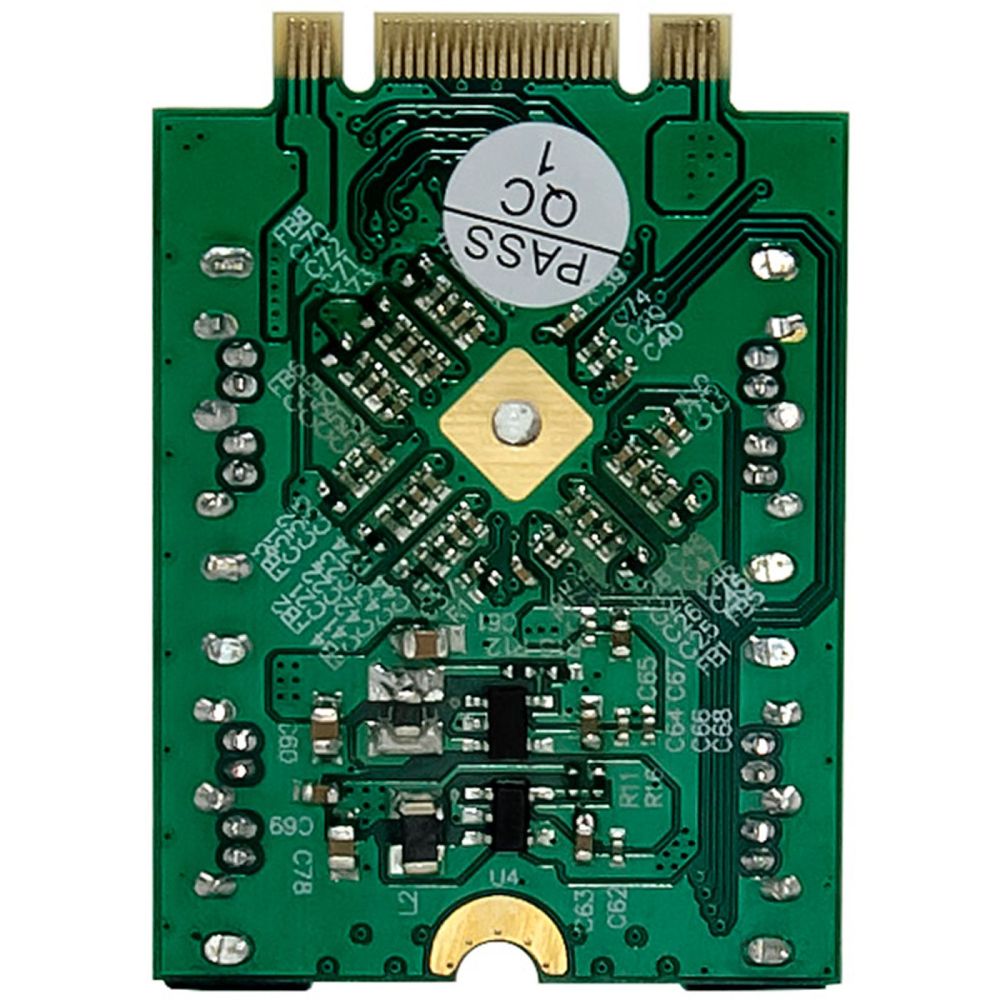

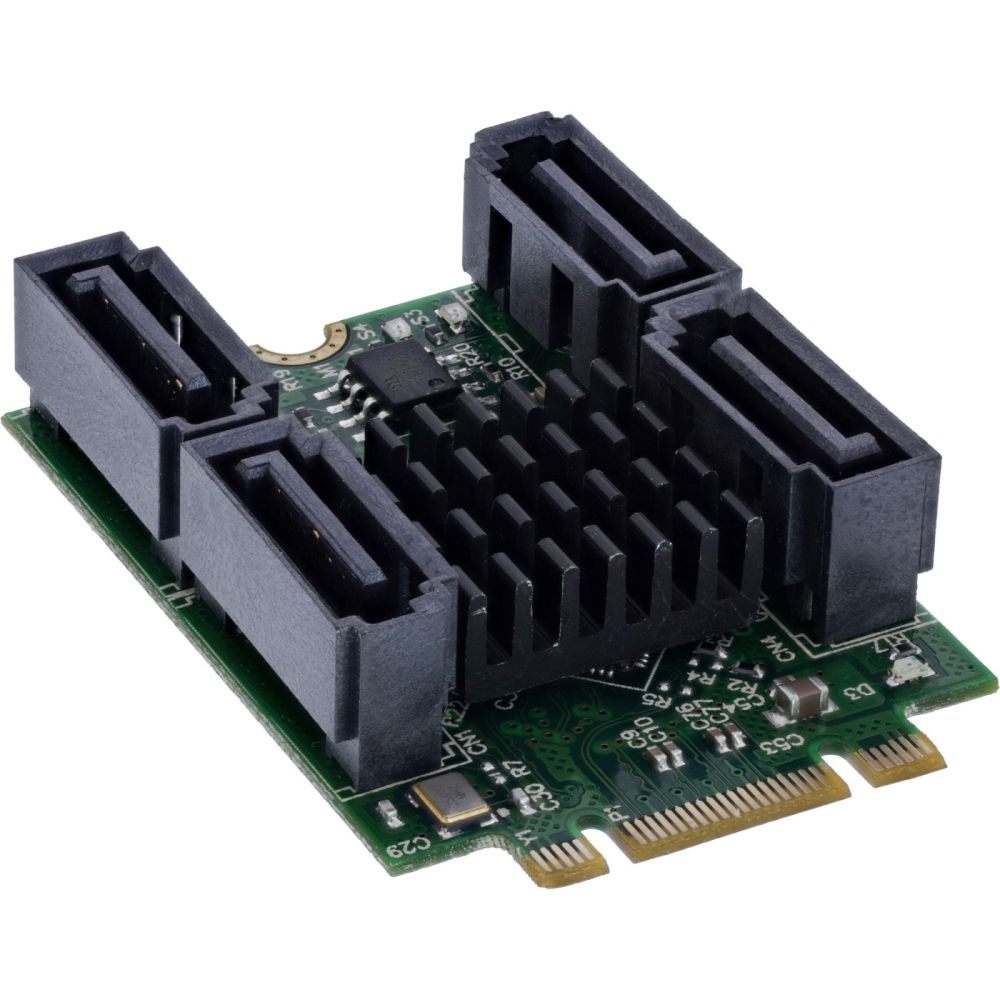

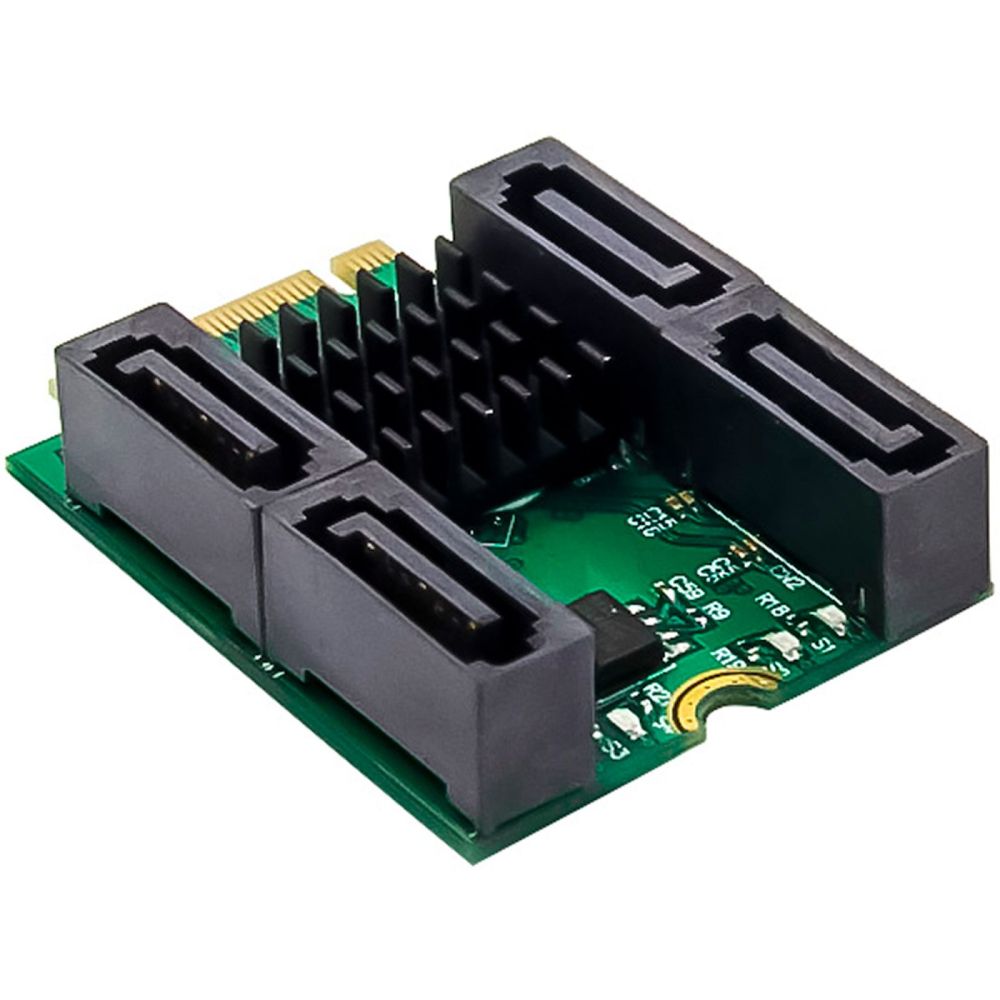

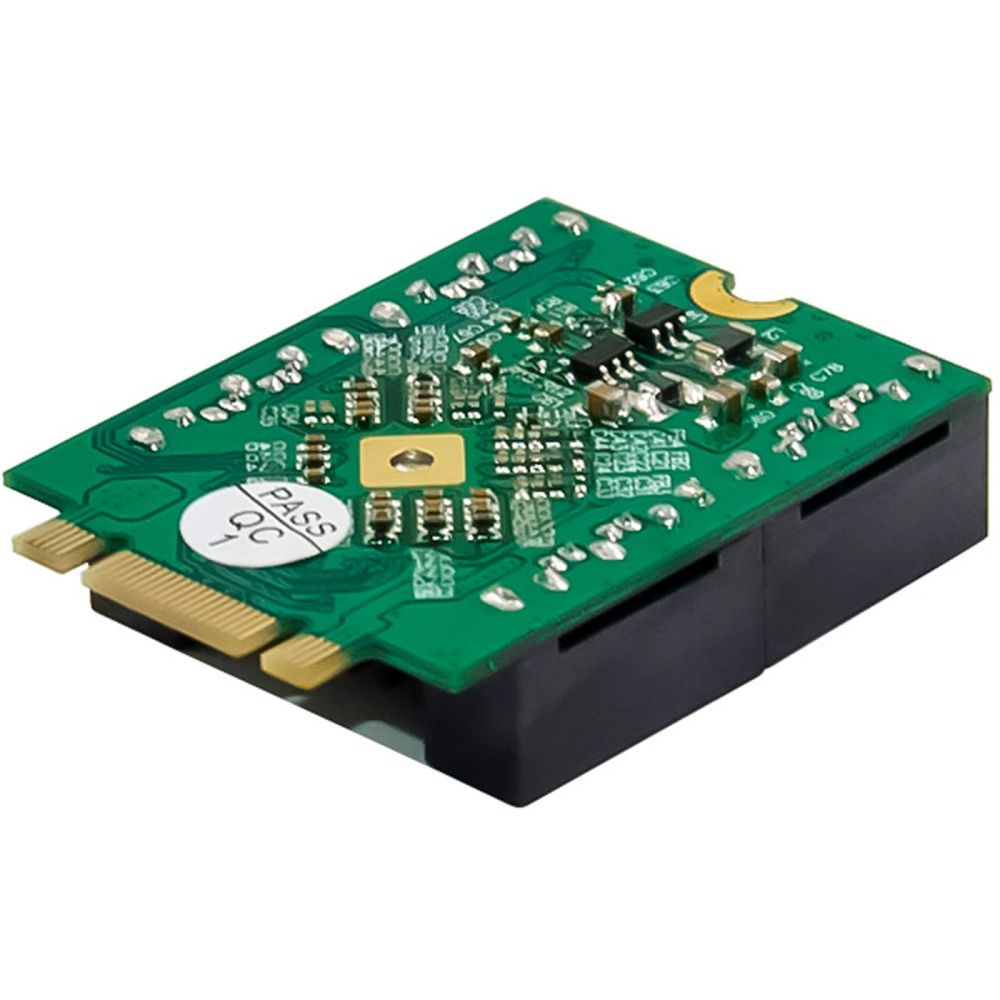

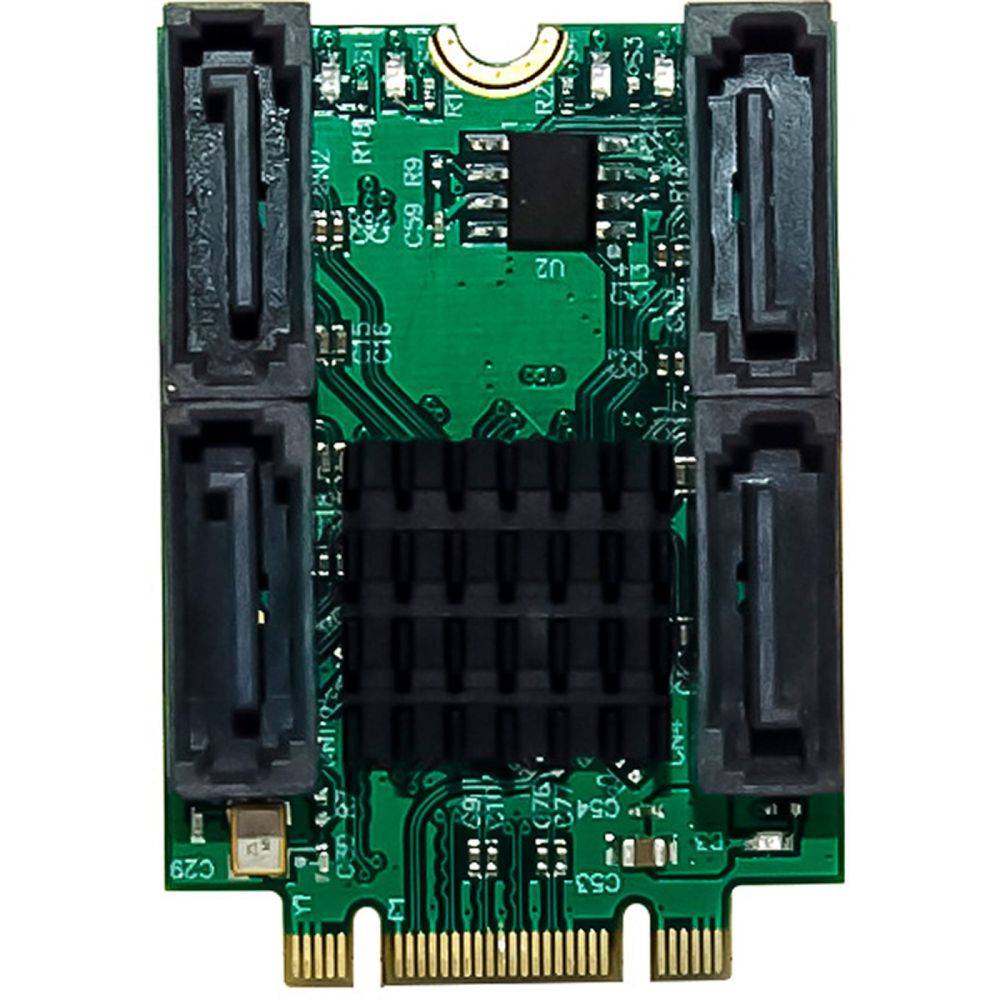

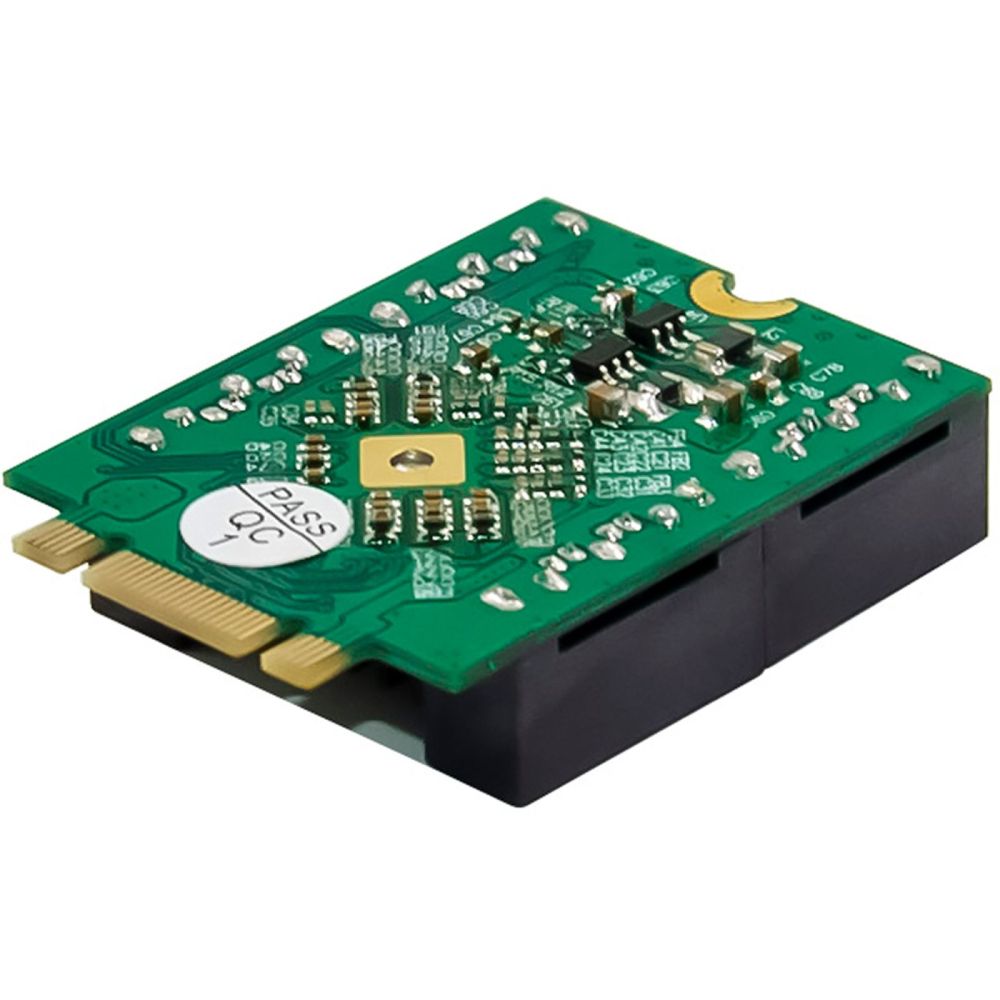

InLine® Interface card M.2 Key B+M to 4x SATA connector, RAID, HyperDuo content_copy

Multifunctional M.2 to SATA converter card for the connection of up to four SATA drives
M.2 Key B+M interface for the operation of an M.2 SATA SSD
RAID support (RAID 0, RAID 1, RAID 10, HyperDuo) for optimum data security and performance
Hot Plug & Hot Swap for the installation and removal of drives during operation
Port Multiplier support for parallel operation of multiple drives on one SATA port
No additional drivers required – full support by the operating system
The InLine® interface card M.2 Key B+M to 4x SATA connector is a high-performance storage solution that enables the expansion of SATA storage devices. It allows the operation of an M.2 SATA SSD (Key B+M) and also provides four SATA 6 Gb/s ports for additional storage devices.
Thanks to RAID support (RAID 0, RAID 1, RAID 10, HyperDuo), the card can be used for maximum speed, reliability or automatic SSD/HDD caching combinations. The Hot Plug and Hot Swap functionality allows drives to be swapped during operation without having to shut down the system.
The M.2 SSD is powered directly via the M.2 slot, while the SATA ports are connected via external cables. LED indicators show the operating status of the ports, and support for Port Multiplier technology allows multiple drives to operate simultaneously on a single SATA port.
Technical data:
Bus type & interface: M.2 PCIe x2 interface (dual-thread, B, M and B+M key)
Controller/chipset: Marvell 88SE9230
Connection – interfaces:1 x M.2 slot (Key B+M) for one M.2 SATA SSD
4 x SATA GEN III ports (6 Gb/s per port)
4 x 7-pin SATA connectors for the connection with M.2 SATA/mSATA SSDs to the mainboard
Compatible modules:M.2 SSDs (Key B, Key M or Key B+M) in the sizes 2230, 2242, 2260, 2280
mSATA SSDs (half or full size)
Data rates:SATA ports: Up to 6 Gb/s per channel
M.2 interface: Up to 10 Gb/s total throughput (via 2x PCIe lanes)
Dimensions: 30 mm x 42 mm (M.2 board)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Hot Plug & Hot Swap for drive replacement during operation
Native Command Queue (NCQ) for optimized data processing
Port Multiplier support for multiple drives per SATA port
RAID modes: RAID 0 (striping), RAID 1 (mirroring), RAID 10 (stripe of mirrors), HyperDuo (automatic SSD/HDD caching)
Automatic detection of the lane configuration during boot
Onboard LED indicators to display the port activities
Power supply for the M.2 SSD is provided directly via the M.2 slot
SATA ports must be connected via external cables
No additional driver required
System requirements: Hardware:
PC with at least one free M.2 slot (B, M or B+M that supports PCIe)
Mainboard with free SATA ports for data transfer
One available PCIe connector for the installation of the adapter
Operating system support:
Windows: 11, 10, 8, 7, Vista, XP
Windows Server: 2003, 2008
Linux: from kernel 2.6
Scope of delivery:
1 x InLine® interface card M.2 Key B+M to 4x SATA connector, RAID, HyperDuo

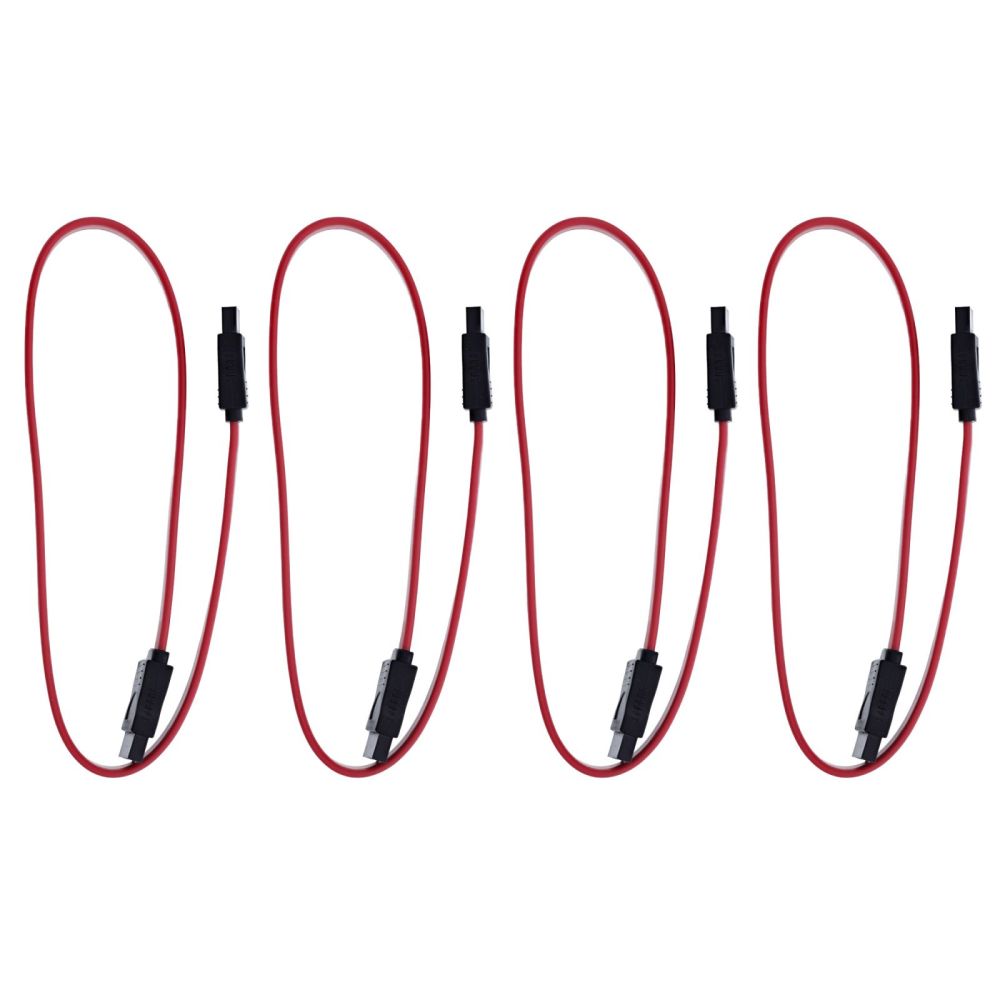

4 x SATA cable
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Hot-swap
Hot-Plug support
Features
Chipset	Marvell 88SE9230
Data transfer rate (max)	6 Gbit/s
RAID levels	0, 1, 10
Native Command Queuing (NCQ)
Other features
Dimensions (WxDxH)	42 x 1.09 x 30 mm
Packaging data
Cables included	SATA
Package width	140 mm
Package depth	33 mm
Package height	155 mm
Package weight	58 g
Package type	Hanging box
Manual
Ports & interfaces
Host interface	M.2
Host interface gender	Male
Output interface	SATA
SATA revision	3.0
NVMe
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2003, Windows Server 2008
Technical data
Article width	3.00cm
Article height	1.10cm
Article length	4.20cm
Height packaging	0.155m
Connections external	None
Number of drives	4
Net weight	0.058kg
Transmission rate	6Gb/s
Type	Interface card
RAID	0/1/10/HyperDuo
Length packaging	0.033m
Connections internal	1x M.2 + 4x SATA 6Gb/s
Weight	0.109kg
Width packaging	0.140m
Chipset	Marvell 88SE9230
Interface	NVMe
Slot	PCIe
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	42 mm
Depth	1.09 mm
Height	30 mm
Weight	1.1 kg

---
