InLine® PCI Express card x16 to 2x M.2, 1x mSATA content_copy

Multifunctional PCIe card for expanding the internal memory with M.2 NVMe, M.2 SATA and mSATA
PCIe 3.0 x16 interface for maximum compatibility and speed
M.2 Key B supports both SATA and NVMe SSD in SATA mode (up to 6 Gb/s)
M.2 Key M supports NVMe SSDs in PCIe mode with up to 4 Gb/s
mSATA connection for additional storage space (SATA cable required)
Onboard LED indicators to display the operating status of all interfaces

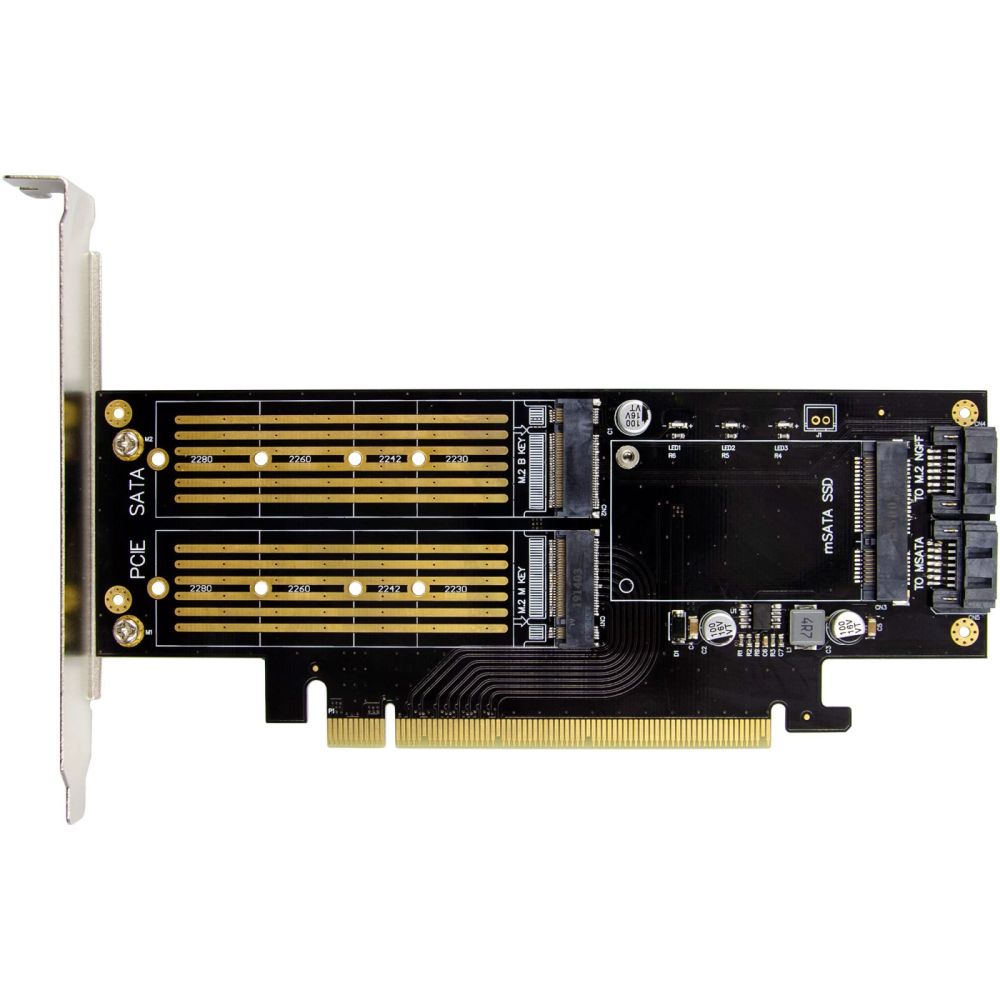

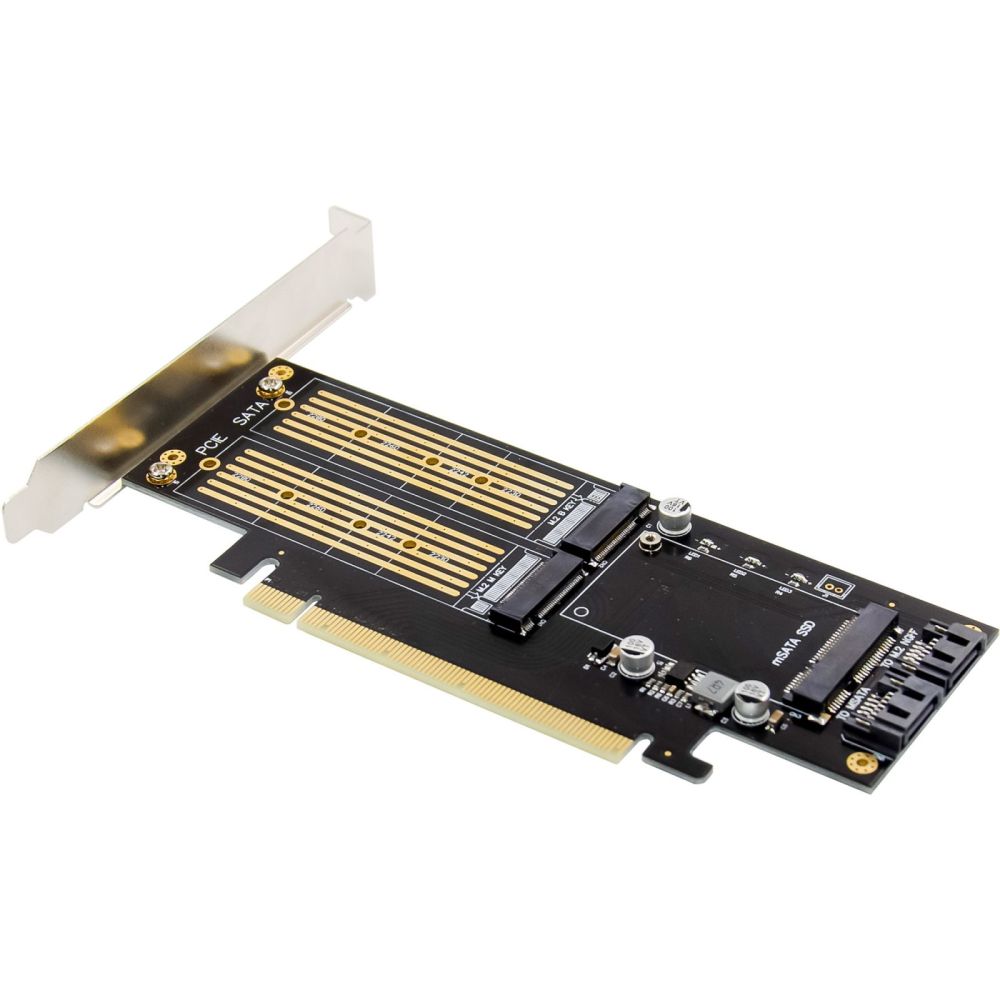

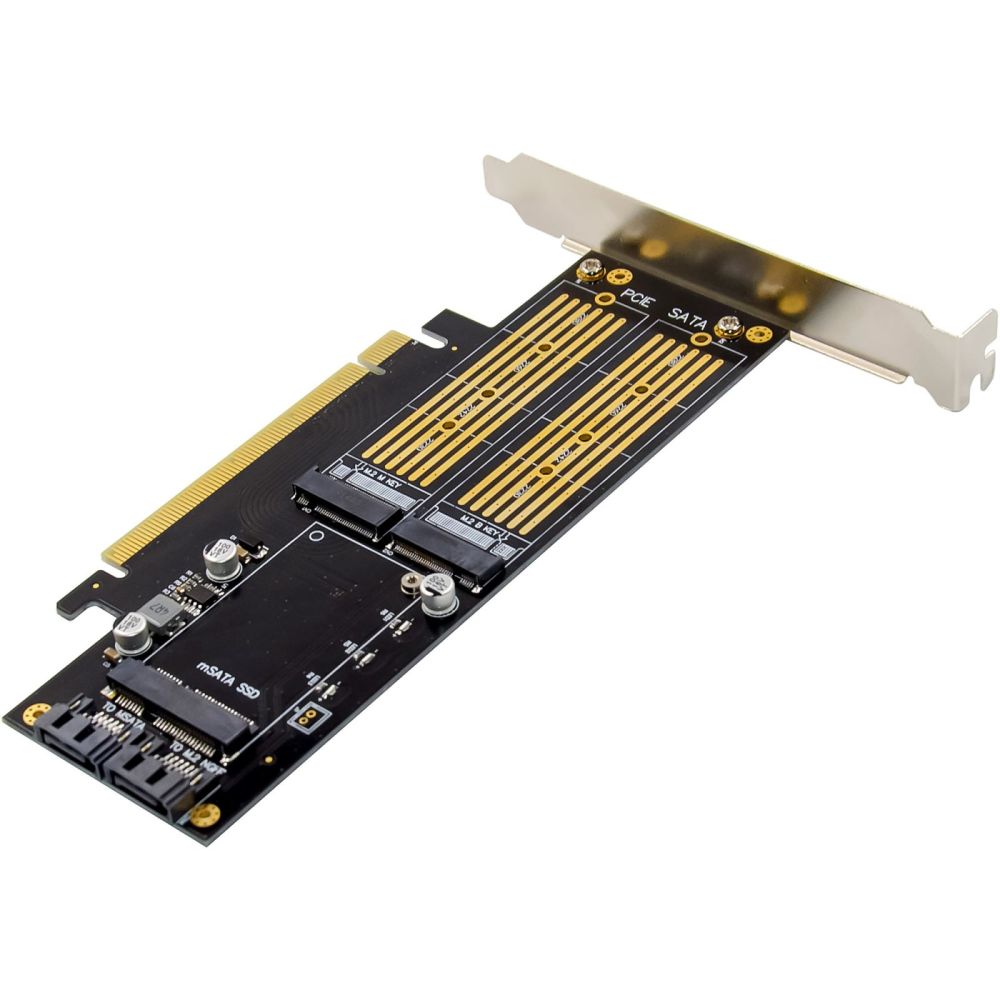

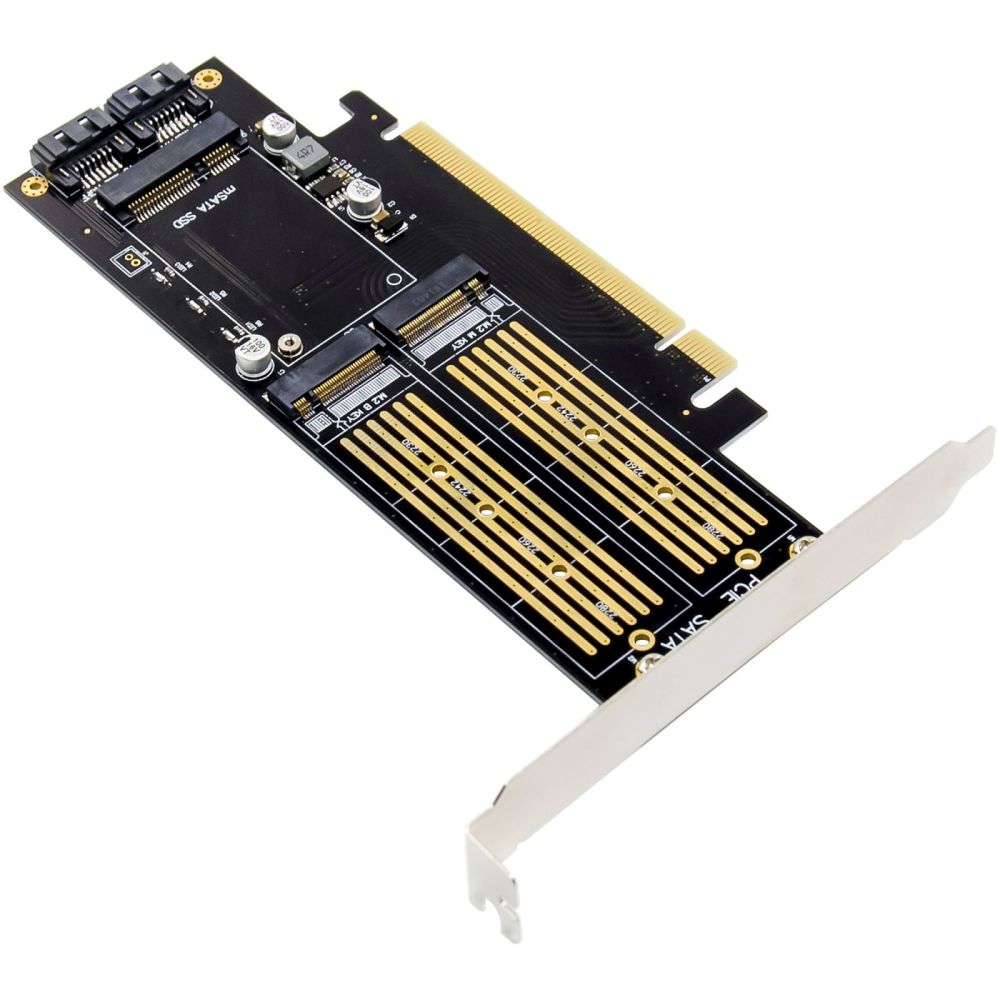

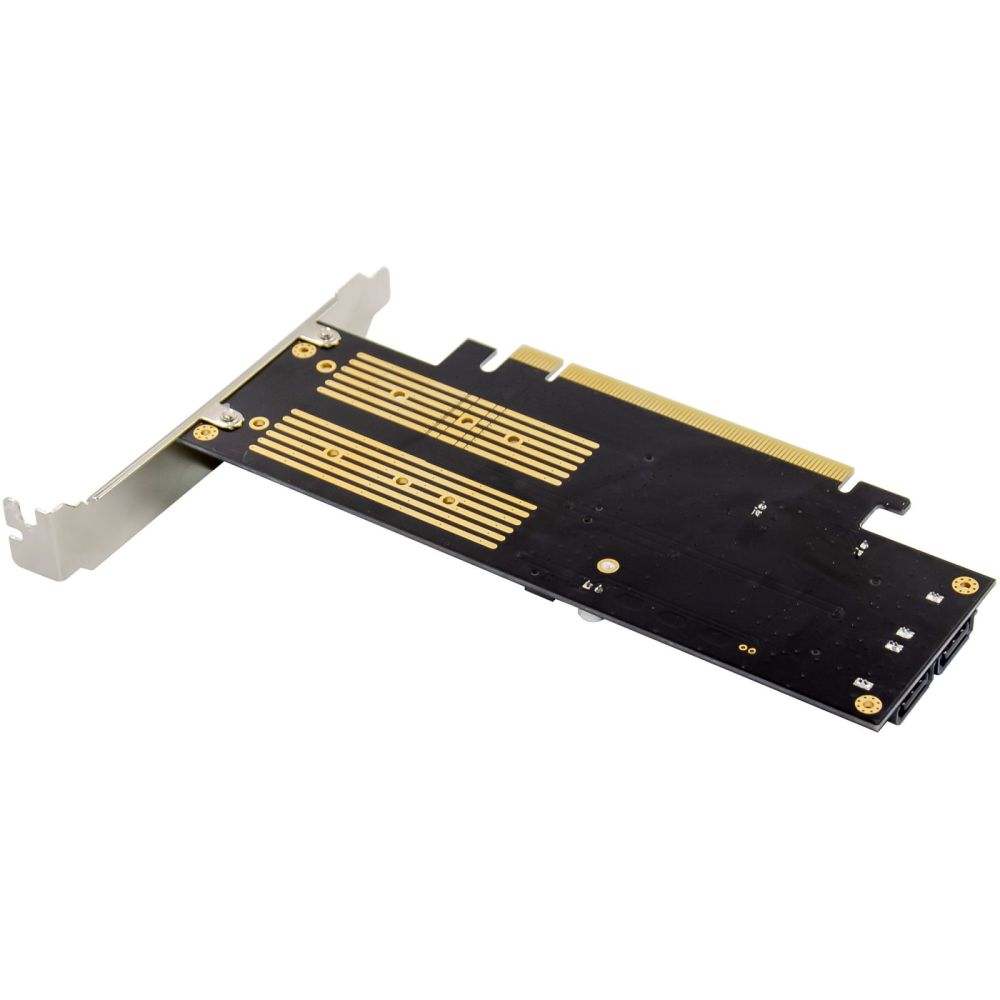

The InLine® PCI Express card enables the simultaneous use of three different SSD types on a single PCIe card. With one M.2 NVMe Key M slot, one M.2 SATA/NVMe Key B slot and one mSATA slot, it offers a versatile storage solution for systems that require high performance and maximum flexibility.
The M.2 Key B Slot supports M.2 SATA SSDs and NVMe SSDs in SATA mode, while the M.2 Key M slot is intended exclusively for NVMe SSDs in PCIe mode. The mSATA slot is connected to the mainboard via a SATA cable and thus enables additional storage space.
The NVMe SSD is powered directly via the PCIe bus (3.3 V), while M.2 SATA and mSATA SSDs are connected to the mainboard via separate SATA connectors. LED indicators for all interfaces make it easier to monitor operating activity.
Technical data:
Bus type & PCIe: PCIe 3.0 x16 (uses one PCIe x16 slot; ultra-fast PCIe v3.0 lanes, which enable the operation of NVMe and SATA)
Connection – interfaces:1 x M.2 slot (Key B) – for NVMe (SATA mode) and M.2 SATA SSDs
1 x M.2 slot (Key M) – for NVMe SSDs in PCIe mode
1 x mSATA slot – for mSATA modules
2 x SATA 6 Gb/s 7-pin connectors – for connecting mSATA and M.2 SATA modules to the motherboard
Dimensions: 169 mm x 68 mm (PCIe board)
Compatible modules:M.2 SSDs (Key B, Key M or B+M) in the sizes 2230, 2242, 2260, 2280
mSATA SSDs (half or full size)
Data rate:M.2 NVMe (Key M and Key B+M): up to 4 Gb/s
M.2 SATA (Key B) & mSATA: up to 6 Gb/s (via SATA)
Operating conditions:
Operating temperature: -40 °C to +85 °C
Functions:
Automatic detection of the lane configuration at boot
Onboard LED indicators (3x status display for each interface)
NVMe SSDs (Key M) receive their power supply directly via the PCIe bus (3.3 V)
M.2 SATA and mSATA modules require a SATA data connection to the mainboard
No additional driver required
System requirements: Hardware:
PC with one free PCIe 3.0 x16 slot
Motherboard with support for PCIe NVMe & SATA
Operating system support:
Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: from kernel 2.6.30

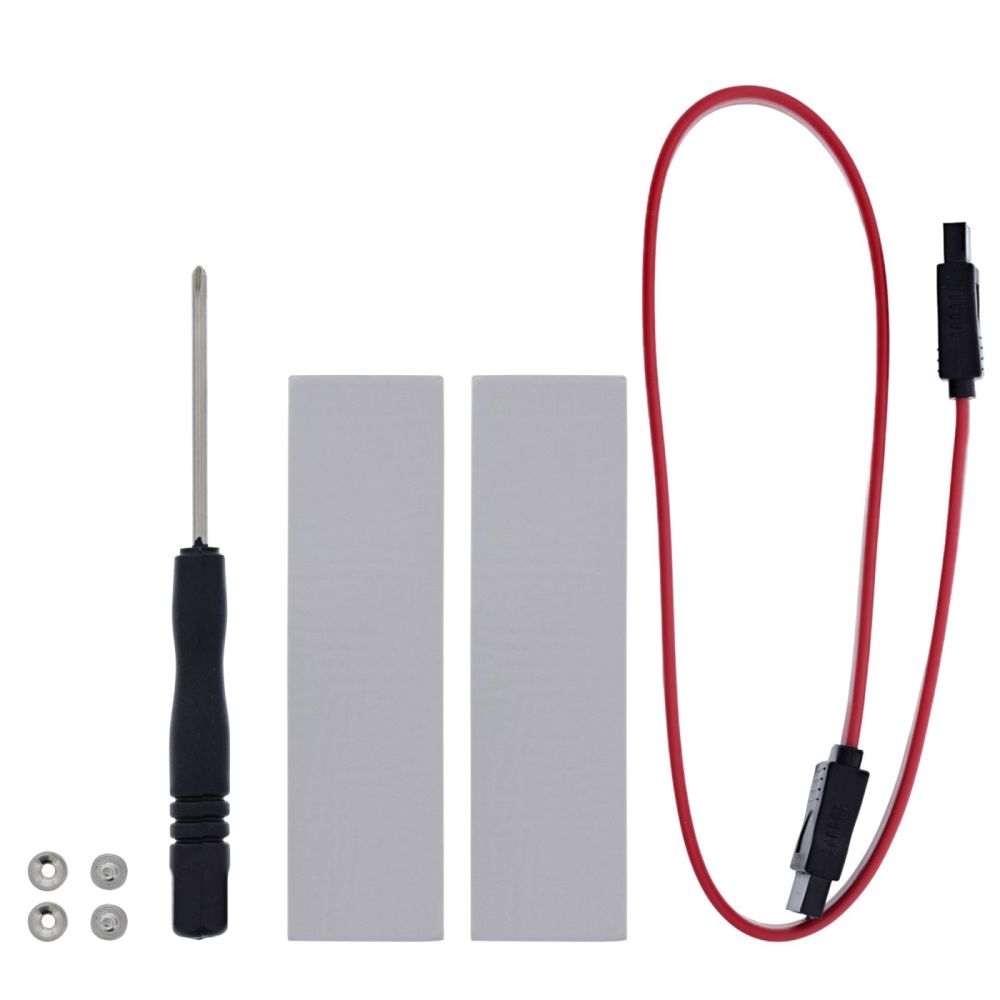

Scope of delivery:
1 x InLine® PCI Express card x16 to 2x M.2, 1x mSATA

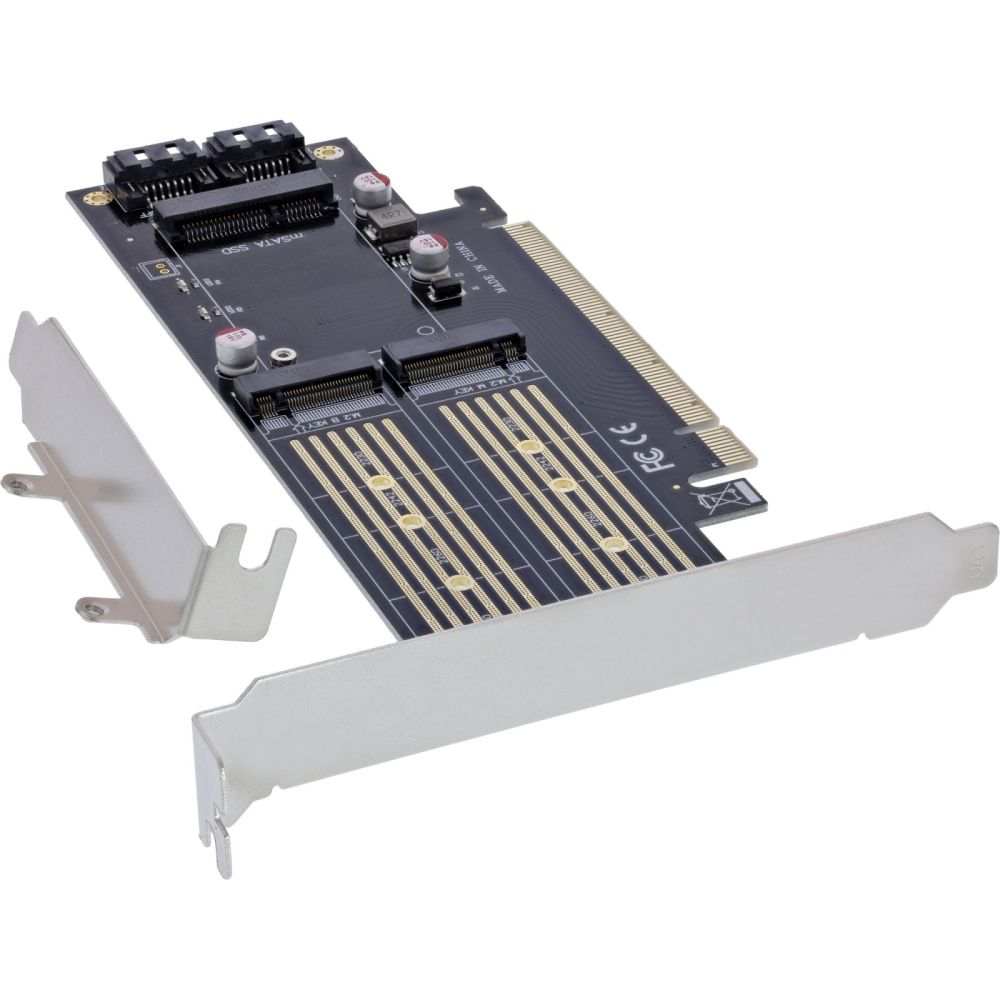

1 x low-profile slot bracket
1 x SATA cable
1 x hand screwdriver
4 x screws
2 x heat conduction pads
1 x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	170 x 1.64 x 120 mm
Packaging data
Package width	220 mm
Package depth	30 mm
Package height	160 mm
Package weight	71 g
Package type	Box
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2, mSATA
Number of M.2 (M) slots	1
Number of M.2 (B) slots	1
NVMe
Power
Power supply input voltage	3.3 V
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2012 R2
Technical data
Article height	1.90cm
Width packaging	0.220m
Slot	PCIe
Net weight	0.071kg
Length packaging	0.030m
Connections internal	2x M.2-NVMe-SSD + 1x mSATA
Article width	12.00cm
Article length	17.00cm
Height packaging	0.160m
Weight	0.164kg
Interface	NVMe
Transmission rate	6Gb/s
Type	Controller
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	170 mm
Depth	1.64 mm
Height	120 mm
Weight	1.9 kg

---
