InLine® PCI Express card to 1x internal NVMe M.2 Key M, PCIe x1 content_copy

Supports an NVMe SSD (M.2 Key M) for compact high-performance storage solutions
PCIe 3.0 x1 interface with up to 1 Gb/s effective bandwidth
Automatic lane detection on boot for easy system integration
LED indicator for displaying read and write activities
No additional driver required – native support by Windows and Linux
The InLine® PCI Express card expands your system with an internal NVMe M.2 slot, which enables the connection of an M.2 SSD (Key M). Thanks to the PCIe 3.0 x1 interface with up to 1 Gb/s transfer rate, the card is ideal for systems that require additional fast storage space.
The automatic lane detection during boot ensures optimal integration into the system. The M.2 SSD is powered directly via the PCIe bus (3.3 V), and an LED indicator provides information about the current operating and activity status.
Technical data:
Bus type & PCIe: PCIe 3.0 x1 (operational in x1, x4, x8 and x16 slots)
Connection – interfaces:

• 1 x M.2 slot (Key M) for NVMe SSDs
• Supported module sizes: 2230, 2242, 2260, 2280
Dimension: 95 mm x 52 mm (PCIe board)
Data rate: Maximum approx. 1 Gb/s
Operating conditions:
Operating temperature: -40 °C to +85 °C
Features:
Automatic detection of the lane configuration during booting
Onboard LED indicator (1x read/write activity LED)
The M.2 NVMe SSD draws its power supply directly from the PCIe bus (3.3 V)
No additional driver required
System requirements:
Hardware:
PC with one free PCIe slot (x1, x4, x8 or x16)
Motherboard that supports PCIe 3.0 or higher
Operating system support:
Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
1 x InLine® PCI Express card to 1x internal NVMe M.2

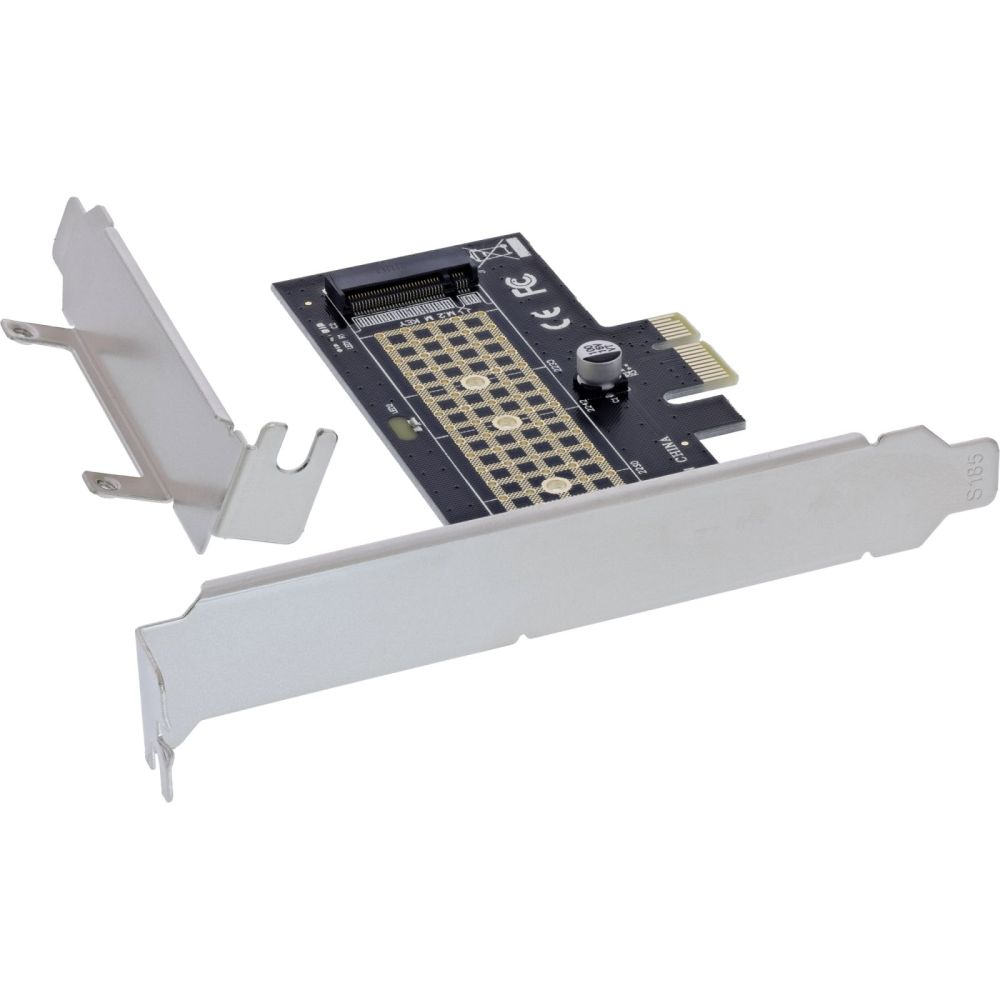

1 x low-profile slot bracket
1 x hand screwdriver
2 x screws

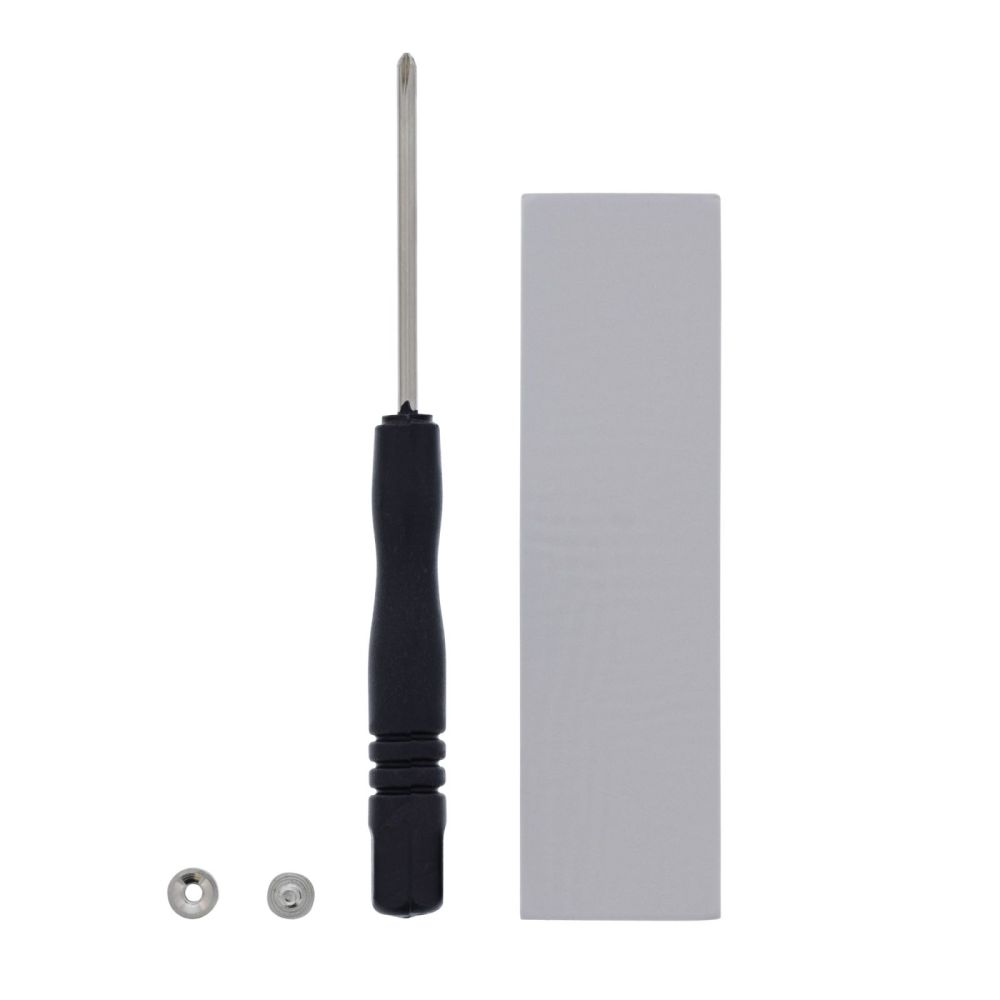

1 x heat conduction pad
1 x instruction manual (German/English)



Design
Country of origin	Taiwan
Internal
LED indicators
Features
Data transfer rate (max)	1 Gbit/s
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Other features
Dimensions (WxDxH)	115 x 0.97 x 120 mm
Packaging data
Package width	140 mm
Package depth	30 mm
Package height	155 mm
Package weight	30 g
Package type	Hanging box
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	M.2
Expansion card standard	PCIe 3.0
Number of M.2 (M) slots	1
NVMe
Power
Power supply input voltage	3.3 V
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 8, Windows 8.1
Server operating systems supported	Windows Server 2012 R2
Linux operating systems supported
Technical data
Transmission rate	1Gb/s
Article width	12.00cm
Weight	0.097kg
Net weight	0.030kg
Type	Controller
Width packaging	0.140m
Article length	11.50cm
Slot	PCIe
Length packaging	0.030m
Article height	2.10cm
Connections internal	M.2-NVMe-SSD
Height packaging	0.155m
Interface	NVMe
Connections external	None
Low Profile
Technical details
Compliance certificates	TÜV mark, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	115 mm
Depth	0.97 mm
Height	120 mm
Weight	2.1 kg

---
